GE GTS16DTHPRWW Refrigerator

Model: GTS16DTHPRWW

Save Part Not Listed?
product name

DOORS

...
...
1
PM MINI MANUAL AND WIRING GEH-31-1000309
...
7
HANDLE PLASTIC WHITE GEH-WR12X27039
...
19
SHELF FIXED FZ GEH-WR71X21149
...
23
FREEZER DOOR GASKET WHITE GEH-WR14X29358
...
26
FREEZER DOOR STOP WHITE GEH-WR02X28287
...
27
REFRIGERATOR DOOR STOP WHITE GEH-WR02X28283
...
104
REFRIGERATOR DOOR GASKET WHITE GEH-WR14X29374
...
106
REFRIGERATOR DAIRY DOOR GEH-WR22X28070
...
108
SHELF FIXED FF GEH-WR17X21154
...
112
PLUG DOOR RVSBL GEH-WR01X21159
...
114
FASTENER DOOR HANDLE GEH-WR01X21158
...
712
BADGE ASM GE GEH-WR02X25820
...
900
DOOR FOAM ASM FZ GEH-WR78X21146
...
910
DOOR FOAM ASM FF GEH-WR78X21213
...
920
PLUG BTN WHT GEH-WR2X8233
...
1000
SCR 10-16 AB TRP 3/4 NBS GEH-WR01X21151

FREEZER SECTION

...
...
5
DEFROST HEATER AND HARNESS GEH-WR55X31113
...
6
FOAM AIR ACTUATOR GEH-WR02X31303
...
201
EVAPORATOR COVER GEH-WR17X29344
...
214
PLUG BUTTON GEH-WR02X11760
...
225
SHELF WIRE FZ GEH-WR71X21169
...
296
ICEMAKER RECEPTACLE COVER GEH-WR82X31109
...
600
THERMAL FUSE CLIP GEH-WR02X31289
...
607
EVAPORATOR FAN REAR BRACKET GEH-WR02X28727
...
610
EVAPORATOR FAN MOTOR GEH-WR60X28783
...
613
BLADE EVAP FAN ASM GEH-WR60X10204
...
614
BUMPER GEH-WR02X10540
...
617
GROMMET EVAP FAN GEH-WR02X12008
...
621
EVAPORATOR CLIP GEH-WR02X31293
...
622
TROUGH DRAIN GEH-WR17X21167
...
645
AIR TOWER GEH-WR17X29345
...
685
SCREW 8-18 AB HXW 1/2 S GEH-WR02X29370
...
687
SCR 8-15 AB IHXW 1/2 S GEH-WR01X10589
...
753
EVAPORATOR FAN FRONT BRACKET GEH-WR02X28726
...
758
SCR 8-32 TT HXW 3/8 S GEH-WR01X10860

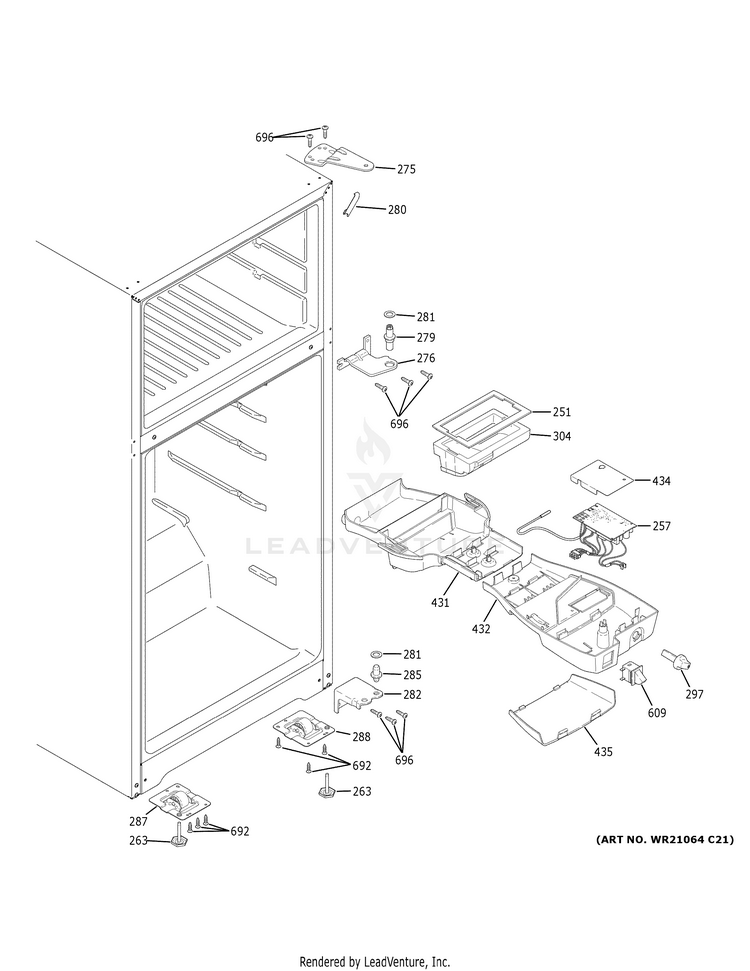

FRESH FOOD SECTION

...
...
251
GASKET SUPPLY FOAM GEH-WR02X30845
...
257
CONTROL BOARD GEH-WR55X31087
...
263
SLIDER ADJ GEH-WR2X7877
...
275
HINGE TOP AND PIN ASM GEH-WR13X27091
...
276
HINGE CENTER GEH-WR13X21174
...
279
PIN HINGE CTR GEH-WR02X21173
...
280
CAP CORNER OC WHITE GEH-WR02X10703
...
281
WASHER HINGE BROWN GEH-WR01X10146
...
282
HINGE BOTTOM GEH-WR13X21175
...
285
PIN HINGE BOTTOM GEH-WR02X27092
...
287
MOBILITY ASM FRONT LH GEH-WR02X21258
...
288
MOBILITY ASM FRONT RH GEH-WR02X21259
...
297
CONTROL KNOB GEH-WR02X31291
...
304
FOAM SUPPLY NOZZLE GEH-WR02X31112
...
431
REAR CONTROL HOUSING GEH-WR02X31299
...
432
FRONT CONTROL HOUSING GEH-WR02X31298
...
434
CONTROL SHIELD GEH-WR02X31093
...
435
LED COVER GEH-WR02X31294
...
609
REFRIGERATOR DOOR LIGHT SWITCH GEH-WR23X31507
...
692
SCR 8-32 CA HXW 1/2 NS GEH-WR01X23006
...
696
SCR 12-24 TT PNPSD .785 GEH-WR01X26527

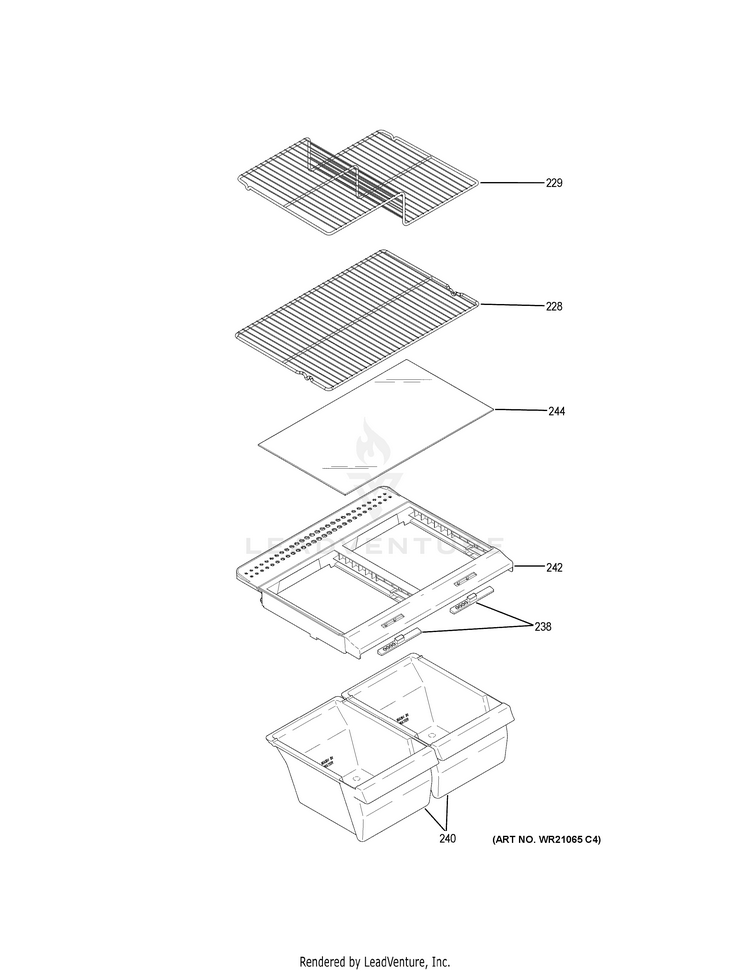

FRESH FOOD SHELVES

...
...
228
SHELF WIRE FF GEH-WR71X21181
...
229
SHELF WIRE Z FF GEH-WR71X21212
...
238
SLIDE HUMIDITY VEG PAN GEH-WR17X21210
...
240
REFRIGERATOR VEGETABLE BIN GEH-WR32X28069
...
242
COVER PAN VEG GEH-WR32X21261
...
244
SHELF GLASS GEH-WR32X21260

ICE MAKER

...
...
8
SCR 8-18 AB HXW 3/4 GEH-WZ04X0416
...
260
WR2X9161 GEH-WR2X9224
...
262
GASKET DONUT GEH-WR02X25425
...
352
BUCKET ICE GEH-WR30X21245
...
800
VALVE AND TUBE ASM GEH-WR57X21246
...
802
CLIP U GEH-WR01X10182
...
805
STR RELIEF GEH-WR02X3736
...
806
TUBE PLASTIC GEH-WR17X11492
...
807
CLAMP GEH-WR02X11437
...
808
ADHESIVE CLIP GEH-WR02X4039
...
820
ICEMAKER REPLACEMENT KIT GEH-WR30X30972
...
865
STRIPPER IM GEH-WR29X10083
...
867
CUP FILL IM GEH-WR29X10046

MACHINE COMPARTMENT

...
...
4
STRAP COND ASM GEH-WR01X27406
...
151
SCR 10-16 AB 43WHEX 5/8 GEH-WD02X10151
...
267
REAR ACCESS COVER 16 17 18 GEH-WR82X31139
...
626
MACHINE COMPARTMENT HARNESS AND POWER CO GEH-WR55X31301
...
651
BLADE COND FAN ASM GEH-WR60X10207
...
676
SCR 10-16 AB HXW 1/2 GEH-WZ04X0263
...
700
WATER DIVERTER GEH-WR29X31127
...
735
OL PTCR COMBO GEH-WR55X31297
...
736
COMPRESSOR MOUNTING CLIP GEH-WR02X28781
...
737
GROMMET GEH-WR02X22869
...
738
RETAINER CLIP GEH-WR02X31302
...
746
BASEPLATE AND STUD ASSEMBLY GEH-WR17X30073
...
756
FAN HOUSING ASM GEH-WR17X21162
...
909
SUPPORT CONDENSER GEH-WR02X21166
...
935
BAFFLE CONDENSER GEH-WR17X21164
