GE GTE18IGHDRWW Refrigerator

Model: GTE18IGHDRWW

Save Part Not Listed?
product name

DOORS

...
...
7
HANDLE PLASTIC ASM WHITE GEH-WR12X21157
...
19
SHELF FRONT FULL FZ GEH-WR71X10681
...
23
GASKET DOOR FZ GEH-WR24X10187
...
26
STOP DOOR GEH-WR02X21150
...
27
STOP DOOR GEH-WR02X21152
...
104
GASKET DOOR FF GEH-WR24X10186
...
106
DOOR DAIRY CLEAR GEH-WR22X10024
...
108
BIN FIXED RAINGUTTER GAL GEH-WR71X10525
...
111
SHELF FRONT HALF FF GEH-WR71X10682
...
112
PLUG DOOR RVSBL GEH-WR01X21159
...
114
FASTENER DOOR HANDLE GEH-WR01X21158
...
712
BADGE ASM GE GEH-WR02X21156
...
900
DOOR FOAM ASM FZ GLOSS W GEH-WR78X23026
...
910
DOOR FOAM ASM FF GLOSS W GEH-WR78X23025
...
920
PLUG BTN WHT GEH-WR2X8233
...
1000
SCR 10-16 AB TRP 3/4 NBS GEH-WR01X21151

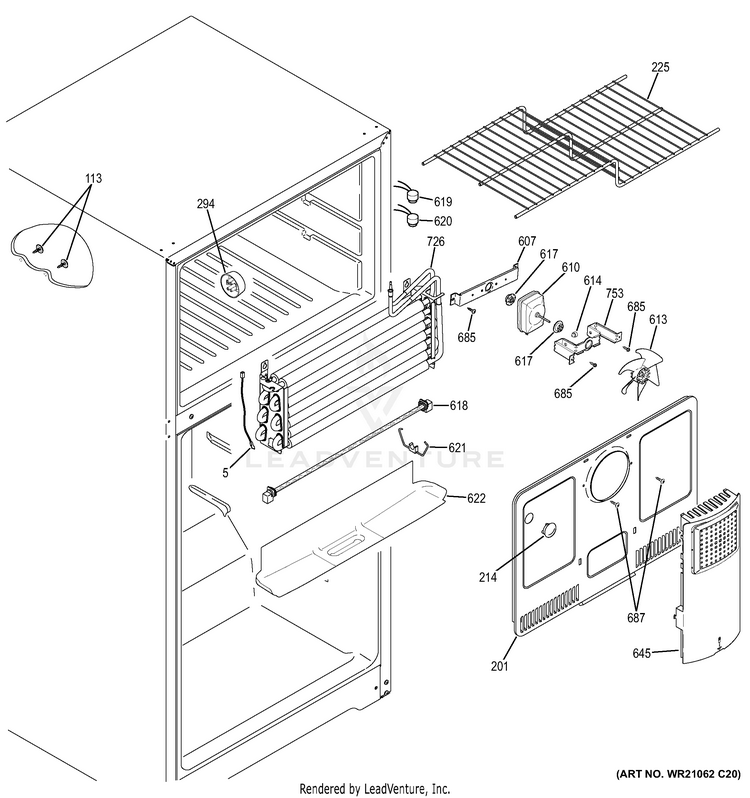

FREEZER SECTION

...
...
5
HARNESS JUMPER FUSE GEH-WR55X25825
...
113
PLUG BUTTON IM WHITE GEH-WR01X21403
...
201
COVER EVAP ASM GEH-WR17X11641
...
214
PLUG BUTTON GEH-WR02X11760
...
225
SHELF ASM FZ GEH-WR71X10702
...
607
BRACKET EVAP FAN REAR GEH-WR21X10152
...
610
MOTOR AC/DC EVAP FAN GEH-WR60X24645
...
613
BLADE EVAP FAN ASM GEH-WR60X10205
...
614
BUMPER GEH-WR02X10540
...
617
GROMMET EVAP FAN GEH-WR02X12008
...
618
HEATER DEF ASM GEH-WR09X21107
...
619
THERMOSTAT DEF GEH-WR50X22304
...
620
THERMOSTAT DEF GEH-WR50X22303
...
621
HOLDER ELEMENT ASM GEH-WR02X13678
...
622
TROUGH DRAIN GEH-WR17X10866
...
645
TOWER BOTTOM FZ GEH-WR17X11521
...
685
SCR 8-18 AB HXW 3/4 WH GEH-WR01X1804
...
726
EVAP AND TUBE ASM GEH-WR87X21168
...
753
BRACKET EVAP FAN FRT GEH-WR02X10516

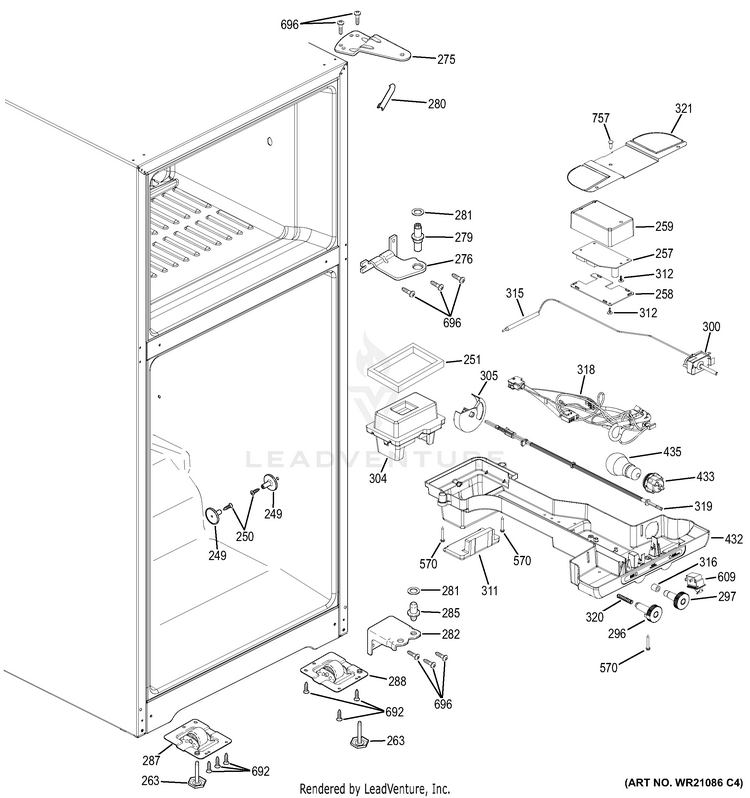

FRESH FOOD SECTION

...
...
249
SUPPORT VEG PAN GEH-WR02X11775
...
250
SCR 8-18 AB 13/4 S HXW GEH-WR01X10445
...
251
GASKET NOZZLE CONTROL FF GEH-WR14X10292
...
257
CONTROL DEFROST MODULE GEH-WR55X21623
...
258
ENCLOSURE EDC BOTTOM GEH-WR09X10125
...
259
ENCLOSURE EDC TOP GEH-WR09X10126
...
259
TRIM REAR GLASS SHELF GEH-WR38X10223
...
263
GLIDER ADJ GEH-WR02X22912
...
275
HINGE TOP AND PIN ASM GEH-WR13X21172
...
276
HINGE CENTER GEH-WR13X21174
...
279
PIN HINGE CTR GEH-WR02X21173
...
280
CAP CORNER OC WHITE GEH-WR02X10703
...
281
WASHER HINGE BROWN GEH-WR01X10146
...
282
HINGE BOTTOM GEH-WR13X21175
...
285
METAL HINGE PIN GEH-WR02X12238
...
287
LH MOBILITY ASM FRONT GEH-WR02X26157
...
288
RH MOBILITY ASM FRONT GEH-WR02X26158
...
296
COVER IM RECEPTACLE GEH-WR02X11123
...
296
KNOB THUMB CONTROL FZ GEH-WR02X11861
...
297
KNOB THUMB CONTROL FF GEH-WR02X11860
...
300
CONTROL TEMP GEH-WR09X20003
...
304
NOZZLE CONTROL FOAM GEH-WR02X13779
...
305
WHEEL DAMPER GEH-WR02X11583
...
311
BLOCK FOAM CONTROL GEH-WR02X10709
...
312
CLIP CANOE GEH-WR01X10149
...
315
SLEEVE VINYL GEH-WR02X11006
...
316
SPACER SHAFT TEMP CTRL GEH-WR02X11632
...
318
HARNESS CNTRL MODULE GEH-WR55X23023
...
319
SHAFT DAMPER GEH-WR02X10727
...
320
SPRING KNOB GEH-WR01X20124
...
321
SHIELD REFLECTOR FF GEH-WR02X11858
...
432
HOUSING CONTROL GEH-WR02X23024
...
433
SOCKET LAMP GEH-WR02X10732
...
435
40WATT 15AMP GEH-40A15
...
570
SCR 8-18 HXW 1 1/4S GEH-WR01X1757
...
609
SWITCH LIGHT GEH-WR23X10725
...
692
SCR 8-32 CA HXW 1/2 NS GEH-WR01X23006
...
696
SCR 12-24 B UTRPS .785 S GEH-WR01X24425
...
757
FASTENER PUSH GEH-WR01X2035

FRESH FOOD SHELVES

...
...
228
TRIM FRONT GLASS SHELF GEH-WR38X10221
...
229
SHELF CANT FULL GEH-WR71X10279
...
230
SHELF CANT GLASS FULL GEH-WR32X10176
...
232
TRACK CANT SIDE GEH-WR72X10057
...
233
TRACK CANT CENTER GEH-WR72X10212
...
236
PAN SNACK GEH-WR32X10248
...
240
PAN 1/2 GEH-WR32X10846
...
242
COVER VEG PAN GEH-WR32X10537
...
244
SHELF CANT GLASS GEH-WR32X10540
...
259
TRIM REAR GLASS SHELF GEH-WR38X10223
...
259
ENCLOSURE EDC TOP GEH-WR09X10126
...
400
SHELF CANT HALF GEH-WR71X10280
...
401
SHELF CANT GLASS HALF GEH-WR32X10177
...
402
TRIM FRONT GLASS SHELF GEH-WR38X10222
...
403
TRIM REAR GLASS SHELF GEH-WR38X10224
...
472
SLIDE SNACK PAN GEH-WR72X10086
...
473
SLIDE SNACK PAN LH GEH-WR72X10055
...
525
SCR 8-18 T WAFER 5/8 GEH-WR01X1763
...
570
SCR 8-18 HXW 1 1/4S GEH-WR01X1757
...
685
SCR 8-18 AB HXW 3/4 WH GEH-WR01X1804

ICE MAKER

...
...
8
SCR 8-18 AB HXW 3/4 GEH-WZ04X0416
...
260
WR2X9161 GEH-WR2X9224
...
262
GASKET DONUT GEH-WR02X9223
...
352
BUCKET ICE GEH-WR30X21245
...
800
VALVE AND TUBE ASM GEH-WR57X21246
...
802
CLIP U GEH-WR01X10182
...
805
STR RELIEF GEH-WR02X3736
...
806
TUBE PLASTIC GEH-WR17X11492
...
807
CLAMP GEH-WR02X11437
...
808
ADHESIVE CLIP GEH-WR02X4039
...
820
KIT RPLCMT WR30X10093 GEH-WR30X10093
...
821
COVER ICEMAKER GEH-WR29X10084
...
865
STRIPPER IM GEH-WR29X10083
...
867
CUP FILL IM GEH-WR29X10046

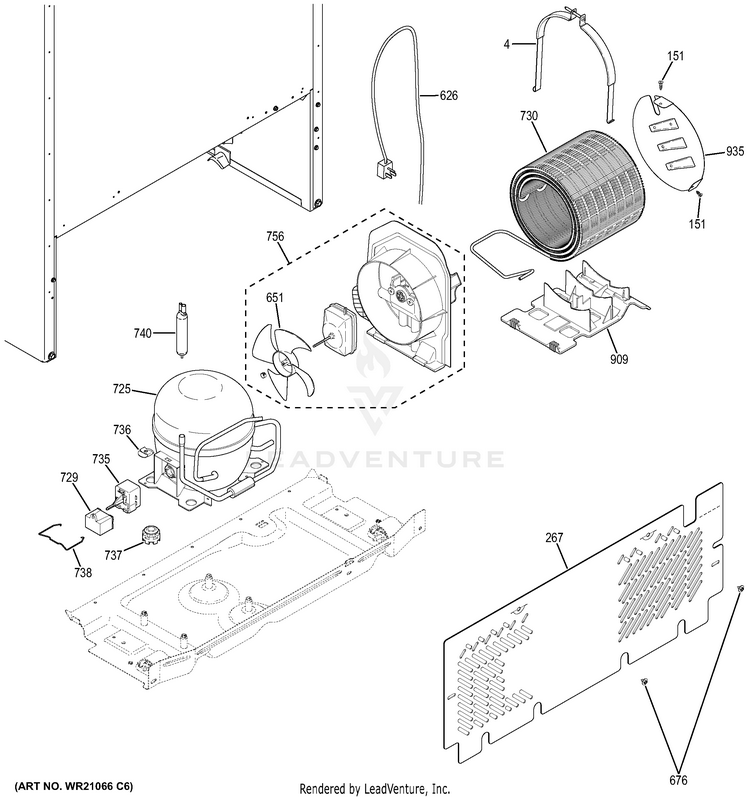

MACHINE COMPARTMENT

...
...
4
STRAP COND ASM GEH-WR01X25823
...
151
SCR 10-16 AB 43WHEX 5/8 GEH-WD02X10151
...
267
COVER ACCESS GEH-WR82X23004
...
626
HARNESS MACH ASM GEH-WR55X26144
...
651
BLADE COND FAN ASM GEH-WR60X10207
...
676
SCR 10-16 AB HXW 1/2 GEH-WZ04X0263
...
725
COMPRESSOR MEIZHI GEH-WR87X26155
...
729
CAPACITOR 12 UF GEH-WR55X23731
...
730
CONDENSER FORMED ASM GEH-WR84X26154
...
735
OVERLOAD PTCR COMBO GEH-WR08X25466
...
736
CLIP COMPRESSOR MOUNT GEH-WR02X8203
...
737
GROMMET GEH-WR02X22869
...
738
CLIP RETAINER MEI GEH-WR02X26153
...
740
DRYER GEH-WR86X21265
...
756
FAN HOUSING ASM GEH-WR17X21162
...
909
SUPPORT CONDENSER GEH-WR02X21166
...
935
BAFFLE CONDENSER GEH-WR17X21164
