GE GTDX180ED0WW Electric Dryer

Model: GTDX180ED0WW

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

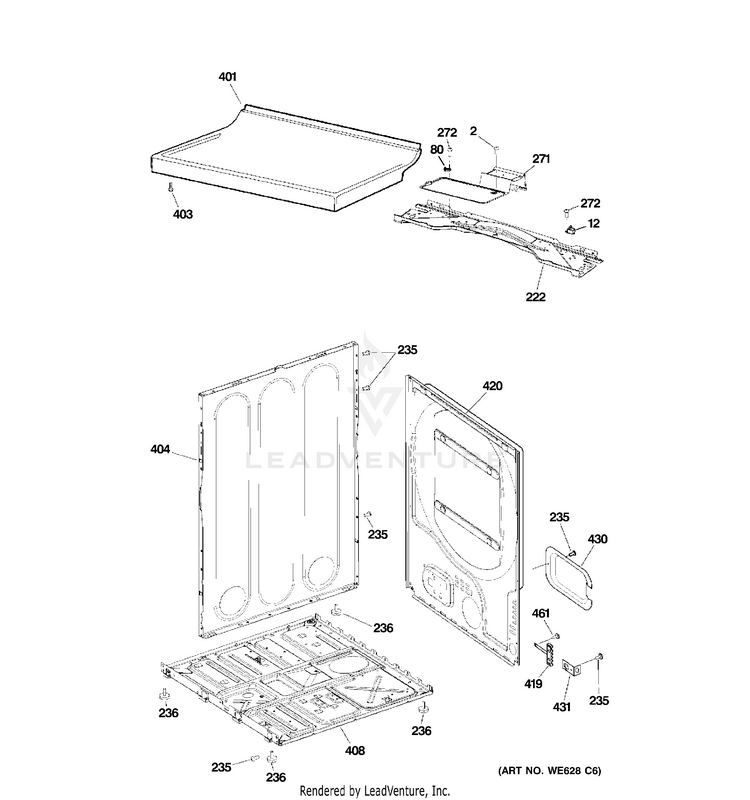

CABINET & TOP PANEL

...
...
2
SCREW 8-18X7 16 GEH-WE02X20422
...
12
BUZZER GEH-WE4M318
...
80
RESISTOR GEH-WE4M255
...
222
BOTTOM COVER (E-COAT) GEH-WE20M494
...
235
SCR 10-16 X 1/2 AB GEH-WE2M307
...
236
LEVELLING LEG-1PC PLASTI GEH-WE1M771
...
271
BOTTOM COVER HEAT SHIELD GEH-WE1M892
...
272
SCR 8-15 X 7/16 AB GEH-WE2M308
...
401
COVER WH GEH-WE20M286
...
403
SCREW #8 GEH-WE2M160
...
404
SIDE PANEL WW GEH-WE20M478
...
408
CHASSIS BASE GEH-WE20M492
...
419
TERM BLK & GRND STRAP GEH-WE4M325
...
420
REAR PANEL (6 C. F.) GEH-WE20M477
...
430
T-BLOCK COVER GEH-WE1M458
...
431
STRAIN RELIEF BRACKET GEH-WE1M457
...
461
SCREW GROUND GEH-WZ5X158
