GE GTDS560EF3WS Electric Dryer

Model: GTDS560EF3WS

Save Part Not Listed?
product name

BACKSPLASH, BLOWER & MOTOR ASSEMBLY

...
...
1
USE & CARE GEH-49-90508
...
1
PM INSTALL INSTRUCTIONS GEH-31-16719
...
1
PM WIRING DIAGRAM GEH-31-16333
...
3
END CAP RH GEH-WE19X20466
...
4
END CAP LH GEH-WE19X20467
...
13
BACKSPLASH GEH-WE19M1777
...
19
KNOB ASM GEH-WH01X10645
...
23
BOARD ASM. MOUNTED GEH-WE4M551
...
36
HARNESS JUMPER GEH-WE5M104
...
72
PANEL BACK GEH-WE19M1481
...
75
SCREW GEH-WE2M173
...
149
SCREW 8-18 HI/LO 5/8 GEH-WR01X10196
...
201
BLOWER WHEEL GEH-WE16X20393
...
203
STRAP MOTOR GEH-WE13X200
...
204
STRAP MOTOR GEH-WE1X921
...
205
MOTOR SUPPORT GEH-WE13M39
...
213
BELT DRIVE GEH-WE12X21574
...
215
IDLER ARM GEH-WE03X20434
...
216
IDLER PULLEY GEH-WE12X20395
...
218
BLOWER GASKET (EXHAUST) GEH-WE1M966
...
219
BLOWER HOUSING ASM GEH-WE14X20558
...
223
SCREWS GEH-WE2M189
...
228
EXHAUST DUCT GEH-WE14X20421
...
230
T-STAT , OUTLET BKUP ORG GEH-WE4M300
...
231
SCREW GEH-WE2M200
...
232
SCREW GEH-WE2M202
...
233
MOTOR PLATE GEH-WE13X20394
...
234
CAP NUT GEH-WE2M96
...
235
SCR 10-16 X 1/2 AB GEH-WE2M307
...
237
SCREW GEH-WE2M154
...
239
SCREWS GEH-WE2M167
...
240
SCREW GEH-WE1M280
...
241
OUTLET CNTRL THERMISTOR GEH-WE4M391
...
461
SCREW 8-32X3/8 GRD SCR GEH-WZ05X0158
...
502
SCREW # 10 GEH-WE2M174
...
630
MOTOR GEH-WE17M66
...
631
CONNECTOR MOTOR GEH-WE1M650
...
803
SWITCH INTERLOCK GEH-WD21X557
...
2222
HARNESS ELECT ASM GEH-WE15X20474

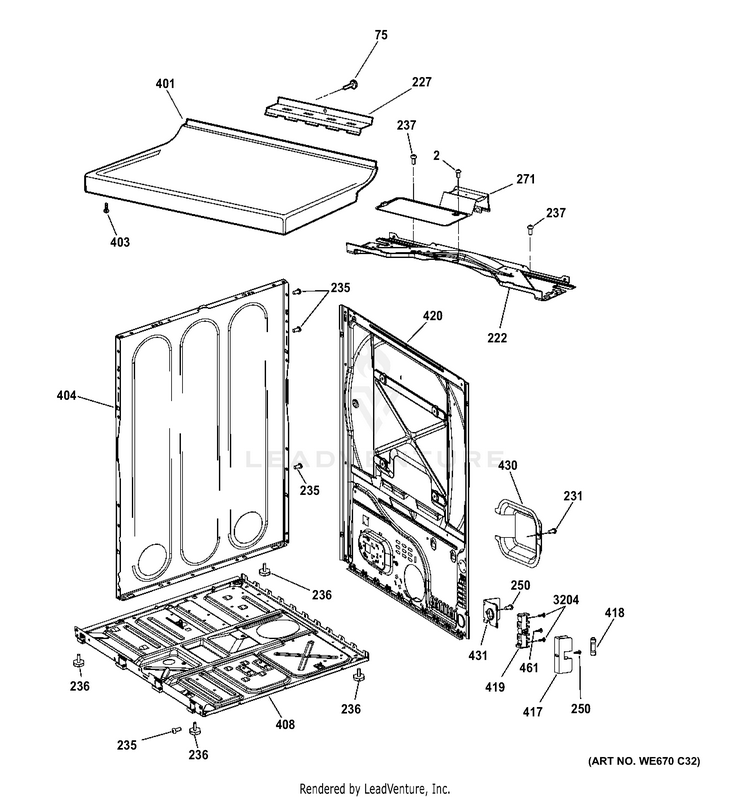

CABINET & TOP PANEL

...
...
2
SCREW 8-18X7 16 GEH-WE02X20422
...
75
SCREW GEH-WE2M173
...
222
BOTTOM COVER GEH-WE20X20412
...
227
REAR HEAT SHEILD GEH-WE1M723
...
231
SCREW GEH-WE2M200
...
235
SCR 10-16 X 1/2 AB GEH-WE2M307
...
236
LEVELLING FOOT GEH-WE1M1101
...
237
SCREW GEH-WE2M154
...
271
SHIELD BOTTOM COVER GEH-WE1M1030
...
401
COVER WHITE GEH-WE20X20417
...
403
SCREW #8 GEH-WE2M160
...
404
SIDE PANEL WHITE GEH-WE20X20406
...
408
CHASSIS BASE GEH-WE20X20391
...
417
HOLDER FUSE GEH-WE1M1003
...
418
FUSE CCMR 30 AMP 120V GEH-WE1M1002
...
419
TERM BLK & GRND STRAP GEH-WE4M325
...
420
PANEL REAR GEH-WE20X20559
...
430
COVER FUSE TERMINAL GEH-WE1M1007
...
431
STRAIN RELIEF BRACKET EL GEH-WE01X20423
...
461
SCREW 8-32X3/8 GRD SCR GEH-WZ05X0158
...
3204
SCR GEH-WH2M270

DRUM

...
...
237
SCREW GEH-WE2M154
...
240
SCREW GEH-WE1M280
...
502
SCREW # 10 GEH-WE2M174
...
503
DRUM ASM GEH-WE21X20734
...
504
DIFFUSER GEH-WE14X20408
...
505
THERMOSTAT SAFETY LEFT GEH-WE4M160
...
506
INLET CONTROL THERMISTOR GEH-WE4M333
...
507
STD HIGH LMT THERMOSTAT GEH-WE4M457
...
508
SHAFT GEH-WE00X181L
...
509
BAFFLE GEH-WE14X20683
...
510
PROTECTION BRACKET GEH-WE1M780
...
512
MICA HEATER & HOUSING AS GEH-WE11X20397
...
513
HEATER HOUSING GEH-WE11X20400
...
514
MICA HEATER GEH-WE11M10001
...
515
GROUND STRAP ASM GEH-WE1M1015
...
523
INSULATED WASHER GEH-WE2M176
...
534
SCREW #10 GEH-WE2M163
...
3102
BEARING RETAINER GEH-WE1M300
...
3106
SLEEVE DRUM GEH-WE1M462
...
3127
O RING GEH-WE1M461

FRONT PANEL & DOOR

...
...
112
PLUG BUTTON WHITE GEH-WE1M934
...
237
SCREW GEH-WE2M154
...
300
LINT FILTER GEH-WE18M28
...
301
PANEL FRONT GEH-WE20X20758
...
302
FT HEAT DEFLECTION PLATE GEH-WE1M869
...
305
INNER DOOR ASM GEH-WE10X20496
...
307
OUTER DOOR WH GEH-WE10X20468
...
311
TRAP DUCT ASM GEH-WE09X22674
...
312
FELT TRAP DUCT GEH-WE09X20441
...
313
TOP BEARING GEH-WE03X20570
...
314
LAMP GEH-WE05X20431
...
316
BEARING SLIDE GEH-WE3M52
...
317
BEARING SLIDE GEH-WE3M51
...
325
GASKET (SEAL) 39 INCH GEH-WE1M825
...
327
LATCH GEH-WE1M536
...
375
SOCKET ASM GEH-WE5M48
...
380
DOOR SWITCH GEH-WE4M415
...
603
HANDLE WHITE GEH-WE01X20419
...
1000
SHOERACK LEADER GEH-WE1M1106
...
3046
SCREW #8 GEH-WE2M196
...
3049
STRIKE GEH-WE1X1192
...
3051
HINGE GEH-WE1M505
...
3333
HARNESS SENSOR GEH-WE5M39
...
3356
STRIKE PLATE GEH-WE1M569
...
3360
STRIKE PLATE W/STRK HOLE GEH-WE1M570
...
3361
SCREW HINGE TO FRONT GEH-WE2M217

SHIELDS & WATER PARTS

...
...
240
SCREW GEH-WE1M280
...
4004
VALVE WATER GEH-WE04M10009
...
4005
HARNESS HIGH LIMIT GEH-WE5M91
...
4007
MIST HOSE GEH-WE1M1099
...
4008
CONNECTOR SERVICE GEH-WE01X20560
...
4016
WATER VALVE SHIELD GEH-WE1M1104
...
4018
SHIELD MOTOR GEH-WE1M931
...
4022
SHIELD THERMOSTAT GEH-WE1M976
...
5001
INLET HOSE (LONG) GEH-WE1M847
...
5002
INLET HOSE(SHORT) W/M & GEH-WE1M848
...
5003
Y ADAPTOR GEH-WE1M849
...
5004
SCREEN FOR WASHER HOSE GEH-WE1M850
...
5005
RUBBER WASHER FOR INTAKE GEH-WE1M851
...
9999
STEAM KIT GEH-WE25X20060

WATER SYSTEM

...
...
311
TRAP DUCT ASM GEH-WE09X22674
...
4026
NOZZLE ASM GEH-WE40M107
...
4027
NOZZLE GEH-WE1M944
...
4028
TUBE WATER FRONT 11" GEH-WE1M941
...
4029
ELBOW & NOZZLE ASM GEH-WE1M943
...
4030
SUPPORT NOZZLE GEH-WE1M975
...
4031
SCR 6-18 B B1Q1 3/4 S ZN GEH-WE2M282
