GE GTDN550ED0WW Electric Dryer

Model: GTDN550ED0WW

Save
 Part Not Listed?Part Not Listed?
product name

BACKSPLASH, BLOWER & DRIVE ASSEMBLY

...
...
1
PM OWNERS MANUAL GEH-49-90452
...
1
PM WIRING DIAGRAM GEH-31-16274
...
1
PM INSTALL INSTRUCTIONS GEH-31-16224-2
...
3
END CAP LH WH GEH-WE19M1474
...
4
END CAP RH WH GEH-WE19M1473
...
13
BACKSPLASH ASM GEH-WE19M1727
...
19
KNOB ASM GEH-WH01X10645
...
23
BOARD ASM MOUNTED GEH-WE4M538
...
36
HARNESS GEH-WE5M68
...
72
PANEL BACK GEH-WE19M1725
...
75
SCREW GEH-WE2M173
...
149
SCREW 8-18 HI/LO 5/8 GEH-WR01X10196
...
201
BLOWER WHEEL W/INSERT GEH-WE16M17
...
203
STRAP MOTOR GEH-WE13X200
...
204
STRAP MOTOR GEH-WE1X921
...
205
MOTOR SUPPORT GEH-WE13M39
...
206
SCREW GEH-WE2M200
...
213
BELT DRIVE GEH-WE12M29
...
215
IDLER ARM SPRING GEH-WE3M25
...
216
PULLEY IDLER GEH-WE12M8
...
218
GASKET SEAL GEH-WE1M473
...
219
BLOWER HOUSING ASM GEH-WE14M200
...
223
SCREWS GEH-WE2M189
...
228
EXAUST PIPE GEH-WE14M90
...
230
T-STAT , OUTLET BKUP ORG GEH-WE4M300
...
231
SCREW GEH-WE2M187
...
232
SCREW GEH-WE2M202
...
233
PLATE MOTOR GEH-WE13M51
...
234
CAP NUT GEH-WE2M96
...
235
SCR 10-16 X 1/2 AB GEH-WE2M307
...
237
SCREW GEH-WE2M154
...
239
SCREWS GEH-WE2M167
...
240
SCREW GEH-WE1M280
...
241
THERMISTOR , OUTLET CNTR GEH-WE4M336
...
273
SCREW NO.8 ( GROUND ) GEH-WE2M228
...
461
SCREW GROUND GEH-WZ5X158
...
502
SCREW # 10 GEH-WE2M174
...
630
MOTOR THRD SHAFT & PULLY GEH-WE17M37
...
631
CONNECTOR MOTOR GEH-WE1M650
...
803
SWITCH INTERLOCK GEH-WD21X557
...
2222
HARNESS ASM. W/TSTAS GEH-WE5M87

CABINET & TOP PANEL

...
...
2
SCREW 8-18X7 16 GEH-WE02X20422
...
75
SCREW GEH-WE2M173
...
222
BOTTOM COVER (E-COAT) GEH-WE20M494
...
227
REAR HEAT SHEILD GEH-WE1M723
...
235
SCR 10-16 X 1/2 AB GEH-WE2M307
...
236
LEVELLING LEG-1PC PLASTI GEH-WE1M771
...
271
SHIELD BOTTOM COVER GEH-WE1M1030
...
272
SCR 8-15 X 7/16 AB GEH-WE2M308
...
401
COVER WH GEH-WE20M286
...
403
SCREW #8 GEH-WE2M160
...
404
SIDE PANEL WW GEH-WE20M478
...
408
CHASSIS BASE GEH-WE20M404
...
419
TERM BLK & GRND STRAP GEH-WE4M325
...
420
REAR PANEL 7 C.F. GEH-WE20M433
...
430
T-BLOCK COVER GEH-WE1M458
...
431
STRAIN RELIEF BRACKET GEH-WE1M457
...
461
SCREW GROUND GEH-WZ5X158
...
3204
SCR GEH-WH2M270

DRUM

...
...
235
SCR 10-16 X 1/2 AB GEH-WE2M307
...
237
SCREW GEH-WE2M154
...
502
SCREW # 10 GEH-WE2M174
...
503
DRUM ASM 7.0' SS GEH-WE21M21
...
504
DEFLECTOR HEAT GEH-WE14M77
...
505
THERMOSTAT SAFETY LEFT GEH-WE4M160
...
506
INLET CONTROL THERMISTOR GEH-WE4M333
...
507
THERMOSTAT HI-LIMIT GEH-WE4M137
...
508
SHAFT & BRACKET ASS'Y GEH-WE3X39
...
509
BAFFLE GEH-WE14M75
...
510
PROTECTION BRACKET GEH-WE1M780
...
512
MICA HEATER & HSNG ASM GEH-WE11M30
...
513
HOUSING HEATER GEH-WE11M31
...
514
MICA UNIT ASM GEH-WE11M32
...
515
GROUND STRAP ASM GEH-WE1M1015
...
534
SCREW #10 GEH-WE2M163
...
3102
BEARING RETAINER GEH-WE1M300
...
3106
SLEEVE DRUM GEH-WE1M462
...
3127
O RING GEH-WE1M461

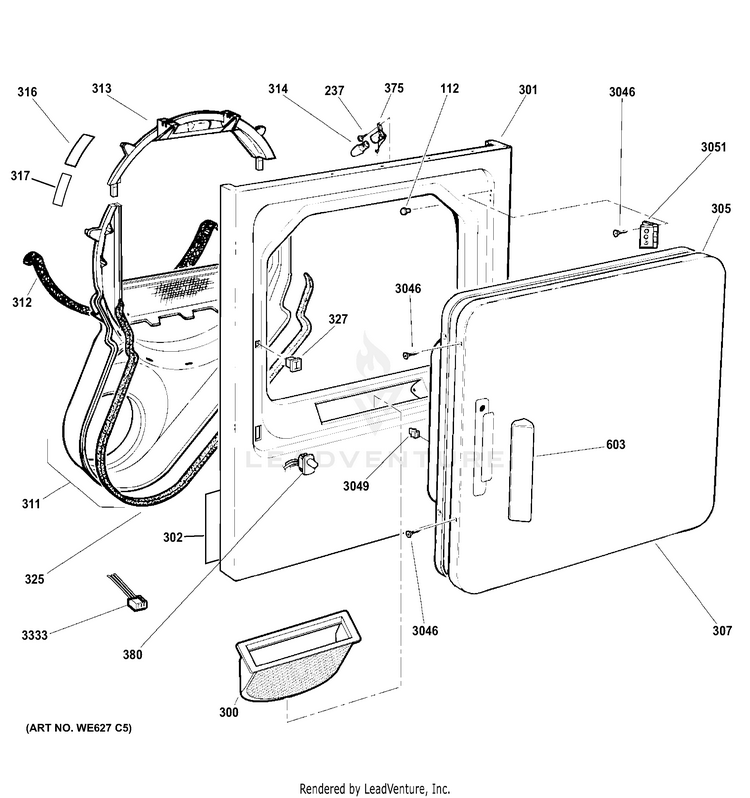

FRONT PANEL & DOOR

...
...
112
BEAUTY BUTTON-WHT GEH-WR02X8693
...
237
SCREW GEH-WE2M154
...
300
FILTER GEH-WE18M53
...
301
FRONT PANEL WH GEH-WE20M405
...
302
FT HEAT DEFLECTION PLATE GEH-WE1M869
...
305
INNER DOOR GSKT ASM GEH-WE10M109
...
307
DOOR PANEL (WHITE) GEH-WE10M102
...
311
AIR DUCT ASSY GEH-WE14M92
...
312
FELT GEH-WE9M30
...
313
TOP BEARING GEH-WE3M26
...
314
LAMP GEH-WE4M305
...
316
SLIDE GREEN GEH-WE1M1067
...
317
SLIDE WHITE GEH-WE1M504
...
325
GASKET (SEAL) GEH-WE00M169
...
327
LATCH GEH-WE1M536
...
375
SOCKET ASM GEH-WE5M48
...
380
DOOR SWITCH GEH-WE4M415
...
603
HANDLE DOOR GEH-WE1M1026
...
3046
SCREW #8 GEH-WE2M196
...
3049
STRIKE DOOR GEH-WE01X1192
...
3051
HINGE GEH-WE1M505
...
3333
HARNESS SENSOR GEH-WE5M39
...
...
...
