GE GTDL210GD0WW Gas Dryer

Model: GTDL210GD0WW

Save Part Not Listed?
product name

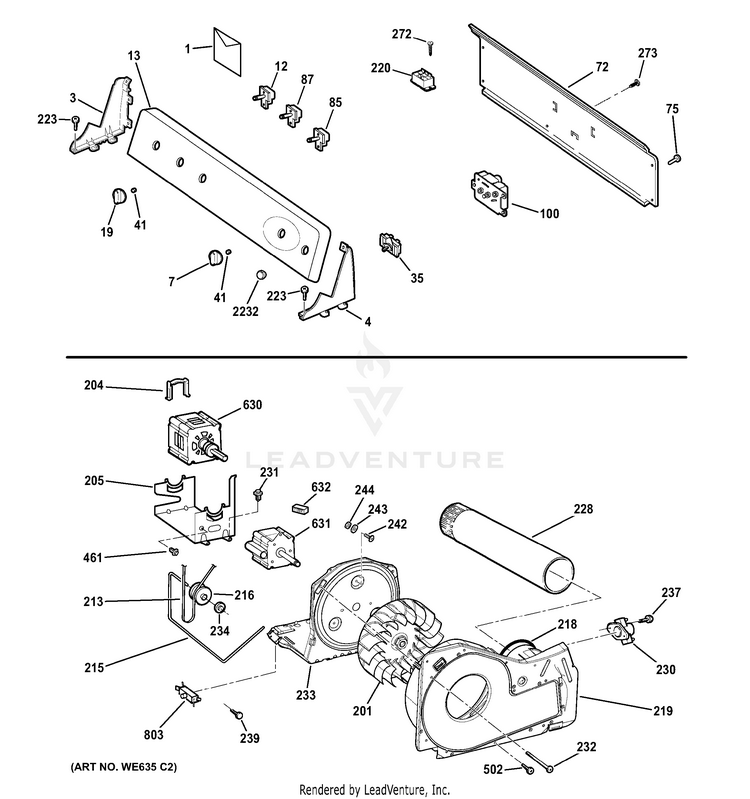

BACKSPLASH, BLOWER & DRIVE ASSEMBLY

...
...
1
MINI-MANUAL WIRING GEH-31-16202
...
1
USE & CARE ( GE ) GEH-49-90407-1
...
1
INSTALLATION INSTRUCTION GEH-31-16227
...
3
END CAP LH WH GEH-WE19M1474
...
4
END CAP RH WH GEH-WE19M1473
...
7
KNOB ASM TIMER - WH GEH-WE1M856
...
12
BUZZER VARIABLE GEH-WE04X20556
...
13
BACKSPLASH ASM. WHITE GEH-WE19M1719
...
19
KNOB AND CLIP ASM GEH-WE01X20432
...
35
SWITCH PTS GEH-WE4M416
...
41
U CLIP GEH-WE01X0980
...
72
PANEL BACK GEH-WE19M1725
...
75
SCREW GEH-WE2M173
...
85
ROTARY SWITCH ON/OFF GEH-WE4M399
...
87
ROTARY SWITCH 4TEMP GEH-WE4M520
...
100
TIMER GEH-WE4M535
...
201
BLOWER WHEEL W/INSERT GEH-WE16M17
...
204
MOTOR CLIP GEH-WE1M555
...
205
MOTOR PLATE GEH-WE13M38
...
213
BELT DRIVE GEH-WE12M29
...
215
IDLER ARM GEH-WE3M24
...
216
PULLEY IDLER GEH-WE12M8
...
218
GASKET SEAL GEH-WE1M473
...
219
BLOWER HOUSING ASM GEH-WE14M199
...
220
RELAY GEH-WE4M465
...
223
SCREWS GEH-WE2M189
...
228
EXAUST PIPE GEH-WE14M90
...
230
T'STAT OUTLET CTRL GEH-WE4M317
...
231
SCREW GEH-WE2M187
...
232
SCREW GEH-WE2M202
...
233
PLATE MOTOR GEH-WE13M54
...
234
CAP NUT GEH-WE2M96
...
237
SCREW GEH-WE2M154
...
239
SCREWS GEH-WE2M167
...
242
SCREW GEH-WE2M229
...
243
WASHER GEH-WH2M283
...
244
RUBBER GROMMET GEH-WE2M206
...
272
SCR 8-15 X 7/16 AB GEH-WE2M308
...
273
SCREW NO.8 ( GROUND ) GEH-WE2M228
...
461
WZ5X158D GEH-XYX20003
...
502
SCREW # 10 GEH-WE2M174
...
630
MTR/PULLEY ASM L.V. GEH-WE17M29
...
631
MOTOR & CAP. KIT W/WHEEL GEH-WE17M46
...
632
CONNECTOR MOTOR GEH-WE1M650
...
803
SWITCH INTERLOCK GEH-WD21X557
...
2232
PUSH/ START BUTTON GREY GEH-WE1M659

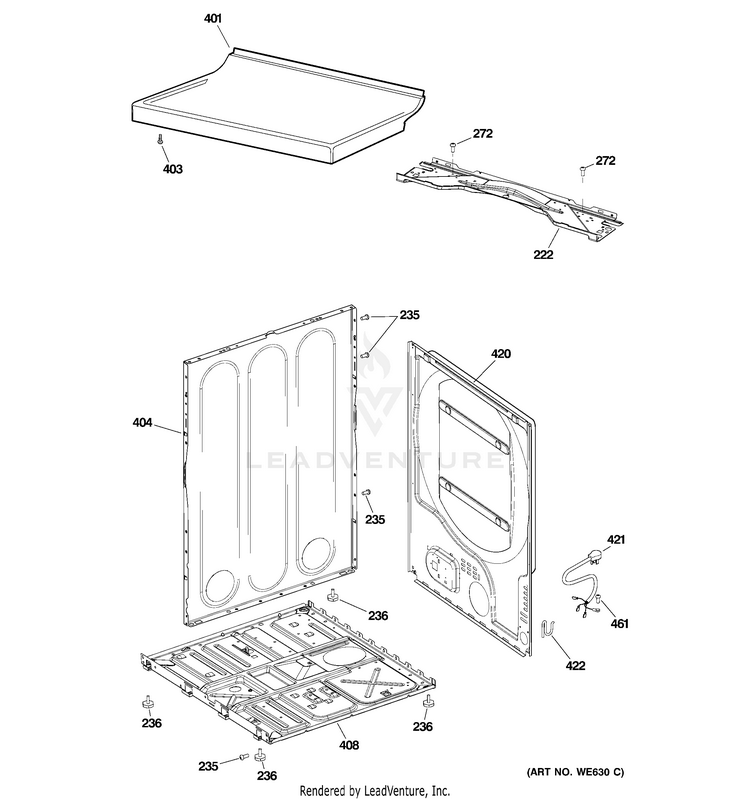

CABINET & TOP PANEL

...
...
222
BOTTOM COVER (E-COAT) GEH-WE20M494
...
235
SCR 10-16 X 1/2 AB GEH-WE2M307
...
236
LEVELLING LEG-1PC PLASTI GEH-WE1M771
...
272
SCR 8-15 X 7/16 AB GEH-WE2M308
...
401
COVER WH GEH-WE20M286
...
403
SCREW #8 GEH-WE2M160
...
404
SIDE PANEL WW GEH-WE20M478
...
408
CHASSIS BASE GEH-WE20M492
...
420
REAR PANEL 7 C.F. GEH-WE20M493
...
421
CORD SET GEH-WE26M341
...
422
CLIP CORDSET GEH-WE1M155
...
461
WZ5X158D GEH-XYX20003

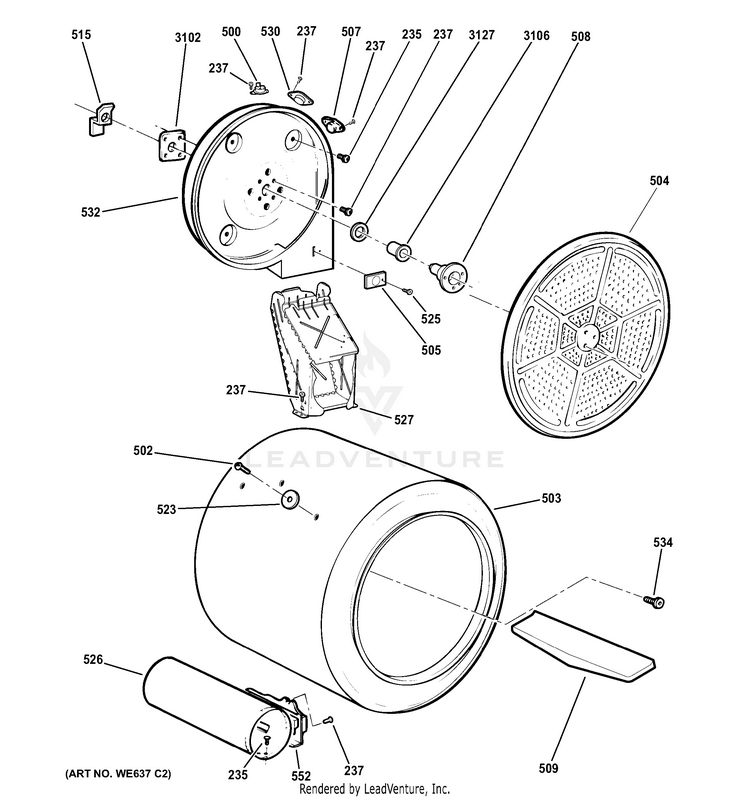

DRUM

...
...
235
SCR 10-16 X 1/2 AB GEH-WE2M307
...
237
SCREW GEH-WE2M154
...
500
THERMOSTAT HI-LIMIT GEH-WE4M137
...
502
SCREW # 10 GEH-WE2M174
...
503
DRUM ASM GEH-WE21M42
...
504
DEFLECTOR HEAT GEH-WE14M77
...
505
THERMOSTAT TRIMMER GEH-WE4M182
...
507
THERMOSTAT BIAS CTR INLT GEH-WE4M181
...
508
SHAFT & BRACKET ASS'Y GEH-WE3X39
...
509
BAFFLE GEH-WE14M75
...
515
GROUND STRAP ASM GEH-WE1M1015
...
523
INSULATED WASHER GEH-WE2M176
...
525
SCREW GEH-WE2M180
...
526
COMBUSTION CHAMBER GEH-WE14M70
...
527
DUCT TRANSITION GEH-WE14M88
...
530
THERMOSTAT GEH-WE4M80
...
532
GAS DIFFUSER & PLATE ASM GEH-WE14M134
...
534
SCREW #10 GEH-WE2M163
...
552
DETECTOR GEH-WE4X448
...
3102
BEARING RETAINER GEH-WE1M300
...
3106
SLEEVE DRUM GEH-WE1M462
...
3127
O RING GEH-WE1M461

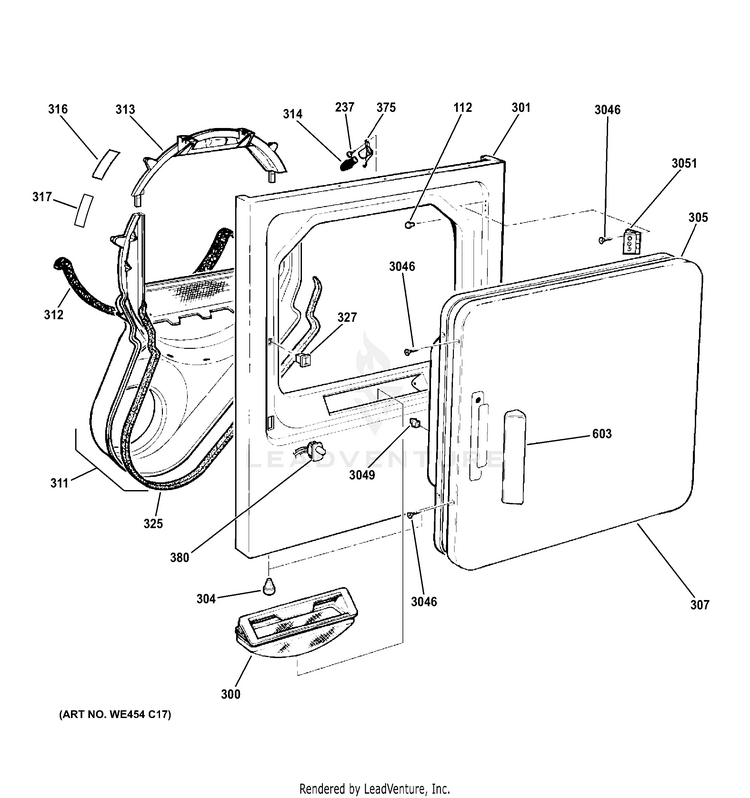

FRONT PANEL & DOOR

...
...
112
BEAUTY BUTTON-WHT GEH-WR02X8693
...
237
SCREW GEH-WE2M154
...
300
FILTER GEH-WE18M53
...
301
FRONT PANEL WH GEH-WE20M405
...
304
STABILIZING LEG ASM. GEH-WE2M188
...
305
INNER DOOR GSKT ASM GEH-WE10M109
...
307
DOOR PANEL (WHITE) GEH-WE10M102
...
311
AIR DUCT ASSY GEH-WE14M92
...
312
FELT GEH-WE9M30
...
313
TOP BEARING GEH-WE3M26
...
314
LAMP GEH-WE4M305
...
316
SLIDE GREEN GEH-WE1M1067
...
317
SLIDE WHITE GEH-WE1M504
...
325
GASKET (SEAL) GEH-WE00M169
...
327
LATCH GEH-WE1M536
...
375
SOCKET ASM GEH-WE5M48
...
380
DOOR SWITCH GEH-WE4M415
...
603
HANDLE DOOR GEH-WE1M1026
...
3046
SCREW #8 GEH-WE2M196
...
3049
STRIKE DOOR GEH-WE01X1192
...
3051
HINGE GEH-WE1M505

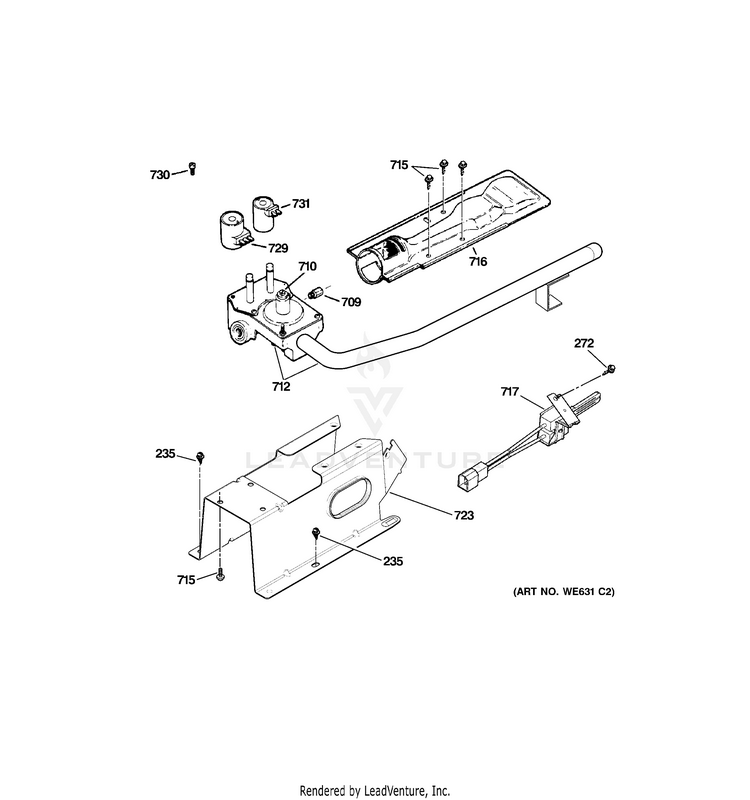

GAS VALVE & BURNER ASSEMBLY

...
...
235
SCR 10-16 X 1/2 AB GEH-WE2M307
...
272
SCR 8-15 X 7/16 AB GEH-WE2M308
...
709
ORIFICE GEH-WE01X1148
...
710
LEAK LIMITER GEH-WE01X1076
...
712
GAS VALVE & PIPE ASM. NG GEH-WE14M159
...
715
SCR GEH-WD2M101
...
716
BURNER ASM. GEH-WE14M104
...
717
IGNITER ASM GEH-WE4M449
...
723
BRACKET GAS VALVE GEH-WE13M52
...
729
COIL DUAL GEH-WE04X0692
...
730
SCREW (COIL MTG BRKT) GEH-WE02X0333
...
731
COIL MAIN GEH-WE04X0693
