GE GTDL210ED0WW Electric Dryer

Model: GTDL210ED0WW

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

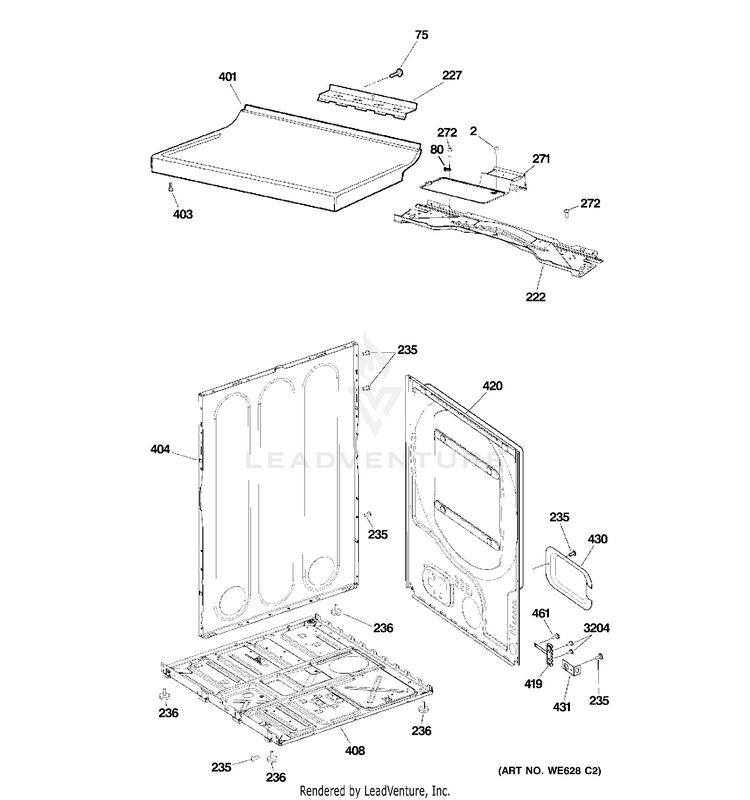

CABINET & TOP PANEL

...
...
2
SCREW 8-18X7 16 GEH-WE02X20422
...
75
SCREW GEH-WE2M173
...
80
RESISTOR GEH-WE4M255
...
222
BOTTOM COVER (E-COAT) GEH-WE20M494
...
227
REAR HEAT SHEILD GEH-WE1M723
...
235
SCR 10-16 X 1/2 AB GEH-WE2M307
...
236
LEVELLING LEG-1PC PLASTI GEH-WE1M771
...
271
BOTTOM COVER HEAT SHIELD GEH-WE1M892
...
272
SCR 8-15 X 7/16 AB GEH-WE2M308
...
401
COVER WH GEH-WE20M286
...
403
SCREW #8 GEH-WE2M160
...
404
SIDE PANEL WW GEH-WE20M478
...
408
CHASSIS BASE GEH-WE20M492
...
419
TERM BLK & GRND STRAP GEH-WE4M325
...
420
REAR PANEL 7 C.F. GEH-WE20M493
...
430
T-BLOCK COVER GEH-WE1M458
...
431
STRAIN RELIEF BRACKET GEH-WE1M457
...
461
WZ5X158D GEH-XYX20003
...
3204
SCR GEH-WH2M270
