GE GTD86GSPJ0MC Gas Dryer

Model: GTD86GSPJ0MC

Back To Assemblies

Save Part Not Listed?
product name

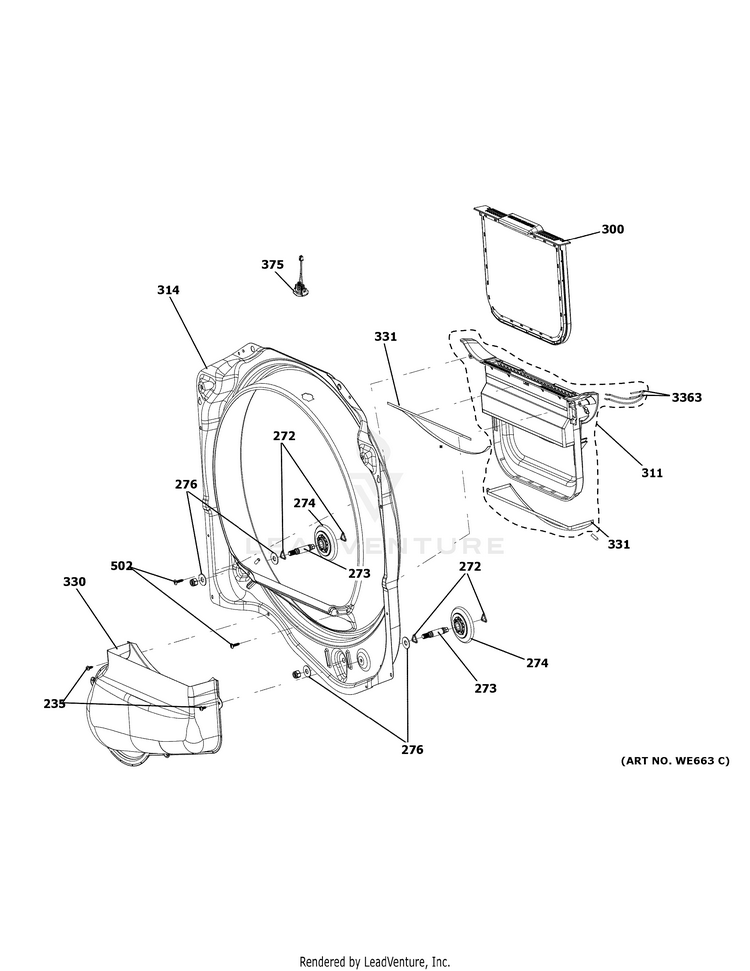

FRONT ROLLER ASSEMBLY

...
...
235
SCR GEH-WE2X263
...
272
LOCK GEH-WE1M1065
...
273
SHAFT ROLLER GEH-WE3M53
...
274
WHEEL GEH-WE12M39
...
276
WASHER PLAIN 3/8 GEH-WE2M312
...
300
FILTER ASM GEH-WE18M54
...
311
GRID ASM GEH-WE18M56
...
314
SUPPORT FRONT ROLLER GEH-WE20M514
...
330
DUCT ASM GEH-WE14M218
...
331
GASKET GEH-WE9M61
...
375
LED GEH-WE5M94
...
502
SCREW # 10 GEH-WE2M174
...
3363
SENSOR ROD LFT GEH-WE1M1058
