GE GTD86ESPJ0MC Electric Dryer

Model: GTD86ESPJ0MC

Back To Assemblies

Save Part Not Listed?
product name

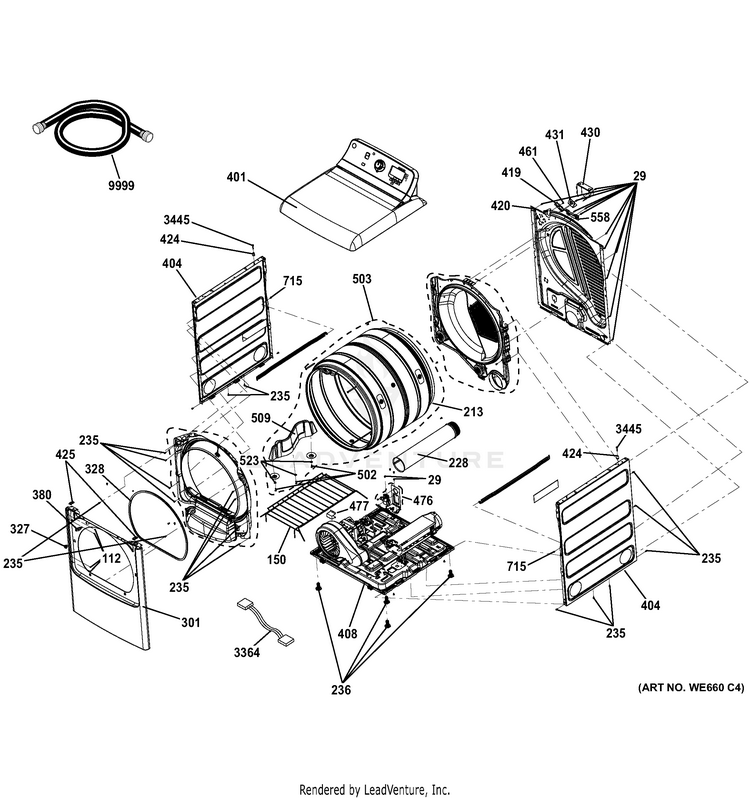

CABINET

...
...
29
SCR 8-18 AB IHW 3/8 SN GEH-WB01K10042
...
112
PLUG BUTTON GREY GEH-WE1M949
...
150
SHOE RACK GEH-WE1M1038
...
213
BELT DRIVE GEH-WE12M37
...
228
EXHAUST DUCT GEH-WE14M107
...
235
SCR GEH-WE2X263
...
236
FOOT LEVELING GEH-WE1M1097
...
301
PANEL FRONT GEH-WE1M1085
...
327
LATCH DOOR GEH-WE1M1011
...
328
GASKET FOAM FRONT PNL GEH-WE9M62
...
380
DOOR SWITCH GEH-WE4M415
...
401
COVER TOP GEH-WE20X22634
...
404
SIDE PANEL GEH-WE20M516
...
408
CHASSIS BASE GEH-WE20M495
...
419
TERM BLK & GRND STRAP GEH-WE4M525
...
420
PANEL REAR GEH-WE20M498
...
424
GUIDE GEH-WE1M1093
...
425
CLIP LOCKING GEH-WE1M1075
...
430
COVER BLOCK TERMINAL GEH-WE1M1059
...
431
STRAIN RELIEF BRACKET EL GEH-WE01X20423
...
461
SCREW 8-32X3/8 GRD SCR GEH-WZ05X0158
...
476
VALVE WATER ASM GEH-WE40M108
...
477
SHIELD VALVE GEH-WE1M1092
...
502
SCREW # 10 GEH-WE2M174
...
503
DRUM & BAFFLE ASM GEH-WE21X21664
...
509
BAFFLE GEH-WE14X21665
...
523
INSULATED WASHER GEH-WE2M176
...
558
BRACKET GEH-WE1M1090
...
715
SCR GEH-WD2M101
...
3364
HARNESS SENSORS ASM GEH-WE5M93
...
3445
SCREW FLAT HEAD/AB GEH-WE2M214
...
9999
HOSE INLET ASM - KIT GEH-WE25M53
...
9999
KIT WI FI LABEL & PLATFO GEH-WE49X23035
