GE GTD84GCPN0DG Gas Dryer

Model: GTD84GCPN0DG

Save Part Not Listed?
product name

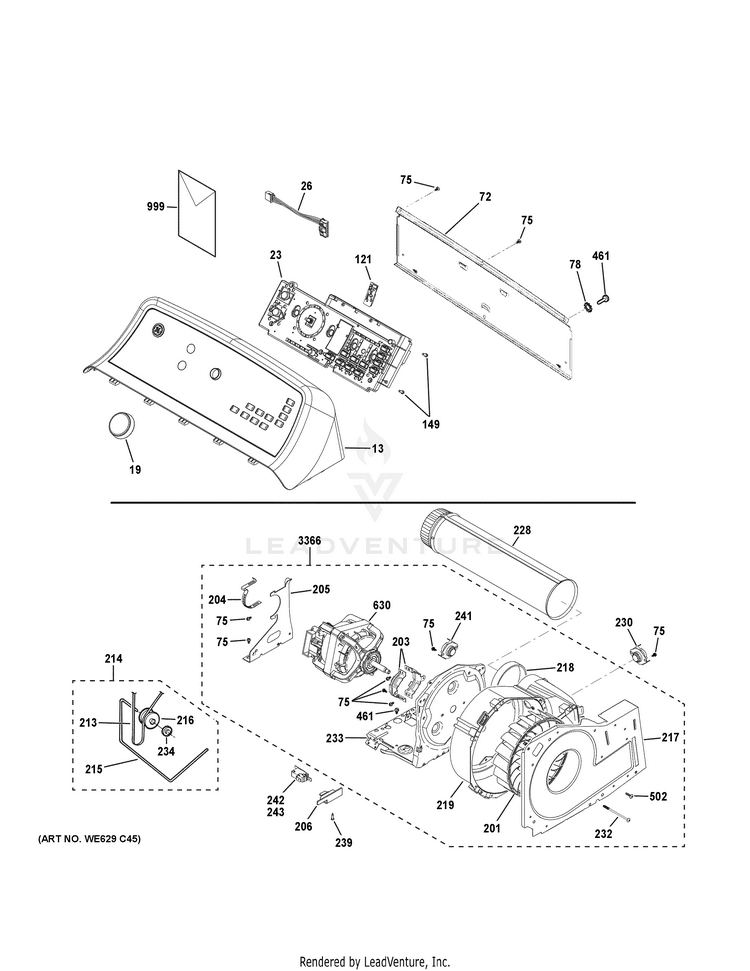

BACKSPLASH, BLOWER & MOTOR ASSEMBLY

...
...
13
IMD AND BACKSPLASH ASM GEH-WE22X29475
...
19
SELECTOR KNOB GEH-WH01X28943
...
23
CHASSIS AND BOARD ASM GEH-WE22X29477
...
26
CAP TOUCH TO MAIN UI HARNESS GEH-WE08X29476
...
72
PANEL BACK GEH-WE20X24556
...
75
SCREW GEH-WE01X25535
...
78
WASHER GEH-WE01X26154
...
121
CONNECTED WIFI BOARD GEH-WH22X29073
...
149
SCREW 8-18 HI/LO 5/8 GEH-WR01X10196
...
201
BLOWER WHEEL GEH-WE16X23857
...
203
STRAP MOTOR GEH-WE13X200
...
204
MOTOR BRACKET GEH-WE01X0921
...
205
MOTOR SUPPORT GEH-WE13M39
...
206
BRACKET IDLER GEH-WE01X25074
...
213
BELT DRIVE GEH-WE03X29259
...
214
IDLER ARM ASM GEH-WE03X27417
...
215
IDLER ARM GEH-WE03X20434
...
216
IDLER PULLEY GEH-WE12X20395
...
217
PLATE BLOWER GEH-WE13X29444
...
218
BLOWER GASKET (EXHAUST) GEH-WE09X27636
...
219
HOUSING BLOWER GEH-WE13X29560
...
228
EXHAUST DUCT GEH-WE01X23893
...
230
THERMOSTAT GEH-WE04X25200
...
232
SCREW GEH-WE2M202
...
233
PLATE MOTOR GEH-WE03X23858
...
234
CAP NUT GEH-WE2M96
...
239
SCREW GEH-WE2X21854
...
241
OUTLET CNTRL THERMISTOR GEH-WE4M448
...
242
SWITCH INTERLOCK GEH-WD21X0557
...
243
SWITCH INTERLOCK GEH-WD21X10261
...
461
SCREW 8-32X3/8 GRD SCR GEH-WZ05X0158
...
502
SCREW # 10 GEH-WE2M174
...
630
MOTOR AND PULLEY ASM GEH-WE17X23856
...
999
PM MINI MANUAL AND WIRING GEH-31-3000203
...
999
PM INSTALL INSTRUCTIONS GEH-31-3000199
...
999
PM OWNERS MANUAL GEH-49-3000198
...
3366
MOTOR & BLOWER ASM GEH-WE03X29257

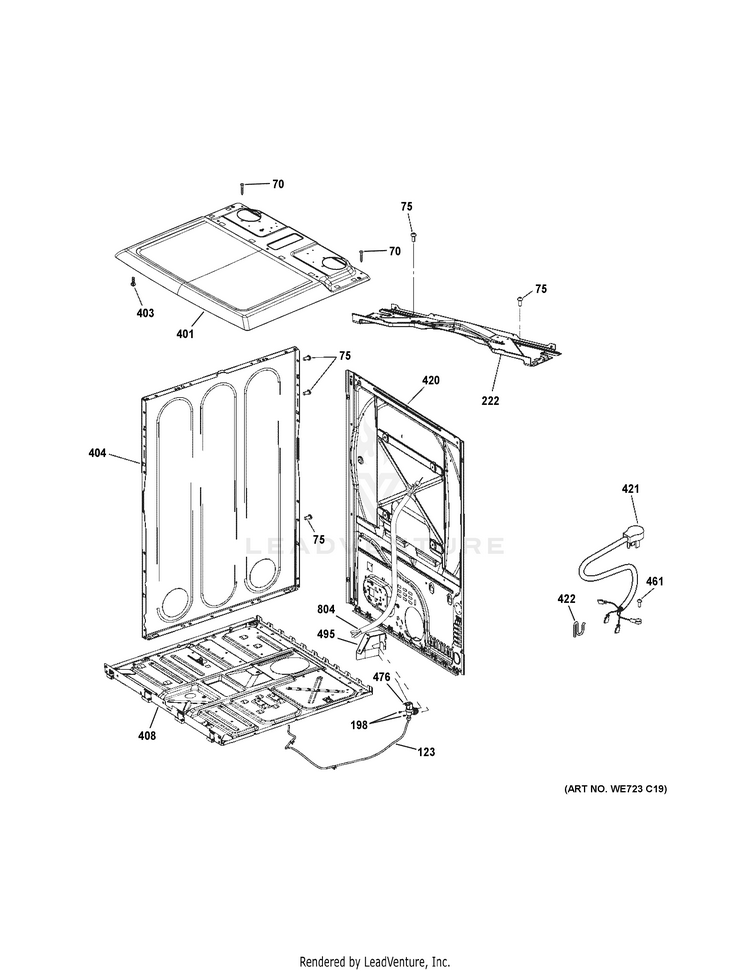

CABINET & TOP PANEL

...
...
70
SCR 8-18 AB 13/4 S HXW GEH-WR01X10634
...
75
SCREW GEH-WE01X25535
...
123
TUBE GEH-WE01X29465
...
198
SCREW GEH-WE01X21155
...
222
COVER BOTTOM GEH-WE03X23884
...
401
COVER TOP HIGH DEPTH GEH-WE03X27536
...
403
SCREW GEH-WE01X25318
...
404
SIDE PANEL GEH-WE10X29471
...
408
CHASSIS BASE GEH-WE13X29562
...
420
REAR PANEL GEH-WE10X29463
...
421
POWER CORD (120V GAS) GEH-WE26M345
...
422
CLIP CORDSET GEH-WE1M155
...
461
SCREW 8-32X3/8 GRD SCR GEH-WZ05X0158
...
476
VALVE WATER GEH-WE4M503
...
495
SHIELD WATER VALVE GEH-WE1M933
...
804
HARNESS GAS ASM GEH-WE08X29467

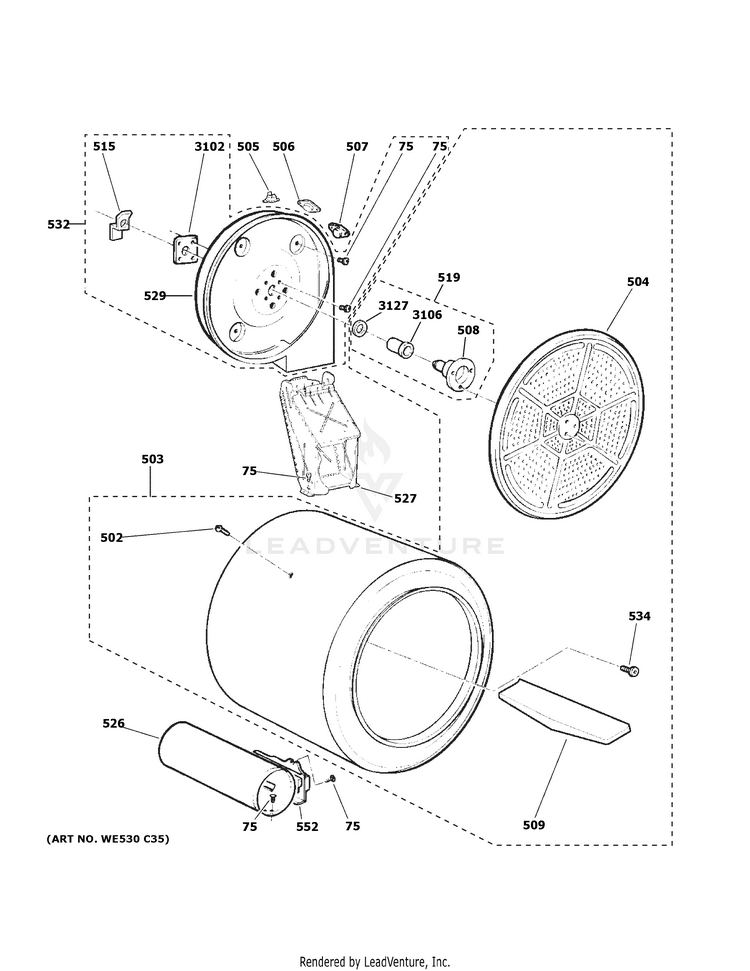

DRUM

...
...
75
SCREW GEH-WE01X25535
...
502
SCREW # 10 GEH-WE2M174
...
503
DRUM ASM GEH-WE21X23869
...
504
DIFFUSER GEH-WE11X29438
...
505
HIGH LIMIT THERMOSTAT GEH-WE04X26138
...
506
THERMOSTAT GEH-WE04X25199
...
507
INLET CONTROL THERMOSTAT GEH-WE4M398
...
508
SHAFT GEH-WE00X181L
...
509
BAFFLE GEH-WE14X20683
...
515
GROUND STRAP ASM GEH-WE13X29439
...
519
SHAFT & BRACKET ASS'Y GEH-WE3M33
...
526
CHAMBER COMBUSTION GEH-WE11X29440
...
527
DUCT TRANSITION ASM GEH-WE11X29469
...
529
DIFFUSER GAS GEH-WE11X29443
...
532
DIFFUSER GAS ASM GEH-WE11X29464
...
534
SCREW #10 GEH-WE2M163
...
552
DETECTOR GEH-WE4X448
...
3102
BEARING RETAINER GEH-WE1M300
...
3106
SLEEVE DRUM GEH-WE1M462
...
3127
O RING GEH-WE1M461

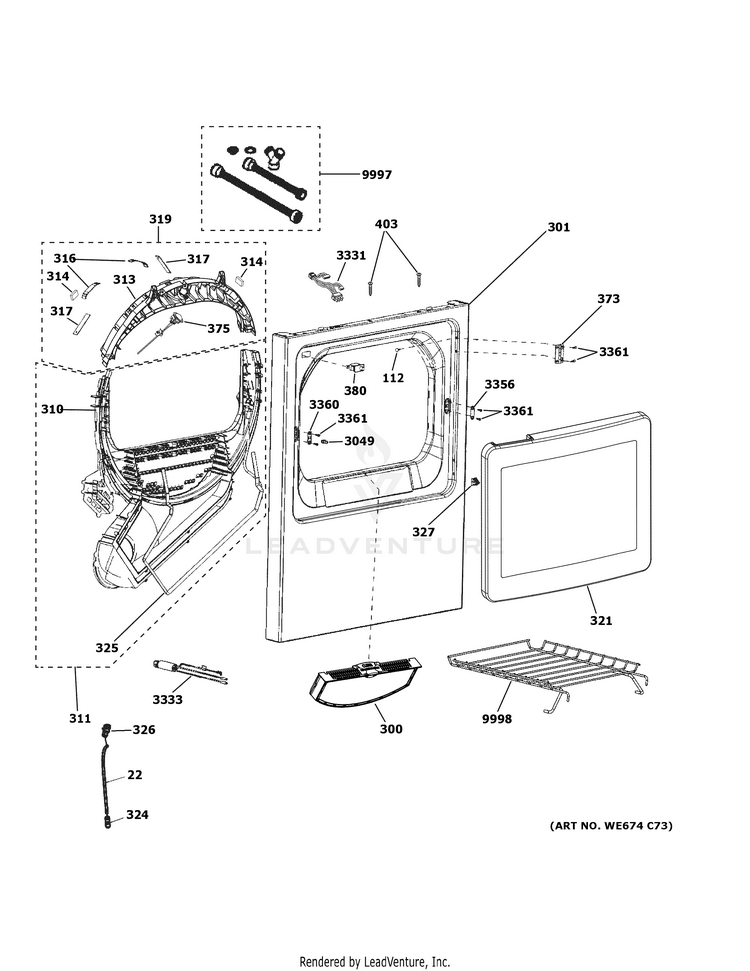

FRONT PANEL & DOOR

...
...
22
TUBE GEH-WE01X28094
...
112
PLUG BUTTON GREY GEH-WE1M949
...
300
FILTER LINT ASM GEH-WE03X23881
...
301
FRONT PANEL DIAMOND GRAY GEH-WE10X29582
...
310
TRAP DUCT GEH-WE16X29473
...
311
TRAP DUCT ASM GEH-WE16X29472
...
313
BEARING TOP SLIDES GEH-WE03X23956
...
314
FELT TOP BEARING GEH-WE09X22335
...
316
BEARING SLIDE GEH-WE3M52
...
317
BEARING SLIDE GEH-WE3M51
...
319
BEARING TOP ASM GEH-WE03X23875
...
321
DOOR ASM GEH-WE10X27467
...
324
CONNECTOR SERVICE GEH-WE01X20560
...
325
GASKET (SEAL) 39 INCH GEH-WE1M825
...
326
ELBOW & NOZZLE ASM GEH-WE1M943
...
327
LATCH GEH-WE01X25316
...
373
HINGE ASM GEH-WE01X25317
...
375
LED GEH-WE15X25754
...
380
DOOR SWITCH GEH-WE04X28977
...
403
SCREW GEH-WE01X25318
...
3049
STRIKE GEH-WE01M10007
...
3331
HARNESS LED ASM GEH-WE15X23882
...
3333
HARNESS SENSOR ASM GEH-WE15X26994
...
3356
STRIKE PLATE GEH-WE1M569
...
3360
STRIKE PLATE W/STRK HOLE GEH-WE1M570
...
3361
SCREW GEH-WE2M302
...
9997
STEAM KIT GEH-WE25X20060
...
9998
KIT DRYING RACK GEH-WE01X25160

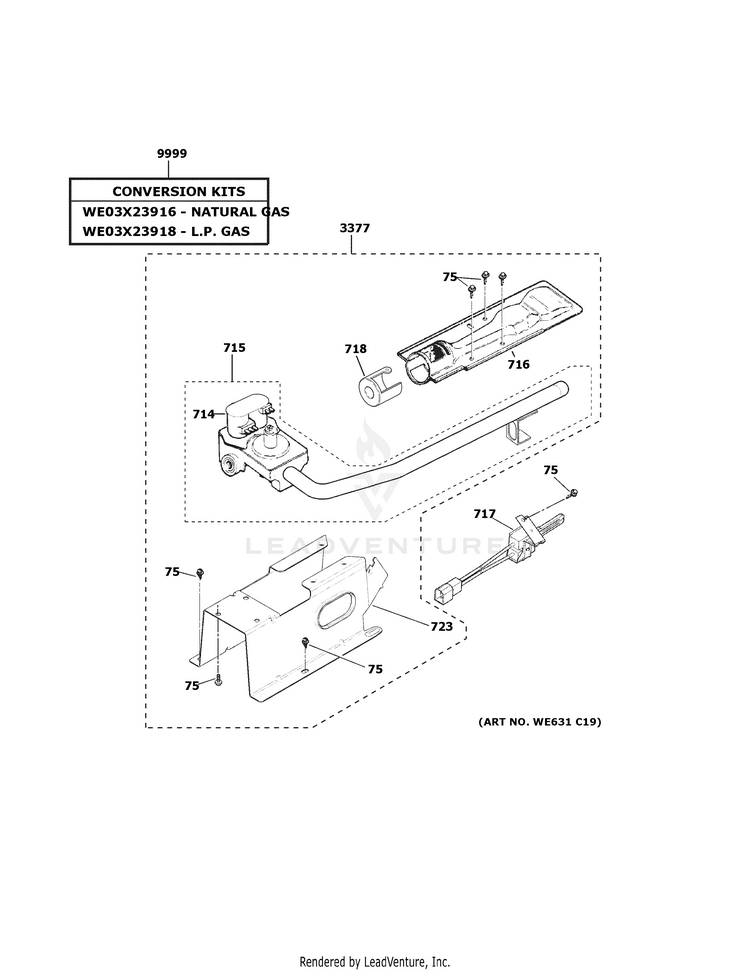

GAS VALVE & BURNER ASSEMBLY

...
...
75
SCREW GEH-WE01X25535
...
714
GAS VALVE ASM GEH-WE14X0215
...
715
VALVE AND PIPE ASM GEH-WE11X20711
...
716
BURNER ASM. GEH-WE14M104
...
717
IGNITER GEH-WE04X25996
...
718
SHUTTER AIR GEH-WE02X24214
...
723
BRACKET GAS VALVE GEH-WE13M52
...
3377
VALVE & BURNER GEH-WE03X29303
...
9999
VALVE AND PIPE ASM GEH-WE03X23918
...
9999
VALVE AND PIPE ASM GEH-WE03X23916

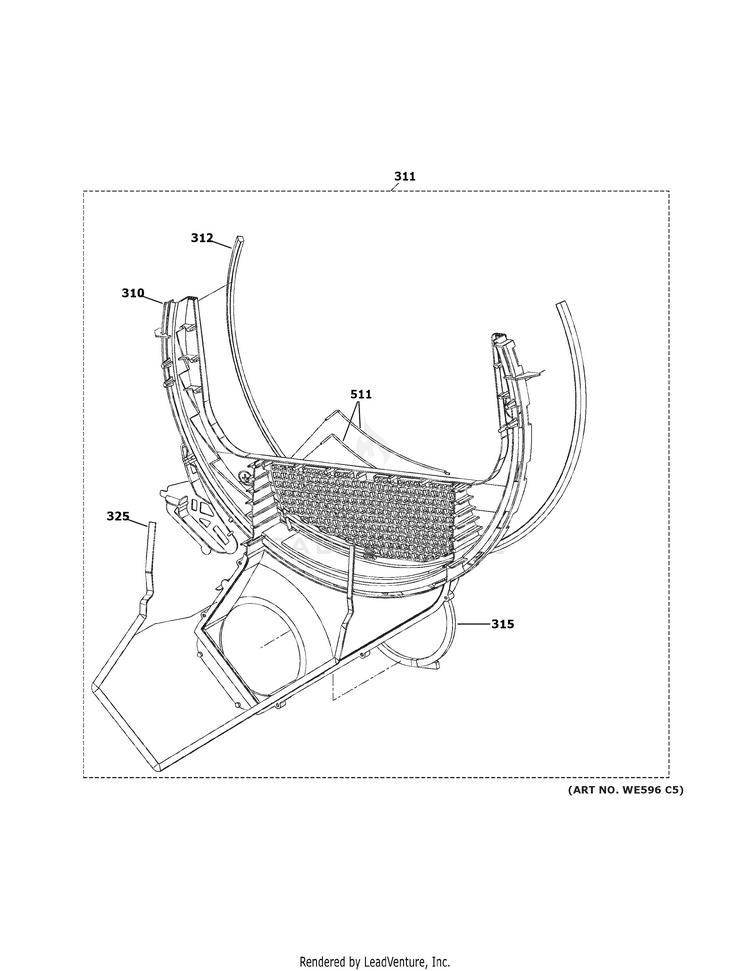

TRAP DUCT ASSEMBLY

...
...
310
TRAP DUCT GEH-WE16X29473
...
311
TRAP DUCT ASM GEH-WE16X29472
...
312
FELT TRAP DUCT GEH-WE09X27634
...
315
GASKET GEH-WE09X25276
...
325
GASKET (SEAL) 39 INCH GEH-WE1M825
...
511
SENSOR RODS GEH-WE1M575
