GE GTD84ECSN0WS Electric Dryer

Model: GTD84ECSN0WS

Back To Assemblies

Save Part Not Listed?
product name

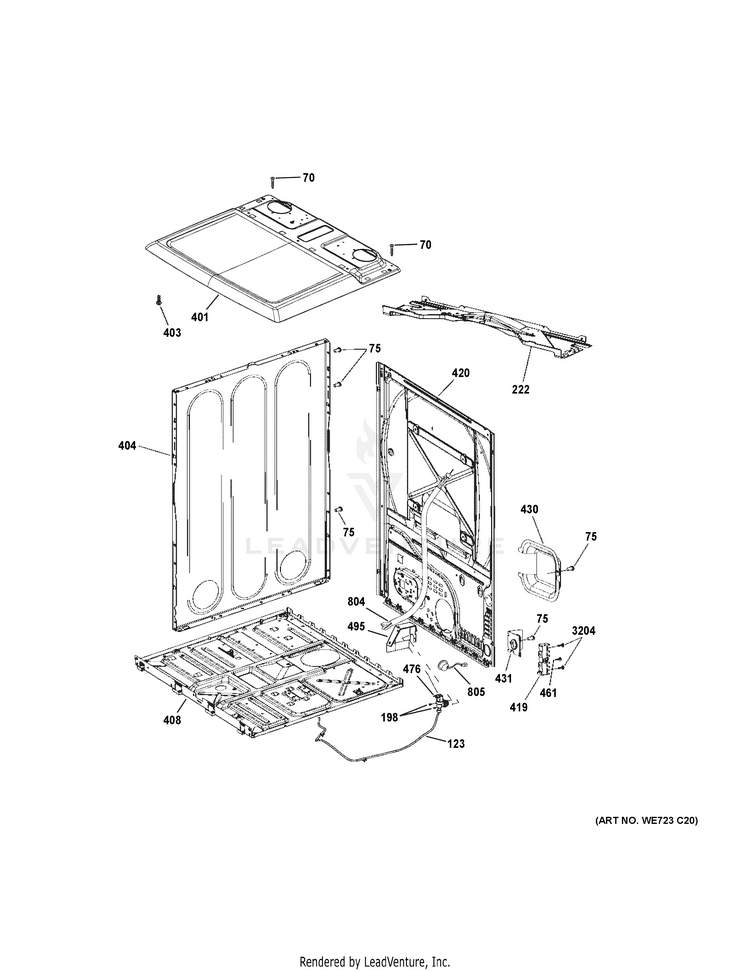

CABINET & TOP PANEL

...
...
70
SCR 8-18 AB 13/4 S HXW GEH-WR01X10634
...
75
SCREW GEH-WE01X25535
...
123
TUBE GEH-WE01X29465
...
198
SCREW GEH-WE01X21155
...
222
COVER BOTTOM GEH-WE03X23884
...
401
COVER TOP HIGH DEPTH GEH-WE03X23889
...
403
SCREW GEH-WE01X25318
...
404
SIDE PANEL WHITE GEH-WE10X29470
...
408
CHASSIS BASE GEH-WE13X29562
...
419
TERM BLK & GRND STRAP GEH-WE4M325
...
420
REAR PANEL GEH-WE10X29463
...
430
COVER FUSE TERMINAL GEH-WE1M1007
...
431
STRAIN RELIEF BRACKET EL GEH-WE01X20423
...
461
SCREW 8-32X3/8 GRD SCR GEH-WZ05X0158
...
476
VALVE WATER GEH-WE4M503
...
495
SHIELD WATER VALVE GEH-WE1M933
...
804
HARNESS ELEC ASM GEH-WE08X29466
...
805
HARNESS HIGH LIMIT ASM GEH-WE08X29468
...
3204
SCR GEH-WH2M270
