GE GTD81ESPJ1MC Electric Dryer

Model: GTD81ESPJ1MC

Back To Assemblies

Save Part Not Listed?
product name

REAR ROLLER SUPPORT

...
...
217
BRACKET REAR ROLLER GEH-WE1M1061
...
224
BRACKET TOP GEH-WE1M1062
...
235
SCR GEH-WE2X263
...
270
SUPPORT ROLLER REAR GEH-WE20M527
...
271
TRANSITION DUCT ASM GEH-WE14X21660
...
272
LOCK GEH-WE1M1065
...
273
SHAFT ROLLER GEH-WE3M53
...
274
WHEEL GEH-WE12M39
...
276
WASHER PLAIN 3/8 GEH-WE2M312
...
277
NUT HEX 3/8-24 UNF 2B GEH-WE2M311
...
557
BRACKET BOTTOM GEH-WE1M1089
...
800
HARNESS ELECT. ASM GEH-WE26X22954
...
801
THERMISTOR INLET GEH-WE4M550
...
3438
SCR 6-18 B B1Q1 3/4 S ZN GEH-WE2M282
...
3443
SCREW GEH-WE1M280

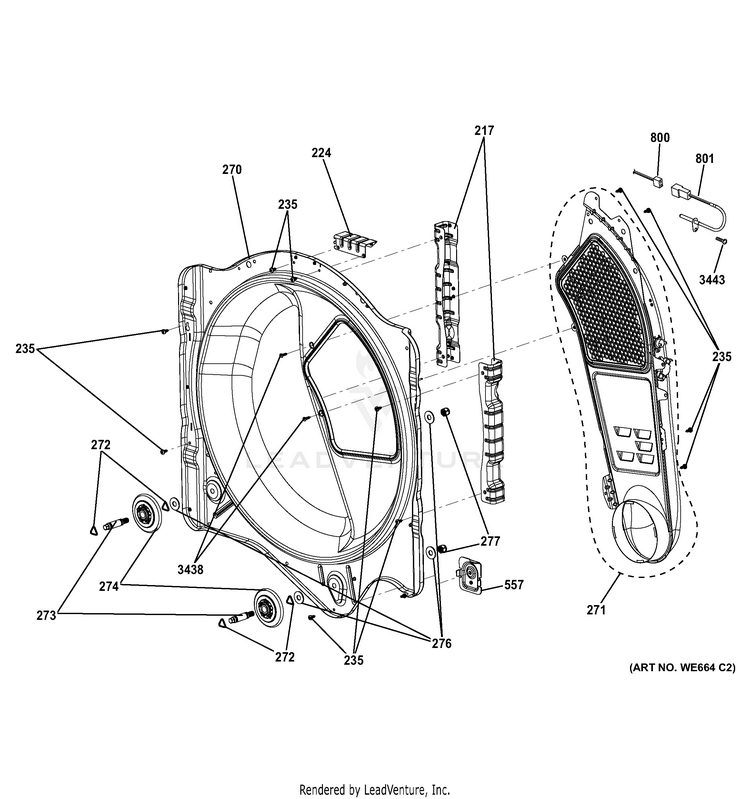

Schematic Image Zoomed
