GE GTD72EBSN0WS Electric Dryer

Model: GTD72EBSN0WS

Back To Assemblies

Save Part Not Listed?
product name

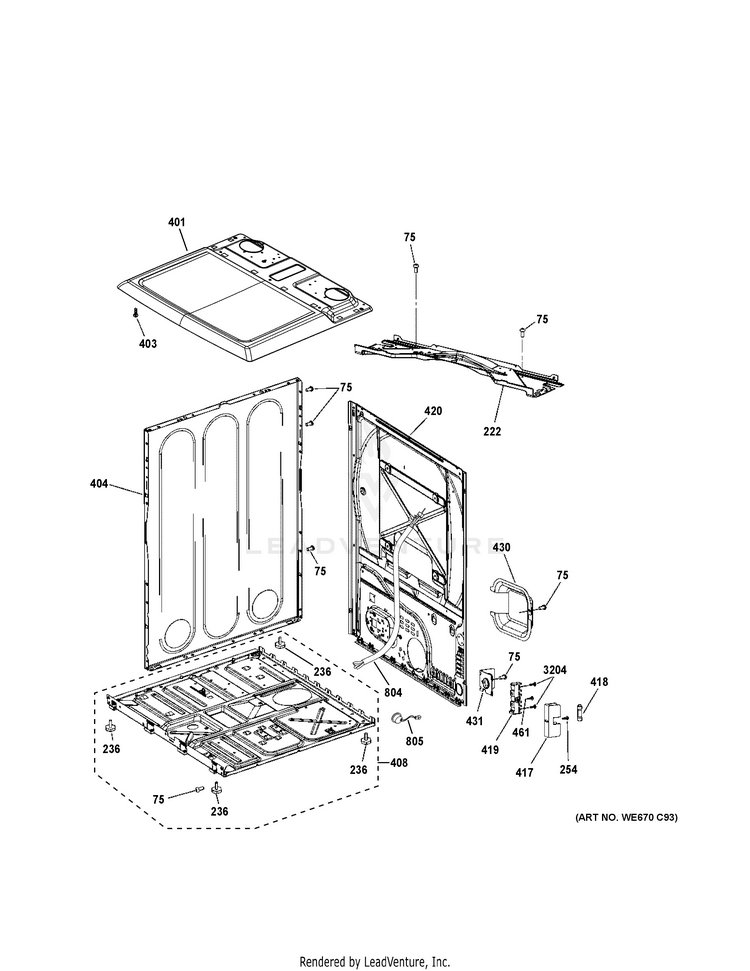

CABINET & TOP PANEL

...
...
75
SCREW GEH-WE01X25535
...
222
COVER BOTTOM GEH-WE03X23884
...
236
LEVELLING FOOT GEH-WE1M1101
...
254
SCR 6-20 AB PNP#2 1 GEH-WE2X21976
...
401
COVER TOP HIGH DEPTH GEH-WE03X23889
...
403
SCREW #8 GEH-WE2M160
...
404
PANEL SIDE GEH-WE20X23867
...
408
CHASSIS AND LEG ASM GEH-WE04X25158
...
417
FUSE HOLDER 3AB GEH-WE1X21955
...
418
FUSE 3AB GEH-WE1X21975
...
419
TERM BLK & GRND STRAP GEH-WE4M325
...
420
PANEL REAR GEH-WE10X29437
...
430
COVER FUSE TERMINAL GEH-WE1M1007
...
431
STRAIN RELIEF BRACKET EL GEH-WE01X20423
...
461
SCREW 8-32X3/8 GRD SCR GEH-WZ05X0158
...
804
ELECTRIC DRYER HARNESS GEH-WE08X29300
...
805
HIGH LIMIT HARNESS GEH-WE08X29302
...
3204
SCR GEH-WH2M270
