GE GTD65EBPL0DG Dryer Electric

Model: GTD65EBPL0DG

Save Part Not Listed?
product name

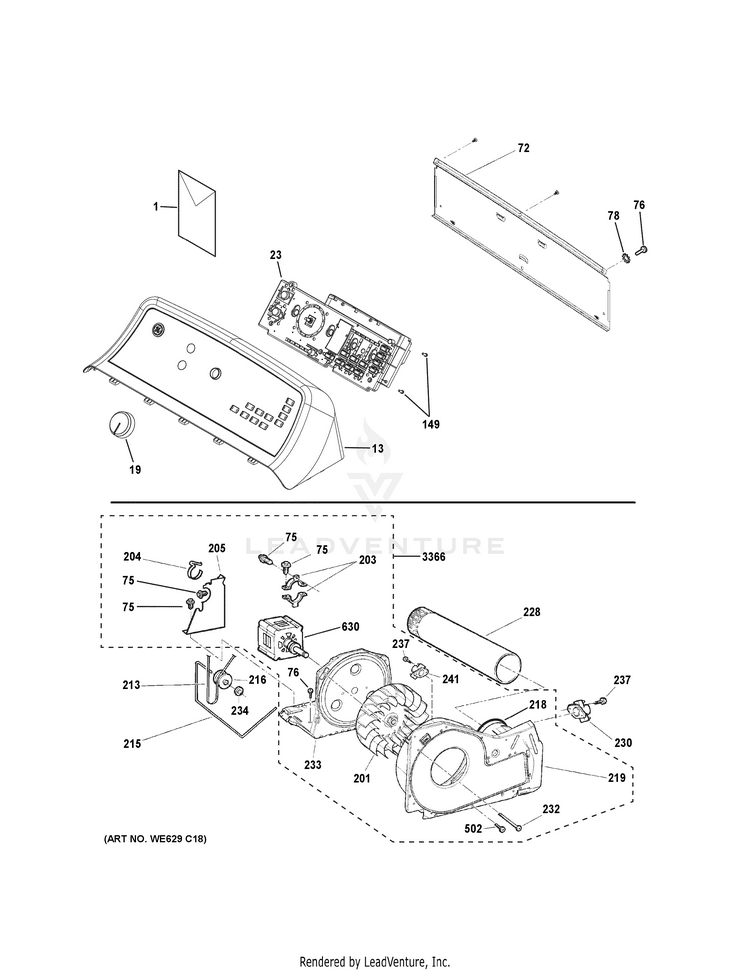

BLACKSPLASH, BLOWER & MOTOR ASSEMBLY

...
...
1
PUB NUMBER MINI MANUAL GEH-31-16921
...
1
PM USE AND CARE DRYER 20 GEH-49-90536
...
1
PM INSTALLATION INSTRUCTION USA ELEC Y G GEH-31-16775
...
13
IMD AND BACKSPLASH ASM GEH-WE03X26826
...
19
KNOB ASM GEH-WE01X23886
...
23
CHASSIS AND BOARD ASM GEH-WE04X25474
...
72
PANEL BACK GEH-WE20X24556
...
75
SCREW GEH-WE01X25535
...
76
SCREW 8-32X3/8 GRD SCR GEH-WZ05X0158
...
78
WASHER GEH-WE01X26154
...
149
SCREW 8-18 HI/LO 5/8 GEH-WR01X10196
...
201
BLOWER WHEEL GEH-WE16X23857
...
203
STRAP MOTOR GEH-WE13X200
...
204
STRAP MOTOR GEH-WE1X921
...
205
MOTOR SUPPORT GEH-WE13M39
...
213
BELT DRIVE GEH-WE12X21574
...
215
IDLER ARM GEH-WE03X20434
...
216
IDLER PULLEY GEH-WE12X20395
...
218
BLOWER GASKET (EXHAUST) GEH-WE1M966
...
219
BLOWER HOUSING ASM GEH-WE03X23859
...
228
EXHAUST DUCT GEH-WE01X23893
...
230
THERMOSTAT GEH-WE04X25200
...
232
SCREW GEH-WE2M202
...
233
PLATE MOTOR GEH-WE03X23858
...
234
CAP NUT GEH-WE2M96
...
237
SCREW GEH-WE2M154
...
241
OUTLET CNTRL THERMISTOR GEH-WE4M448
...
502
SCREW # 10 GEH-WE2M174
...
630
MOTOR AND PULLEY ASM GEH-WE17X23856
...
3366
MOTOR & BLOWER ASM GEH-WE17X23056

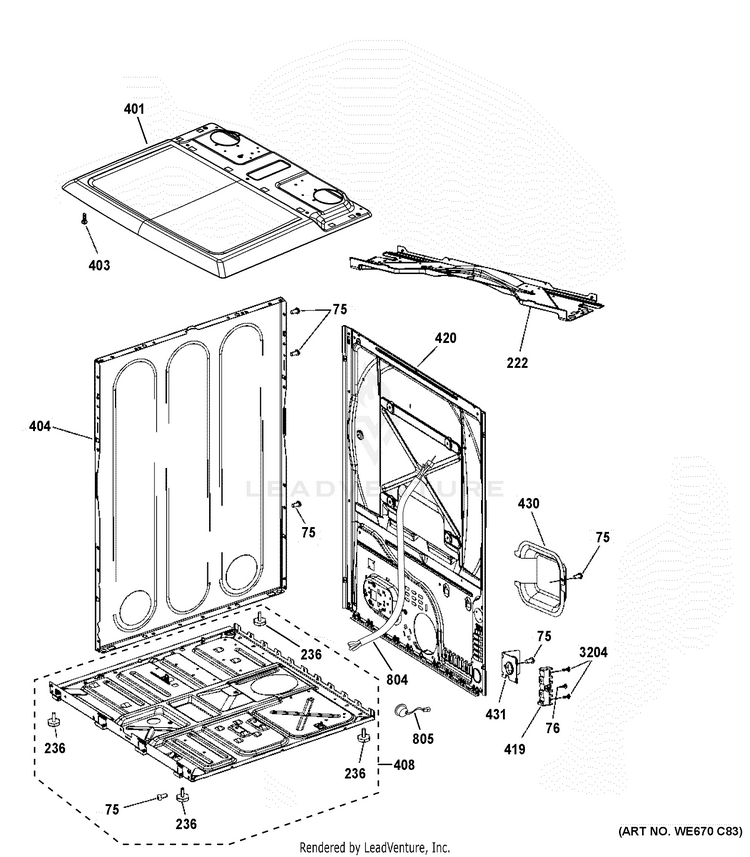

CABINET & TOP PANEL

...
...
75
SCREW GEH-WE01X25535
...
76
SCREW 8-32X3/8 GRD SCR GEH-WZ05X0158
...
222
COVER BOTTOM GEH-WE03X23884
...
236
LEVELLING FOOT GEH-WE1M1101
...
401
COVER TOP HIGH DEPTH GEH-WE03X27536
...
403
SCREW GEH-WE01X25318
...
404
PANEL SIDE GEH-WE20X26817
...
408
CHASSIS AND LEG ASM GEH-WE04X25158
...
419
TERM BLK & GRND STRAP GEH-WE4M325
...
420
PANEL REAR GEH-WE02X23955
...
430
COVER FUSE TERMINAL GEH-WE1M1007
...
431
STRAIN RELIEF BRACKET EL GEH-WE01X20423
...
804
HARNESS ELEC ASM GEH-WE15X25655
...
805
HARNESS HIGH LIMIT ASM GEH-WE15X26137
...
3204
SCR GEH-WH2M270

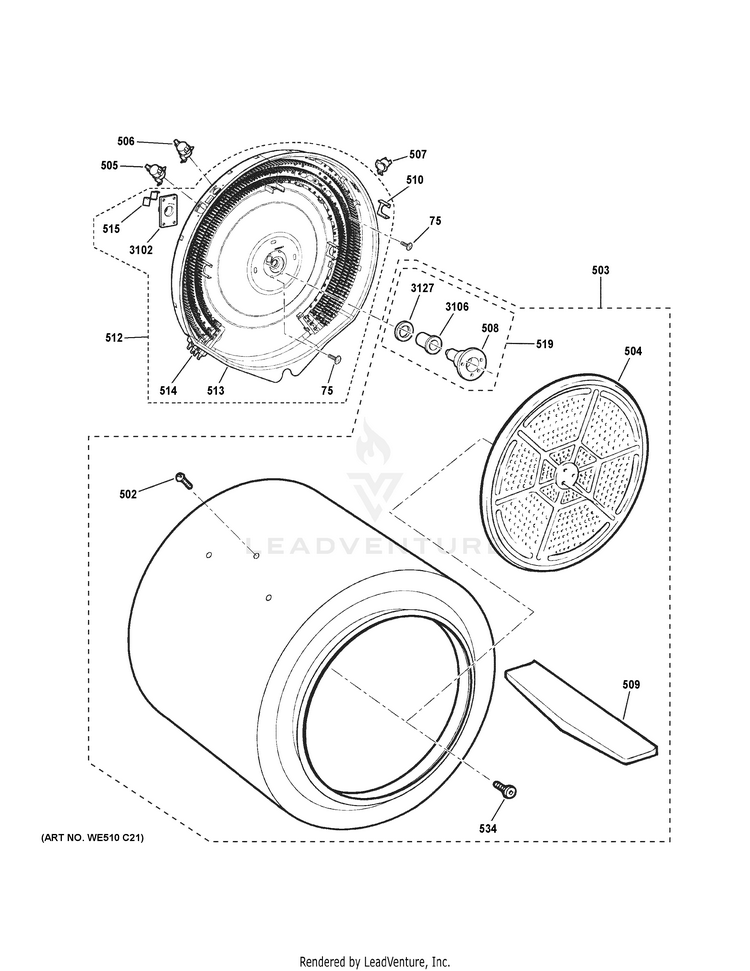

DRUM

...
...
75
SCREW GEH-WE01X25535
...
502
SCREW # 10 GEH-WE2M174
...
503
DRUM ASM GEH-WE21X23869
...
504
DIFFUSER GEH-WE14X20408
...
505
THERMOSTAT GEH-WE04X25198
...
506
INLET CONTROL THERMOSTAT GEH-WE4M398
...
507
HIGH LIMIT THERMOSTAT GEH-WE04X26138
...
508
SHAFT GEH-WE00X181L
...
509
BAFFLE GEH-WE14X20683
...
510
PROTECTION BRACKET GEH-WE1M780
...
512
HEATER AND HOUSING ASM GEH-WE11X21156
...
513
HEATER HOUSING GEH-WE11M43
...
514
MICA HEATER GEH-WE11M10001
...
515
GROUND STRAP ASM GEH-WE1M1015
...
519
SHAFT & BRACKET ASS'Y GEH-WE3M33
...
534
SCREW #10 GEH-WE2M163
...
3102
BEARING RETAINER GEH-WE1M300
...
3106
SLEEVE DRUM GEH-WE1M462
...
3127
O RING GEH-WE1M461

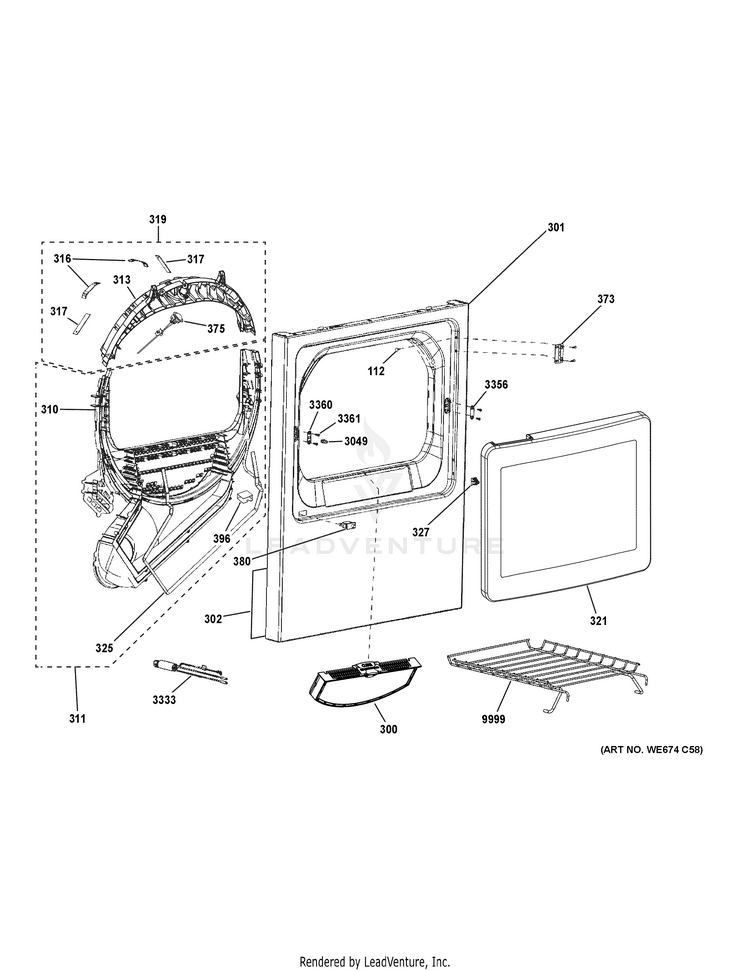

FRONT PANEL & DOOR

...
...
112
PLUG BUTTON GREY GEH-WE1M949
...
300
FILTER LINT ASM GEH-WE03X23881
...
301
PANEL FRONT GEH-WE20X27466
...
302
DEFLECTOR FRONT GEH-WE09X25796
...
310
TRAP DUCT SLIDES GEH-WE01X24546
...
311
TRAP DUCT ASM GEH-WE01X25335
...
313
BEARING TOP SLIDES GEH-WE03X23956
...
316
BEARING SLIDE GEH-WE3M52
...
317
BEARING SLIDE GEH-WE3M51
...
319
BEARING TOP ASM GEH-WE03X23875
...
321
DOOR ASM GEH-WE10X27467
...
325
GASKET (SEAL) 39 INCH GEH-WE1M825
...
327
LATCH GEH-WE01X25316
...
373
HINGE ASM GEH-WE01X25317
...
375
LED GEH-WE15X25754
...
380
DOOR SWITCH GEH-WE10X23879
...
396
SHIELD SWITCH GEH-WE01X23880
...
3049
STRIKE GEH-WE01M10007
...
3333
HARNESS SENSOR ASM GEH-WE15X26994
...
3356
STRIKE PLATE GEH-WE1M569
...
3360
STRIKE PLATE W/STRK HOLE GEH-WE1M570
...
3361
SCREW GEH-WE2M302
...
9999
KIT DRYING RACK GEH-WE01X25160

TRAP DUCT ASSEMBLY

...
...
310
TRAP DUCT SLIDES GEH-WE01X24546
...
311
TRAP DUCT ASM GEH-WE01X25335
...
312
FELT TRAP DUCT GEH-WE09X20441
...
325
GASKET (SEAL) 39 INCH GEH-WE1M825
