GE GTD45EASJ2WS Electric Dryer

Model: GTD45EASJ2WS

Save Part Not Listed?
product name

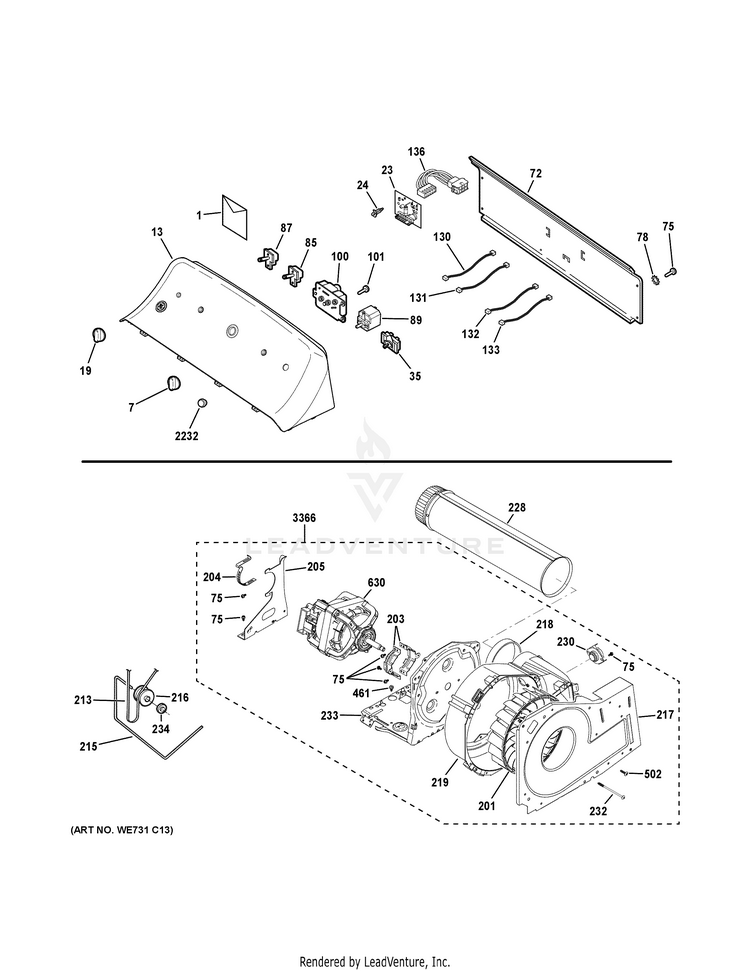

BACKSPLASH, BLOWER & MOTOR ASSEMBLY

...
...
1
PUB NUMBER MINI MANUAL GEH-31-16927
...
1
PM USE AND CARE GEH-49-90543
...
1
PM INSTALLATION INSTRUCTION USA ELEC Y G GEH-31-16775
...
7
KNOB MAIN ASM GEH-WE01X24552
...
13
BACKSPLASH ASM GEH-WE03X24548
...
19
KNOB OPTIONS ASM GEH-WH01X24378
...
23
BOARD DRY ASM GEH-WE04X25137
...
24
LOCKING C B SUPPORT GEH-WE1M418
...
35
SWITCH PTS GEH-WE4M416
...
72
PANEL BACK GEH-WE20X24556
...
75
SCREW GEH-WE01X25535
...
78
WASHER GEH-WE01X26154
...
85
SWITCH ROTARY GEH-WE04X24717
...
87
SWITCH ROTARY GEH-WE04X24555
...
89
BUZZER VARIABLE GEH-WE02X24718
...
100
TIMER GEH-WE04X24551
...
101
SCR 30 X 20 IA PP GEH-WE01X24720
...
130
WIRE BLACK TIMER-BUZZER GEH-WE15X25203
...
131
WIRE GROUP ASM GEH-WE15X25215
...
132
WIRE GROUP ASM GEH-WE15X25214
...
133
JUMPER HARNESS ORANGE TI GEH-WE04X25202
...
136
HARNESS BOARD PC ASM GEH-WE15X25211
...
201
BLOWER WHEEL GEH-WE16X23857
...
203
STRAP MOTOR GEH-WE13X0200
...
204
STRAP MOTOR GEH-WE1X921
...
205
MOTOR SUPPORT GEH-WE13M39
...
213
BELT DRIVE GEH-WE12M29
...
215
IDLER ARM GEH-WE03X20434
...
216
IDLER PULLEY GEH-WE12X20395
...
217
PLATE BLOWER GEH-WE13X29444
...
218
BLOWER GASKET (EXHAUST) GEH-WE1M966
...
219
BLOWER HOUSING ASM GEH-WE03X24536
...
228
EXHAUST DUCT GEH-WE01X23892
...
230
THERMOSTAT GEH-WE04X26216
...
232
SCREW GEH-WE2M202
...
233
PLATE MOTOR GEH-WE03X23858
...
234
CAP NUT GEH-WE2X329
...
461
SCREW 8-32X3/8 GRD SCR GEH-WZ05X0158
...
502
SCREW # 10 GEH-WE2M174
...
630
MOTOR AND PULLEY ASM GEH-WE17X23856
...
2232
BUTTON START ASM GEH-WE04X24719
...
3366
MOTOR & BLOWER ASM GEH-WE17X24535

CABINET & TOP PANEL

...
...
75
SCREW GEH-WE01X25535
...
222
COVER BOTTOM GEH-WE03X23883
...
236
LEVELLING FOOT GEH-WE1M1101
...
254
SCR 6-20 AB PNP#2 1 GEH-WE2X21976
...
401
COVER TOP LOW DEPTH GEH-WE03X24721
...
403
SCREW GEH-WE01X25318
...
404
PANEL SIDE GEH-WE10X29822
...
408
CHASSIS AND LEG ASM GEH-WE04X23854
...
417
FUSE HOLDER 3AB GEH-WE1X21955
...
418
FUSE 3AB GEH-WE1X21975
...
419
TERM BLK & GRND STRAP GEH-WE4M325
...
420
PANEL REAR GEH-WE02X23955
...
430
COVER FUSE TERMINAL GEH-WE1M1007
...
431
STRAIN RELIEF BRACKET EL GEH-WE01X20423
...
461
SCREW 8-32X3/8 GRD SCR GEH-WZ05X0158
...
804
HARNESS ELEC ASM GEH-WE15X27472
...
3204
SCR GEH-WH2M270

DRUM

...
...
75
SCREW GEH-WE01X25535
...
502
SCREW # 10 GEH-WE2M174
...
503
DRUM ASM GEH-WE21X24544
...
504
DIFFUSER GEH-WE14X20408
...
505
THERMOSTAT GEH-WE04X25194
...
506
INLET THERMOSTAT GEH-WE04X25201
...
507
HIGH LIMIT THERMOSTAT GEH-WE04X26139
...
508
SHAFT GEH-WE00X181L
...
509
BAFFLE GEH-WE14X20683
...
510
PROTECTION BRACKET GEH-WE1M780
...
512
HEATER AND HOUSING ASM GEH-WE11X21156
...
513
HEATER HOUSING GEH-WE11M43
...
514
MICA HEATER GEH-WE11M10001
...
515
GROUND STRAP ASM GEH-WE1M1015
...
519
SHAFT & BRACKET ASS'Y GEH-WE3M33
...
534
SCREW #10 GEH-WE2M163
...
3102
BEARING RETAINER GEH-WE1M300
...
3106
SLEEVE DRUM GEH-WE1M462
...
3127
O RING GEH-WE1M461

FRONT PANEL & DOOR

...
...
112
PLUG BUTTON WHITE GEH-WE1M934
...
300
FILTER LINT ASM GEH-WE03X23881
...
301
PANEL FRONT GEH-WE20X25260
...
310
TRAP DUCT SLIDES GEH-WE01X24546
...
311
TRAP DUCT ASM GEH-WE01X25334
...
313
BEARING TOP SLIDES GEH-WE03X23956
...
314
LAMP GEH-WE05X20431
...
316
BEARING SLIDE GEH-WE3M52
...
317
BEARING SLIDE GEH-WE3M51
...
319
BEARING TOP ASM GEH-WE03X25576
...
320
DOOR ASM GEH-WE10X26854
...
325
GASKET (SEAL) 39 INCH GEH-WE1M825
...
327
LATCH GEH-WE01X25316
...
373
HINGE ASM GEH-WE01X25317
...
375
SOCKET ASM GEH-WE01X26494
...
380
DOOR SWITCH GEH-WE10X23879
...
396
SHIELD SWITCH GEH-WE01X23880
...
3049
STRIKE GEH-WE01M10007
...
3049
STRIKE DOOR GEH-WE01X1192
...
3333
HARNESS HIGH LIMIT ASM GEH-WE15X26140
...
3356
STRIKE PLATE GEH-WE1M569
...
3360
STRIKE PLATE W/STRK HOLE GEH-WE1M570
...
3361
SCREW GEH-WE2M302
...
9999
KIT DRYING RACK GEH-WE01X25160

WATER SYSTEM

...
...
310
TRAP DUCT SLIDES GEH-WE01X24546
...
311
TRAP DUCT ASM GEH-WE01X25334
...
312
FELT TRAP DUCT GEH-WE09X20441
...
325
GASKET (SEAL) 39 INCH GEH-WE1M825
