GE GSS25GGHLCBB Refrigerator

Model: GSS25GGHLCBB

Back To Assemblies

Save Part Not Listed?
product name

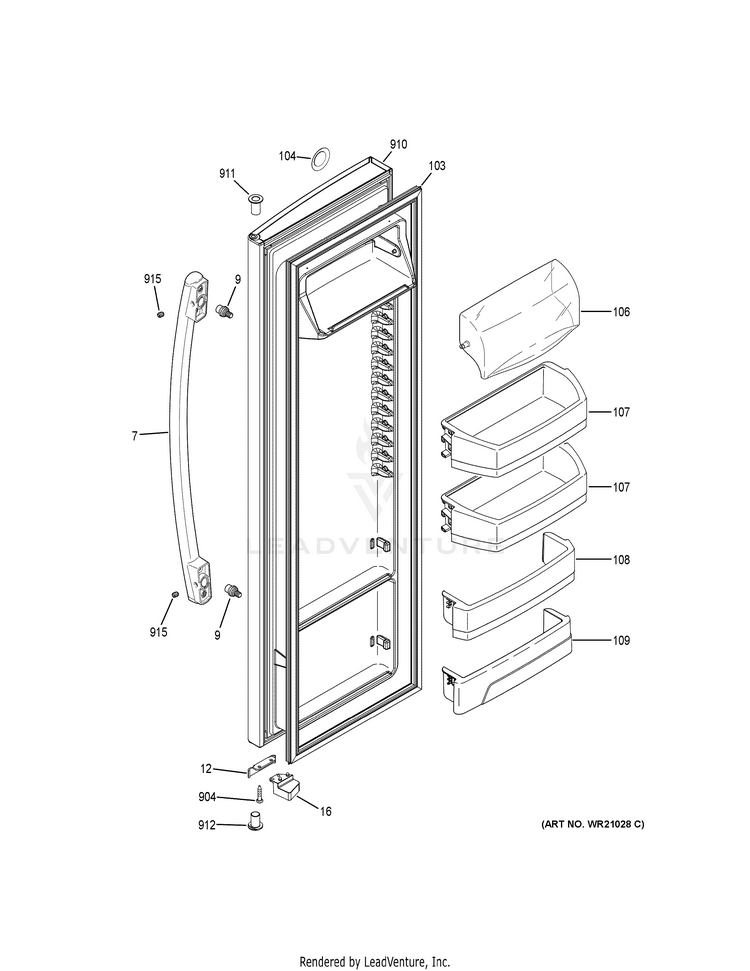

FRESH FOOD DOOR

...
...
7
ARC HANDLE ASM GEH-WR12X20440
...
9
FASTENER DOOR HANDLE GEH-WR01X11007
...
12
STOP DOOR BLACK GEH-WR02X10782
...
16
CAM CLOSURE FZ BLACK GEH-WR02X10779
...
103
GASKET GEH-WR24X20456
...
104
GE BADGE GEH-WR04X29209
...
106
DOOR DAIRY GEH-WR22X10012
...
107
DOOR BIN FF ADJ GEH-WR71X10781
...
108
SHELF MODULE FIXED FF GEH-WR71X10858
...
109
FIXED SHELF FF GEH-WR71X11034
...
904
SCR 10-16 GEH-WR01X10582
...
910
DOOR FOAM ASM FF GEH-WR78X12852
...
911
THIMBLE DOOR GEH-WR01X10956
...
912
THIMBLE DOOR GEH-WR01X10953
...
915
SET SCREW GEH-WR01X20424
