product name

GE GSS25CGHLCWW Refrigerator

Model: GSS25CGHLCWW

Back To Assemblies

Save Part Not Listed?
product name

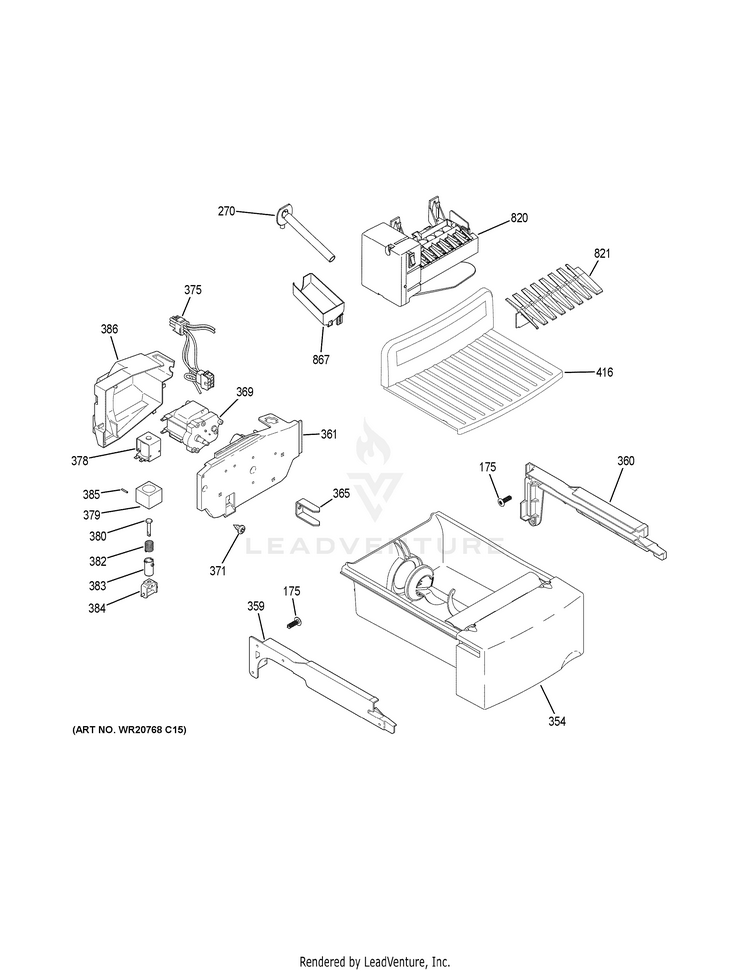

ICE MAKER & DISPENSER

...
...
175
SCREW 8-18 AB IHW 5/8 S GEH-WR01X10035
...
270
GROMMET AND TUBE ASM GEH-WR17X11506
...
354
BUCKET AND AUGER ASM GEH-WR17X12091
...
359
GLIDE BUCKET LH DISP GEH-WR72X10233
...
360
GLIDE BUCKET RH DISP GEH-WR72X10380
...
361
COVER MOTOR BACK GEH-WR17X12323
...
365
DRIVE AUGER DISP GEH-WR02X11941
...
369
MOTOR CRUSHER DISP GEH-WR60X22815
...
371
SCR 10-18 HI/LO HXW 1/2 GEH-WR01X10619
...
375
HARNESS MOTOR DISP GEH-WR23X26670
...
378
SOLENOID AND ARM ASM GEH-WR62X20426
...
379
SHROUD SOLENOID GEH-WR17X12811
...
380
PLUNGER SOLENOID GEH-WR17X1064
...
382
SPRING SOLENOID LINKAGE GEH-WR02X4258
...
383
COLLAR SOLENOID DISP GEH-WR17X12742
...
384
STIRRUP SOLENOID DISPLAY GEH-WR17X1066
...
385
PIN SPIRAL GEH-WR02X4259
...
386
COVER AUGER MOTOR GEH-WR02X12491
...
416
SHELF CHILLER GEH-WR71X10655
...
820
KIT RPLCMT WR30X10093 GEH-WR30X10093
...
821
STRIPPER IM GEH-WR29X10083
...
867
CUP FILL IM GEH-WR29X10109
