GE GSE23GGKNCBB Refrigerator

Model: GSE23GGKNCBB

Back To Assemblies

Save Part Not Listed?
product name

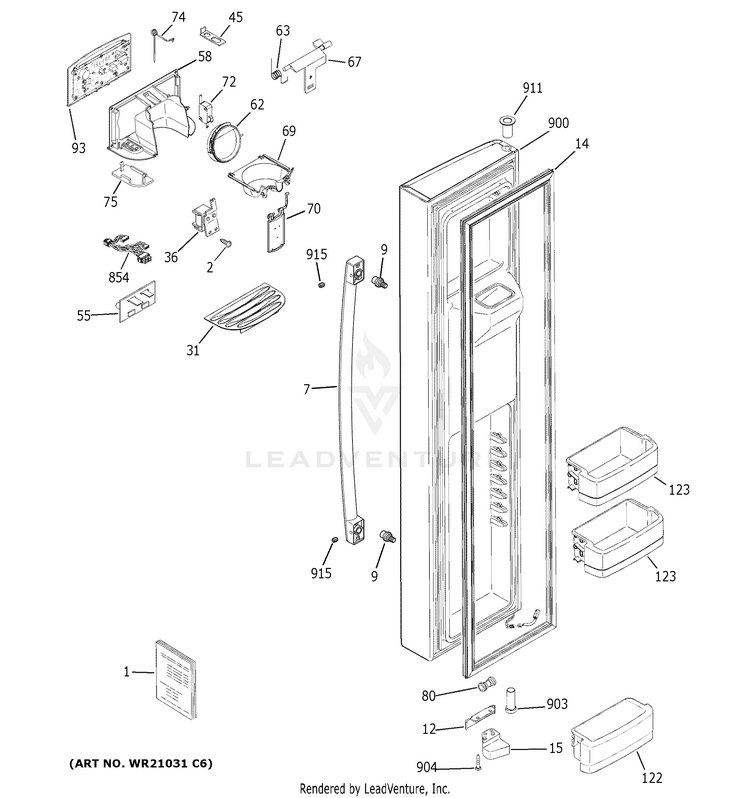

FREEZER DOOR

...
...
1
PM QUICK USE & CARE CAFE GEH-49-60822
...
1
PM MINI WIRING MANUAL GEH-31-51949-3
...
2
SCR 4-10 PL PNP 3/4 SS GEH-WR02X12257
...
7
BLACK HANDLE DOOR ASM GEH-WR12X31686
...
9
FASTENER DOOR HANDLE GEH-WR01X11007
...
12
STOP DOOR BLACK GEH-WR02X10782
...
14
GASKET DOOR FZ DG GEH-WR24X25781
...
15
CAM CLOSURE FF BLACK GEH-WR02X10780
...
31
GRILL RECESS GEH-WR17X12873
...
36
SOLENOID ASM GEH-WR62X10055
...
45
RETAINER RECESS DOOR GEH-WR02X8818
...
55
BOARD ASM DISP LIGHTING GEH-WR55X10899
...
58
HOUSING SHIELD DISP GEH-WR17X12126
...
62
DOOR RECESS ASM GEH-WR17X11653
...
63
SPRING RECESS DOOR GEH-WR02X12059
...
67
CRANK DOOR RECESS GEH-WR17X11953
...
69
DISPENSER ICE FUNNEL GEH-WR17X21781
...
70
PADDLE ASM GEH-WR17X12885
...
72
SWITCH GEH-WR23X10224
...
74
SPRING TORSION GEH-WR02X12256
...
75
COVER LED HOUSING SHIELD GEH-WR02X13405
...
80
UNION CONNECTOR GEH-WR02X11330
...
93
DISPENSER INTERFACE & BOARD BLACK GEH-WR55X30697
...
122
MODULE SHELF FZ FIXED GEH-WR71X10649
...
123
MODULE SHELF FZ GEH-WR71X10650
...
854
HARNESS RECESS DISP GEH-WR23X10695
...
900
DOOR FOAM ASM FZ GEH-WR78X12697
...
903
THIMBLE DOOR BTM FZ BLAC GEH-WR01X10234
...
904
SCR 10-16 GEH-WR01X10582
...
911
THIMBLE DOOR GEH-WR01X10956
...
915
SET SCREW GEH-WR01X20424
