GE GSD3340K55SA Dishwasher

Model: GSD3340K55SA

Back To Assemblies

Save Part Not Listed?
product name

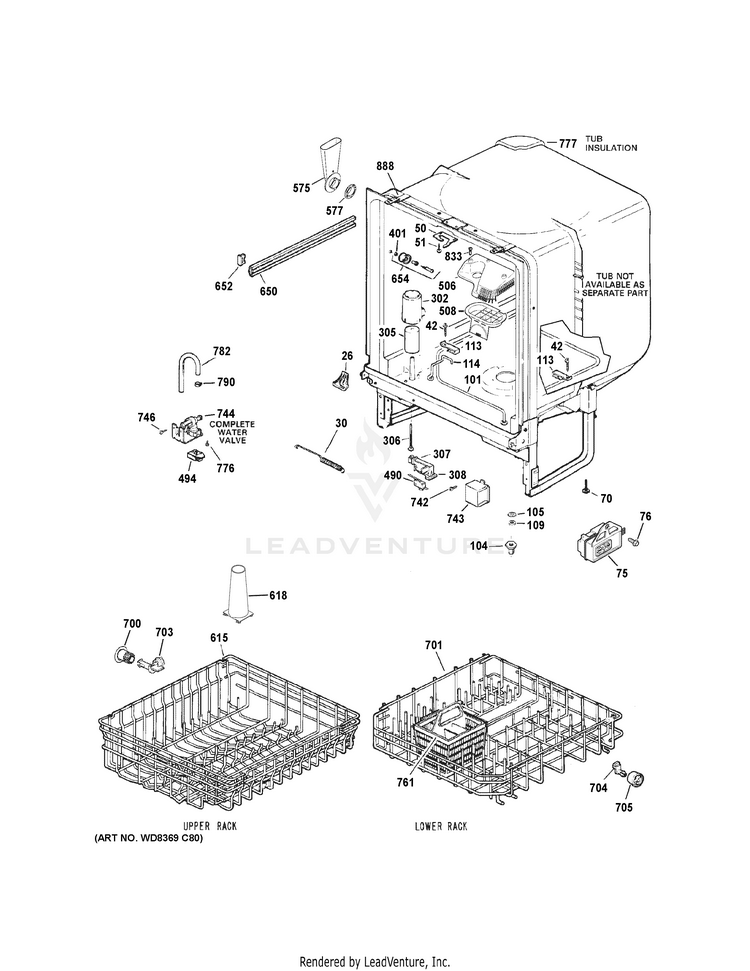

BODY PARTS

...
...
26
BAFFLE TUB CORNER LH GEH-WD08X0228
...
26
BAFFLE TUB CORNER RH GEH-WD08X0227
...
30
SPRING DOOR BK 20 LB GEH-WD03X10006
...
42
SCREW #8-3/4 L HX HD SS GEH-WD02X10110
...
50
KEEPER LATCH GEH-WD13X0067
...
51
SCREW 10-24X1/2 TT TRR S GEH-WD02X10066
...
70
SCREW LEVEL GEH-WD02X0320
...
75
CSM MODULE ASM C-TUB GEH-WD21X23836
...
76
SCR 10-32 GX IHXW 9/16 S GEH-WD01X22514
...
101
ELEMENT HEATING ASM GEH-WD05X10009
...
104
NUT TOWER HEATER GEH-WD01X10070
...
105
HEATER WASHER GEH-WD01X1168
...
109
GROMMET HEATER GEH-WD08X0225
...
113
SUPPORT CALROD ASSY GEH-WD01X10086
...
114
SUPPORT HEATER GEH-WD01X1472
...
302
FLOAT DOME GEH-WD12X0445
...
305
FLOOD FLOAT GEH-WD12X0334
...
306
FLOAT STEM GEH-WD12X0335
...
307
BRACKET FLOOD SWITCH GEH-WD12X10023
...
308
COVER BRACKET GEH-WD12X0377
...
401
WASHER ST STL GEH-WD03X0767
...
490
SWITCH FLOOD GEH-WD21X0479
...
494
HSNG SPECIAL-WATER VALVE GEH-WD21X10355
...
506
COVER INLET GEH-WD12X10356
...
508
CAP SUMP GEH-WD12X10358
...
575
FILL FUNNEL GEH-WD12X23816
...
577
O-RING GEH-WD08X23817
...
615
RACK ASM FINAL UPPER GEH-WD28X10210
...
618
TOWER UPPER RACK GEH-WD28X10367
...
650
RACK SLIDE GEH-WD30X0098
...
652
RACK SLIDE END CAP GEH-WD12X10304
...
654
ROLLER STUD ASM GEH-WD12X0332
...
700
UPPER ROLLER SLIDE GEH-WD12X22723
...
701
RACK ASM FINAL LOWER GEH-WD28X10284
...
703
STUD ROLLER - UPPER GEH-WD12X10266
...
704
STUD ROLLER - LOWER GEH-WD12X10265
...
705
ROLLER LOWER RACK GEH-WD12X23419
...
742
SCREW ACCESS GEH-WR01X10080
...
743
COVER JUCTION BOX GEH-WD12X0448
...
744
VALVE WATER ASM GEH-WD15X22015
...
746
SCR 10-24X3/8 TT HEX GEH-WD02X0248
...
761
BASKET SILVERWARE TM GEH-WD28X0265
...
776
SCR 10-32 C HX 7/16 S GEH-WD02X10159
...
777
INSULATION TUB GEH-WD01X10419
...
782
HOSE FILL GEH-WD18X22014
...
790
CLAMP HOSE GEH-WD01X10065
...
833
SCR 8-16 AB 1HXW 1.25 SS GEH-WD02X10195
...
888
BRACKET COUNTER GEH-WD35X0200
