GE GSD3340K55SA Dishwasher

Model: GSD3340K55SA

Back To Assemblies

Save Part Not Listed?
product name

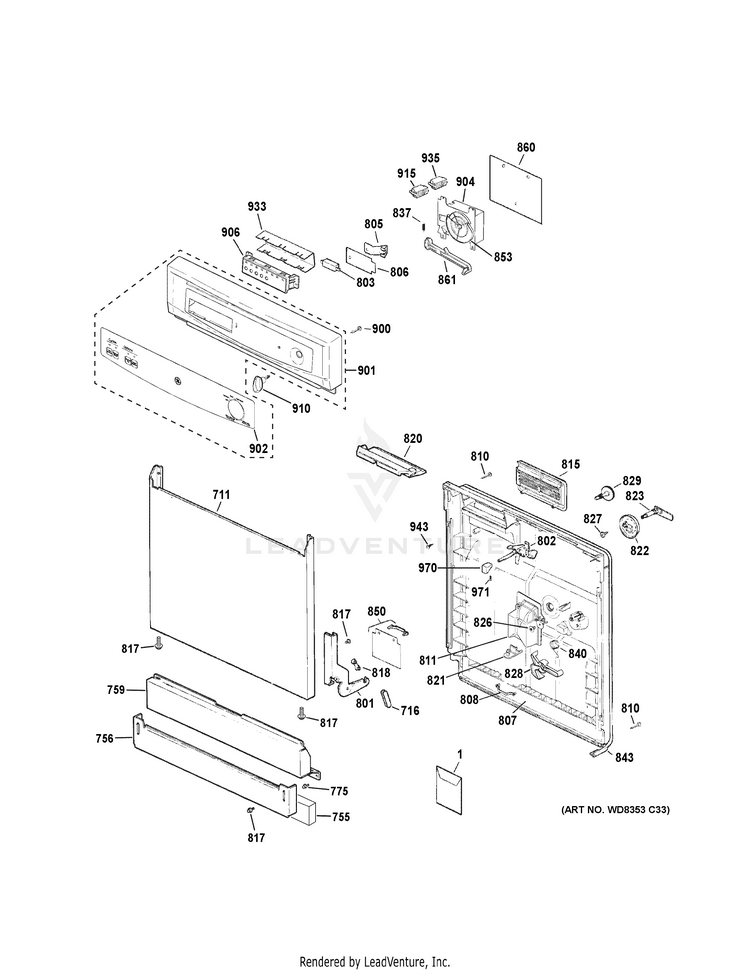

ESCUTCHEON & DOOR ASSEMBLY

...
...
1
PM OWNERS MANUAL GEH-49-55114
...
1
PM QUICK START GUIDE GEH-49-55113
...
1
PM MINI MANUAL GEH-31-30693
...
1
PM INSTALL INSTRUCTIONS GEH-31-31570
...
711
PANEL FRONT FINISHED WM GEH-WD31X10080
...
716
LINK HINGE ARM GEH-WD14X10009
...
755
INSULATION TOE KICK GEH-WD27X21334
...
756
PANEL ACCESS GEH-WD27X21876
...
759
PANEL TOE KICK BLACK GEH-WD27X10068
...
775
SCR 10-16 HXW 3/8 S GEH-WD02X10126
...
801
ARM HINGE RH GEH-WD14X10030
...
801
ARM HINGE LH GEH-WD14X10029
...
802
LATCH ASM GEH-WD13X10003
...
803
SWITCH INTERLOCK GEH-WD21X10261
...
805
LEAF SWITCH GEH-WD01X1363
...
806
SHIELD SWITCH GEH-WD12X22757
...
807
DOOR INNER GEH-WD31X10004
...
808
CLIP HARNESS GEH-WD01X10110
...
810
SCR 8-18 AB TR 7/8S GEH-WD02X10106
...
811
KIT RINSE AID DISPENSER GEH-WD12X10264
...
815
VENT GEH-WD12X10026
...
817
SCR 8-32 HXP 1/4 S GEH-WD02X10162
...
818
BEARING HINGE ARM GEH-WD12X10313
...
820
VENT PAD GEH-WD1X1467
...
821
CLIP RINSE AID TANK GEH-WD01X10415
...
822
COVER DET CUP GEH-WD12X24237
...
823
SHAFT/HANDLE DET CUP GEH-WD16X0313
...
826
SCR 8-18 B POR 1/4 SS GEH-WD02X10130
...
827
SCR 10-12X1/2 AC PNR S GEH-WD02X0425
...
828
LATCH DETERGENT CUP GEH-WD16X10011
...
829
CAP FILL GEH-WD12X24238
...
837
SPRING TIMER LEVER GEH-WD03X10034
...
840
DETERGENT TRIP SPRING GEH-WD03X0764
...
843
DOOR GASKET GEH-WD08X10057
...
850
DRIP SHIELD GEH-WD12X0338
...
853
CAM TIMER GEH-WD16X10012
...
860
DRIP SHIELD GEH-WD12X10407
...
861
DETERGENT TIMER LEVER GEH-WD12X0324
...
900
SCR 8-10 PL TRP 1/2 S GEH-WD02X10104
...
901
ESCUTCHEON & INSERT ASM GEH-WD34X22376
...
902
GRAPHIC & INSERT ASM GEH-WD34X24199
...
904
TIMER GEH-WD21X10476
...
906
SWITCH PUSHBUTTON GEH-WD21X10267
...
910
KNOB TIMER BLACK GEH-WD09X10024
...
915
HOUSING TERMINAL GEH-WD01X10349
...
933
SWITCH COVER GEH-WD12X10154
...
935
TERMINAL SPECIAL GEH-WD01X1434
...
943
SCR 8-16X1/2 STN STL GEH-WD02X10218
...
970
KNOB LATCH HANDLE BK GEH-WD09X0351
...
971
SCREW LATCH KNOB GEH-WZ02X0045
