GE GSD3300V00CC Dishwasher

Model: GSD3300V00CC

Back To Assemblies

Save Part Not Listed?
product name

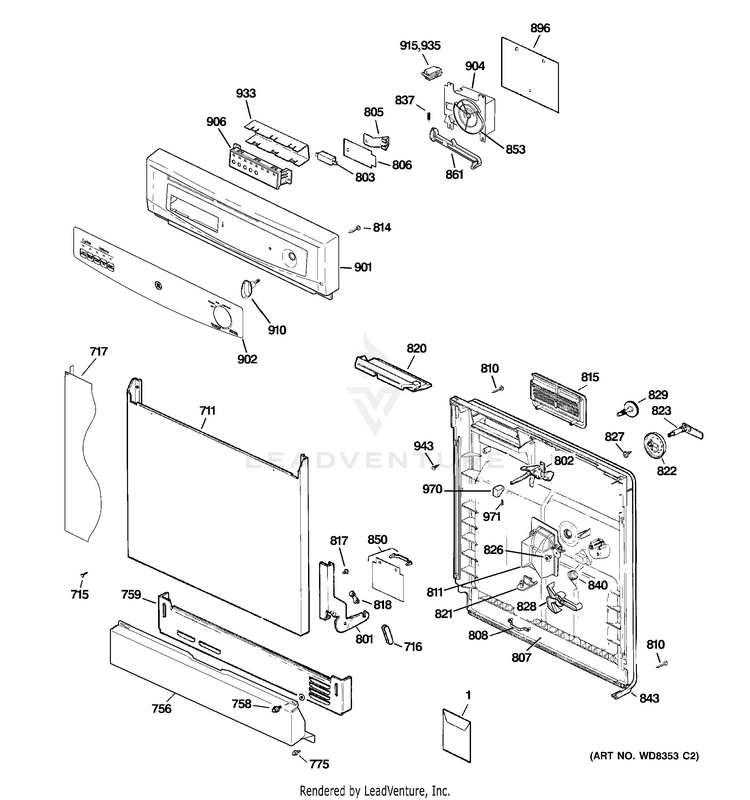

ESCUTCHEON & DOOR ASSEMBLY

...
...
1
PM INSTRUCTION INSTALL GEH-31-30255
...
1
PM MINI-MANUAL GEH-31-30628-2
...
1
PM MANUAL USE & CARE GEH-49-55076-1
...
711
PANEL FRONT - LONG CT GEH-WD31X10026
...
715
SCREW 8-18 X 5/16 AD GEH-WD02X0434
...
716
LINK HINGE ARM GEH-WD14X10009
...
717
COVER FRONT-LONG CT GEH-WD27X10078
...
756
PANEL ACCESS FINISHED CC GEH-WD27X10222
...
758
SCR 8-32 HXP 1/4 S GEH-WD02X10162
...
759
PANEL TOE KICK FINISHED GEH-WD27X10072
...
775
SCR 10-16 HXW 3/8 S GEH-WD02X10126
...
801
ARM HINGE RH GEH-WD14X10030
...
801
ARM HINGE LH GEH-WD14X10029
...
802
LATCH ASM GEH-WD13X10003
...
803
SWITCH INTERLOCK GEH-WD21X10261
...
805
LEAF SWITCH GEH-WD01X1363
...
806
SHIELD SWITCH GEH-WD12X0370
...
807
DOOR INNER GEH-WD31X10004
...
808
CLIP HARNESS GEH-WD01X10110
...
810
SCREW 8-32X5/8 GEH-WD02X0296
...
811
KIT RINSE AID DISPENSER GEH-WD12X10264
...
814
SCR 8-10 PL TRP 1/2 S GEH-WD02X10104
...
815
VENT GEH-WD12X10026
...
817
SCR 10-16X1/2 AB HEXW S GEH-WD02X5166
...
818
BEARING HINGE ARM GEH-WD12X10313
...
820
VENT PAD GEH-WD01X1467
...
821
CLIP RINSE AID TANK GEH-WD01X10415
...
822
COVER DET CUP GEH-WD16X0297
...
823
SHAFT/HANDLE DET CUP GEH-WD16X0313
...
826
SCR 8-18 B POR 1/4 SS GEH-WD02X10130
...
827
SCR 10-12X1/2 AC PNR S GEH-WD02X0425
...
828
LATCH DETERGENT CUP GEH-WD16X10011
...
829
CAP FILL GEH-WD12X10284
...
837
SPRING TIMER LEVER GEH-WD03X10034
...
840
DETERGENT TRIP SPRING GEH-WD03X0764
...
843
DOOR GASKET GEH-WD08X10057
...
850
DRIP SHIELD GEH-WD12X0338
...
853
CAM TIMER GEH-WD16X10012
...
861
DETERGENT TIMER LEVER GEH-WD12X0324
...
896
TIMER COVER GEH-WD31X10141
...
901
ESCUTCHEON GEH-WD34X11687
...
901
ESCUTCHEON & INSERT ASM GEH-WD34X11811
...
902
GRAPHIC & INSERT ASM GEH-WD34X11573
...
904
TIMER GEH-WD21X10475
...
906
SWITCH PUSHBUTTON GEH-WD21X10267
...
910
KNOB TIMER GEH-WD09X10031
...
915
HOUSING TERMINAL GEH-WD01X10349
...
933
SWITCH COVER GEH-WD12X10154
...
935
TERMINAL SPECIAL GEH-WD01X1434
...
943
SCREW GEH-WZ05X0219
...
970
KNOB LATCH HANDLE CC GEH-WD09X10020
...
971
SCREW LATCH KNOB GEH-WZ02X0045
