GE GSD3300N00WW Dishwasher

Model: GSD3300N00WW

Save Part Not Listed?
product name

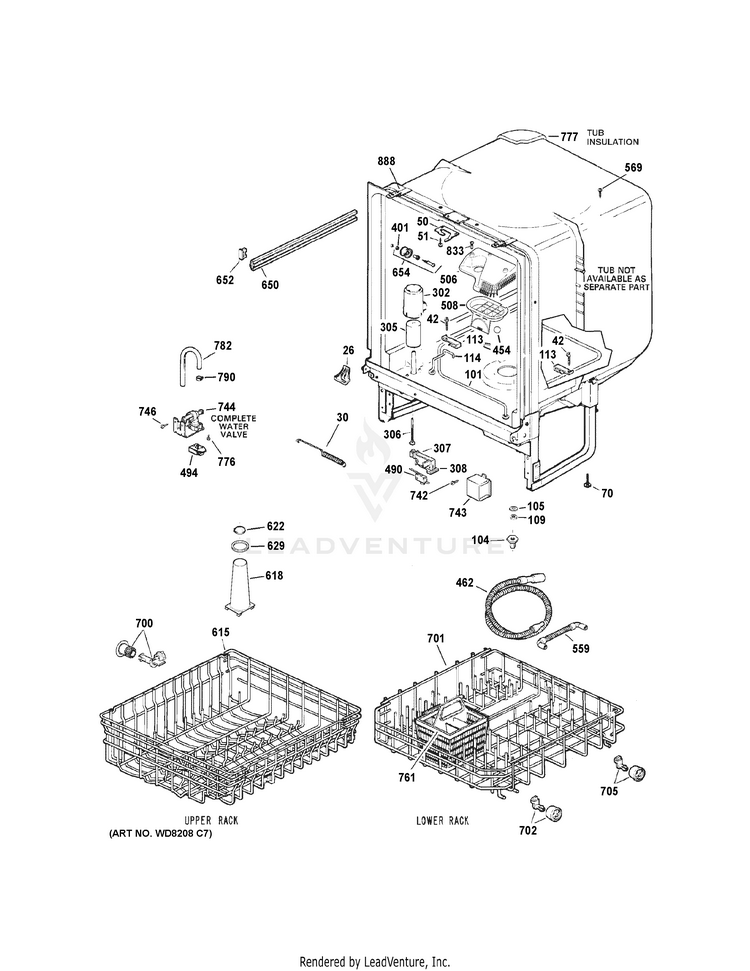

BODY PARTS

...
...
26
BAFFLE TUB CORNER RH GEH-WD08X0227
...
26
BAFFLE TUB CORNER LH GEH-WD08X0228
...
30
SPRING DOOR BK 20 LB GEH-WD03X10006
...
42
SCREW #8-3/4 L HX HD SS GEH-WD02X10110
...
50
KEEPER LATCH GEH-WD13X0067
...
51
SCR 10-24X1/2 TT TRR S GEH-WD02X10142
...
70
SCREW LEVEL GEH-WD02X0320
...
101
ELEMENT HEATING ASM D&D GEH-WD05X0070
...
104
NUT TOWER HEATER GEH-WD01X10070
...
105
HEATER WASHER GEH-WD01X1168
...
109
GROMMET HEATER GEH-WD08X0225
...
113
SUPPORT CALROD ASSY GEH-WD01X10086
...
114
SUPPORT HEATER GEH-WD01X1472
...
302
FLOAT DOME GEH-WD12X0445
...
305
FLOOD FLOAT GEH-WD12X0334
...
306
FLOAT STEM GEH-WD12X0335
...
307
BRACKET FLOOD SWITCH GEH-WD12X10023
...
308
COVER BRACKET GEH-WD12X0377
...
401
WASHER ST STL GEH-WD03X0767
...
454
BALL FILTER - WHITE GEH-WD12X10246
...
462
HOSE DRAIN GEH-WD24X10014
...
490
SWITCH FLOOD GEH-WD21X0479
...
494
HOUSING SPECIAL GEH-WD21X10258
...
506
COVER INLET GEH-WD12X10242
...
508
CAP SUMP GEH-WD12X10247
...
559
HOSE CHAMBER GEH-WD24X10041
...
569
SCR 8-18 PL HXW 3/8 S GEH-WD02X10144
...
615
RACK UPPER ROLLER TM GEH-WD28X10011
...
618
TOWER UPPER RACK GEH-WD28X10203
...
622
CAP TOWER UPPER GEH-WD28X10202
...
629
SEAL CAP TOWER UPPER GEH-WD01X10339
...
650
RACK SLIDE GEH-WD30X0098
...
652
RACK SLIDE END CAP GEH-WD12X0344
...
654
ROLLER STUD ASM GEH-WD12X0332
...
700
4-RLR & STD ASM UPR RACK GEH-WD12X0383
...
701
RACK LOWER & ROLLER ASSY GEH-WD28X10001
...
702
ROLLER ASM LWR RACK FRNT GEH-WD12X0271
...
705
ROLLER ASM LWR RACK REAR GEH-WD12X0272
...
742
SCR 10-16X1/2 AB HEXW S GEH-WD02X5166
...
743
COVER JUNCTION BOX GEH-WD12X448
...
744
VALVE WATER INLET GEH-WD15X10011
...
746
SCR 10-24X3/8 TT HEX GEH-WD02X0248
...
761
BASKET SILVERWARE TM GEH-WD28X0265
...
776
SCR 10-32 T HEX 7/16 S GEH-WZ05X0222
...
777
INSULATION TUB GEH-WD01X10266
...
782
WATER INLET HOSE GEH-WD18X0202
...
790
CLAMP HOSE GEH-WD01X10065
...
833
#10X1\2 PH SMS GEH-WD02X0295
...
888
BRACKET COUNTER GEH-WD35X0200

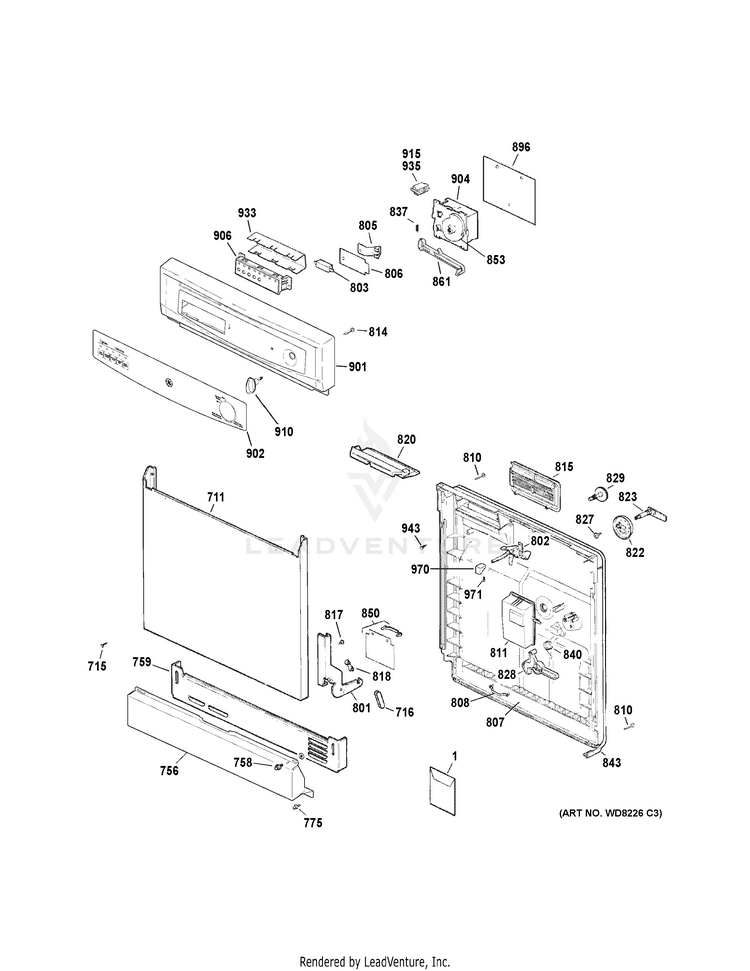

ESCUTCHEON & DOOR ASSEMBLY

...
...
1
PM SHEET MINI MANUAL GEH-31-30487
...
1
PM MANUAL USE & CARE GEH-49-55023
...
1
PM INSTRUCTION INSTALL GEH-31-30218
...
711
PANEL FRONT- LONG WHITE GEH-WD31X10025
...
715
SCR 10-32 CA IHW 7/16S8H GEH-WD02X0433
...
716
LINK HINGE ARM GEH-WD14X10009
...
756
PANEL ACCESS FINISHED WW GEH-WD27X10225
...
758
SCREW 8-32 X 5/16 SPH GEH-WD02X10054
...
759
PANEL TOE KICK WHITE GEH-WD27X10066
...
775
SCR 10-16 HXW 3/8 S GEH-WD02X10126
...
801
ARM HINGE RH GEH-WD14X10030
...
801
ARM HINGE LH GEH-WD14X10029
...
802
LATCH ASM GEH-WD13X10003
...
803
SWITCH INTERLOCK GEH-WD21X10261
...
805
LEAF SWITCH GEH-WD01X1363
...
806
SHIELD SWITCH GEH-WD12X0370
...
807
DOOR INNER GEH-WD31X10004
...
808
CLIP HARNESS GEH-WD01X10110
...
810
SCR 8-18 AB TR 7/8S GEH-WD02X10106
...
811
RINSE AID INJ ASM GEH-WD12X0398
...
814
SCR 8-10 PL TRP 1/2 S GEH-WD02X10104
...
815
VENT GEH-WD12X10026
...
817
SCR 8-32 PNT 1/2 S GEH-WD01X0550
...
818
BEARING HINGE ARM GEH-WD12X10025
...
820
VENT PAD GEH-WD01X1467
...
822
COVER DET CUP GEH-WD16X0297
...
823
SHAFT/HANDLE DET CUP GEH-WD16X0313
...
827
SCR 10-12X1/2 AC PNR S GEH-WD02X0425
...
828
LATCH DETERGENT CUP GEH-WD16X10005
...
829
CAP FILL GEH-WD12X10024
...
837
SPRING TIMER LEVER GEH-WD03X0749
...
840
DETERGENT TRIP SPRING GEH-WD03X0764
...
843
DOOR GASKET GEH-WD08X10057
...
850
DRIP SHIELD GEH-WD12X0338
...
853
CAM TIMER GEH-WD16X10010
...
861
DETERGENT TIMER LEVER GEH-WD12X0324
...
896
SHIELD TIMER GEH-WD12X0429
...
901
ESCUTCHEON GEH-WD34X11330
...
902
INSERT ESCUTCHEON GEH-WD34X11345
...
904
TIMER GEH-WD21X10349
...
906
SWITCH PUSHBUTTON GEH-WD21X10267
...
910
KNOB TIMER WHITE GEH-WD09X10025
...
915
HOUSING TERMINAL GEH-WD01X10349
...
933
SWITCH COVER GEH-WD12X10154
...
935
TERMINAL SPECIAL GEH-WD01X1434
...
943
SCREW GEH-WZ05X0219
...
970
KNOB LATCH HANDLE WH GEH-WD09X0352
...
971
SCREW LATCH KNOB GEH-WZ02X0045

MOTOR-PUMP MECHANISM

...
...
310
MECHANISM S/S ASM GEH-WD26X10035
...
311
HOUSING PUMP ASSY GEH-WD19X10020
...
413
PS RETAINER GEH-WD03X0487
...
414
SCREW GEH-WD02X0444
...
415
NUT PUSH ON GEH-WD02X0429
...
417
GATE SHAFT SEAL GEH-WD08X0181
...
418
ARM VALVE GEH-WD01X10343
...
420
HANGER MECH GEH-WD01X1482
...
426
ARMATURE LINK ASSEMBLY GEH-WD01X1316
...
430
GRADER & IMPELLER GEH-WD19X10039
...
450
COUPLER GEH-WD01X10342
...
451
BASE SPRAY ARM GEH-WD12X10244
...
452
CLAMP HOSE GEH-WD01X1392
...
453
BEARING SPRAY ARM GEH-WD01X10340
...
454
BALL FILTER - WHITE GEH-WD12X10246
...
455
CONNECTOR PUMP ASM GEH-WD18X0214
...
457
CLAMP (PUMP CONNECTOR) GEH-WD01X1376
...
458
CLAMP GEH-WD01X10341
...
459
SCREW 8-16 HXW 1/2 SS GEH-WD02X10067
...
462
HOSE DRAIN GEH-WD24X10014
...
493
BRACKET & SOLENOID GEH-WD21X10268
...
495
TERM HSNG - W/VALVE GEH-WD21X10257
...
501
SPRAY ARM WELD GEH-WD22X10055
...
505
SUMP INLET GEH-WD18X10039
...
507
FINE FILTER ASM GEH-WD12X10243
...
510
CHAMBER COLLECTION GEH-WD12X10245
...
553
SPRING SET GEH-WD03X0721
...
559
HOSE CHAMBER GEH-WD24X10041
...
790
CLAMP HOSE GEH-WD01X10065
...
819
SCR 10-32 TT HEX .575S GEH-WD02X10141
