GE GNE27JSMKFSS Refrigerator

Model: GNE27JSMKFSS

Back To Assemblies

Save Part Not Listed?
product name

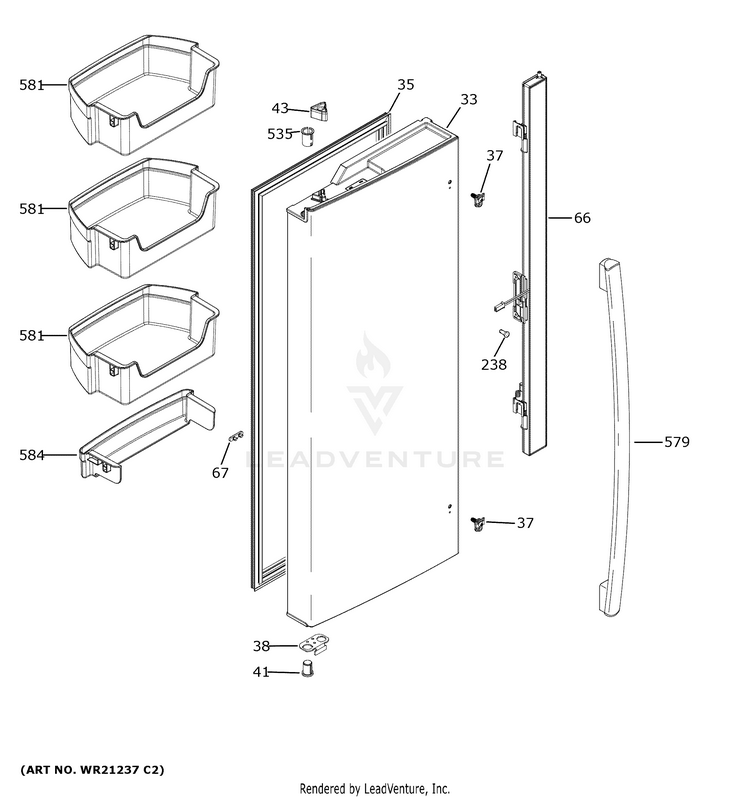

FRESH FOOD DOOR - LH

...
...
33
REFRIGERATOR - DISPENSER DOOR STAINLESS GEH-WR78X30268
...
35
REFRIGERATOR - FRESH FOOD DOOR SLATE GEH-WR14X30117
...
37
FASTENER HANDLE ASM GEH-WR01X25070
...
38
STOP DOOR GEH-WR02X24874
...
41
HINGE BUSHING BB GEH-WR02X24875
...
43
CAM CLOSURE FF DG GEH-WR02X24998
...
66
ARTICULATING MULLION ASM GEH-WR17X25027
...
67
BUMPER DOOR DG GEH-WR02X33365
...
238
SCREW 10-32 GXTT FLP 595 GEH-WR01X10065
...
535
HINGE BUSHING BB GEH-WR02X24999
...
579
SS DOOR HANDLE GEH-WR12X34305
...
581
FRESH FOOD DOOR SHELF MODULE GEH-WR71X30144
...
584
FRESH FOOD DOOR LOWER BIN GEH-WR71X30145
