GE GLD4209L25WW Dishwasher

Model: GLD4209L25WW

Save Part Not Listed?
product name

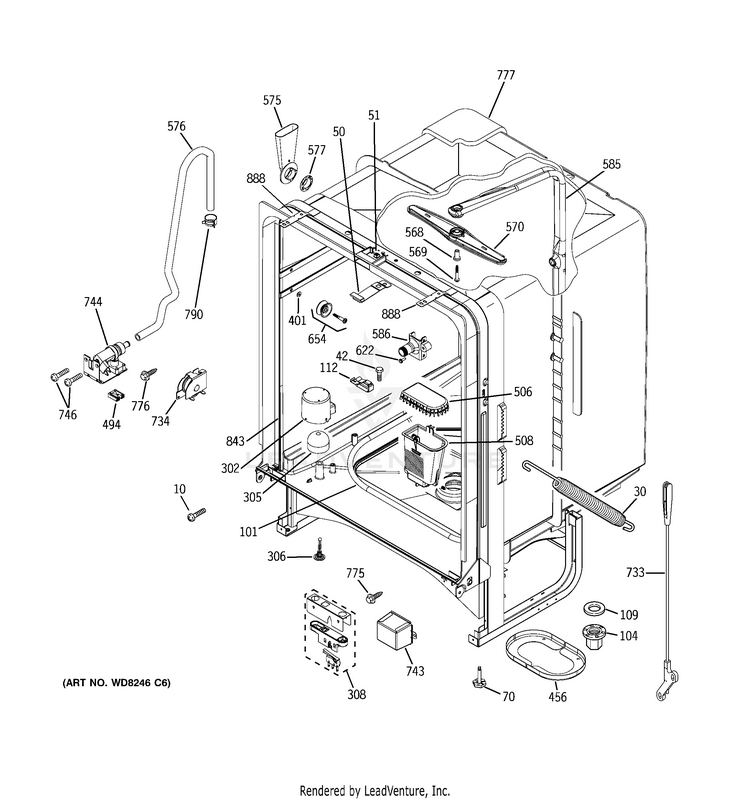

BODY PARTS

...
...
10
SCREW 10-32 GXTT FLP 595 GEH-WR01X10065
...
30
SPRING GEH-WD03X10014
...
42
SCREW #8-3/4 L HX HD SS GEH-WD02X10110
...
50
KEEPER LATCH ASM GEH-WD13X10053
...
51
SCREW 10-24X1/2 TT TRR S GEH-WD02X10066
...
70
SCREW LEVEL GEH-WD02X0320
...
101
ELEMENT HEATING ASM GEH-WD05X10010
...
104
NUT TOWER HEATER GEH-WD01X10097
...
109
GROMMET HEATER GEH-WD01X10094
...
112
SUPPORT HEATER GEH-WD01X10283
...
302
DOME FLOAT GEH-WD12X10051
...
305
FLOAT GEH-WD12X10047
...
306
STEM FLOAT GEH-WD12X10048
...
308
SWITCH FLOOD ASM GEH-WD21X10168
...
401
WASHER ST STL GEH-WD03X0767
...
456
RING SUMP GEH-WD01X10106
...
494
HSNG SPECIAL-WATER VALVE GEH-WD21X10355
...
506
COVER INLET GEH-WD12X10049
...
508
FILTER SUMP GEH-WD22X10034
...
568
BEARING SPRAY ARM UP GEH-WD01X10209
...
569
SCREW 8-16 B HXW 1 08 SS GEH-WD02X10068
...
570
ARM SPRAY UPPER ASM GEH-WD22X10045
...
575
FUNNEL FILL GEH-WD12X10180
...
576
HOSE FILL GEH-WD24X10026
...
577
GASKET FUNNEL FILL GEH-WD08X10053
...
585
CONDUIT MAIN GEH-WD12X10057
...
586
CONE DOCKING GEH-WD12X10059
...
622
SCREW 8-16 HXW 1/2 SS GEH-WD02X10067
...
654
ROLLER STUD ASM GEH-WD12X0332
...
733
CABLE PULLEY ASM GEH-WD01X10348
...
734
PULLEY BRACKET ASSY GEH-WD16X10009
...
743
COVER JUNCTION BOX GEH-WD12X448
...
744
WATER VALVE INLET GEH-WD15X10003
...
746
SCR 10-24X3/8 TT HEX GEH-WD02X0248
...
775
SCR 10-16X1/2 AB HEXW S GEH-WD02X5166
...
776
SCR 10-32 C HX 7/16 S GEH-WD02X10159
...
777
INSULATION TUB BLANKET GEH-WD01X10289
...
790
CLAMP HOSE GEH-WH01X2036
...
843
GASKET TUB GEH-WD08X10018
...
888
BRACKET COUNTER GEH-WD01X10288

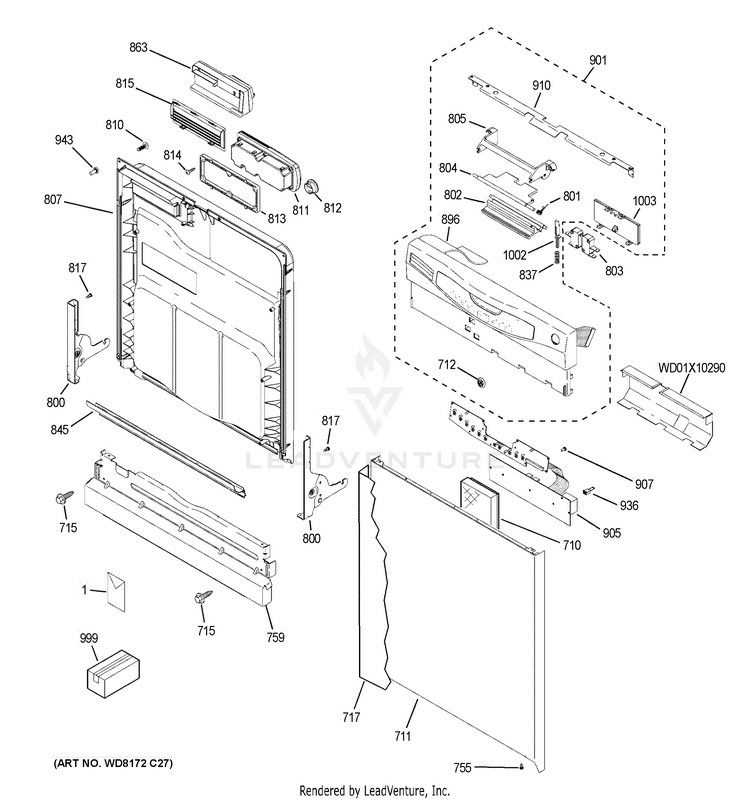

ESCUTCHEON & DOOR ASSEMBLY

...
...
1
PM SHEET MINI MANUAL GEH-31-30497
...
1
PM MANUAL USE & CARE GEH-49-55028
...
1
PM INSTRUCTION INSTALL GEH-31-30220
...
710
BLOCK FOAM DOOR GEH-WD01X10344
...
711
KIT DOOR PANEL GEH-WD31X10082
...
712
BADGE GEH-WD34X11493
...
715
SCR 8-18 AB IHXW 1/2 S GEH-WR01X1554
...
717
DOOR PANEL KIT GEH-WD27X10210
...
755
SCREW 8-18 5/16 PH GEH-WD02X0430
...
759
TOEKICK ASM GEH-WD27X10219
...
800
HINGE ARM ASM LH GEH-WD14X10024
...
800
HINGE ARM ASM RH GEH-WD14X10025
...
801
SPRING RECESS DOOR GEH-WR02X10585
...
802
HANDLE LATCH WHITE GEH-WD13X10010
...
803
SWITCH INTERLOCK GEH-WD21X10224
...
804
ACTUATOR HANDLE GEH-WD13X10045
...
805
RETAINER HANDLE GEH-WD13X10009
...
807
KIT DOOR PANEL GEH-WD31X10083
...
810
SCR 8-18 AB TR 7/8S GEH-WD02X10106
...
811
MODULE RINSE AND CAP ASM GEH-WD12X10205
...
812
CAP RINSE ASM GEH-WD12X10206
...
813
BRACKET RINSE MODULE GEH-WD12X10146
...
814
SCR 8-10 PL TRP 1/2 S GEH-WD02X10104
...
815
VENT GEH-WD12X10192
...
817
SCR 8-32 HXP 1/4 S GEH-WD02X10162
...
837
SPRING PLUNGER GEH-WD03X10026
...
845
SEAL SHORT BOTTOM DOOR GEH-WD08X10059
...
863
AIR DIVERTER ASM GEH-WD12X10288
...
896
SHIELD MAIN BOARD GEH-WD12X10203
...
901
ESCUTCHEON ASM GEH-WD34X11236
...
905
E15 VORTEX DL-1 KIT GEH-WD21X10247
...
907
6-19 X 1/4 TORX PAN HEAD GEH-WD02X10129
...
910
BRACE ESCUTCHEON GEH-WD34X10871
...
936
PLUG ASM MODEL SELECTOR GEH-WD21X10234
...
943
SCREW GEH-WZ05X0219
...
999
KIT-PANEL SUPPORT CLIP GEH-WD35X10061
...
1002
PLUNGER SW INTERLOCK GEH-WD12X10271
...
1003
COVER INTERLOCK GEH-WD12X10272

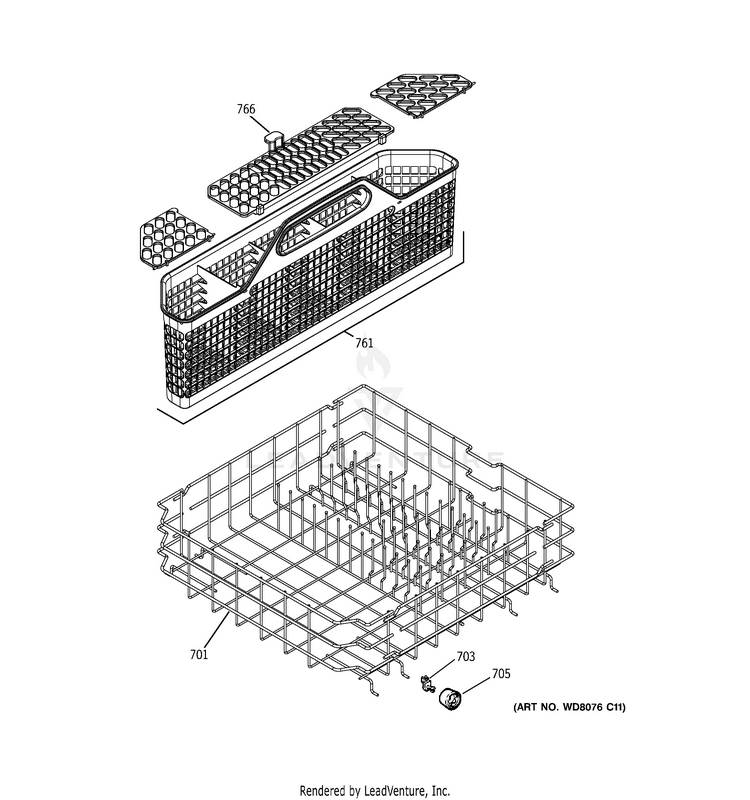

LOWER RACK ASSEMBLY

...
...
701
RACK LOWER ROLL ASM GEH-WD28X10166
...
703
STUD ROLLER - LOWER GEH-WD12X10278
...
705
ROLLER LOWER RACK GEH-WD12X10074
...
761
BASKET SILVERWARE LONG GEH-WD28X10238
...
766
LID BASKET GEH-WD28X10170

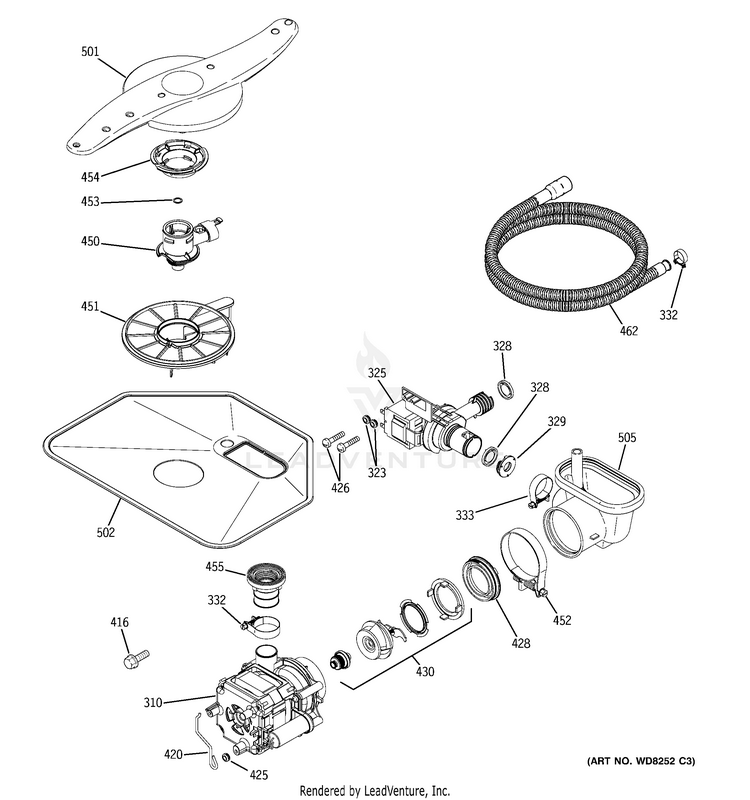

MOTOR-PUMP MECHANISM

...
...
310
MECHANISM ASM GEH-WD26X10033
...
323
GROMMET GEH-WD01X10269
...
325
PUMP DRAIN ASM GEH-WD26X10025
...
328
WD01X10175 GEH-WD01X10178
...
329
SEAT CHECK VALVE GEH-WD01X10176
...
332
CLAMP GEH-WD01X10103
...
333
CLAMP GEH-WD01X10105
...
416
SCR 10-32 TT HEX .575S GEH-WD02X10141
...
420
HANGER MOTOR GEH-WD01X10297
...
425
GROMMET GEH-WD01X10101
...
426
WD02X10093 GEH-WD02X10094
...
428
RING SUCTION GEH-WD12X10060
...
430
KIT - IMPELLER ASM GEH-WD19X10038
...
450
HUB VENTURI ASSY GEH-WD18X10009
...
451
FILTER FINE ASSY GEH-WD12X10050
...
452
CLAMP HOSE GEH-WD01X1392
...
453
BEARING SPRAY ARM LOW GEH-WD01X10107
...
454
NUT HUB FINE FILTER GEH-WD12X10061
...
455
CONNECTOR PUMP ASSY GEH-WD18X10010
...
462
DRAIN TUBE ASM GEH-WD24X10035
...
501
ARM SPRAY LOW ASM GEH-WD22X10044
...
502
FILTER COARSE GEH-WD22X10057
...
505
SUMP INLET GEH-WD18X10034

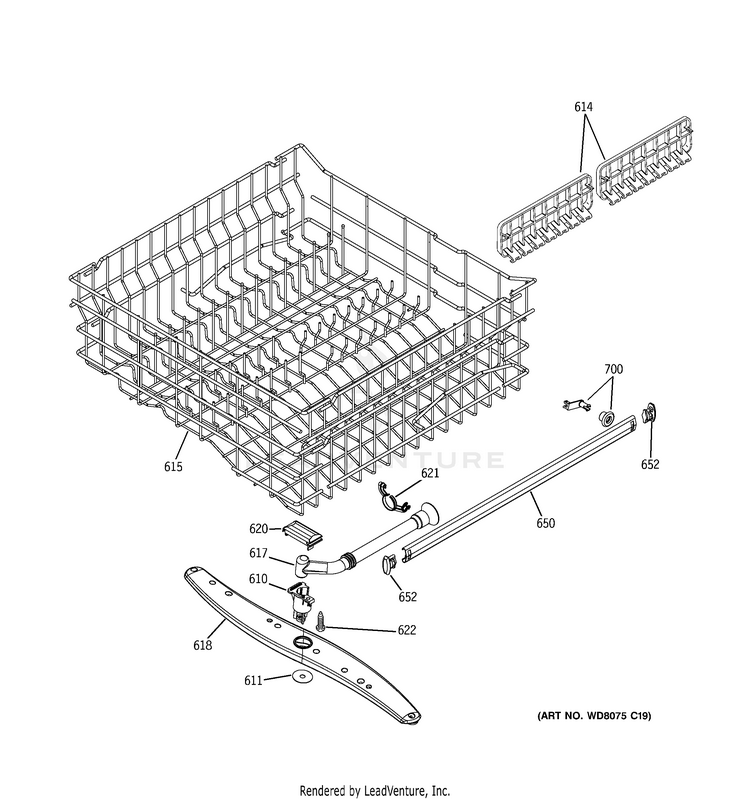

UPPER RACK ASSEMBLY

...
...
610
HUB SPRAY ARM MID GEH-WD12X10199
...
611
BEARING MID SPRAY ARM GEH-WD01X10384
...
614
SHELF CUP GEH-WD28X10176
...
615
RACK UPPER ROLL ASM GEH-WD28X10167
...
617
CONDUIT SPRAY ARM MID GEH-WD12X10052
...
618
ARM SPRAY MID ASM GEH-WD22X10046
...
620
BRACKET SPRAY ARM MID GEH-WD12X10198
...
621
CONDUIT CARRIER MID GEH-WD12X10197
...
622
SCREW 8-16 HXW 1/2 SS GEH-WD02X10067
...
650
RACK SLIDE GEH-WD30X0098
...
652
RACK SLIDE END CAP GEH-WD12X10304
...
700
ROLLER & STUD ASM GEH-WD12X10202
