GE GIE21GTHEBB Refrigerator

Model: GIE21GTHEBB

Back To Assemblies

Save Part Not Listed?
product name

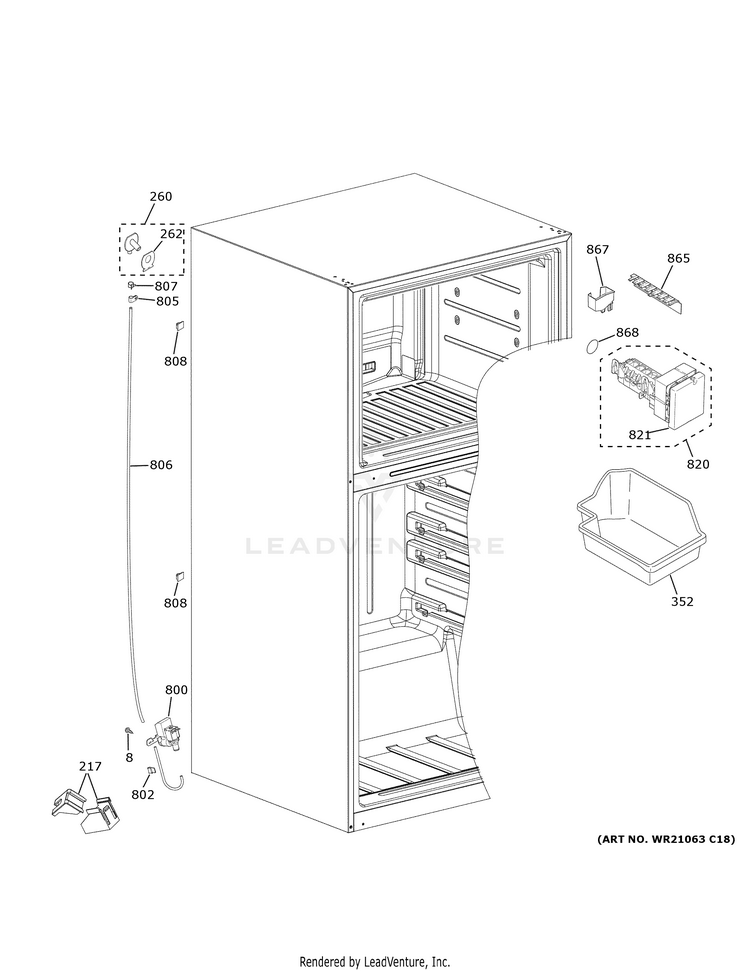

ICE MAKER

...
...
8
SCR 8-36 T GEH-WR1K1
...
217
WATER CONNECTOR COVER GEH-WR14X30956
...
260
WR2X9161 GEH-WR2X9224
...
262
GASKET DONUT GEH-WR02X9223
...
352
BUCKET ICE GEH-WR30X21245
...
800
VALVE AND TUBE ASM GEH-WR57X21246
...
802
CLIP U GEH-WR01X10182
...
805
STR RELIEF GEH-WR02X3736
...
806
TUBE PLASTIC GEH-WR17X10893
...
807
CLAMP GEH-WR02X11437
...
808
ADHESIVE CLIP GEH-WR02X4039
...
820
KIT RPLCMT WR30X10093 GEH-WR30X10093
...
821
COVER ICEMAKER GEH-WR29X10082
...
865
STRIPPER IM GEH-WR29X10083
...
867
CUP FILL IM GEH-WR29X10021
...
868
EVAPORATOR COVER PLUG GEH-WR02X33785
