GE GIE21GMLBES Refrigerator

Model: GIE21GMLBES

Save Part Not Listed?
product name

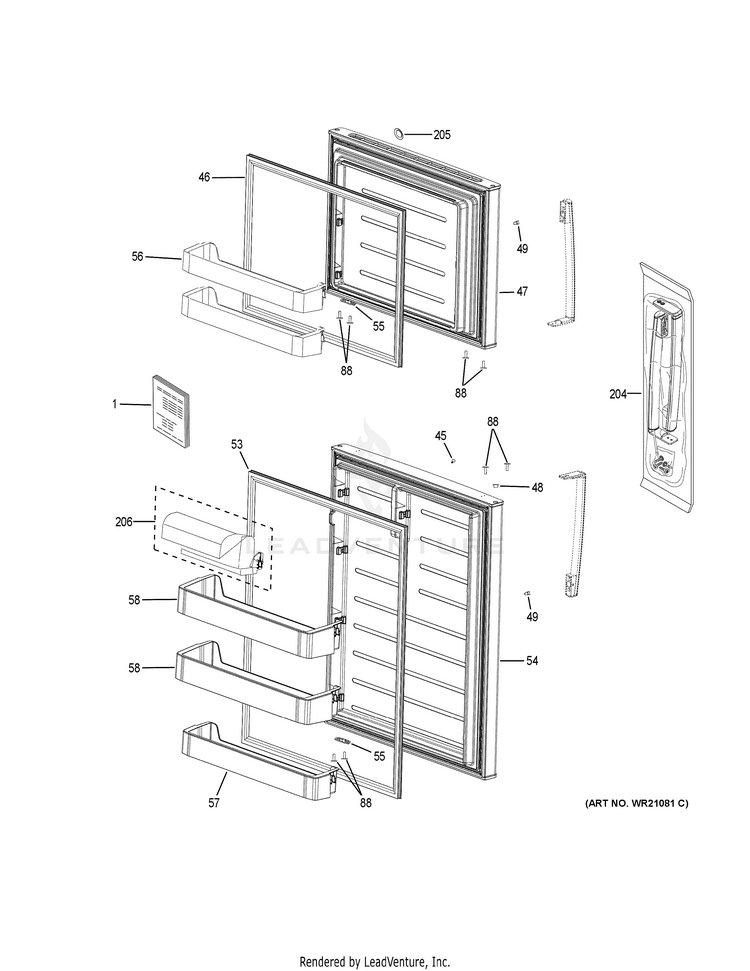

DOORS

...
...
1
PM ATTENTION INSTALLER GEH-39-49051
...
1
PM GUIDE OWNERS GEH-49-60726
...
1
PM MINI MANUAL GEH-31-51909
...
1
PM QUICK USE & CARE GEH-49-60728
...
45
PLUG BUTTON DG GEH-WR01X22798
...
46
FZ GASKET DG GEH-WR14X22797
...
47
REFRIGERATOR - FREEZER DOOR SLATE GEH-WR78X30048
...
48
PLUG BUTTON THIMBLE DG GEH-WR01X22792
...
49
BOLT-FASTENER DOOR HANDL GEH-WR49X22751
...
53
FF GASKET DG GEH-WR14X22795
...
54
REFRIGERATOR - FRESH FOOD DOOR SLATE GEH-WR78X30049
...
55
DOOR STOPPER DG GEH-WR01X22793
...
56
FZ SHELF GEH-WR71X22780
...
57
FF COND SHELF GEH-WR71X22755
...
58
FF GAL SHELF GEH-WR71X22756
...
88
SCREW GEH-WR01X22758
...
204
HANDLE PACK SS GEH-WR12X22799
...
205
BADGE ASM GE GEH-WR04X10222
...
206
DAIRY BIN ASM GEH-WR01X22753

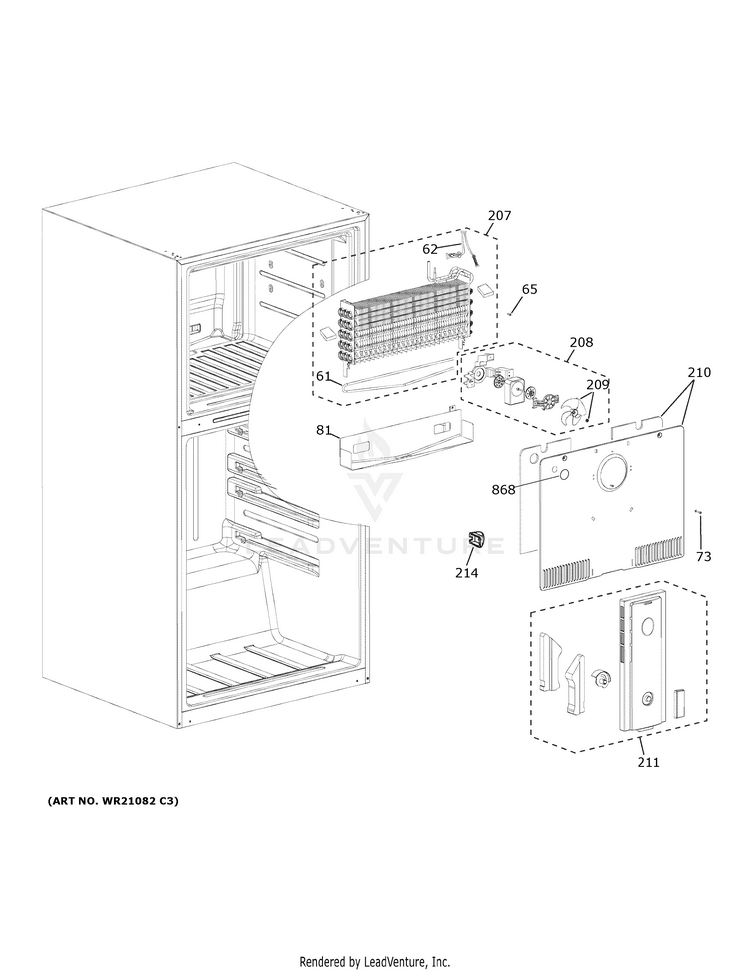

FREEZER SECTION

...
...
61
HEATER DEF ASM GEH-WR09X24623
...
62
THERMOSTAT DEF GEH-WR50X24624
...
65
SCREW GEH-WR01X22680
...
73
PAINTED SCREW GEH-WR01X22823
...
81
DEFROST DRAIN TRAY GEH-WR02X22674
...
207
EVAP ASM GEH-WR87X22675
...
208
EVAP FAN ASM GEH-WR60X22677
...
209
FAN BLADE W RING GEH-WR60X22678
...
210
EVAP COVER ASM GEH-WR13X22676
...
211
FZ AIR DUCT ASM GEH-WR02X22679
...
214
COVER IM RECEPTACLE GEH-WR02X11123
...
868
EVAPORATOR COVER PLUG GEH-WR02X33785

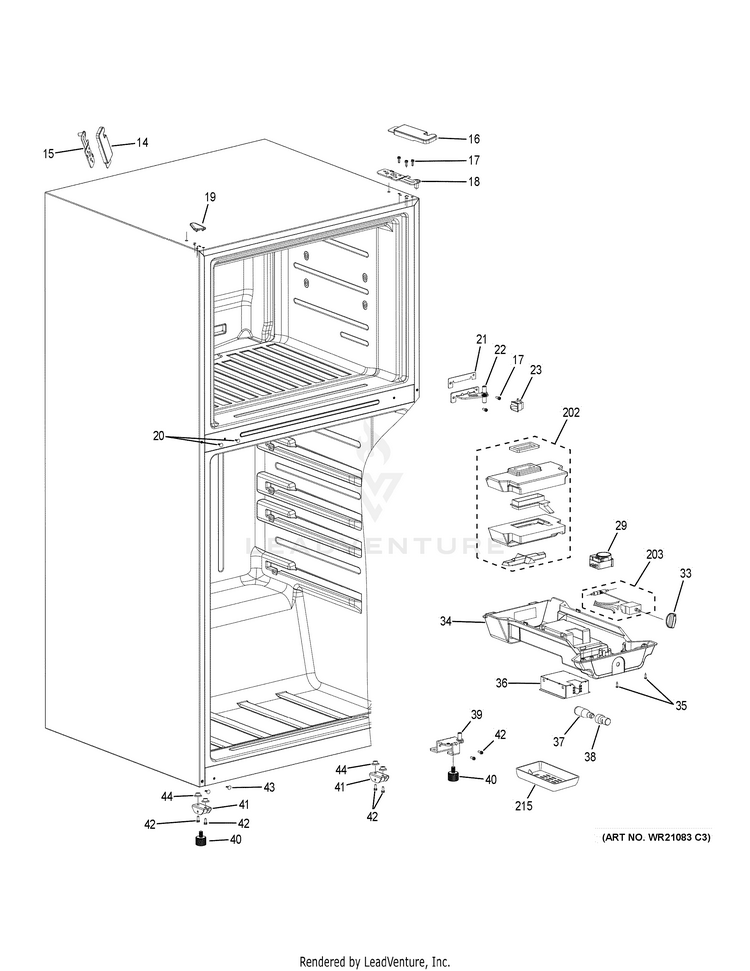

FRESH FOOD SECTION

...
...
14
LEFT TOP HINGE COVER DG GEH-WR13X22800
...
15
LEFT TOP HINGE GEH-WR13X22745
...
16
RIGHT TOP HINGE COVER DG GEH-WR13X22801
...
17
SCREW GEH-WR01X20336
...
18
RIGHT TOP HINGE GEH-WR13X22747
...
19
TOP HINGE RVSBL COVER DG GEH-WR13X22802
...
20
CENTER HINGE RVSBL PLUG GEH-WR13X22907
...
21
MIDDLE HINGE WASHER GEH-WR02X22746
...
22
CENTER HINGE GEH-WR13X22736
...
23
DOOR SWITCH GEH-WR23X20371
...
29
DEFROST TIMER GEH-WR09X22737
...
33
KNOB GEH-WR02X22742
...
34
FF AIR CHANNEL COVER GEH-WR13X22738
...
35
SCREW GEH-WR01X20366
...
36
LAMP COVER GEH-WR01X22744
...
37
LAMP GEH-WR02X22743
...
38
SOCKET GEH-WR02X22749
...
39
BOTTOM HINGE GEH-WR13X22734
...
40
ADJUSTABLE FOOT GEH-WR02X22733
...
41
FOOT WHEEL GEH-WR02X22741
...
42
SCREW GEH-WR01X22748
...
43
BOTTOM HINGLE RVSBL PLUG GEH-WR13X22791
...
44
FIXED CLAMP GEH-WR01X22740
...
202
FF AIR DUCT FOAM ASM GEH-WR02X22739
...
203
THERMOSTAT ASM GEH-WR09X22750
...
215
LAMP COVER GEH-WR01X29548

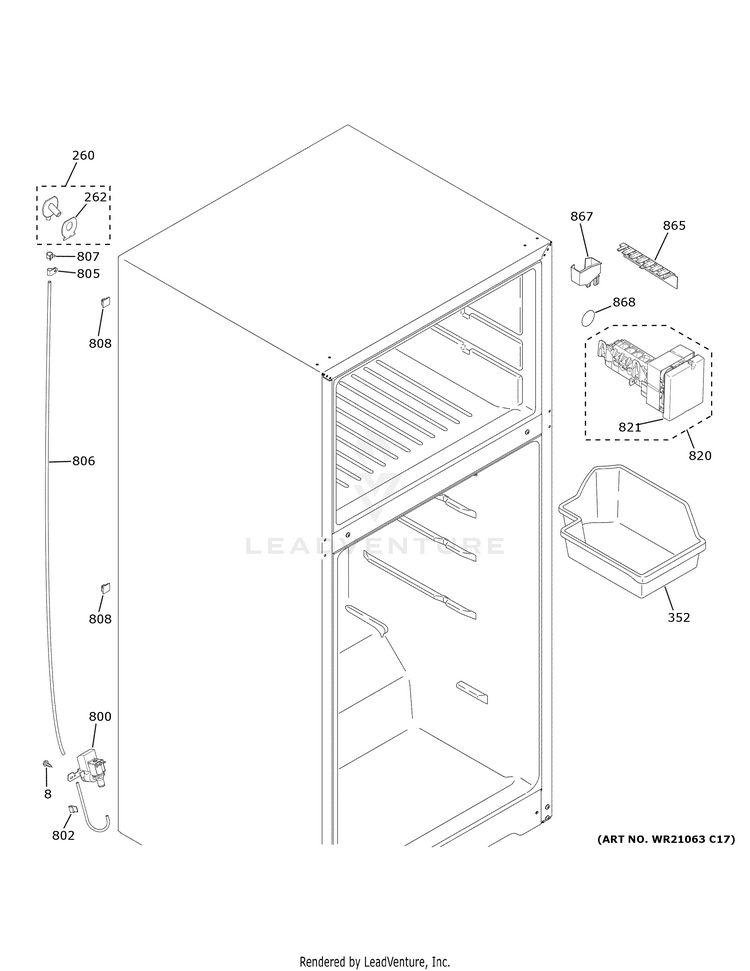

ICE MAKER

...
...
8
SCR 8-36 T GEH-WR1K1
...
260
WR2X9161 GEH-WR2X9224
...
262
GASKET DONUT GEH-WR02X9223
...
352
BUCKET ICE GEH-WR30X21245
...
800
VALVE AND TUBE ASM GEH-WR57X21246
...
802
CLIP U GEH-WR01X10182
...
805
STR RELIEF GEH-WR02X3736
...
806
TUBE PLASTIC GEH-WR17X10893
...
807
CLAMP GEH-WR02X11437
...
808
ADHESIVE CLIP GEH-WR02X4039
...
820
KIT RPLCMT WR30X10093 GEH-WR30X10093
...
821
COVER ICEMAKER GEH-WR29X10082
...
865
STRIPPER IM GEH-WR29X10083
...
867
CUP FILL IM GEH-WR29X10021
...
868
EVAPORATOR COVER PLUG GEH-WR02X33785

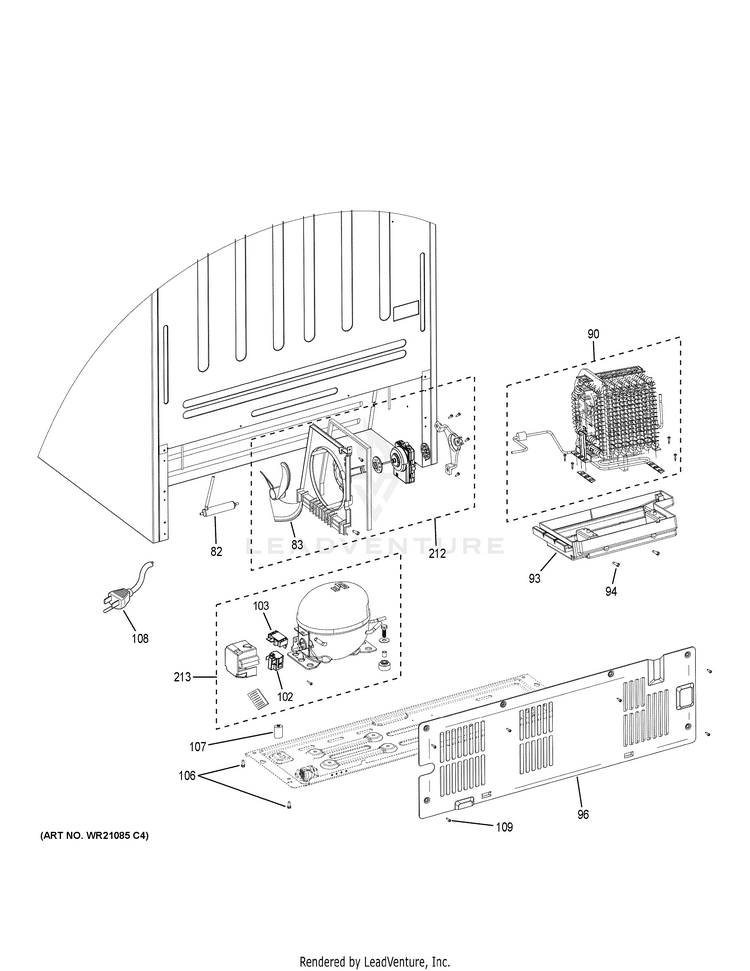

MACHINE COMPARTMENT

...
...
82
DRYER GEH-WR86X22669
...
83
CONDENSER FAN BLADE GEH-WR60X22667
...
90
CONDENSER GEH-WR87X22665
...
93
DRAIN TRAY GEH-WR02X22668
...
94
SCREW GEH-WR01X22673
...
96
REAR ACCESS COVER GEH-WR13X22672
...
102
PTC STARTER GEH-WR87X24764
...
103
THERMAL PROTECTOR OLP GEH-WR08X25647
...
106
SCREW GEH-WR01X20386
...
107
CAPACITOR-? GEH-WR55X22023
...
108
POWER CORD GEH-WR01X22670
...
109
SCREW GEH-WR01X20385
...
212
CONDENSER FAN ASM GEH-WR60X22666
...
213
COMPRESSOR ASM MEIZHI GEH-WR87X24765

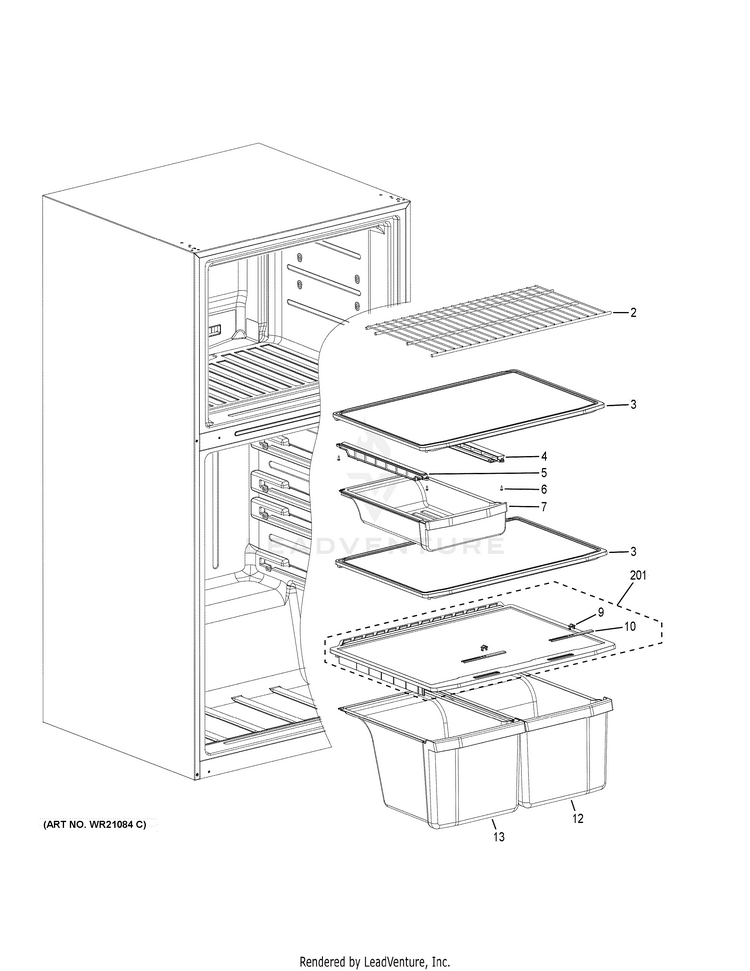

SHELVES & DRAWERS

...
...
2
FZ WIRE SHELF GEH-WR71X22724
...
3
FF GLASS SHELF GEH-WR71X22904
...
4
RIGHT SLIDE GEH-WR72X22729
...
5
LEFT SLIDE GEH-WR72X22726
...
6
SCREW GEH-WR01X22731
...
7
MEAT PAN GEH-WR71X22728
...
9
TONE WET-PLATE SLIDER GEH-WR02X22732
...
10
HUMIDITY CONTROL CLAMP GEH-WR02X22725
...
12
LEFT VEG PAN GEH-WR71X22727
...
13
RIGHT VEG PAN GEH-WR71X22730
...
201
FF SHELF ASM GEH-WR71X22723
