GE GHDT158V50ES Dishwasher

Model: GHDT158V50ES

Save Part Not Listed?
product name

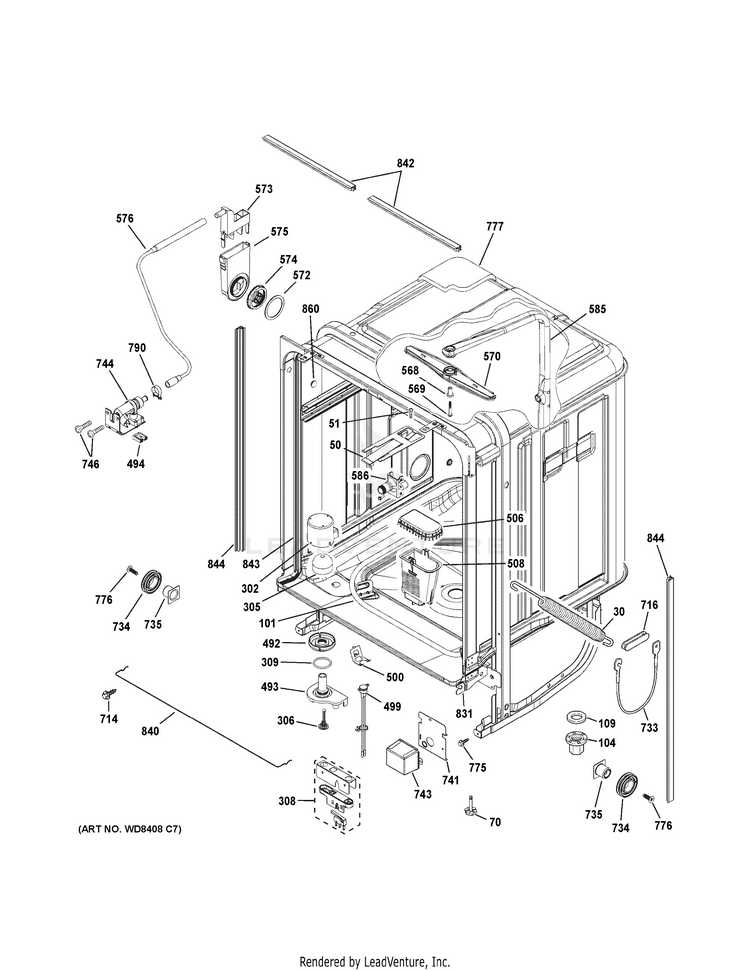

BODY PARTS

...
...
30
SPRING DOOR GEH-WD03X10019
...
50
LATCH KEEPER ASM GEH-WD13X10064
...
51
SCR 8-18 VA TRT 7/16 S N GEH-WD02X10117
...
70
SCREW LEVEL GEH-WD02X0320
...
101
ELEMENT HEATING ASM GEH-WD05X10010
...
104
NUT TOWER HEATER ASM GEH-WD01X10214
...
109
GROMMET HEATER GEH-WD01X10094
...
302
DOME FLOAT GEH-WD12X10119
...
305
FLOAT GEH-WD12X10406
...
306
STEM FLOAT GEH-WD12X10048
...
308
SWITCH FLOOD ASM GEH-WD21X10168
...
309
SEAL FLOOD SWITCH GEH-WD01X10264
...
492
LOCKNUT GEH-WD12X10135
...
493
BASE FLOOD SWITCH GEH-WD12X10183
...
494
HSNG SPECIAL-WATER VALVE GEH-WD21X10355
...
499
TCO ASSEMBLY GEH-WD01X10515
...
500
BRACKET TCO GEH-WD01X10425
...
506
COVER INLET GEH-WD12X10400
...
508
FILTER SUMP & COVER ASM GEH-WD22X10077
...
568
BEARING SPRAY ARM UP GEH-WD01X10410
...
569
SCR 8-32 B HXW 1.13 SS GEH-WD02X10109
...
570
ARM SPRAY UPPER ASM GEH-WD22X10084
...
572
GASKET WATER INLET GEH-WD08X10044
...
573
COVER WATER INLET GEH-WD12X10129
...
574
NUT WATER INLET GEH-WD01X10220
...
575
FUNNEL AND GASKET ASM GEH-WD12X10181
...
576
HOSE FILL GEH-WD24X10024
...
585
CONDUIT MAIN GEH-WD12X10113
...
586
CONE DOCKING GEH-WD12X10121
...
714
SCREW 8-18 B HXW 480 S GEH-WD02X10083
...
716
LINK HINGE ARM GEH-WD14X10009
...
733
CABLE ASM GEH-WD01X10212
...
734
PULLEY HINGE GEH-WD01X10217
...
735
CUP HINGE GEH-WD01X10218
...
741
BRACKET J BOX GEH-WD12X10124
...
743
COVER JUNCTION BOX GEH-WD12X448
...
744
VALVE WATER INLET GEH-WD15X10014
...
746
SCR 10-24X3/8 TT HEX GEH-WD02X0248
...
775
SCR 10-16X1/2 AB HEXW S GEH-WD02X5166
...
776
SCR 10-32 C HX 7/16 S GEH-WD02X10159
...
777
INSULATION TUB GEH-WD01X10419
...
790
CLAMP HOSE GEH-WH01X2036
...
831
BRACKET HINGE LH GEH-WD01X10565
...
831
BRACKET HINGE RH GEH-WD01X10564
...
840
SPRING GASKET GEH-WD03X10020
...
842
TRIM GASKET GEH-WD08X10054
...
843
GASKET TUB GEH-WD08X10032
...
844
TRIM GASKET GEH-WD08X10055
...
860
PLUG BUTTON GEH-WD01X10223

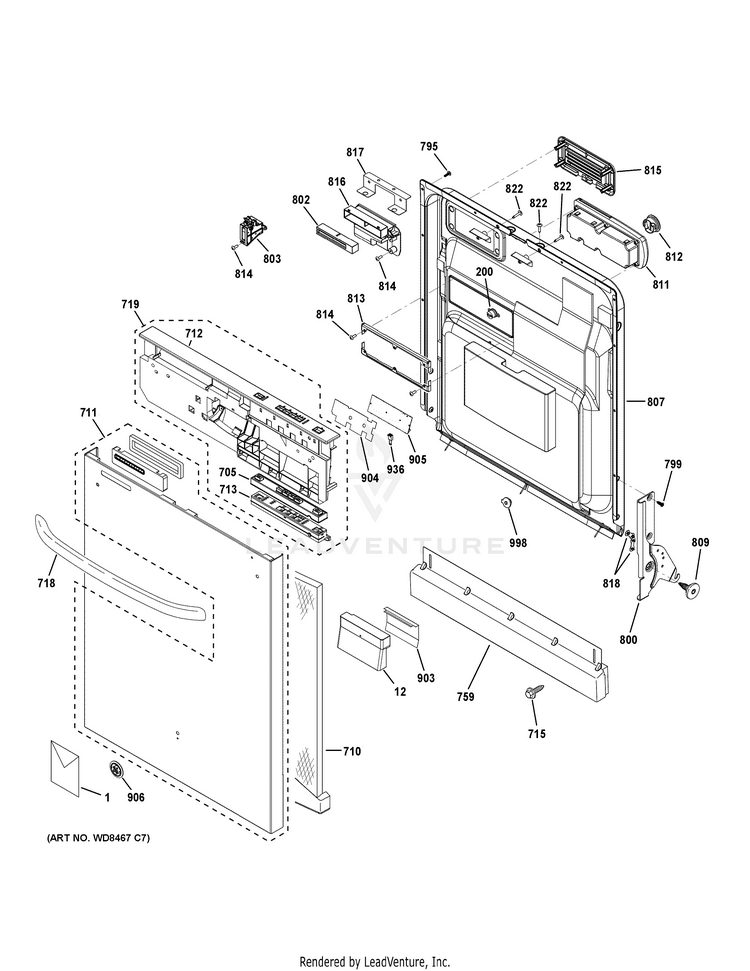

ESCUTCHEON & DOOR ASSEMBLY

...
...
1
PM MINI MANUAL GEH-31-30635
...
1
PM INSTALL INSTRUCTIONS GEH-31-30284
...
1
PM INSTRUCTION INSTALL GEH-31-30280
...
1
PM MANUAL USE & CARE GEH-49-55077
...
12
SHIELD BOARD TOP GEH-WD12X10361
...
200
THERMOSTAT - SAFETY GEH-WD01X10512
...
705
BUTTON ASM SILICON GE GEH-WD01X10593
...
710
BLOCK FOAM DOOR GEH-WD01X10344
...
711
OUTER PANEL LENS ASM KIT GEH-WD27X10399
...
712
CONSOLE ASM LIGHTPIPE GEH-WD27X10413
...
713
TACTILE ASM HOUSING GEH-WD31X10127
...
715
SCREW 8-18 B 1HW 1/2 S N GEH-WD02X10085
...
718
HANDLE SS GEH-WD09X10067
...
719
CONSOLE ASM TACTILE GEH-WD27X10411
...
759
TOEKICK ASM GEH-WD27X10396
...
795
SCR 8-18 AB OV .655 GEH-WD02X10202
...
799
SCR 8-18 AB HW 1/2 SS GEH-WD02X10166
...
800
HINGE ARM ASM RH GEH-WD14X10041
...
800
HINGE ARM ASM LH GEH-WD14X10040
...
802
FOAM VENT GEH-WD01X10606
...
803
LATCH ASM - 1 SWITCH GEH-WD13X10058
...
807
DOOR INNER & GASKET GEH-WD31X10126
...
809
SCR 10-24 TAP RNP 1/2 GEH-WD02X10201
...
811
MODULE RINSE AND CAP ASM GEH-WD12X10163
...
812
CAP RINSE ASM GEH-WD12X10122
...
813
BRACKET DETERGENT DISPLA GEH-WD01X10207
...
814
SCREWS 8-10 PL TRP 1/2 S GEH-DR01X10001
...
815
COVER VENT GEH-WD12X10127
...
816
VENT ASM GEH-WD01X10521
...
817
BRACKET SUPPORT LATCH GEH-WD01X10520
...
818
BEARING HINGE ARM GEH-WD12X10313
...
822
SCR 8-18 AB TR 7/8S GEH-WD02X10106
...
903
CONTROL SHIELD GEH-WD01X10635
...
904
HEAT SHIELD GEH-WD31X10148
...
905
CONTROL TACTILE ASM KIT GEH-WD21X10471
...
906
BADGE GE ASM GEH-WR04X10181
...
936
MODEL SELECTOR PLUG ASM GEH-WD21X10464
...
998
LENS ASM GEH-WD01X10519

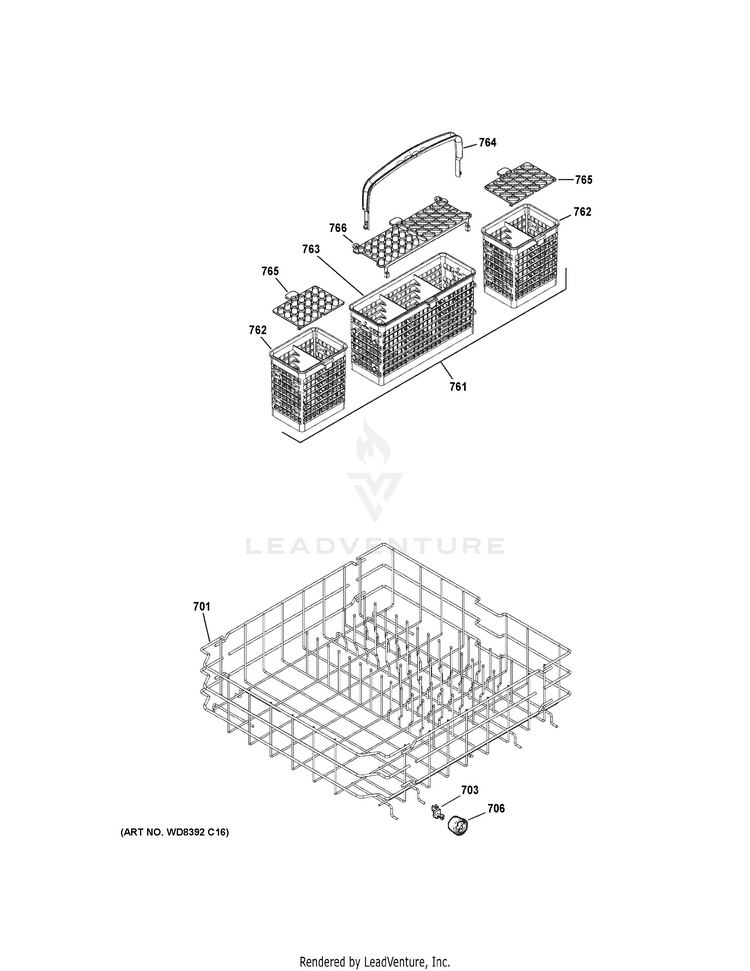

LOWER RACK ASSEMBLY

...
...
701
RACK ROLLER ASM LOWER GEH-WD28X10294
...
703
STUD ROLLER - LOWER GEH-WD12X10277
...
706
LOWER RACK WHEEL GEH-WD28X10295
...
761
BASKET 7 PC ASM GEH-WD28X10109
...
762
BASKET SILVERWARE END GEH-WD28X10107
...
763
BASKET SILVERWARE MIDDLE GEH-WD28X10106
...
764
HANDLE BASKET GEH-WD28X10108
...
765
LID BASKET GEH-WD28X10112
...
766
LID BASKET GEH-WD28X10113

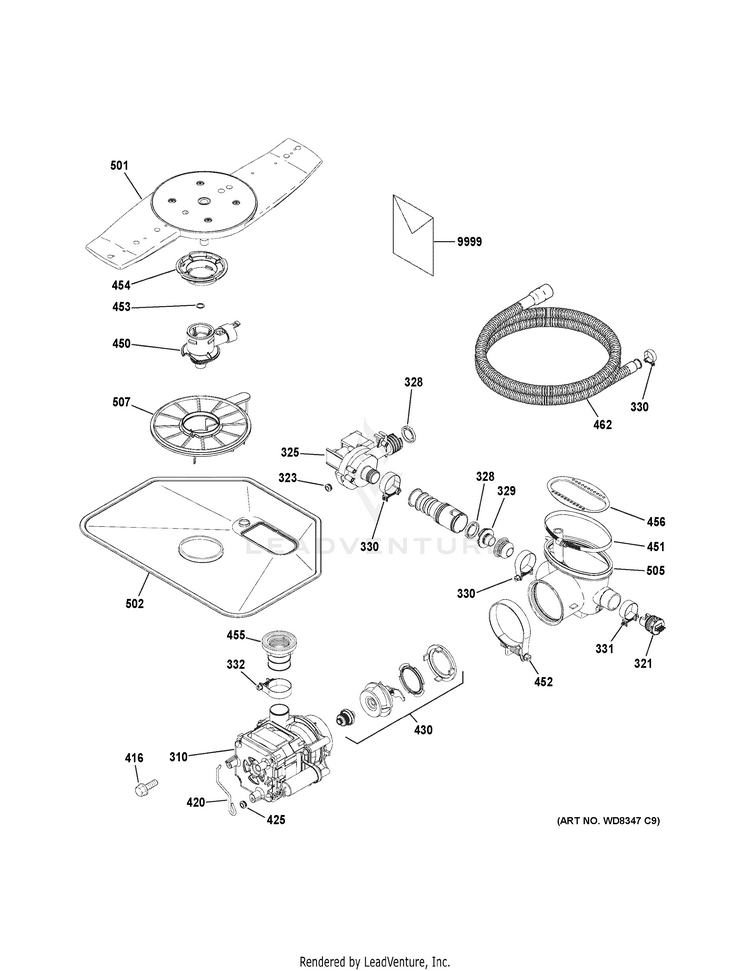

MOTOR-PUMP MECHANISM

...
...
310
MECHANISM ASM GEH-WD26X10059
...
321
SENSOR TURBIDITY GEH-WD21X10272
...
323
GROMMET GEH-WD01X10269
...
325
REPLACING WD26X10042 GEH-WD26X10048
...
328
VALVE FLAPPER DUAL PUMP GEH-WD01X10406
...
329
SEAT CHECK VALVE GEH-WD01X10405
...
330
CLAMP GEH-WD01X10105
...
331
CLAMP GEH-WD01X10104
...
332
CLAMP GEH-WD01X10103
...
416
SCR 10-32 TT HEX .575S GEH-WD02X10141
...
420
HANGER MECH ASSY GEH-WD01X10211
...
425
GROMMET GEH-WD01X10101
...
430
KIT - IMPELLER ASM GEH-WD19X10038
...
450
HUB VENTURI ASM GEH-WD18X10050
...
451
CLAMP SUMP GEH-WD01X10210
...
452
CLAMP HOSE GEH-WD01X1392
...
453
BEARING SPRAY ARM LOW GEH-WD01X10107
...
454
NUT HUB FINE FILTER GEH-WD12X10061
...
455
CONNECTOR PUMP ASSY GEH-WD18X10010
...
456
PLATE SUMP GEH-WD01X10219
...
462
DRAIN TUBE ASM GEH-WD24X10035
...
501
ARM SPRAY LOW ASM GEH-WD22X10063
...
502
FILTER COARSE GEH-WD22X10038
...
505
SUMP INLET GEH-WD18X10026
...
507
FILTER FINE ASM GEH-WD12X10109
...
9999
BAG AND BRACKET ASM GEH-WD35X10372

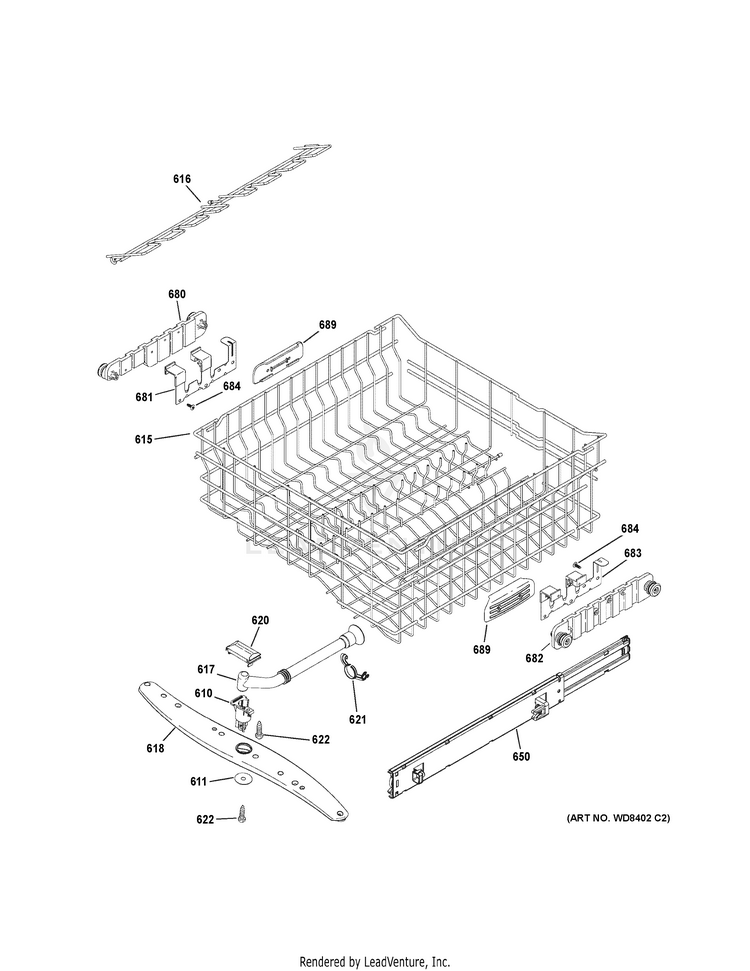

UPPER RACK ASSEMBLY

...
...
610
HUB SPRAY ARM MID GEH-WD12X10353
...
611
SCR B-16 HXW 1/2 SS GEH-WD02X10169
...
615
RACK ADJ ASM UPPER GEH-WD28X10303
...
616
SHELF CUP FULL LENGTH GEH-WD28X10302
...
617
CONDUIT MID SPRAY GEH-WD12X10145
...
618
ARM SPRAY MID ASM GEH-WD22X10083
...
620
BRACKET SPRAY ARM MID GEH-WD12X10405
...
621
CONDUIT CARRIER MID GEH-WD12X10114
...
622
SCREW 8-16 HXW 1/2 SS GEH-WD02X10067
...
650
INNER RAIL UPR RACK ASM GEH-WD30X10041
...
680
RACK ADJUSTABLE BRACKET GEH-WD01X10605
...
681
LEVER RACK ASM LH GEH-WD01X10395
...
682
RACK ADJUSTABLE BRACKET GEH-WD01X10604
...
683
LEVER RACK ASM RH GEH-WD01X10396
...
684
SCR 8-18 B POR 1/2 SS GEH-WD02X10111
...
689
TOUCH PAD SS GEH-WD01X10397
