GE GFWN1600J0WW Washer

Model: GFWN1600J0WW

Back To Assemblies

Save Part Not Listed?
product name

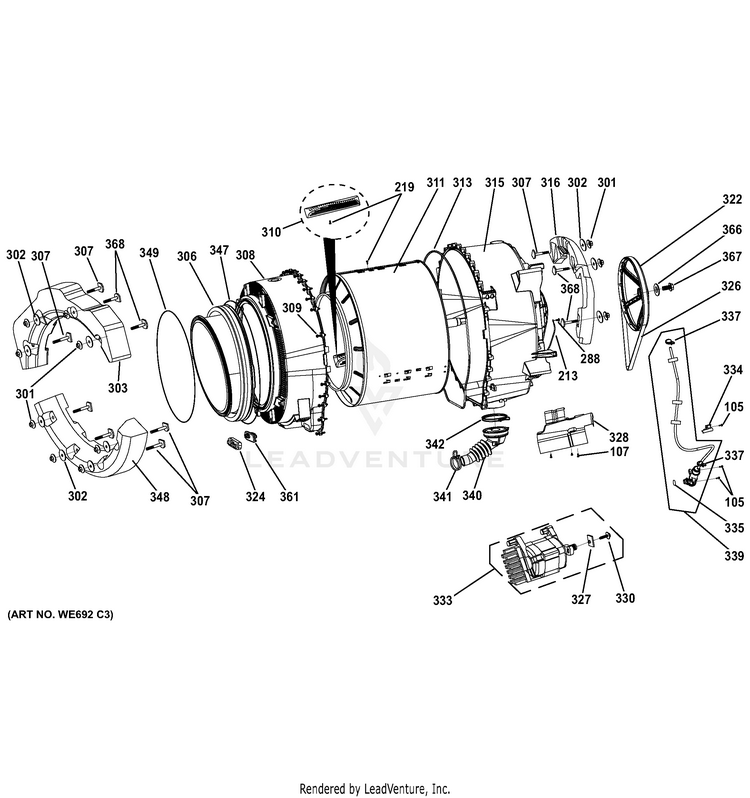

TUB & MOTOR

...
...
105
SCREW_ST3.5 X 11 GEH-WH02X10181
...
107
SCREW_ST4*13 GEH-WH02X10183
...
213
WIRE_HARNESS GEH-WH19X23461
...
219
SCREW_ST4*13 GEH-WH02X10189
...
288
SCREW M5*12 GEH-WH02X10234
...
301
NUT_M8 GEH-WH02X10204
...
302
WASHER GEH-WH02X10205
...
303
COUNTERWEIGHT - FRNT GEH-WH01X22895
...
306
GASKET GEH-WH08X23479
...
307
BOLT M8*48 GEH-WH02X10207
...
308
TUB FRONT GEH-WH45X22894
...
309
SCREW_ST6*35 GEH-WH02X10208
...
310
BAFFLE GEH-WH16X10128
...
311
BASKET ASM 5.1 CU FT GEH-WH45X23480
...
313
TUB SEAL GEH-WH08X10054
...
315
REAR TUB ASM GEH-WH45X22914
...
316
COUNTERWEIGHT-REAR GEH-WH01X22897
...
322
DRIVE PULLEY KIT GEH-WH07X10022
...
324
COVER THERMISTOR GEH-WH44X10311
...
326
DRIVING BELT GEH-WH08X10050
...
327
MOTOR_WASHER GEH-WH02X10212
...
328
MOTOR SHIELD GEH-WH16X23460
...
330
FLANGE_BOLT_M8*35 GEH-WH02X10213
...
333
MOTOR GEH-WH20X23194
...
334
SUPPORT- PRESSURE HOSE GEH-WH01X10396
...
335
AIR CHAMBER RING GEH-WH01X10397
...
337
PRESSURE_HOSE_CLAMP GEH-WH01X10273
...
339
AIR CHAMBER ASM GEH-WH41X20908
...
340
DRAIN HOSE GEH-WH41X10250
...
341
PUMP_CLAMP GEH-WH01X10275
...
342
TUB DRAIN HOSE CLAMP GEH-WH01X10276
...
347
GASKET INSIDE CLAMP GEH-WH08X10055
...
348
COUNTERWEIGHT-FRNT/BTM GEH-WH01X22896
...
349
GASKET OUTSIDE CLAMP GEH-WH08X10056
...
361
HEATER THERMISTOR GEH-WH12X10351
...
366
WASHER 34X12.5X3.5 MM GEH-WH02X10337
...
367
FLANGE BOLT M12*25 GEH-WH02X10334
...
368
BOLT M8*38 - FRNT CNTRWG GEH-WH02X10333
