GE GFWN1600J0WW Washer

Model: GFWN1600J0WW

Back To Assemblies

Save Part Not Listed?
product name

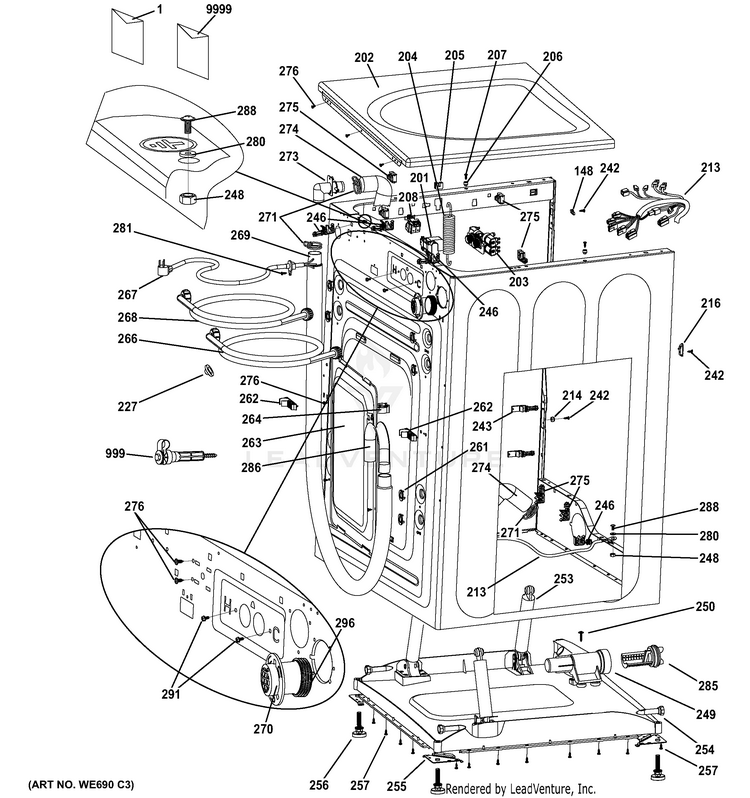

CABINET & TOP PANEL

...
...
148
CONTROL PANEL PIN GEH-WH01X20897
...
201
EMI FILTER GEH-WH41X10301
...
202
TOP PANEL SUB GEH-WH44X10297
...
203
2 IN 3 OUT WATER VALVE GEH-WH13X10029
...
204
SPRING - SUSPENSION GEH-WH05X10012
...
205
SPRING_HANGER GEH-WH01X10251
...
206
TOP_PANEL_PIN GEH-WH01X10252
...
207
SCREW_ST 4.2X14 GEH-WH02X10187
...
208
PRESSURE SWITCH GEH-WH12X20898
...
213
WIRE_HARNESS GEH-WH19X23461
...
214
FRONT_PANEL_PIN GEH-WH01X10253
...
216
FRONT_PANEL_HANGER GEH-WH16X10073
...
227
INLET HOSE STRAINER GEH-WH01X10636
...
242
SCREW_ST4.2*13 GEH-WH02X10182
...
243
WIRE_CATCH GEH-WH16X10074
...
246
WIRE_CATCH GEH-WH16X10076
...
248
NUT_M5 GEH-WH02X10199
...
249
PUMP GEH-WH23X20825
...
250
SCREW_WASHER_ST4*25 GEH-WH02X10200
...
253
DAMPER - SHOCK GEH-WH01X20826
...
254
DAMPER_PIN GEH-WH01X10261
...
255
CORNER BRACKET GEH-WH16X10077
...
256
LEG ASM GEH-WH46X20828
...
257
SCREW_ST4.2*13 GEH-WH02X10201
...
261
COVER - SHIPPING SCREW GEH-WH44X10206
...
262
OUTSIDE_DRAIN_HOSE_CATCH GEH-WH01X10262
...
263
CABINET REAR COVER GEH-WH46X10237
...
264
INSIDE_DRAIN_HOSE_CATCH GEH-WH01X10263
...
266
MAIN_WATER_HOSE_COLD GEH-WH41X10286
...
267
POWER_CORD GEH-WH19X20832
...
268
MAIN_WATER_HOSE_HOT GEH-WH41X10287
...
269
OUTSIDE_DRAIN_HOSE GEH-WH41X10126
...
270
VENT HOSE COUPLING GEH-WH01X10527
...
271
DRAIN_HOSE_CLAMP GEH-WH01X10265
...
273
DRAIN_HOSE_COUPLING GEH-WH01X10266
...
274
INSIDE_DRAIN_HOSE GEH-WH41X10127
...
275
WIRE_CATCH_1 GEH-WH16X10078
...
276
SCREW ST4.2*11 GEH-WH02X10203
...
280
LOCK WASHER GEH-WH02X10218
...
281
SCREW_ST4*10 GEH-WH02X10219
...
285
PUMP FILTER GEH-WH23X20840
...
286
DRAIN HOSE GUIDE U-SHAPE GEH-WH41X10133
...
288
SCREW M5*12 GEH-WH02X10234
...
291
SCREW M4*8 GEH-WH02X10251
...
296
SEAL VENT PIPE GEH-WH08X10052
...
999
KIT - SHIPPING BOLT GEH-WH49X10077
...
9999
KIT - STACKING WSH/DRY GEH-WE25X10028
