GE GFT14ESSL0WW Dryer Electric

Model: GFT14ESSL0WW

Save Part Not Listed?
product name

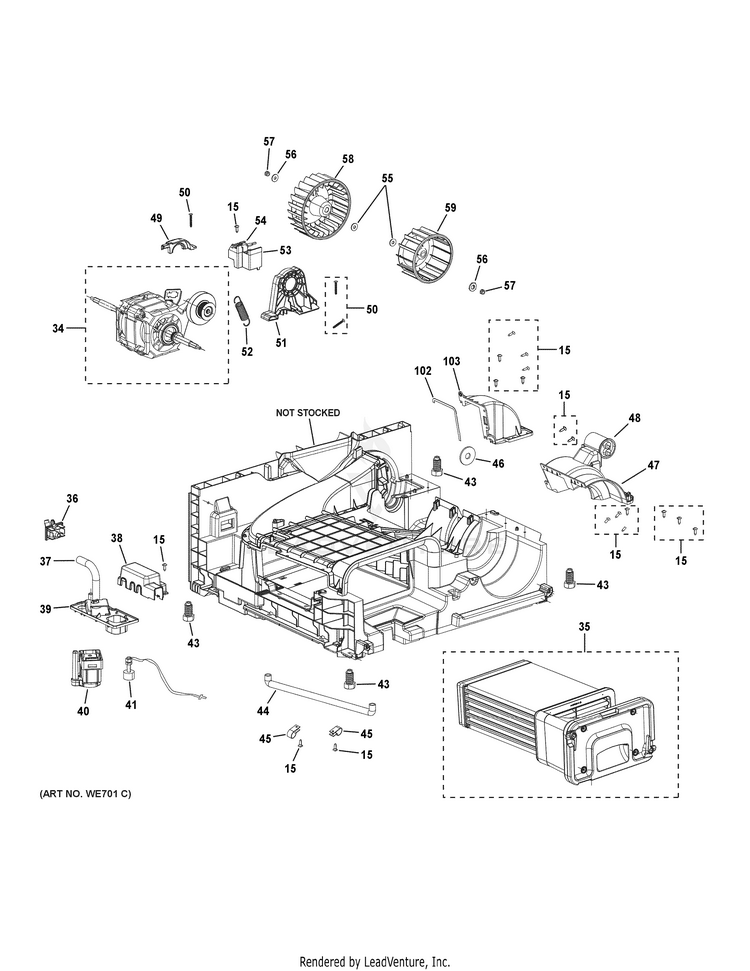

BLOWER, MOTOR & CONDENSER ASSEMBLY

...
...
15
TAPPING SCREW GEH-WH02X26155
...
34
MOTOR ASM GEH-WE17X26577
...
35
CONDENSER GEH-WE01X26382
...
36
EXTERNAL DRAIN HOSE CONECTOR GEH-WE01X26375
...
37
INTERNAL DRAIN HOSE GEH-WE01X26376
...
38
PUMP COVER GEH-WE01X26374
...
39
PUMP BRACKET PLASTIC GEH-WE13X26377
...
40
DRAIN PUMP GEH-WE01X26378
...
41
FLOAT SWITCH GEH-WE01X26379
...
43
LEVELING LEG GEH-WE02X26373
...
44
OVER FLOW TUBE GEH-WE01X26381
...
45
OVER FLOW TUBE STRAP GEH-WE01X26380
...
46
MOTOR SHAFT FELT GEH-WE01X26583
...
47
CONDENSER BLOWWER WHEEL COVER GEH-WE16X26372
...
48
CAPACITOR GEH-WE01X26354
...
49
REAR MOTOR SUPPORT GEH-WE01X26359
...
50
MOTOR BOLTS GEH-WE02X26358
...
51
FRONT MOTOR SUPPORT GEH-WE17X26370
...
52
MOTOR TENSION SPRING GEH-WE01X26357
...
53
BELT SWITCH MOUNTING BRACKET GEH-WE02X26356
...
54
BELT SWITCH GEH-WE12X26355
...
55
OUTER FLAT WASHER GEH-WE02X26368
...
56
INNER FLAT WASHER GEH-WE02X26367
...
57
FAN NUT GEH-WE02X26366
...
58
BLOWER WHEEL HEATER GEH-WE11X26363
...
59
BLOWER WHEEL CONDENSER GEH-WE16X26371
...
102
BLOWER COVER FOAM GASKET GEH-WE09X26362
...
103
HEATER BLOWER WHEEL COVER GEH-WE16X26361

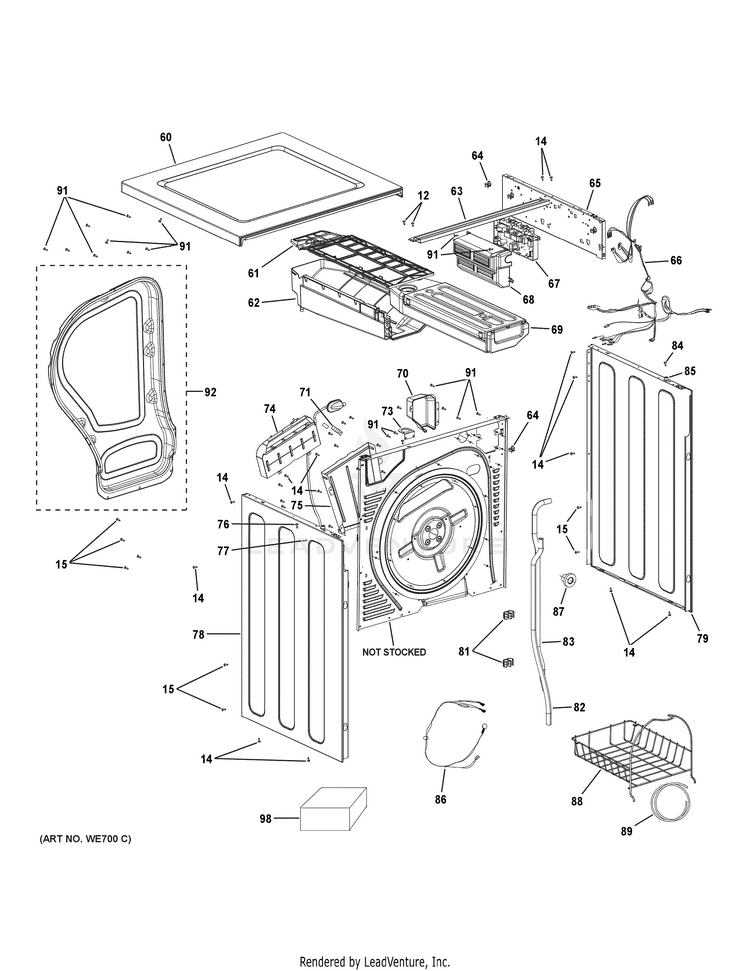

CABINET & TOP PANEL

...
...
12
FRONT PANEL SCREWS GEH-WE02X26338
...
14
TOP FRONT BRACKET SCREW ST3.5*12 GEH-WH02X26267
...
15
TAPPING SCREW GEH-WH02X26155
...
60
TOP PANEL GEH-WE20X26396
...
61
CONDENSER TANK HOUSING TOP GEH-WE01X26397
...
62
CONDENSER TANK HOUSING BOTTOM GEH-WE01X26398
...
63
TOP BRACKET GEH-WE13X26394
...
64
WIRE TIES GEH-WE01X26391
...
65
BRAKET (TOP RIGHT) GEH-WE13X26390
...
66
HARNESS MAIN GEH-WE15X26395
...
67
CONTROL BOARD GEH-WE04X26392
...
68
CONTROL BOARD COVER GEH-WE01X26393
...
69
TANK GEH-WE11X26405
...
70
TERMINAL BLOCK COVER GEH-WE01X26404
...
71
DRUM GROUND STRAP GEH-WE01X26401
...
73
POWER CORD CONDUIT BRACKET GEH-WE01X26403
...
74
HEATER ASSEMBLY GEH-WE11X26400
...
75
AIR DUCT PANEL (REAR) GEH-WE14X26406
...
76
SCREW GEH-WE02X26585
...
77
STEAL CLIP GEH-WE01X26586
...
78
LEFT PANEL GEH-WE20X26414
...
79
RIGHT PANEL GEH-WE20X26407
...
81
CLIP GEH-WE01X26408
...
82
CONDENSER HOUSING DRAIN TUBE GEH-WE01X26410
...
83
CONDENSER TANK OVERFLOW TUBE GEH-WE01X26411
...
84
TOP PANEL GUIDE PIN SCREW GEH-WH02X26265
...
85
TOP PANEL GUIDE PIN GEH-WH01X26264
...
86
HUMIDITY SENSOR AND HARNESS GEH-WE01X26415
...
87
REAR BEARING GEH-WE03X26413
...
88
RACK GEH-WE01X26416
...
89
EXTERNAL DRAIN TUBE GEH-WE01X26417
...
91
GROUND SCREW GEH-WH02X26236
...
92
BACK PANEL COVER ASM GEH-WE20X26584
...
98
24" FRONTLOAD STACKING KIT GEH-GFA24KITL

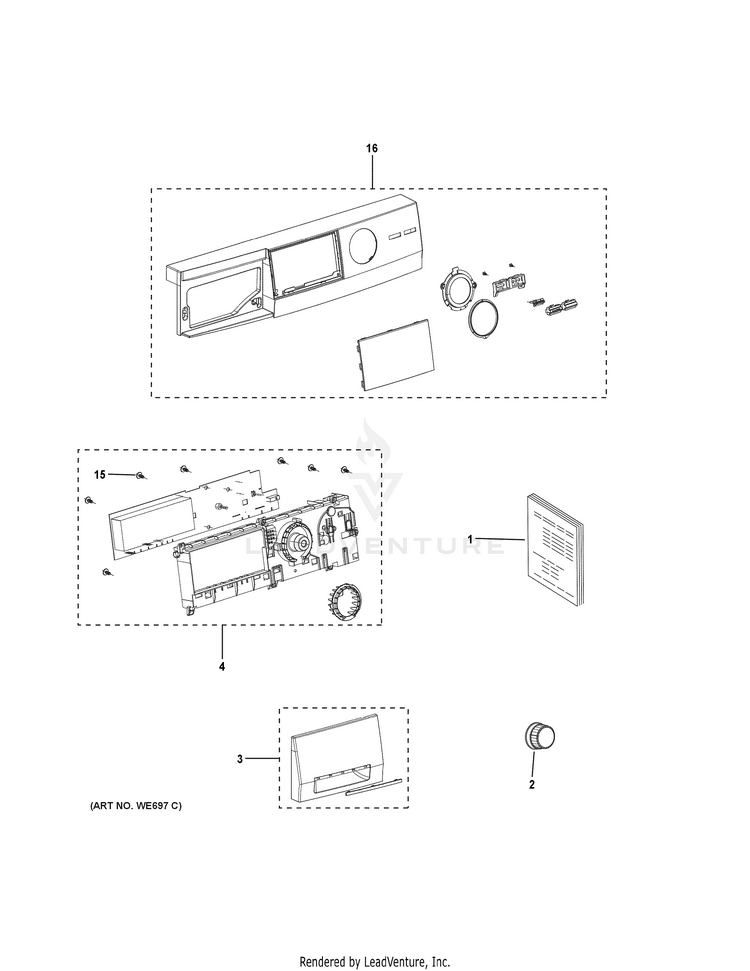

CONTROLS

...
...
1
PM MANUAL USE AND CARE GEH-49-90571
...
1
PM SHEET MINI MANUAL GEH-31-16914
...
2
CYCLE SELECT KNOB GEH-WH11X26254
...
3
CONDENSER TANK FRONT PANEL GEH-WE20X26333
...
4
DISPLAY PCB ASM GEH-WE04X26336
...
15
TAPPING SCREW GEH-WH02X26155
...
16
CONTROL PANEL ASSEMBLY GEH-WE04X26335

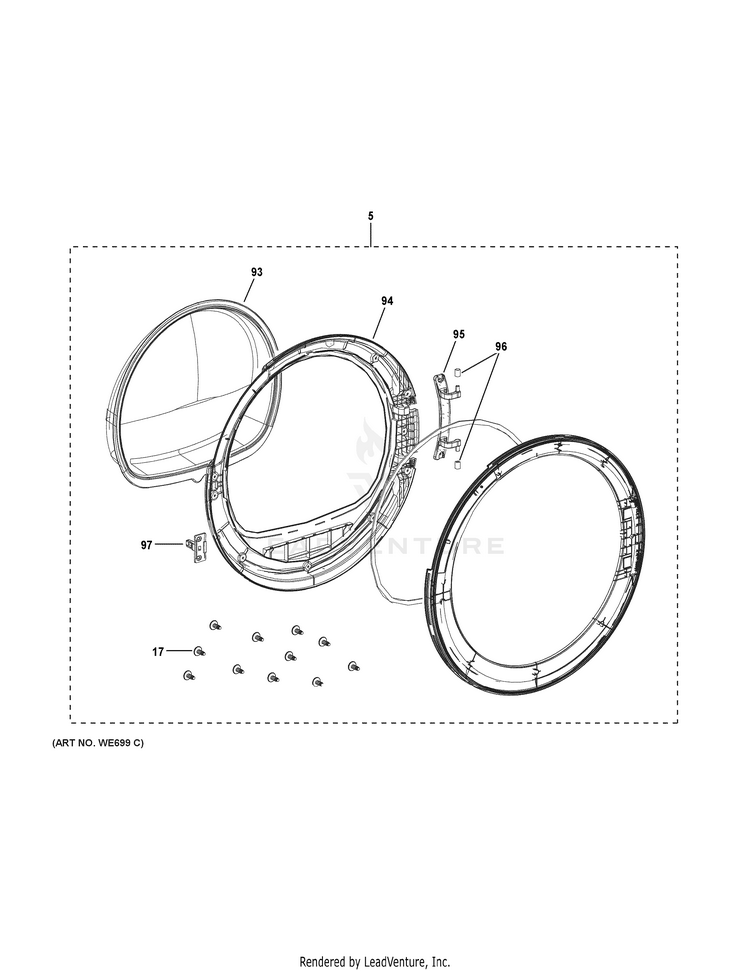

DOOR

...
...
5
DOOR ASM GEH-WE10X26347
...
17
SCREW GEH-WH02X26247
...
93
DOOR GLASS GEH-WE10X26834
...
94
INNER DOOR FRAME GEH-WE10X26835
...
95
DOOR HINGE GEH-WE10X26836
...
96
HINGE SHEATH GEH-WE10X26837
...
97
DOOR STRIKE GEH-WE01X26345

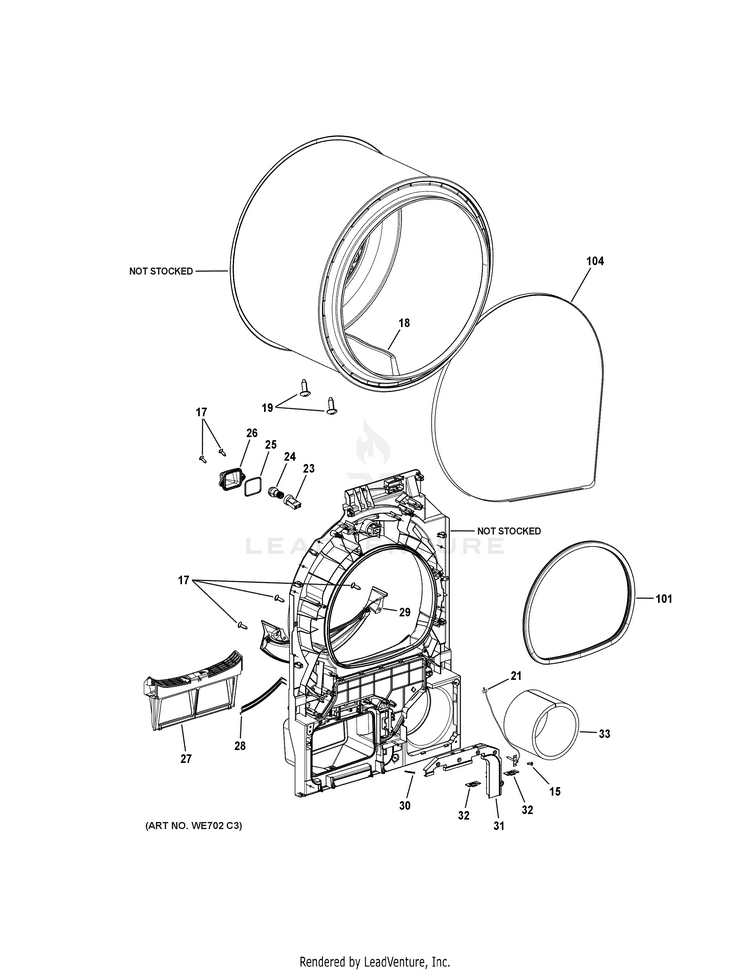

DRUM

...
...
15
TAPPING SCREW GEH-WH02X26155
...
17
SCREW GEH-WH02X26247
...
18
TUB BAFFLE GEH-WE01X26575
...
19
SCREW GEH-WE02X26576
...
21

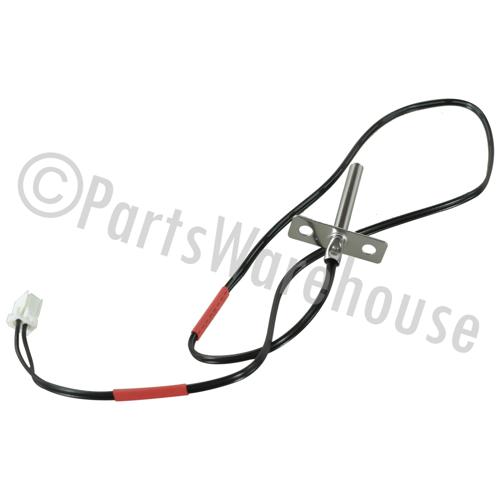

OUTLET THERMISTER GEH-WE04X26348
...
23
LAMP SOCKET WITH HARNESS GEH-WE11X26350
...
24
LAMP GEH-WE11X26351
...
25
LAMP LENSE GASKET GEH-WE11X26352
...
26
LAMP LENSE GEH-WE11X26353
...
27

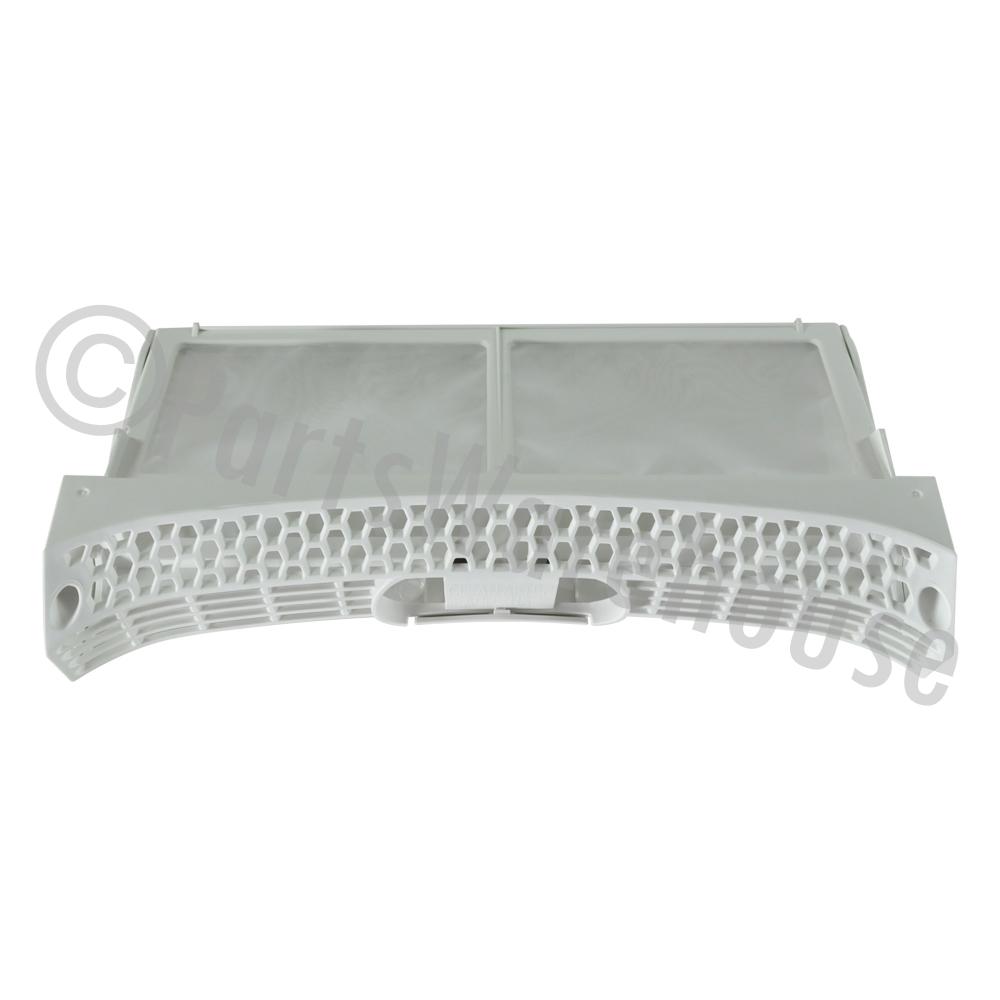

LINT FILTER GEH-WE18X26383
...
28
SENSOR RODS GEH-WE04X26384
...
29
FILTER SPACER GEH-WE18X26385
...
30
SCREW GEH-WE02X26386
...
31
SPACER GEH-WE01X26387
...
32
CLIP GEH-WE01X26388
...
33
FELT GEH-WE01X26389
...
101
DOOR SEALING GEH-WE10X26840
...
104
BELT GEH-WE12X26360

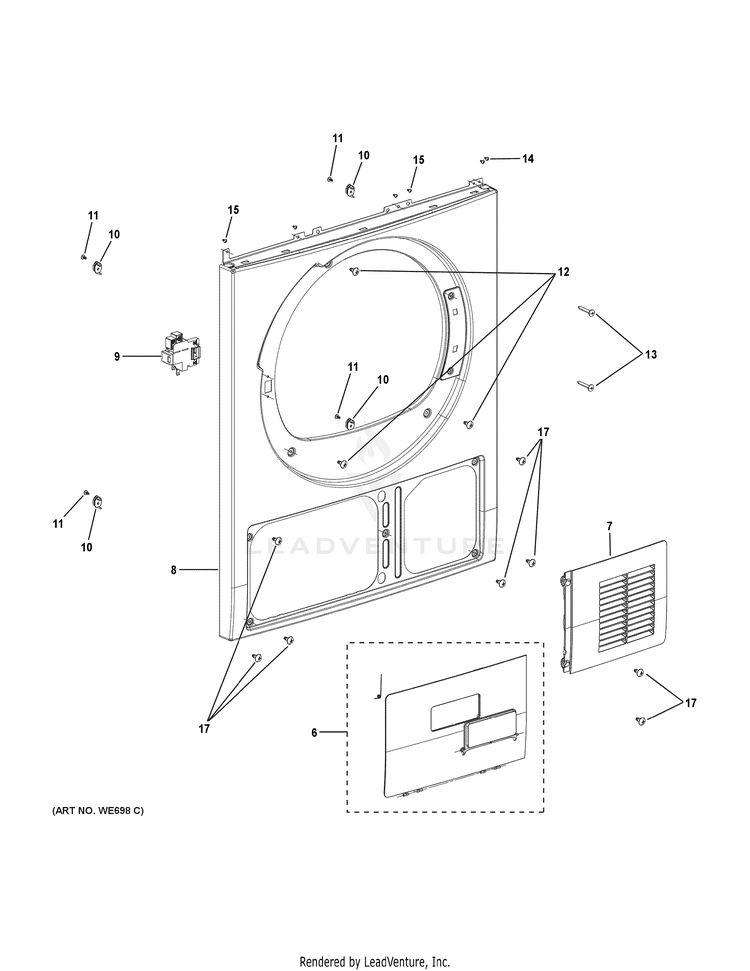

FRONT PANEL

...
...
6
CONDENSER DOOR ASM GEH-WE01X26343
...
7
CONDENSER INLET VENT PANEL GEH-WE20X26344
...
8
FRONT PANEL GEH-WE20X26337
...
9
DOOR SWITCH GEH-WE01X26341
...
10
GUIDE POST GEH-WE13X26339
...
11
GUIDE POST SCREW GEH-WE02X26340
...
12
FRONT PANEL SCREWS GEH-WE02X26338
...
13
HINGE SCREW GEH-WE02X26346
...
14
TOP FRONT BRACKET SCREW ST3.5*12 GEH-WH02X26267
...
15
TAPPING SCREW GEH-WH02X26155
...
17
SCREW GEH-WH02X26247
