GE GFE26JGMAFBB Refrigerator

Model: GFE26JGMAFBB

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

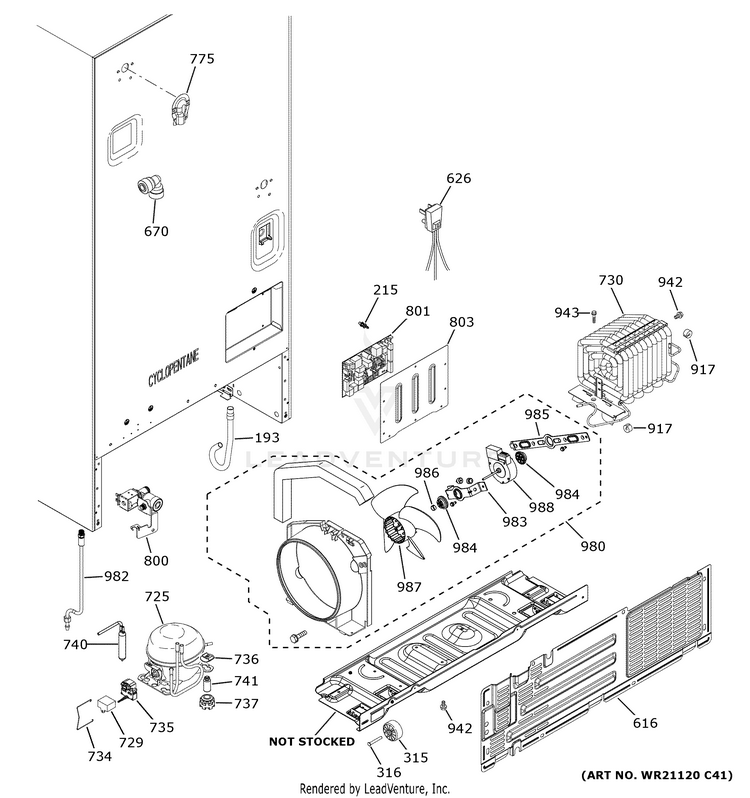

MACHINE COMPARTMENT

...
...
193
DRAIN TUBE GEH-WR02X30155
...
215
STAND OFF GEH-WR02X10663
...
315
MOBILITY WHEEL GEH-WR02X30159
...
316
MOBILITY WHEEL PIN GEH-WR02X30160
...
616
COVER ACCESS ASM GEH-WR82X22767
...
626
POWER CORD GEH-WR23X30131
...
670
COUPLER STRAIGHT 1/4 GEH-WR02X13738
...
725
COMPRESSOR GEH-WR87X28008
...
729
CAPACITOR 12 UF GEH-WR55X23731
...
730
L-FIN AL CONDENSER 10 PASS GEH-WR87X32326
...
734
CLIP RETAINER COMBO GEH-WR02X22564
...
735
TSD COMBO GEH-WR08X21100
...
736
CLIP GEH-WR2X8203
...
737
GROMMET GEH-WR02X22869
...
740
P/S DRYER KIT R134A GEH-WR86X0096
...
741
STUD MTG COMPR GEH-WR01X1779
...
775
COVER WATER LINE GEH-WR17X13124
...
800
VALVE & GUARD ASM GEH-WR57X26303
...
801
BOARD ASM MAIN CONTROL GEH-WR55X30600
...
803
MAIN BOARD ENCLOSURE ASM GEH-WR02X12025
...
917
SOUND DAMPER GEH-WR02X13573
...
942
SCREW 10-32 TT HXW 5/16 GEH-WR01X10252
...
943
SCR 10-16 B HXW 1/4 S GEH-WR01X25308
...
980
CONDENSER FAN & HOUSING GEH-WR60X29573
...
982
TUBE LEAD GEH-WR02X13774
...
983
BRKT COND FAN (MTG) GEH-WR02X10521
...
984
GROMMET FAN MOTOR GEH-WR02X10520
...
985
BRACKET COND FAN (REAR) GEH-WR02X10593
...
986
RING COMPRESSION GEH-WR02X12149
...
987
BLADE CONF FAN ASM GEH-WR60X24484
...
988
MOTOR DC COND FAN GEH-WR60X24483
