GE GFE26GGKGBB Refrigerator

Model: GFE26GGKGBB

Back To Assemblies

Save Part Not Listed?
product name

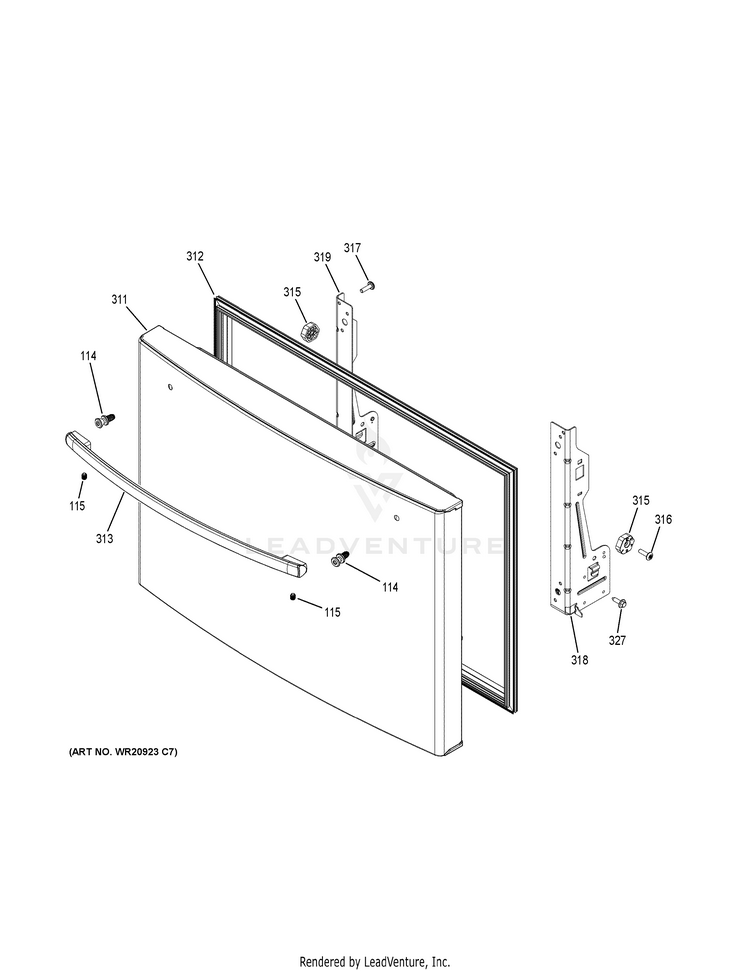

FREEZER DOOR

...
...
114
FASTENER DOOR HANDLE GEH-WR01X11007
...
115
SET SCREW GEH-WR01X11014
...
311
DOOR FOAM ASM FZ BOWED B GEH-WR78X22404
...
312
GASKET FZ DGY ES GEH-WR14X10376
...
313
ARC HANDLE ASM FZ BK GEH-WR12X20646
...
315
CAM VERT ADJUSTMENT GEH-WR02X13627
...
316
SCR 1/4-20 GX TRT 7/8 S GEH-WR01X11010
...
317
SCR 1/4-20 HXW 7/8 S GEH-WR01X11049
...
318
BRACKET DOOR FZ RH GEH-WR02X25185
...
319
BRACKET DOOR FZ LH GEH-WR02X25184
...
327
SCR1/4-20 HXW 3/4S GEH-WR01X11011
