GE GFE24JGKGFBB Refrigerator

Model: GFE24JGKGFBB

Back To Assemblies

Save Part Not Listed?
product name

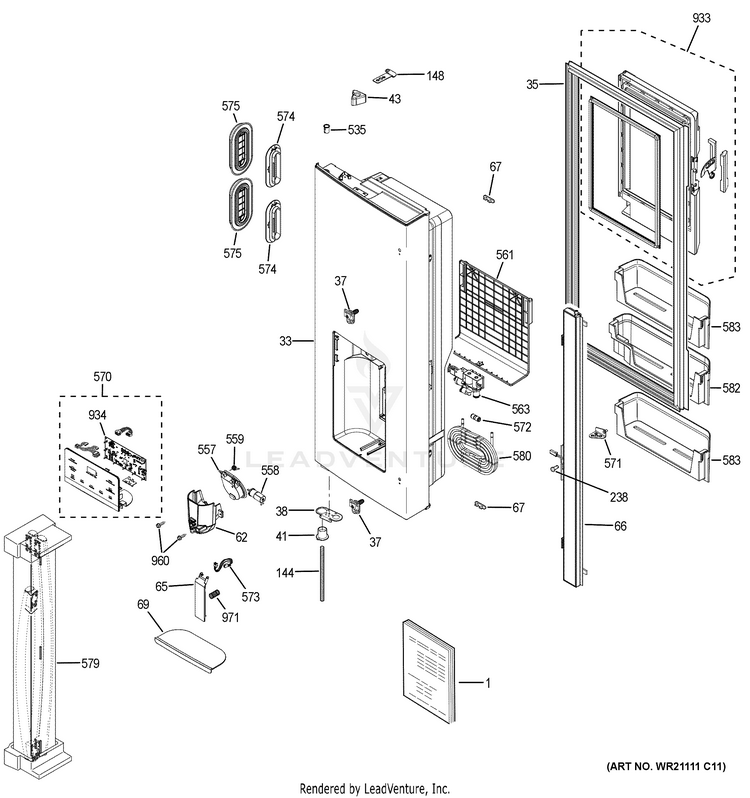

DISPENSER DOOR

...
...
1
PM MINI MANUAL WIRING GEH-31-46260
...
1
PM USE AND CARE MANUAL GEH-49-60803
...
33
DOOR FOAM FF ASM LH BB GEH-WR78X25630
...
35
GASKET DOOR FRENCH DG GEH-WR14X25008
...
37
FASTENER HANDLE ASM GEH-WR01X25070
...
38
STOP DOOR GEH-WR02X24874
...
41
HINGE BUSHING BB GEH-WR02X24875
...
43
CAM CLOSURE BLACK GEH-WR02X25634
...
62
FUNNEL ICE GEH-WR17X25636
...
65
PADDLE ASM BB GEH-WR17X25056
...
66
ARTICULATING MULLION ASM GEH-WR17X25027
...
67
BUMPER DOOR BB GEH-WR02X24994
...
69
TRAY DRIP BB GEH-WR17X25629
...
144
SPRING WATER CONDUIT GEH-WR02X13488
...
148
HINGE TOP DOOR ICEBOX GEH-WR13X10972
...
238
SCREW 10-32 GXTT FLP 595 GEH-WR01X10065
...
535
HINGE BUSHING BB GEH-WR02X24999
...
557
DUCT DOOR ASM GEH-WR17X25006
...
558
MOTOR DUCT DOOR GEH-WR60X10344
...
559
SPRING DUCT DOOR GEH-WR01X25007
...
561
COVER WATER TANK GEH-WR17X24996
...
563
WATER VALVE GEH-WR57X25054
...
570
DISPLAY CONTROL BLACK GEH-WR55X30607
...
571
HINGE BOTTOM DOOR ICEBOX GEH-WR13X10973
...
572
UNION CONNECTOR 1/4 GEH-WR02X25048
...
573
SWITCH PADDLE ASM GEH-WR14X25057
...
574
COLLAR GASKET GEH-WR14X25061
...
575
GASKET PORT GEH-WR14X25060
...
579
PK HANDLE KIT ASM BB GEH-WR12X25626
...
580
TANK COLD WATER GEH-WR17X25028
...
582
BIN ICE DOOR TOP LH GEH-WR71X25044
...
583
BIN ICE DOOR BOTTOM LH GEH-WR71X25045
...
933
DOOR ICE BOX ASM GEH-WR17X25244
...
934
BOARD MAIN COMBINED HMI GEH-WR55X30493
...
960
SCREW 8-18 AB IHW 5/8 S GEH-WR01X10035
...
971
SPRING PADDLE GEH-WR01X25538
