product name

GE GFDS350GL0WW Dryer Gas

Model: GFDS350GL0WW

Back To Assemblies

Save Part Not Listed?
product name

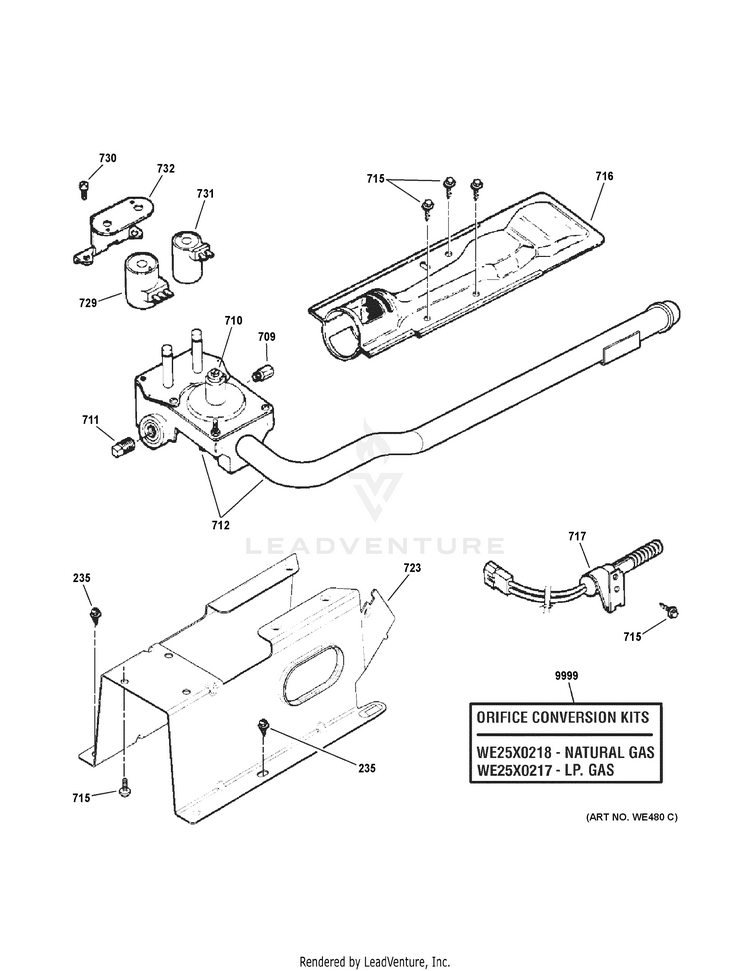

GAS VALVE & BURNER PARTS

...
...
235
SCR GEH-WE2X263
...
709
ORIFICE GEH-WE01X1148
...
710
LEAK LIMITER GEH-WE01X1076
...
711
PLUG PIPE (NOT STOCKED) GEH-18-27 NPT
...
712
GAS VALVE & PIPE ASM. NG GEH-WE14M114
...
715
SCR GEH-WD2M101
...
716
BURNER ASM. GEH-WE14M104
...
717
IGNITER ASM. GEH-WE4X739
...
723
BRACKET GAS VALVE GEH-WE13M48
...
729
COIL DUAL GEH-WE04X0692
...
730
SCREW (COIL MTG BRKT) GEH-WE02X0333
...
731
COIL MAIN GEH-WE04X0693
...
732
BRKT. COIL GEH-WE13X0169
...
9999
KIT SERVICE NOZZLE ASM GEH-WE25M71
...
9999
HOSE INLET ASM - KIT GEH-WE25M53
...
9999
KIT-LP GAS GEH-WE25X217
...
9999
KIT-NATL GAS GEH-WE25X218
