GE GFDS350GL0WW Dryer Gas

Model: GFDS350GL0WW

Back To Assemblies

Save Part Not Listed?
product name

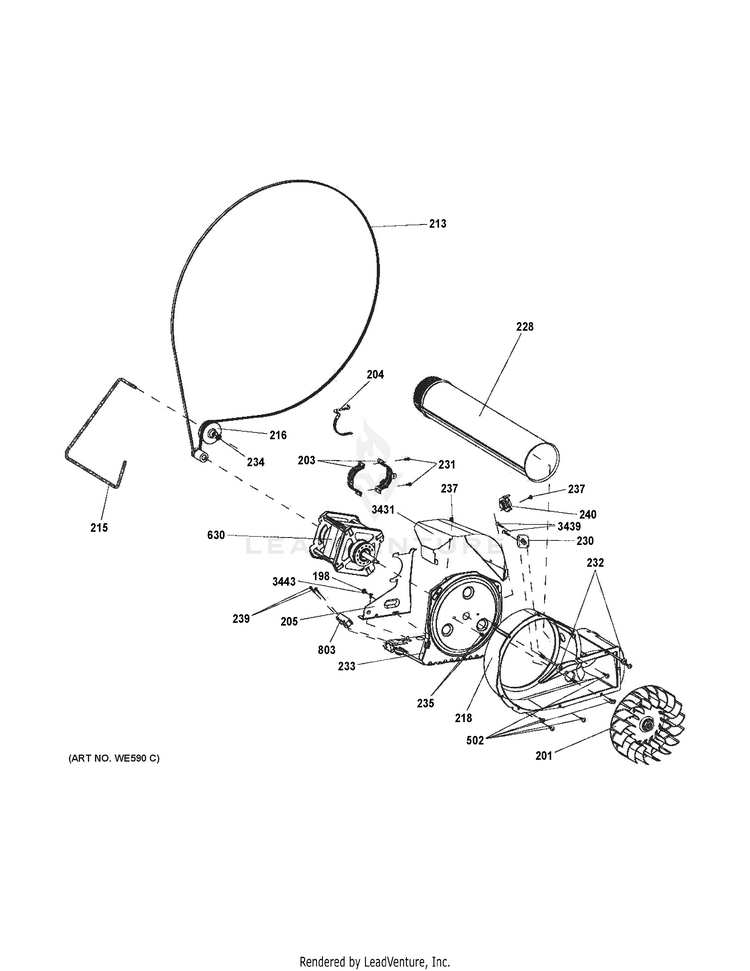

BLOWER & MOTOR

...
...
198
SCREW GEH-WE2M200
...
201
BLOWER WHEEL GEH-WE16X20393
...
203
STRAP MOTOR GEH-WE13X0200
...
204
MOTOR BRACKET GEH-WE01X0921
...
205
MOTOR SUPPORT GEH-WE13M39
...
213
BELT DRIVE GEH-WE12M29
...
215
IDLER ARM SPRING GEH-WE3M25
...
216
PULLEY IDLER GEH-WE12M8
...
218
HOUSING BLOWER GEH-WE14M176
...
228
EXHAUST DUCT GEH-WE14M107
...
230
T-STAT , OUTLET BKUP ORG GEH-WE4M300
...
231
SCREW GEH-WE2M187
...
232
SCREW GEH-WE2M202
...
233
MOTOR PLATE GEH-WE13M10002
...
234
CAP NUT GEH-WE2M96
...
235
SCR GEH-WE2X263
...
237
SCREW GEH-WE2M154
...
239
SCREWS GEH-WE2M167
...
240
THERMISTOR , OUTLET CNTR GEH-WE4M336
...
502
SCREW # 10 GEH-WE2M174
...
630
MOTOR & PULLEY ASM GEH-WE17M54
...
803
SWITCH INTERLOCK GEH-WD21X0557
...
3431
SHIELD MOTOR GEH-WE1M931
...
3439
SCREW GEH-WE2M180
...
3443
SCREW GEH-WE1M280
