GE GFDS350GL0WW Dryer Gas

Model: GFDS350GL0WW

Back To Assemblies

Save Part Not Listed?
product name

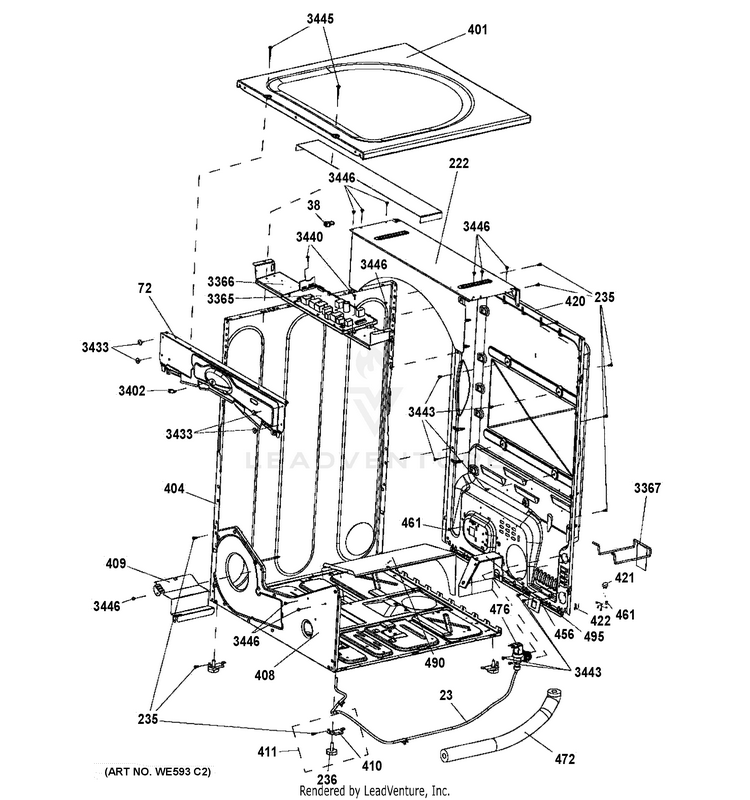

CABINET & TOP PANEL

...
...
23
TUBE WATER FRONT GEH-WE1M940
...
38
CONNECTOR MODEL SELECT GEH-WD21X10024
...
72
SHIELD FRONT GEH-WE1M926
...
222
REAR PLATE GEH-WE20M476
...
235
SCR GEH-WE2X263
...
236
LEVELLING SCREW GRAY GEH-WE1M642
...
401
TOP PANEL WW GEH-WE20M445
...
404
SIDE PANEL WH GEH-WE20M400
...
408
BOTTOM CHASSIS BASE GEH-WE20M429
...
409
SHIELD THERMOSTAT GEH-WE1M932
...
410
REAR BRACKET LEVEL LEG GEH-WE1M528
...
411
LEVELINGLEGASM GEH-WE1M468
...
420
REAR PANEL 7.5 C.F. GEH-WE20M381
...
421
POWER CORD (120V GAS) GEH-WE26M345
...
422
CLIP CORDSET GEH-WE1M155
...
456
PIPE CLAMP GEH-WE1X617
...
461
SCREW 8-32X3/8 GRD SCR GEH-WZ05X0158
...
472
SLEEVE WATER TUBE GEH-WE1M948
...
476
VALVE WATER GEH-WE4M503
...
490
SHIELD-GAS VALVE GEH-WE1M842
...
495
SHIELD WATER VALVE GEH-WE1M933
...
3365
MAIN POWER BRD ASM GEH-WE4M512
...
3365
MAIN POWER BRD ASM ELECT GEH-WE4M511
...
3366
MAIN POWER BOARD SUPPORT GEH-WE1M864
...
3367
EXHAUST PROTECTOR ASM GEH-WE1M587
...
3402
ENCLOSED SCREW GROMMET GEH-WE1M758
...
3433
SCR 8-18 AB PNQ2 1/4 S Z GEH-WE2M278
...
3440
SCREW GEH-WE2M173
...
3443
SCREW GEH-WE1M280
...
3445
SCREW FLAT HEAD/AB GEH-WE2M214
...
3446
SCREW GEH-WE2M223
