GE GFDS265GF1MC Gas Dryer

Model: GFDS265GF1MC

Save Part Not Listed?
product name

BLOWER & MOTOR

...
...
190
STRAP MOTOR BRACKET GEH-WE13X20689
...
191
SHIELD THERMOSTAT GEH-WE02X20690
...
200
MOTOR DRIVE GEH-WE17X10016
...
201
WHEEL BLOWER ASM GEH-WE16X10007
...
202
BRACKET DRIVE MOTOR GEH-WE13X10051
...
204
STEEL HEX NUT GEH-WE01X10372
...
206
SWITCH IDLER GEH-WE04X10184
...
207
INLET RING ASM GEH-WE14X10107
...
208
CLIP RESILIENT MOUNT GEH-WE01X10376
...
210
SPRING IDLER GEH-WE01X10374
...
212
SCR 4-24 AB PNP .682 SS GEH-WE02X10105
...
213
PIVOT SHOULDER BOLT GEH-WE01X10375
...
216
IDLER ASM (LH) GEH-WE12X10018
...
217
IDLER ASM (RH) GEH-WE12X10019
...
218
FAN SCROLL SUB ASM GEH-WE14X20691
...
223
SEAL BLOWER GEH-WE09X10026
...
225
FAN SEAL GEH-WE09X10025
...
228
DUCT EXHAUST GEH-WE14X10111
...
230
THERMOSTAT 2 GEH-WE04X10190
...
240
THERMISTOR OUTLET GEH-WE04X10179
...
425
SCR 8-18 AB HXW 3/8 S GEH-WE02X10106
...
690
SCREW 8-32X3/8 GRD SCR GEH-WZ05X0158

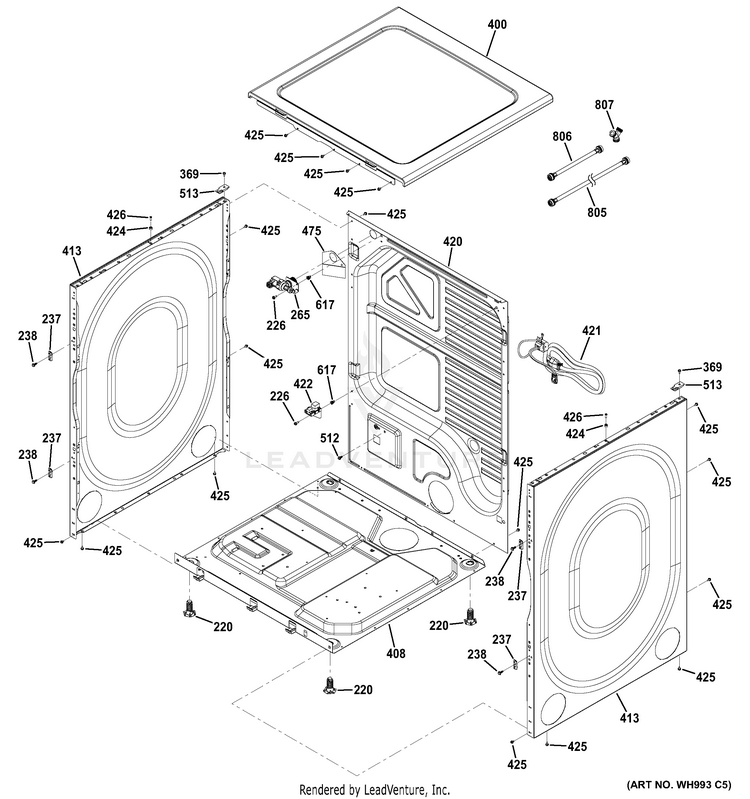

CABINET & TOP PANEL

...
...
220
LEG LEVELING GEH-WE02X20399
...
226
SCR 8-18 B 1/2 HXW P GEH-WH02X1205
...
237
PIN SUPPORT FRONT GEH-WH01X10733
...
238
SCR 10-16 AB 43WHEX 5/8 GEH-WD02X10151
...
265
VALVE STEAM GEH-WE04X10186
...
369
SCR 8-18 AB IHW 7/16 SN GEH-WH02X1217
...
400
PANEL TOP ASM (MC) GEH-WH44X20003
...
408
BASE ASM GEH-WE20X22234
...
413
PANEL SIDE MC GEH-WE20X10159
...
420
PANEL REAR GEH-WE20X10148
...
421
CORD POWER (GAS) GEH-WE08X10083
...
422
RJ 45 ASM GEH-WE04X10182
...
424
BUSHING TOP PANEL GEH-WE01X10407
...
425
SCR 8-18 AB HXW 3/8 S GEH-WE02X10106
...
426
SCR 8-18 AB HW 1/2 S GEH-WB01T10115
...
475
SHIELD WATER VALVE GEH-WE01X10383
...
512
SCR 10-32 GX HXW 7/16 S GEH-WE02X10107
...
513
HOLDER TOP PANEL GEH-WE01X10408
...
617
GROMMET SCR CLOSED GEH-WR02X8349
...
805
HOSE INTAKE ASM GEH-WH41X10356
...
806
HOSE INTAKE ASM GEH-WH41X10357
...
807
Y ADAPTER GEH-WE01X10401

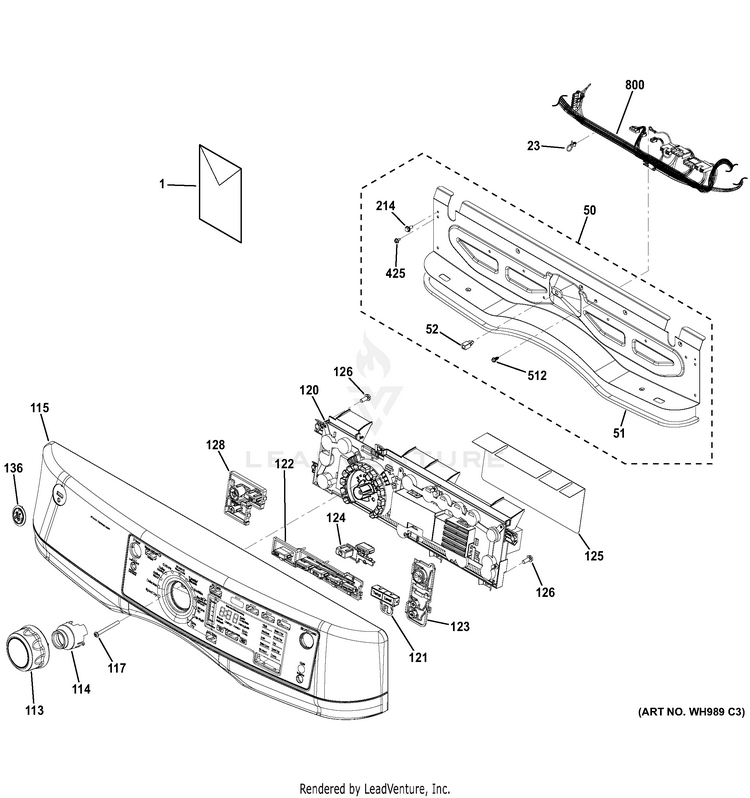

CONTROL PANEL

...
...
1
PM GUIDE QUICK START GEH-31-16707
...
1
PM SHEET MINI MANUAL GEH-31-16859
...
1
PM OWNERS MANUAL GEH-49-90470P
...
23
WIRE TIE GEH-WH01X10704
...
50
FRONT CONTROL ASM BRKT GEH-WE13X10049
...
51
FAN SEAL GEH-WE09X10031
...
52
GROMMET GEH-WE01X10403
...
113
KNOB GEH-WE01X10415
...
114
RETAINER KNOB GEH-WH01X10743
...
115
PANEL ASM CONTROL GEH-WE19X10098
...
117
SCR 8-18 AB PNP 2-1/8 S GEH-WH02X10408
...
120
PCB ASM UI-MC AND SW GEH-WE04X20682
...
121
BUTTON TREE ASM-TEMP GEH-WE01X10388
...
122
BUTTON TREE ASM-E-DRY GEH-WE01X10389
...
123
BUTTON TREE ASM-START GEH-WE01X10418
...
124
BUTTON TREE ASM-TIME GEH-WE01X10391
...
125
COVER UIMC GEH-WE01X10392
...
126
SCR 10-18 HI/LO HXW 1/2 GEH-WR01X10619
...
128
BUTTON TREE ASM-POWER GEH-WE01X10387
...
136
BADGE GE GEH-WE19M10949
...
214
SCREW 10-16 SHLDR TYPE A GEH-WH02X10398
...
425
SCR 8-18 AB HXW 3/8 S GEH-WE02X10106
...
512
SCR 10-32 GX HXW 7/16 S GEH-WE02X10107
...
800
HARNESS MAIN GAS GEH-WE08X10090

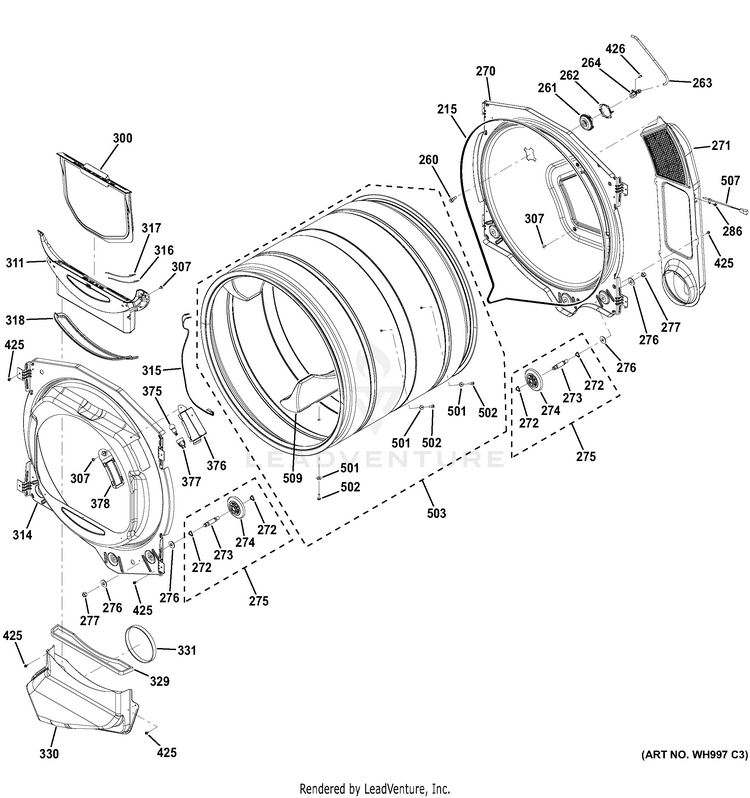

DRUM

...
...
215
BELT DRIVE GEH-WE12X10020
...
260
NOZZLE MIST GEH-WE01X10394
...
261
COVER NOZZLE GEH-WE01X10396
...
262
RETAINER COVER NOZZLE GEH-WE01X10398
...
263
TUBE STEAM GEH-WE01X10420
...
264
ELBOW STEAM GEH-WE01X10395
...
270
SUPPORT DRUM REAR GEH-WE20X10162
...
271
DUCT SUPPLY SUB ASM GEH-WE14X10108
...
272
CLIP RETAINING GEH-WE01X10386
...
273
AXLE ROLLER GEH-WE01X10385
...
274
WHEEL ROLLER GEH-WE01X10384
...
275
ROLLER ASM WHEEL GEH-WE03X10016
...
276
STEEL WASHER GEH-WE01X10379
...
277
STEEL HEX NUT GEH-WE01X10393
...
286
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
300
LINT SCREEN ASM GEH-WE18X20428
...
307
SCR 8-18 AB PNT-15 1/2 S GEH-WE02X20692
...
311
GRILL ASSEMBLY GEH-WE18X10021
...
314
SUPPORT DRUM FRONT GEH-WE20X10160
...
315
HARNESS ROD SENSOR GEH-WE08X10087
...
316
ROD SENSOR GEH-WE01X10399
...
317
ROD SENSOR GEH-WE01X10400
...
318
FAN SEAL GEH-WE09X10032
...
329
SEAL - TRAP DUCT ASM GEH-WE09X10030
...
330
TRAP DUCT ASM GEH-WE18X10022
...
331
FAN SEAL GEH-WE09X10029
...
375
LAMP GEH-WE04X10195
...
376
SOCKET LIGHT GEH-WE04X10194
...
377
HOUSING LAMP GEH-WE01X10414
...
378
COVER LIGHT GEH-WE01X10419
...
425
SCR 8-18 AB HXW 3/8 S GEH-WE02X10106
...
426
SCR 8-18 AB HW 1/2 S GEH-WB01T10115
...
501
WASHER BAFFLE GEH-WE01X20693
...
502
SCREW GEH-WH02X1194
...
503
DRUM ASSEMBLY GEH-WE21X10026
...
507
THERMISTOR INLET GEH-WE04X20252
...
509
BAFFLE GEH-WE14X10112

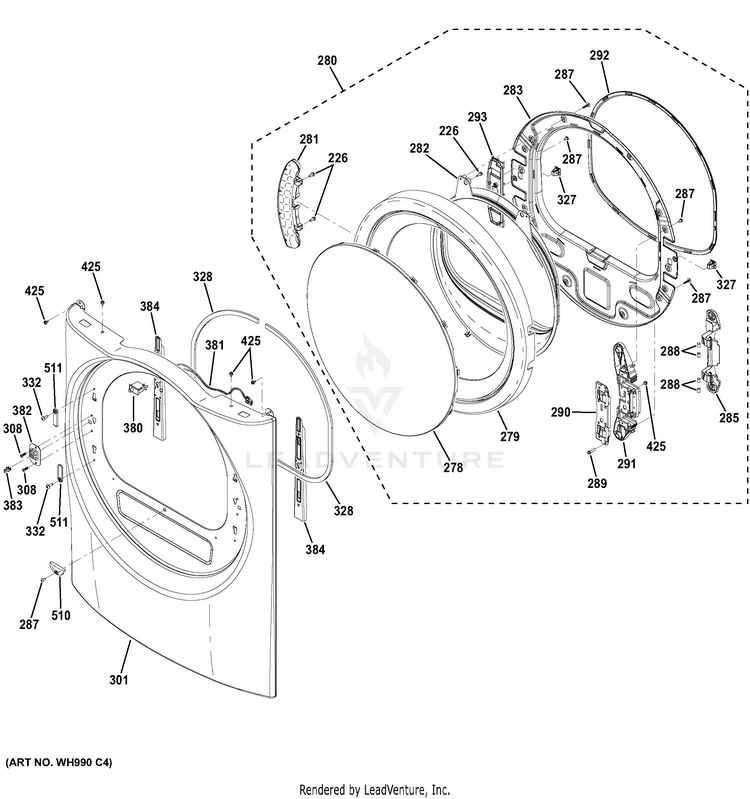

FRONT PANEL & DOOR

...
...
226
SCR 8-18 B 1/2 HXW P GEH-WH02X1205
...
278
PROTECT COVER DOOR GEH-WH44X21159
...
279
COVER DOOR GEH-WH46X10284
...
280
DOOR ASM GEH-WE10X10030
...
281
HANDLE DOOR GEH-WH01X10725
...
282
MASK DOOR GEH-WE10X10031
...
283
DOOR FRAME & GLASS ASM GEH-WE10X10029
...
285
HINGE GEH-WH01X10723
...
287
SCR 8-18 AB TRQ 5/8 SS GEH-WH02X10394
...
288
BUSHING HINGE GEH-WH01X10722
...
289
SCREW GEH-WB01K5157
...
290
HINGE PLATE GEH-WH01X10724
...
291
BRACKET HINGE GEH-WE13X21096
...
292
SEAL DOOR GEH-WE09X10033
...
293
SPACER DOOR GEH-WE01X10381
...
301
PANEL FRONT ASM MC GEH-WE20X10157
...
308
SCREW HINGE COVER GEH-WR01X10379
...
327
LATCH DOOR GEH-WE01X10409
...
328
SEAL (FRONT PANEL) GEH-WE09X10027
...
332
SCR 10-32 B TRT-25 5/8 GEH-WH02X10139
...
380
SWITCH DOOR GEH-WE04X10180
...
381
HARNESS SWITCH DOOR GEH-WE08X10086
...
382
BRACKET STRIKER GEH-WE13X10053
...
383
STRIKER DOOR GEH-WE01X10377
...
384
STIFFENER HINGE GEH-WE13X20233
...
425
SCR 8-18 AB HXW 3/8 S GEH-WE02X10106
...
510
DOOR GUIDE - GREY GEH-WE01X10417
...
511
PLUG PANEL - GREY GEH-WE01X10416

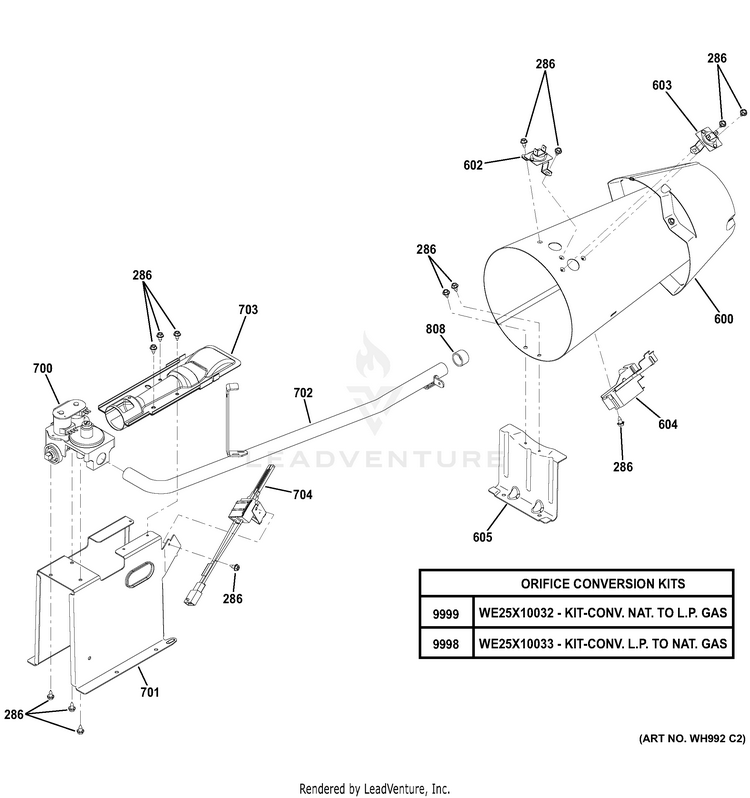

GAS VALVE & BURNER ASSEMBLY

...
...
286
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
600
CHAMBER ASM GEH-WE14X10113
...
602
THERMOSTAT 1 GEH-WE04X10188
...
603
THERMOSTAT 1 GEH-WE04X10187
...
604
SENSOR RADIENT GEH-WE04X10189
...
605
BRACKET CHAMBER COMB. GEH-WE13X10055
...
700
GAS VALVE GEH-WE14X10109
...
701
BRACKET BURNER GEH-WE13X10050
...
702
PIPE GAS ASM GEH-WE01X10373
...
703
BURNER ASM GEH-WE14X10110
...
704
IGNITER FLAT GEH-WE04X10183
...
808
CAP GAS PIPE THREAD GEH-WE01X10402
...
9998
CATALOG WE25X10033 GEH-WE25X10033
...
9999
CATALOG WE25X10032 GEH-WE25X10032
