GE GFDS170EH1WW Electric Dryer

Model: GFDS170EH1WW

Back To Assemblies

Save Part Not Listed?
product name

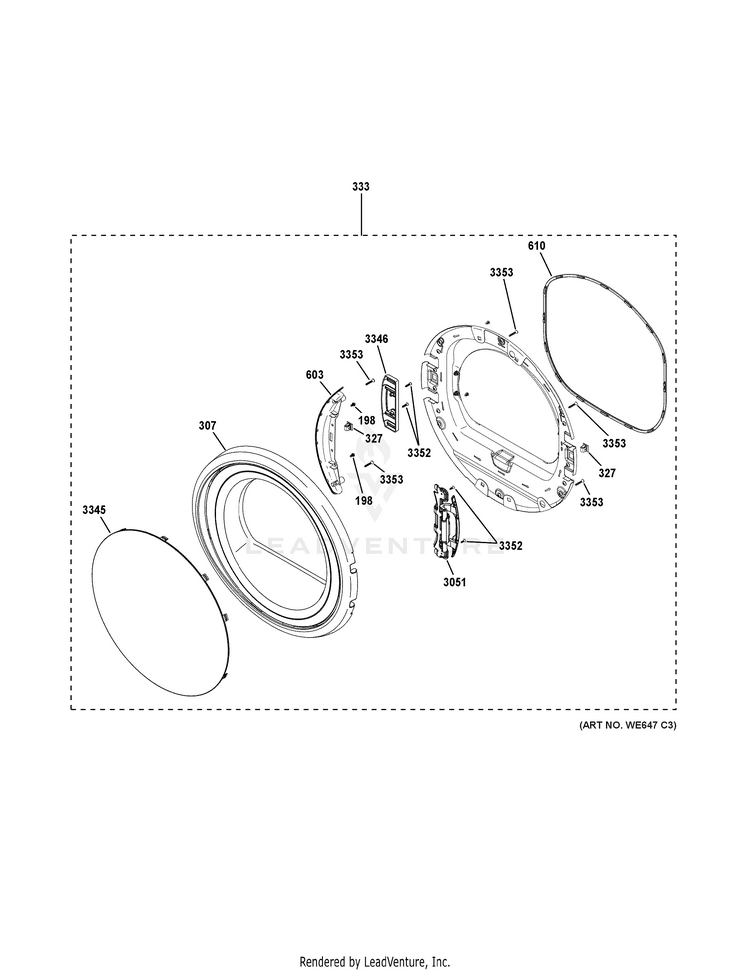

DOOR

...
...
198
SCREW GEH-WE01X21155
...
307
RING OUTER DOOR GEH-WE01X21170
...
327
LATCH GEH-WE1M536
...
333
DOOR ASM GEH-WE10X22516
...
603
HANDLE POCKET GEH-WE01X21171
...
610
GASKET DOOR GEH-WE09X22578
...
3051
DOOR HINGE ASM - PLATED GEH-WE1M930
...
3345
WINDOW OUTER DOOR GEH-WE01X21172
...
3346
DOOR HINGE COVER GEH-WE1M929
...
3352
SCREW #8-32 X 1/2 HINGE GEH-WE1M583
...
3353
SCR 10-16 B FLQ2 1-1/8 S GEH-WE1M584
