GE GFDN240EL0WW Electric Dryer

Model: GFDN240EL0WW

Save Part Not Listed?
product name

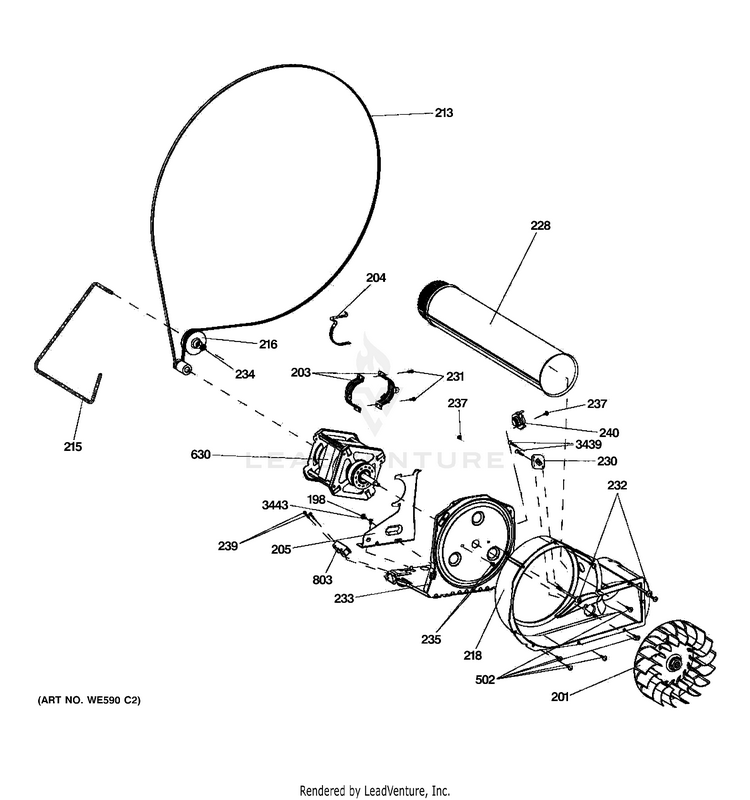

BLOWER & MOTOR

...
...
198
SCREW GEH-WE2M200
...
201
BLOWER WHEEL W/INSERT GEH-WE16M17
...
203
STRAP MOTOR GEH-WE13X0200
...
204
MOTOR BRACKET GEH-WE01X0921
...
205
MOTOR SUPPORT GEH-WE13M39
...
213
BELT DRIVE GEH-WE12M29
...
215
IDLER ARM SPRING GEH-WE3M25
...
216
PULLEY IDLER GEH-WE12M8
...
218
HOUSING BLOWER GEH-WE14M176
...
228
EXHAUST DUCT GEH-WE14M107
...
230
T-STAT , OUTLET BKUP ORG GEH-WE4M300
...
231
SCREW GEH-WE2M187
...
232
SCREW GEH-WE2M202
...
233
MOTOR PLATE GEH-WE13M53
...
234
CAP NUT GEH-WE2M96
...
235
SCR GEH-WE2X263
...
237
SCREW GEH-WE2M154
...
239
SCREWS GEH-WE2M167
...
240
THERMISTOR , OUTLET CNTR GEH-WE4M336
...
502
SCREW # 10 GEH-WE2M174
...
630
MOTOR & PULLEY ASM GEH-WE17M54
...
803
SWITCH INTERLOCK GEH-WD21X0557
...
3439
SCREW GEH-WE2M180
...
3443
SCREW GEH-WE1M280

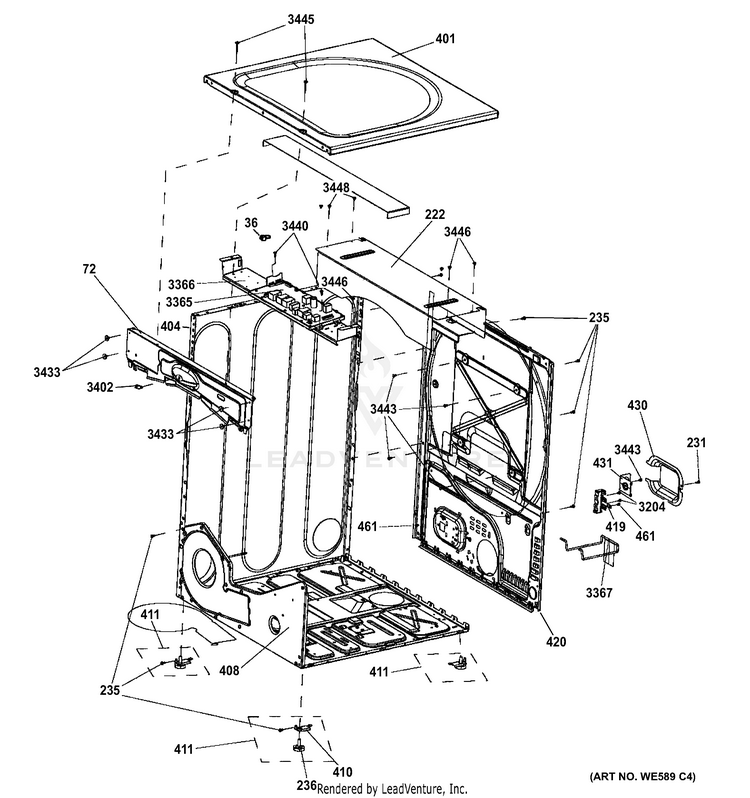

CABINET & TOP PANEL

...
...
36
CONNECTOR MODEL SELECT GEH-WD21X10026
...
72
SHIELD FRONT GEH-WE1M926
...
222
REAR PLATE GEH-WE1M585
...
231
SCREW GEH-WE2M187
...
235
SCR GEH-WE2X263
...
236
LEVELLING SCREW GRAY GEH-WE1M642
...
401
TOP PANEL WW GEH-WE20M445
...
404
SIDE PANEL WH GEH-WE20M400
...
408
BOTTOM CHASSIS BASE GEH-WE20M429
...
410
REAR BRACKET LEVEL LEG GEH-WE1M528
...
411
LEVELINGLEGASM GEH-WE1M468
...
419
TERM BLK & GRND STRAP GEH-WE4M325
...
420
REAR PANEL 6 CU. FT. GEH-WE20M432
...
430
T-BLOCK COVER GEH-WE1M458
...
431
STRAIN RELIEF BRACKET GEH-WE1M457
...
461
SCREW 8-32X3/8 GRD SCR GEH-WZ05X0158
...
3204
SCR GEH-WH2M270
...
3365
MAIN POWER BRD ASM GEH-WE4M512
...
3366
MAIN POWER BOARD SUPPORT GEH-WE1M864
...
3367
EXHAUST PROTECTOR ASM GEH-WE1M587
...
3402
ENCLOSED SCREW GROMMET GEH-WE1M758
...
3433
SCR 8-18 AB PNQ2 1/4 S Z GEH-WE2M278
...
3440
SCREW GEH-WE2M173
...
3443
SCREW GEH-WE1M280
...
3445
SCREW FLAT HEAD/AB GEH-WE2M214
...
3446
SCREW GEH-WE2M223
...
3448
WASHER - DAMPENING BAND GEH-WE2M185

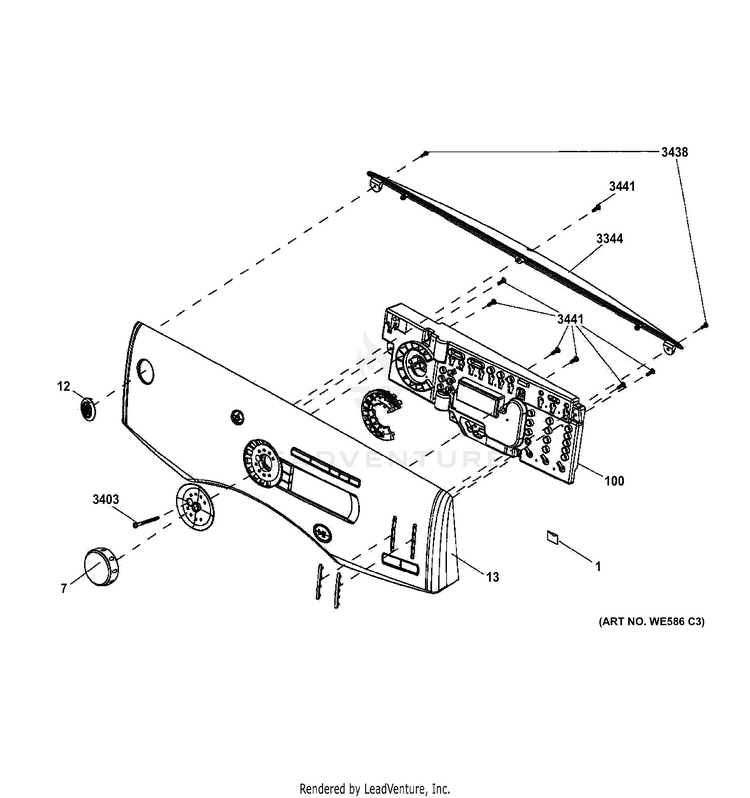

CONTROL PANEL

...
...
1
PM USE & CARE MANUAL GEH-49-90394
...
1
PM MINI MANUAL & WIRING GEH-31-16632
...
1
PM INSTALLATION INSTRUCT GEH-31-16629
...
7
KNOB ASM CHROME GEH-WE1M939
...
12
BADGE GE - GRAY GEH-WE19M1624
...
13
CNTRL PNL ASM WW GEH-WE19M1687
...
100
USER INTERFACE BOARD ASM GEH-WE4M514
...
3344
BACK HOUSING "WHITE" GEH-WE19M1657
...
3403
SCREW CENTER KNOB AREA GEH-WE2M264
...
3438
SCR 6-16 B PNP 3/8 S ZN GEH-WE2M279
...
3441
SCREW FRONT GEH-WE2M211

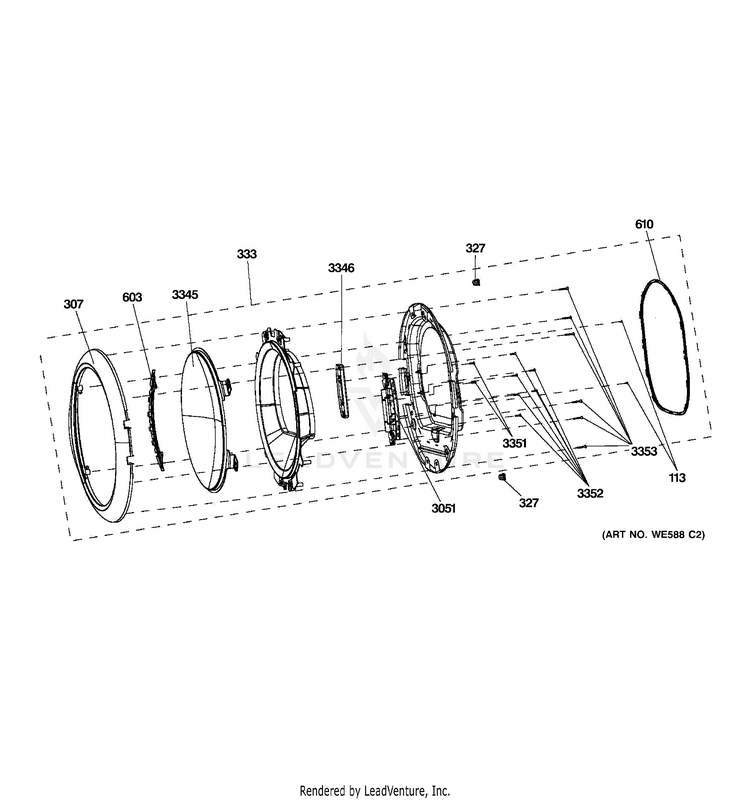

DOOR

...
...
113
PLASTIC SCREW PLUG GEH-WE1M741
...
307
DOOR OUTER RING GEH-WE1M925
...
327
LATCH GEH-WE1M536
...
333
DOOR ASM WW GEH-WE10M136
...
603
DOOR HANDLE COVER GEH-WE1M928
...
610
DOOR GASKET GEH-WE9M48
...
3051
DOOR HINGE ASM - PLATED GEH-WE1M930
...
3345
DOOR OUTER WINDOW GEH-WE1M924
...
3346
DOOR HINGE COVER GEH-WE1M929
...
3351
SCREW #8 X 5/8 SS DOOR H GEH-WE1M582
...
3352
SCREW #8-32 X 1/2 HINGE GEH-WE1M583
...
3353
SCR 10-16 B FLQ2 1-1/8 S GEH-WE1M584

DRUM

...
...
237
SCREW GEH-WE2M154
...
502
SCREW # 10 GEH-WE2M174
...
503
DRUM ASM GEH-WE21M37
...
504
DEFLECTOR HEAT GEH-WE14M77
...
505
THERMOSTAT SAFETY LEFT GEH-WE4M160
...
506
INLET CONTROL THERMISTOR GEH-WE4M333
...
507
THERMOSTAT HI-LIMIT GEH-WE4M137
...
508
SHAFT & BRACKET ASS'Y GEH-WE3M33
...
509
BAFFLE GEH-WE14M180
...
510
PROTECTION BRACKET GEH-WE1M780
...
512
MICA HEATER & HOUSING 51 GEH-WE11M44
...
513
HOUSING HEATER GEH-WE11M31
...
514
MICA UNIT ASM GEH-WE11M32
...
515
GROUND STRAP GEH-WE1M554
...
522
DAMPENING BAND - DRUM GEH-WE1M821
...
523
INSULATED WASHER GEH-WE2M176
...
534
SCREW #10 GEH-WE2M163
...
3102
BEARING RETAINER GEH-WE1M300
...
3106
SLEEVE DRUM GEH-WE1M462
...
3127
O RING GEH-WE1M461
...
3448
WASHER - DAMPENING BAND GEH-WE2M185

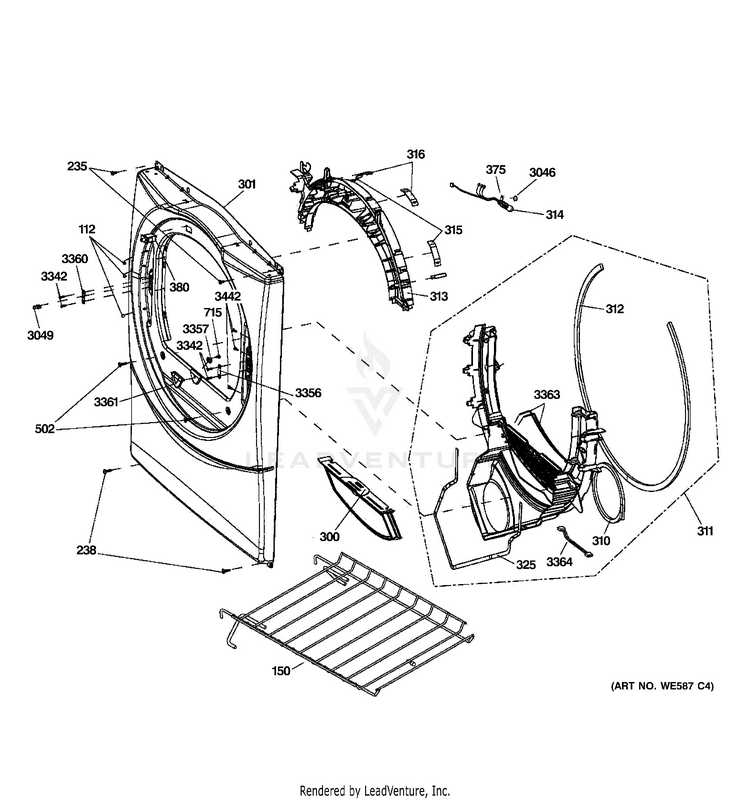

FRONT PANEL

...
...
112
PLUG BUTTON WHITE GEH-WE1M934
...
150
RACK DRYING GEH-WE1M1013
...
235
SCR GEH-WE2X263
...
238
SCREW WHITE #10-16 3/4 GEH-WE2M225
...
300
FILTER ASM GEH-WE18M37
...
301
FRONT PANEL " WHITE " GEH-WE20M444
...
310
GASKET (AIR-DUCT) GEH-WE9M41
...
311
TRAP DUCT ASM GEH-WE14X20536
...
312
FELT TRAP DUCT GEH-WE9M49
...
313
TOP BEARING ASM W/FELTS GEH-WE14M182
...
314
LAMP GEH-WE4M305
...
315
SLIDE WHITE GEH-WE1M504
...
316
SLIDE DRUM - GREEN GEH-WE1M507
...
325
TRAP DUCT / FRONT SEAL GEH-WE1M574
...
375
HARNESS TOP BEARING ASM GEH-WE15X20515
...
380
DOOR SWITCH GEH-WE4M415
...
502
SCREW # 10 GEH-WE2M174
...
715
SCR GEH-WD2M101
...
3046
SCREW #8 GEH-WE2M196
...
3049
STRIKE GEH-WE01M10007
...
3342
SCREW HINGE TO FRONT GEH-WE2M217
...
3356
STRIKE PLATE GEH-WE1M569
...
3357
NUT-STRIP DOOR GUIDE GEH-WE2M213
...
3360
STRIKE PLATE W/STRK HOLE GEH-WE1M570
...
3361
DOOR GUIDE GEH-WE1M755
...
3363
SENSOR RODS GEH-WE1M575
...
3364
HARNESS SENSORS GEH-WE5M54
...
3442
SCR 8-18 AB 1/2 GEH-WE2M281
