GE GFDN160GJ0WW Gas Dryer

Model: GFDN160GJ0WW

Back To Assemblies

Save Part Not Listed?
product name

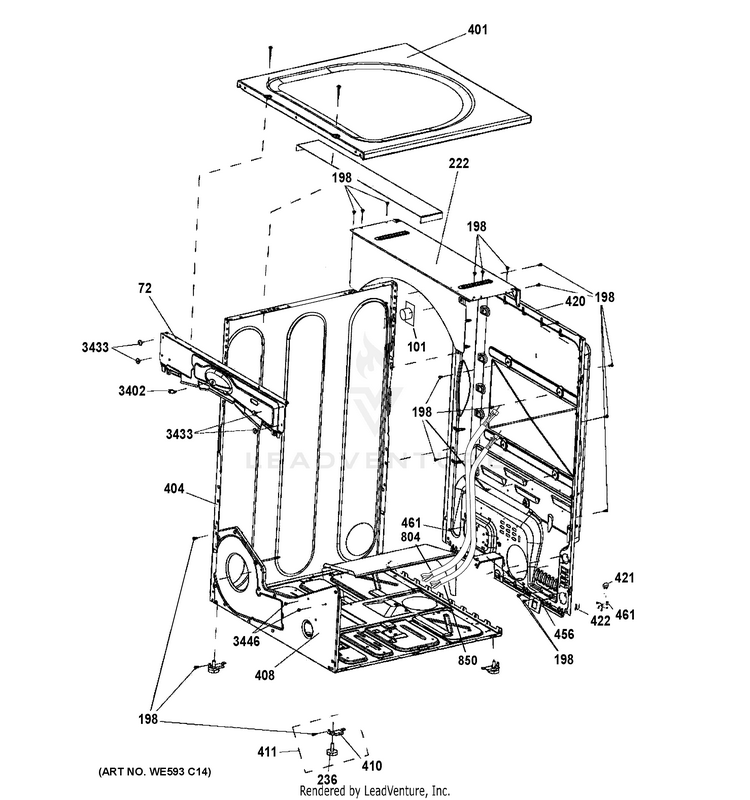

CABINET & TOP PANEL

...
...
72
SHIELD FRONT GEH-WE01X21163
...
101
BOARD DSM GEH-WE01X21176
...
198
SCREW GEH-WE01X21155
...
222
REAR PLATE GEH-WE13X31006
...
236
LEVELLING SCREW GRAY GEH-WE1M642
...
401
PANEL TOP GEH-WE20M10004
...
404
PANEL SIDE GEH-WE20X27475
...
408
CHASSIS BASE GEH-WE13X31439
...
410
REAR BRACKET LEVEL LEG GEH-WE1M528
...
411
LEVELINGLEGASM GEH-WE1M468
...
420
REAR PANEL 7.5 C.F. GEH-WE20M381
...
421
POWER CORD (120V GAS) GEH-WE26M345
...
422
CLIP CORDSET GEH-WE1M155
...
456
PIPE CLAMP GEH-WE01X0617
...
461
SCREW 8-32X3/8 GRD SCR GEH-WZ05X0158
...
804
HARNESS GAS ASM GEH-WE15X23605
...
850
HARNESS GAS RIGHT GEH-WE15X23606
...
3402
BRACKET UI GEH-WE13X21164
...
3433
SCR 8-18 AB PNQ2 1/4 S Z GEH-WE2M278
...
3446
SCREW GEH-WE2M223
