GE GFDN110ED1WW Electric Dryer

Model: GFDN110ED1WW

Save Part Not Listed?
product name

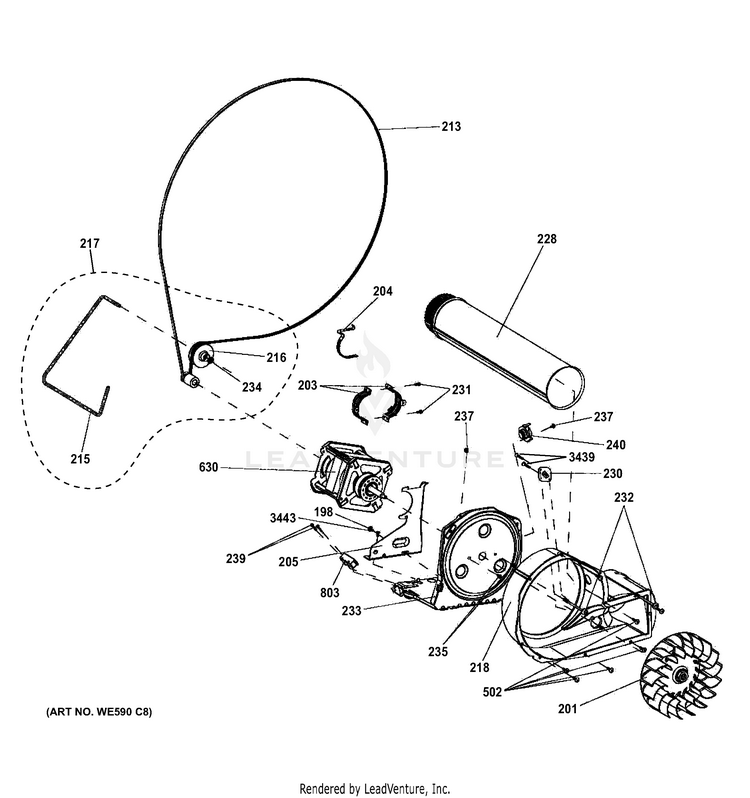

BLOWER & MOTOR

...
...
198
SCREW GEH-WE2M200
...
201
BLOWER WHEEL GEH-WE16X20393
...
203
STRAP MOTOR GEH-WE13X0200
...
204
MOTOR BRACKET GEH-WE01X0921
...
205
MOTOR SUPPORT GEH-WE13M39
...
213
BELT DRIVE GEH-WE12M29
...
215
IDLER ARM SPRING GEH-WE3M25
...
216
PULLEY IDLER GEH-WE12M8
...
217
IDLER ARM ASM GEH-WE12M50
...
218
BLOWER HOUSING GEH-WE14M239
...
228
EXHAUST DUCT GEH-WE14X21035
...
230
OUTLET CNTRL THERMISTOR GEH-WE4M391
...
231
SCREW GEH-WE2M187
...
232
SCREW GEH-WE2M202
...
233
MOTOR PLATE GEH-WE13M10002
...
234
CAP NUT GEH-WE2M96
...
235
SCR GEH-WE2X263
...
237
SCREW GEH-WE2M154
...
239
SCREWS GEH-WE2M167
...
240
T-STAT , OUTLET BKUP ORG GEH-WE4M300
...
502
SCREW # 10 GEH-WE2M174
...
630
MOTOR & PULLEY ASM GEH-WE17M54
...
803
SWITCH INTERLOCK GEH-WD21X0557
...
3439
SCREW GEH-WE2M180
...
3443
SCREW GEH-WE1M280

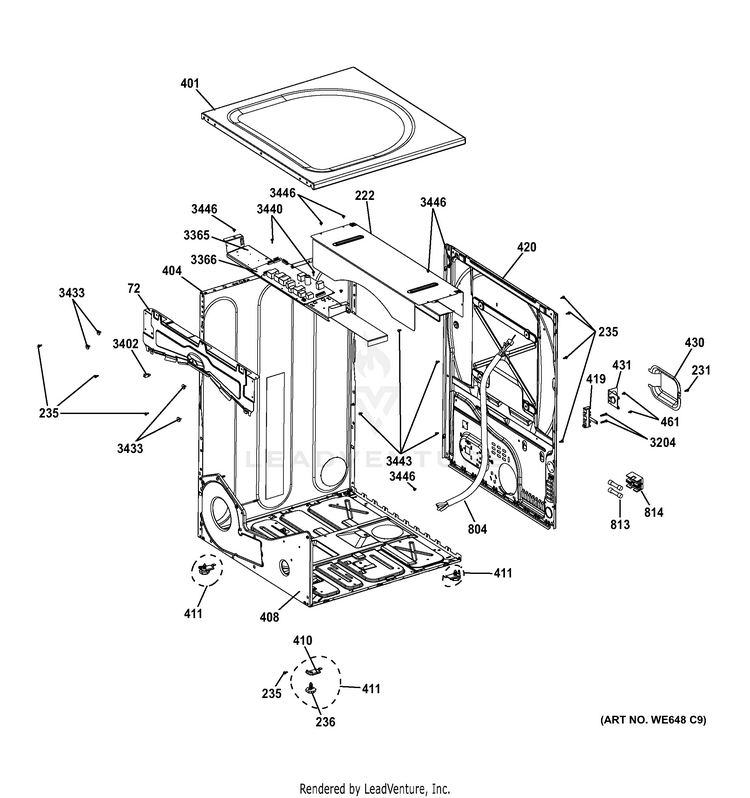

CABINET

...
...
72
SHIELD FRONT GEH-WE01M10003
...
222
REAR PLATE GEH-WE1M585
...
231
SCREW GEH-WE2M187
...
235
SCR GEH-WE2X263
...
236
LEVELLING SCREW GRAY GEH-WE1M642
...
401
PANEL TOP GEH-WE20M10004
...
404
SIDE PANEL WH GEH-WE20M400
...
408
BOTTOM CHASSIS BASE GEH-WE20M429
...
410
REAR BRACKET LEVEL LEG GEH-WE1M528
...
411
LEVELINGLEGASM GEH-WE1M468
...
419
TERM BLK & GRND STRAP GEH-WE4M325
...
420
PANEL REAR GEH-WE02X24035
...
430
TERMINAL BLOCK COVER GEH-WE01X20420
...
431
STRAIN RELIEF BRACKET EL GEH-WE01X20423
...
461
SCREW 8-32X3/8 GRD SCR GEH-WZ05X0158
...
804
HARNESS ELECT ASM GEH-WE26X20974
...
813
FUSE CCMR 30 AMP 120V GEH-WE1M1002
...
814
HOLDER FUSE GEH-WE1M1003
...
3204
SCR GEH-WH2M270
...
3365
MAIN POWER BOARD GEH-WE04M10011
...
3366
MAIN POWER BOARD SUPPORT GEH-WE1M864
...
3402
ENCLOSED SCREW GROMMET GEH-WE1M758
...
3433
SCR 8-18 AB PNQ2 1/4 S Z GEH-WE2M278
...
3440
SCREW GEH-WE2M173
...
3443
SCREW GEH-WE1M280
...
3446
SCREW GEH-WE2M223

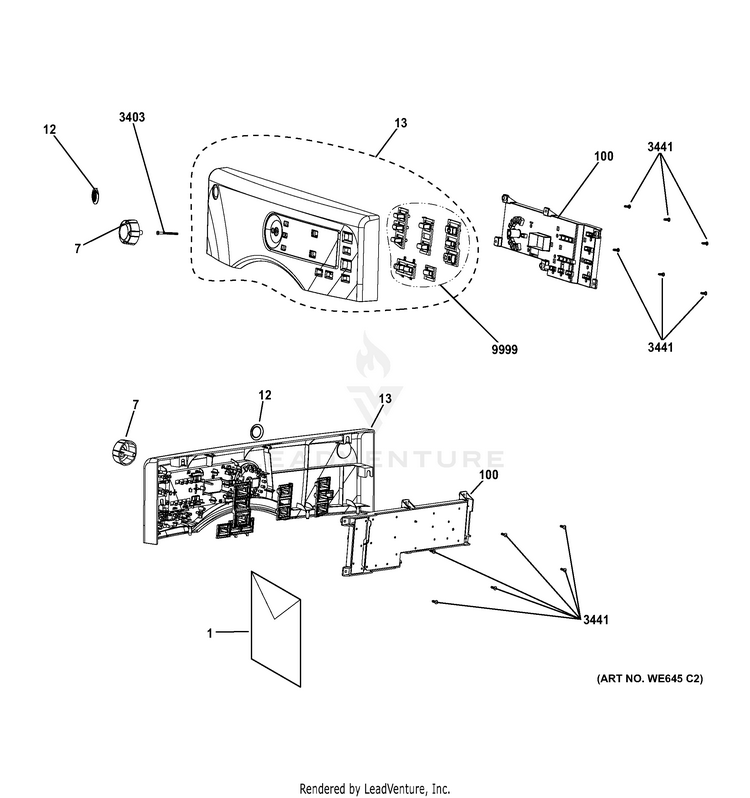

CONTROLS & BACKSPLASH

...
...
1
PM MINI MANUAL & WIRIN GEH-31-16860
...
1
PM INSTALLATION INSTRUCT GEH-31-16726-1
...
7
KNOB GEH-WE04X21014
...
12
BADGE GEH-WE10X20222
...
13
PANEL CONTROL ASM GEH-WE19M1749
...
100
CHASSIS & PCB ASM GEH-WE04M10014
...
3403
SCREW CENTER KNOB AREA GEH-WE2M264
...
3441
SCREW FRONT GEH-WE2M211
...
9999
BUTTON KIT GEH-WE25M86

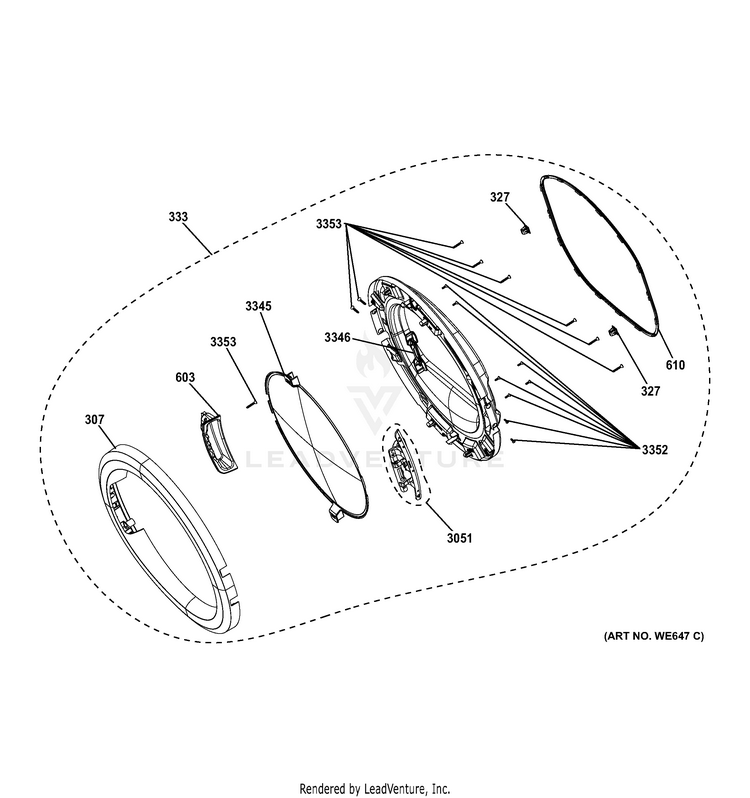

DOOR

...
...
307
RING OUTER GEH-WE01M10009
...
327
LATCH GEH-WE1M536
...
333
DOOR ASM GEH-WE10M10010
...
603
INSERT HANDLE GEH-WE01M10006
...
610
DOOR GASKET GEH-WE9M48
...
3051
HINGE ASM GEH-WE01M10004
...
3345
WINDOW OUTER GEH-WE01M10002
...
3346
COVER HINGE GEH-WE01M10005
...
3352
SCREW #8-32 X 1/2 HINGE GEH-WE1M583
...
3353
SCR 10-16 B FLQ2 1-1/8 S GEH-WE1M584

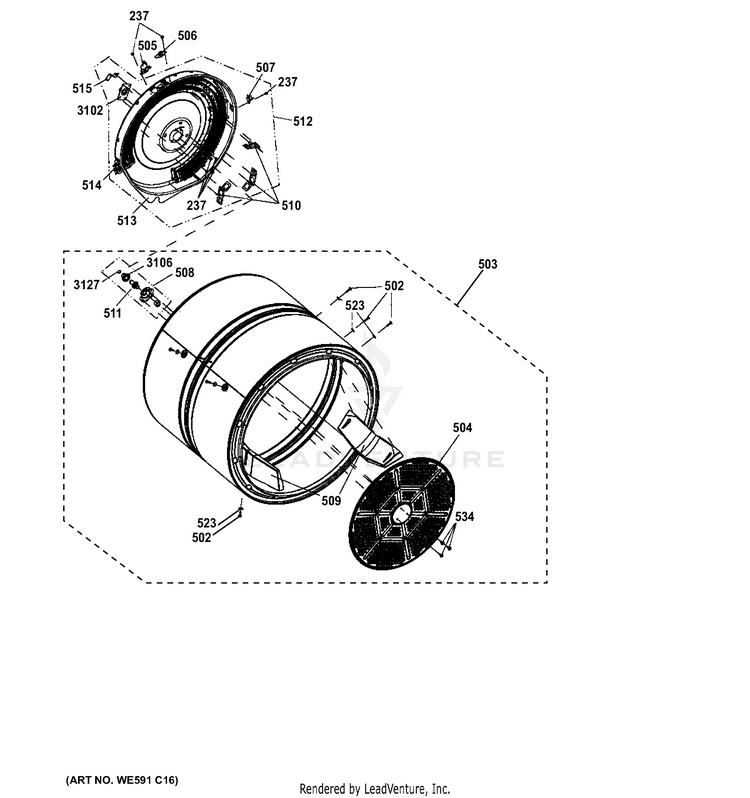

DRUM

...
...
237
SCREW GEH-WE2M154
...
502
SCREW # 10 GEH-WE2M174
...
503
DRUM ASM GEH-WE01X10361
...
504
DIFFUSER GEH-WE14X20408
...
505
THERMOSTAT SAFETY LEFT GEH-WE4M160
...
506
INLET CONTROL THERMOSTAT GEH-WE4M398
...
507
THERMOSTAT HI-LIMIT GEH-WE4M137
...
508
SHAFT & BRACKET ASS'Y GEH-WE3M33
...
509
BAFFLE GEH-WE14M75
...
510
PROTECTION BRACKET GEH-WE1M780
...
511
SHAFT GEH-WE00X181L
...
512
HEATER AND HOUSING ASM GEH-WE11X20088
...
513
HEATER HOUSING GEH-WE11X20400
...
514
MICA HEATER GEH-WE11M10001
...
515
GROUND STRAP ASM GEH-WE1M1015
...
523
INSULATED WASHER GEH-WE2M176
...
534
SCREW #10 GEH-WE2M163
...
3102
BEARING RETAINER GEH-WE1M300
...
3106
SLEEVE DRUM GEH-WE1M462
...
3127
O RING GEH-WE1M461

FRONT PANEL

...
...
112
PLUG BUTTON WHITE GEH-WE1M934
...
235
SCR GEH-WE2X263
...
238
SCREW WHITE #10-16 3/4 GEH-WE2M225
...
300
FILTER AND MESH ASM GEH-WE18M38
...
301
PANEL FRONT WW GEH-WE20M10005
...
310
GASKET (AIR-DUCT) GEH-WE9M41
...
311
TRAP DUCT ASM GEH-WE14M10003
...
312
FELT TRAP DUCT GEH-WE09X20441
...
313
TOP BEARING GEH-WE14M240
...
314
LAMP GEH-WE4M305
...
315
BEARING SLIDE GEH-WE3M51
...
316
BEARING SLIDE GEH-WE3M52
...
325
TRAP DUCT / FRONT SEAL GEH-WE1M574
...
375
HARNESS TOP BEARING ASM GEH-WE15X20250
...
380
DOOR SWITCH GEH-WE4M415
...
502
SCREW # 10 GEH-WE2M174
...
715
SCR GEH-WD2M101
...
3046
SCREW #8 GEH-WE2M196
...
3049
STRIKE GEH-WE01M10007
...
3342
SCREW HINGE TO FRONT GEH-WE2M217
...
3356
STRIKE PLATE GEH-WE1M569
...
3357
NUT-STRIP DOOR GUIDE GEH-WE2M213
...
3360
STRIKE PLATE W/STRK HOLE GEH-WE1M570
...
3361
DOOR GUIDE GEH-WE1M755
...
3363
SENSOR RODS GEH-WE1M575
...
3364
HARNESS SENSORS GEH-WE5M54
...
3442
SCR 8-18 AB 1/2 GEH-WE2M281
