GE GFD85GSSN0WW Gas Dryer

Model: GFD85GSSN0WW

Back To Assemblies

Save Part Not Listed?
product name

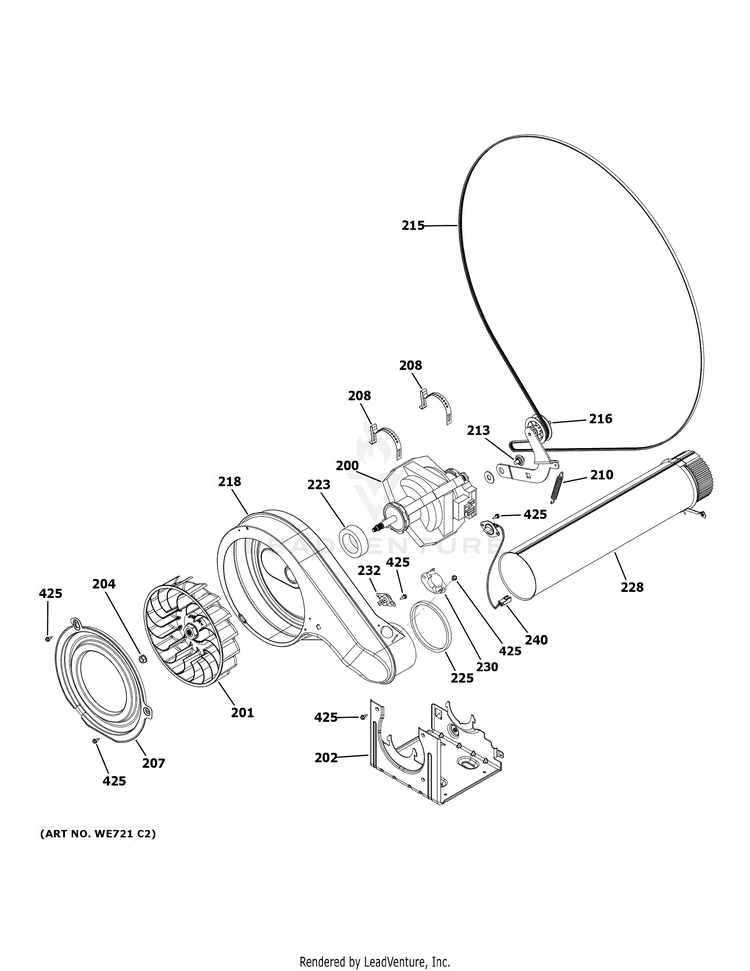

BLOWER & MOTOR

...
...
200
MOTOR GEH-WE03X29703
...
201
BLOWER WHEEL GEH-WE16X29715
...
202
MOTOR BRACKET GEH-WE13X29712
...
204
BELLEVILLE NUT GEH-WE02X29717
...
207
INLET RING GEH-WE13X29716
...
208
CLIP RESILIENT MOUNT GEH-WE01X10376
...
210
IDLER SPRING GEH-WE03X29702
...
213
PIVOT SHOULDER BOLD+T GEH-WE02X29732
...
215
DRIVE BELT GEH-WE03X29704
...
216
IDLER ARM GEH-WE03X29817
...
218
BLOWER HOUSING GEH-WE16X30583
...
223
MOTOR GASKET GEH-WE05X29706
...
225
FAN SEAL GEH-WE09X10025
...
228
EXHAUST DUCT GEH-WE11X29734
...
230
THERMOSTAT 2 GEH-WE04X10190
...
232
SAFETY THERMOSTAT GEH-WE04X30582
...
240
OUTLET THERMISTOR GEH-WE04X29714
...
425
SCREW GEH-WH2X1217
