GE GFD85GSPN0DG Gas Dryer

Model: GFD85GSPN0DG

Back To Assemblies

Save Part Not Listed?
product name

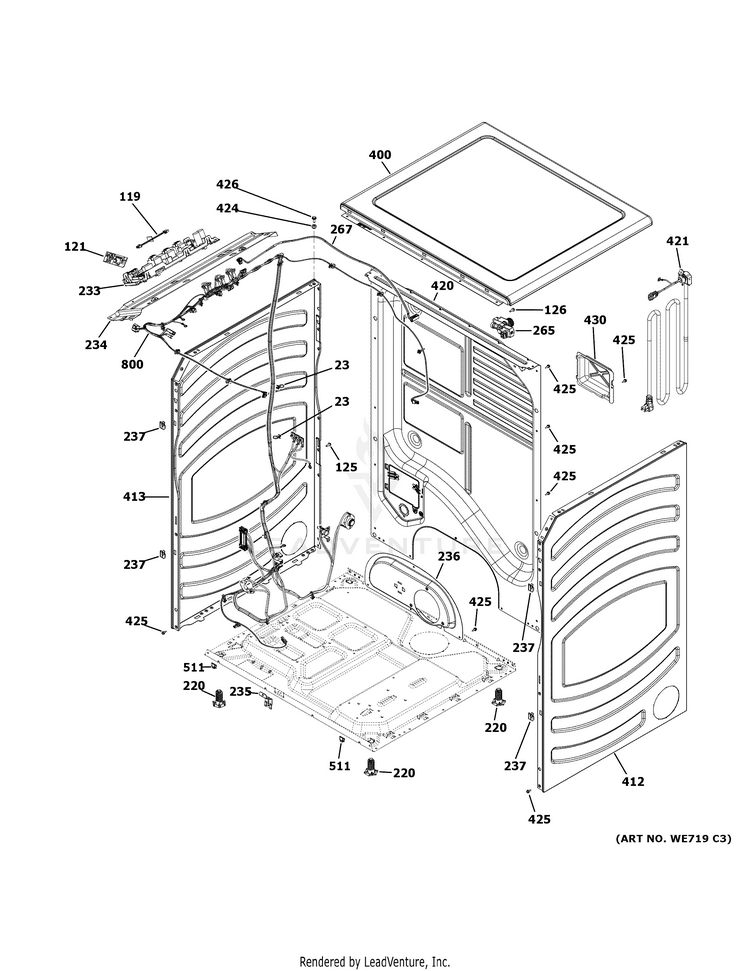

CABINET & TOP PANEL

...
...
23
WIRE TIE GEH-WH01X10704
...
119
WIFI JUMPER HARNESS GEH-WE08X29733
...
121
WIFI & BLUETOOTH BOARD W/INSTRUCTIONS GEH-WH22X36577
...
125
SCR 10-32 GX HXW 7/16 S GEH-WE02X10107
...
126
SCREW 8-18 HI/LO 5/8 GEH-WR01X10196
...
220
LEVELING LEG GEH-WE01X29697
...
233
MAIN BOARD GEH-WE22X29700
...
234
MAIN BOARD BRACKET GEH-WE13X29701
...
235
DUCT TRAP BRACKET GEH-WE13X29698
...
236
ACCESS PANEL GEH-WE13X29699
...
237
PANEL CLIP GEH-WE02X29690
...
265
VALVE STEAM GEH-WE04X10186
...
267
WATER VALVE HARNESS GEH-WE08X29753
...
400
TOP PANEL DIAMOND GRAY GEH-WE10X30585
...
412
SIDE PANEL DIAMOND GRAY RIGHT GEH-WE10X29694
...
413
SIDE PANEL DIAMOND GRAY LEFT GEH-WE10X29693
...
420
REAR PANEL GEH-WE13X30588
...
421
POWER CORD GEH-WE08X29689
...
424
BUSHING GUIDE PIN GEH-WE02X29691
...
425
SCREW GEH-WH2X1217
...
426
SCREW 10-16 AB HXW 750 S GEH-WB01T10058
...
430
TERMINAL BLOCK COVER GEH-WE13X29740
...
511
PANEL CLIP GEH-WE01X29600
...
800
MAIN HARNESS GAS GEH-WE08X30589
