GE GFD85GSPN0DG Gas Dryer

Model: GFD85GSPN0DG

Back To Assemblies

Save Part Not Listed?
product name

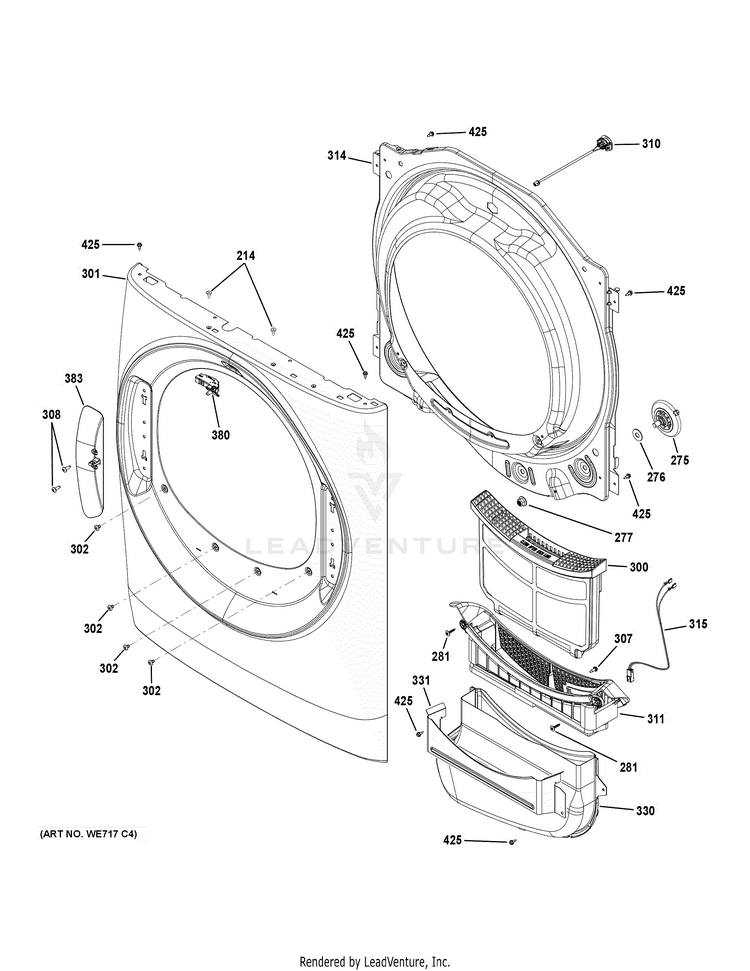

FRONT PANEL

...
...
214
SHOULDER SCREW M4 GEH-WH02X30177
...
275
ROLLER ASM WHEEL GEH-WE03X10016
...
276
STEEL WASHER GEH-WE01X10379
...
277
NUT PULLEY GEH-WH02X24417
...
281
SCR 8-18 AB TRQ 5/8 SS GEH-WH02X10394
...
300
LINT FILTER GEH-WE16X29597
...
301
FRONT PANEL DIAMOND GRAY GEH-WE10X29711
...
302
SCR 10-16 PL TRQ 3/8 S GEH-WH02X32237
...
307
SCR 8-18 AB HXW 9/16 S GEH-WR01X11012
...
308
SCR 10-32 B TRT-25 5/8 GEH-WH02X10139
...
310
TUB LIGHT GEH-WE01X29594
...
311
GRILLE HOUSING GEH-WE13X29598
...
314
FRONT DRUM SUPPORT GEH-WE13X29593
...
315
SENSOR ROD HARNESS GEH-WE08X29688
...
330
DUCT TRAP GEH-WE16X29599
...
331
DUCT TRAP SHIELD GEH-WE13X30590
...
380
DOOR SWITCH GEH-WE04X29601
...
383
DOOR STRIKE GRAY GEH-WE01X30017
...
425
SCREW GEH-WH2X1217
