product name

GE GFD45ESPM0DG Dryer Electric

Model: GFD45ESPM0DG

Save Part Not Listed?
product name

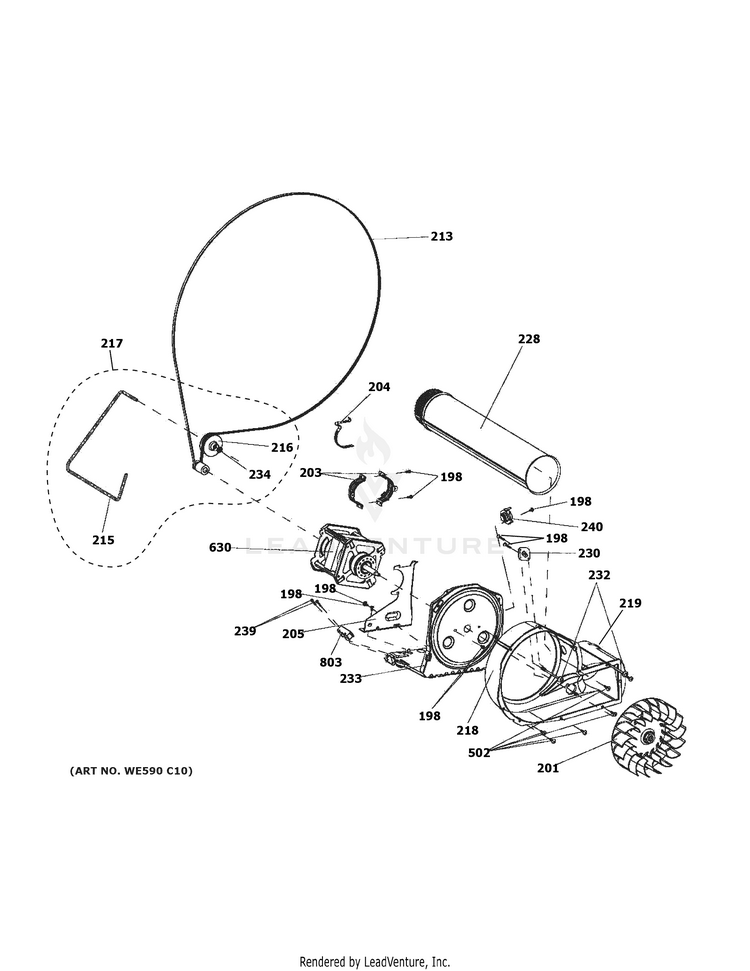

BLOWER & MOTOR

...
...
198
SCREW GEH-WE01X25535
...
201
BLOWER WHEEL GEH-WE16X20393
...
203
STRAP MOTOR GEH-WE13X0200
...
204
MOTOR BRACKET GEH-WE01X0921
...
205
MOTOR SUPPORT GEH-WE13M39
...
213
BELT DRIVE GEH-WE12M29
...
215
IDLER ARM SPRING GEH-WE3M25
...
216
IDLER PULLEY GEH-WE12X20395
...
217
IDLER ARM ASM GEH-WE12M50
...
218
BLOWER HOUSING GEH-WE14M239
...
219
BLOWER GASKET (EXHAUST) GEH-WE09X27636
...
228
EXHAUST DUCT GEH-WE14X21035
...
230
OUTLET CNTRL THERMISTOR GEH-WE4M448
...
232
SCREW GEH-WE2M202
...
233
MOTOR PLATE NV GEH-WE03X27285
...
234
CAP NUT GEH-WE2M96
...
239
SCREW GEH-WE2X21854
...
240
T-STAT , OUTLET BKUP ORG GEH-WE4M300
...
502
SCREW # 10 GEH-WE2M174
...
630
MOTOR DRIVE GEH-WE17X22194
...
803
SWITCH INTERLOCK GEH-WD21X557

CABINET & TOP PANEL

...
...
23
MIST HOSE GEH-WE1M1105
...
72
SHIELD FRONT GEH-WE01X21163
...
101
BOARD DSM GEH-WE01X21176
...
198
SCREW GEH-WE01X25535
...
236
LEVELLING SCREW GRAY GEH-WE1M642
...
401
PANEL TOP GEH-WE20X21179
...
404
PANEL SIDE GEH-WE20X21177
...
408
BOTTOM CHASSIS BASE GEH-WE20M429
...
409
SHIELD THERMOSTAT GEH-WE1M932
...
410
REAR BRACKET LEVEL LEG GEH-WE1M528
...
411
LEVELINGLEGASM GEH-WE1M468
...
419
TERM BLK & GRND STRAP GEH-WE4M325
...
420
REAR PANEL 7.5 C.F. GEH-WE20M381
...
430
TERM. BLOCK COVER GEH-WE1M1102
...
431
STRAIN RELIEF BRACKET EL GEH-WE01X20423
...
461
SCREW 8-32X3/8 GRD SCR GEH-WZ05X0158
...
476
VALVE WATER GEH-WE4M503
...
495
SHIELD WATER VALVE GEH-WE1M933
...
502
SCREW # 10 GEH-WE2M174
...
804
HARNESS ELECT ASM GEH-WE15X23358
...
3402
BRACKET UI GEH-WE13X21164
...
3433
SCR 8-18 AB PNQ2 1/4 S Z GEH-WE2M278

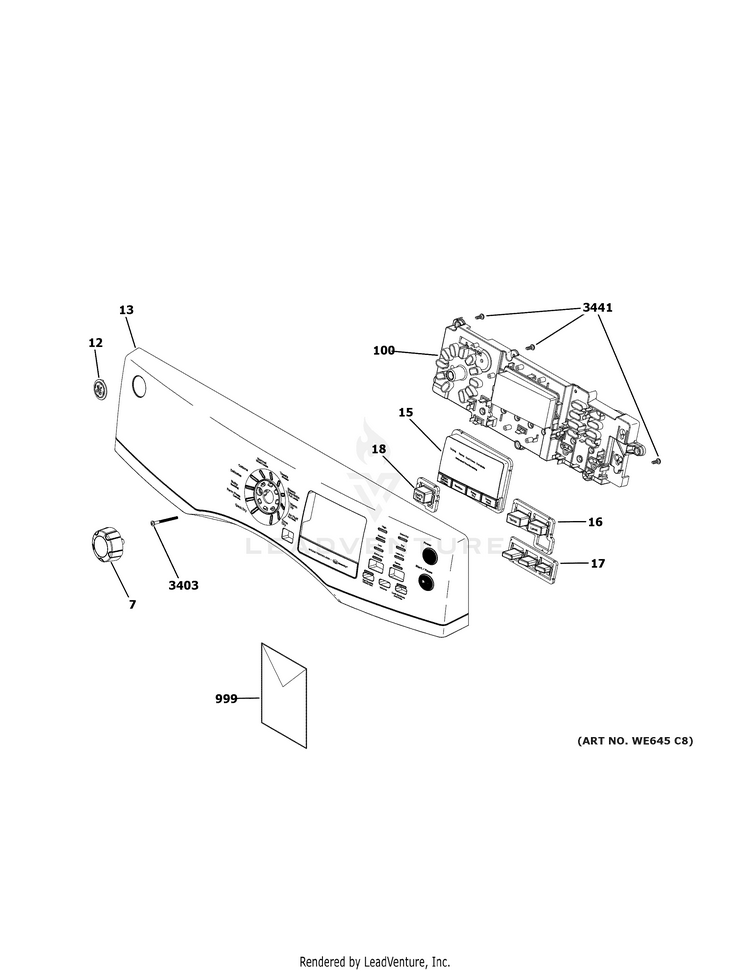

CONTROL PANEL

...
...
7
KNOB GEH-WE01X21167
...
12
BADGE GEH-WE10X20222
...
13
PANEL CONTROL ASM GEH-WE20X27599
...
15
DISPLAY AND BUTTONS ASM GEH-WE04X25134
...
16
BUTTON TEMP/LEVEL ASM GEH-WE04X28678
...
17
BUTTON EDRY-VOLUME-LOCK ASM GEH-WE22X29237
...
18
BUTTON ADD TIME ASM GEH-WE04X26634
...
100
CHASSIS AND BOARD ASM GEH-WE04X21166
...
999
PM INSTALLATION INSTRUCT GEH-31-16769
...
999
PUB NUMBER MINI MANUAL GEH-31-16933
...
999
PUB NUMBER MANUAL USE AND CARE GEH-49-90585
...
3403
SCREW CENTER KNOB AREA GEH-WE2M264
...
3441
SCREW FRONT GEH-WE2M211

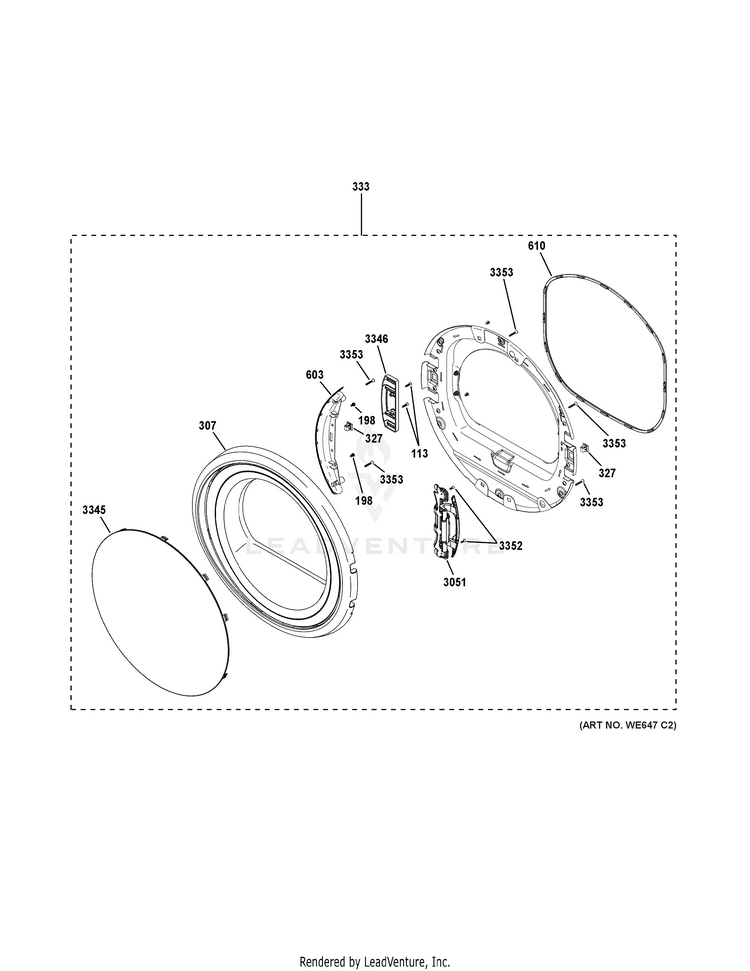

DOOR

...
...
113
PLASTIC SCREW PLUG GEH-WE1M741
...
198
SCREW GEH-WE01X25535
...
307
RING OUTER DOOR GEH-WE01X21170
...
327
LATCH GEH-WE1M536
...
333
DOOR ASM GEH-WE10X25475
...
603
HANDLE POCKET GEH-WE01X21171
...
610
GASKET DOOR GEH-WE09X22578
...
3051
HINGE ASM GEH-WE01X22875
...
3345
WINDOW OUTER DOOR GEH-WE01X25534
...
3346
DOOR HINGE COVER GEH-WE1M929
...
3352
SCREW #8-32 X 1/2 HINGE GEH-WE1M583
...
3353
SCR 10-16 B FLQ2 1-1/8 S GEH-WE1M584

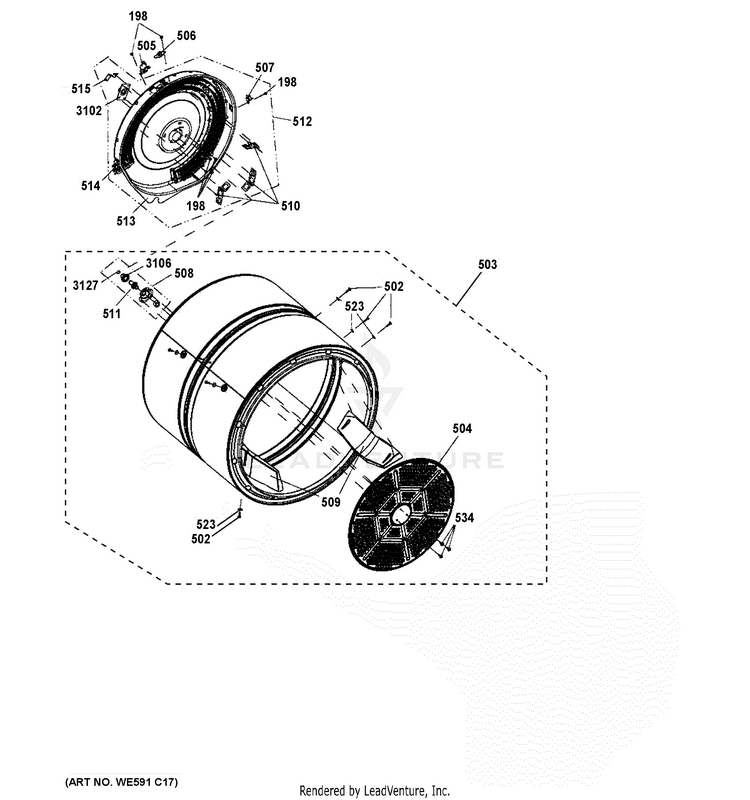

DRUM

...
...
198
SCREW GEH-WE01X25535
...
502
SCREW # 10 GEH-WE2M174
...
503
DRUM & BAFFLE ASM GEH-WE21X21439
...
504
DIFFUSER GEH-WE14X20408
...
505
THERMOSTAT INLET GEH-WE4M450
...
506
INLET CONTROL THERMOSTAT GEH-WE4M398
...
507
THERMOSTAT GEH-WE04X22535
...
508
SHAFT & BRACKET ASS'Y GEH-WE3M33
...
509
BAFFLE GEH-WE14X21615
...
510
PROTECTION BRACKET GEH-WE1M780
...
511
SHAFT GEH-WE00X181L
...
512
HEATER AND HOUSING ASM GEH-WE11X21156
...
513
HEATER HOUSING GEH-WE11M43
...
514
MICA HEATER GEH-WE11M10001
...
515
GROUND STRAP ASM GEH-WE1M1015
...
523
INSULATED WASHER GEH-WE2M176
...
534
SCREW #10 GEH-WE2M163
...
3102
BEARING RETAINER GEH-WE1M300
...
3106
SLEEVE DRUM GEH-WE1M462
...
3127
O RING GEH-WE1M461

FRONT PANEL

...
...
22
TUBE WATER FRONT 11" GEH-WE1M941
...
112
BUTTON BEATUY GEH-WE1X21775
...
238
SCREW WHITE #10-16 3/4 GEH-WE2M225
...
300
FILTER AND MESH ASM GEH-WE18X25098
...
301
PANEL FRONT GEH-WE20X21178
...
310
GASKET GEH-WE09X20569
...
311
TRAP DUCT COMPLETE ASM GEH-WE14M181
...
312
FELT TRAP DUCT GEH-WE09X27634
...
313
TOP BEARING ASM GEH-WE14X22579
...
314
LAMP GEH-WE05X20431
...
315
BEARING SLIDE GEH-WE3M51
...
316
BEARING SLIDE GEH-WE3M52
...
317
FELT TOP BEARING GEH-WE09X27635
...
324
CONNECTOR SERVICE GEH-WE01X20560
...
325
TRAP DUCT / FRONT SEAL GEH-WE1M574
...
326
ELBOW & NOZZLE ASM GEH-WE1M943
...
328
PLASTIC BELT GEH-WE01X25834
...
329
KIT SERVICE NOZZLE ASM GEH-WE25M71
...
375
HARNESS TOP BEARING ASM GEH-WE04X22494
...
380
DOOR SWITCH GEH-WE4M415
...
382
FILTER FELT GEH-WE01X25435
...
502
SCREW # 10 GEH-WE2M174
...
715
SCR GEH-WD2M101
...
3049
STRIKE GEH-WE01M10007
...
3342
SCREW #8 X 5/8 SS DOOR H GEH-WE1M582
...
3356
STRIKE PLATE GEH-WE1M569
...
3357
NUT-STRIP DOOR GUIDE GEH-WE2M213
...
3360
STRIKE PLATE W/STRK HOLE GEH-WE1M570
...
3361
DOOR GUIDE GEH-WE1M755
...
3363
SENSOR RODS GEH-WE1M575
...
3364
HARNESS SENSORS GEH-WE5M54
...
3442
SCR 8-18 AB 1/2 GEH-WE2M281
...
5001
INLET HOSE (LONG) GEH-WE1M847
...
5002
SHORT DRYER INLET HOSE GEH-WE01X22395
...
5003
Y ADAPTER GEH-WE01X10401
...
5004
SCREEN FOR WASHER HOSE GEH-WE1M850
...
5005
RUBBER WASHER FOR INTAKE GEH-WE1M851
...
9998
STEAM KIT GEH-WE25X20060
