GE GFD14ESSN0WW Electric Dryer

Model: GFD14ESSN0WW

Save Part Not Listed?
product name

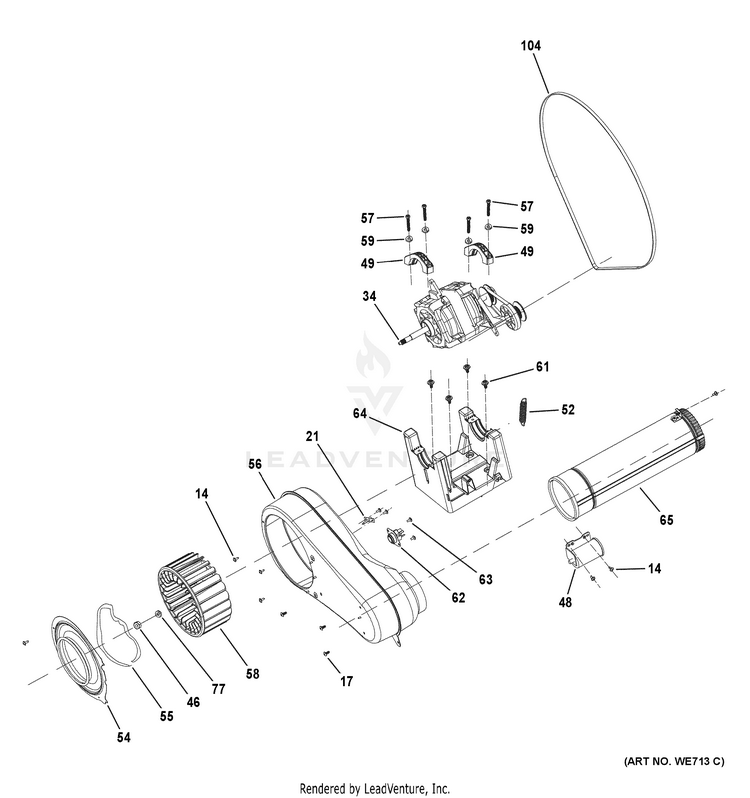

BLOWER & MOTOR ASSEMBLY

...
...
14
TOP FRONT BRACKET SCREW ST3.5*12 GEH-WH02X26267
...
17
SCREW GEH-WH02X26247
...
21
OUTLET THERMISTER GEH-WE04X26348
...
34
MOTOR GEH-WE03X28740
...
46
NUT M8 GEH-WE02X28704
...
48
CAPACITOR GEH-WE01X26354
...
49
MOTOR BRACKET GEH-WE13X28726
...
52
SPRING GEH-WE01X28759
...
54
VOLUTE END COVER GEH-WE01X28758
...
55
GASKET GEH-WE09X27688
...
56
BLOWER MOTOR COVER GEH-WE13X28716
...
57
BOLT M5*25 GEH-WE02X28698
...
58
BLOWER FAN GEH-WE16X28729
...
59
MOTOR SPRING GEH-WE02X28738
...
61
BOLT M5*14 GEH-WE02X28706
...
62
TEMPERATURE CONTROL GEH-WE04X28741
...
63
CAPACITOR SCREWS GEH-WH02X26927
...
64
MOTOR BRACKET GEH-WE13X28727
...
65
EXHAUST PIPE GEH-WE13X28734
...
77
CW BOLT TENSION WASHER GEH-WH01X27132
...
104
BELT GEH-WE12X26360

CABINET & TOP PANEL

...
...
11
GUIDE POST SCREW GEH-WE02X26340
...
23
CONTROL PANEL ALIGNING SCREW M4*8 GEH-WH02X28411
...
25
REINFORCING L-BRACKET GEH-WE02X28742
...
28
BEARING COVER GEH-WE13X28712
...
29
GROUND SCREW GEH-WH02X28272
...
30
FRONT PANEL CLIP GEH-WE02X28701
...
31
LOCATOR PIN GEH-WE02X28703
...
32
LEVELING LEG GEH-WE01X28720
...
33
FRONT LEVELING LEG BRACKET GEH-WE13X28713
...
35
REAR LEVELING LEG BRACKET GEH-WE13X28715
...
43
LEVELING LEG GEH-WH46X28359
...
60
TOP PANEL GEH-WE13X28732
...
66
MAIN HARNESS W/3 PRONG OULET GEH-WE08X28730
...
67
CONTROL BOARD GEH-WE04X27515
...
68
CONTROL BOARD COVER GEH-WE01X27516
...
70
TERMINAL BLOCK COVER GEH-WE01X26404
...
73
POWER CORD CONDUIT BRACKET GEH-WE13X28714
...
74
HEATER GEH-WE11X28897
...
84
TOP PANEL GUIDE PIN SCREW GEH-WH02X26265
...
85
TOP PANEL GUIDE PIN GEH-WH01X26264
...
87
REAR BEARING GEH-WE03X26413
...
91
GROUND SCREW GEH-WH02X26236
...
92
BACK PANEL COVER GEH-WE13X28717
...
106
WATER CHANNEL GEH-WE01X27779
...
107
CONTROL PANEL BRACKET GEH-WE13X28711
...
109
FUSE GEH-WE01X27782
...
110
RJ45 CONNECTOR GEH-WH19X28403
...
113
REAR DRUM BEARING SUPPORT GEH-WE13X28718
...
114
RJ45 HARNESS GEH-WE08X28760
...
115
OUTLET COVER GEH-WE08X28520
...
121
FUSE HARNESS HOLDER GEH-WE08X28521

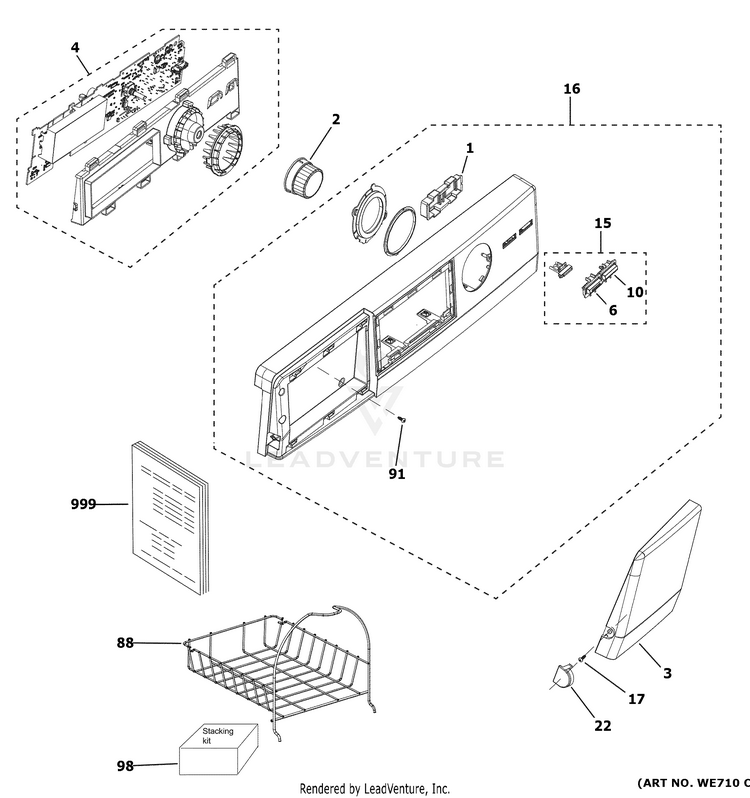

CONTROLS & BACKSPLASH

...
...
1
START/PAUSE & POWER BUTTON SUPPORT GEH-WE01X28724
...
2
CYCLE SELECT KNOB GEH-WH11X26254
...
3
CONTROL PANEL COVER GEH-WE13X28731
...
4
USER INTERFACE BOARD GEH-WE22X28761
...
6
START/PAUSE BUTTON GEH-WE01X28722
...
10
POWER BUTTON GEH-WE01X28723
...
15
START BUTTON & LIGHT GUIDE GEH-WE01X28746
...
16
CONTROL PANEL GEH-WE22X28745
...
17
SCREW GEH-WH02X26247
...
22
SCREW COVER GEH-WE02X28705
...
88
RACK GEH-WE01X26416
...
91
GROUND SCREW GEH-WH02X26236
...
98
24" FRONTLOAD STACKING KIT GEH-GFA24KITL
...
999
PM OWNERS AND INSTALL GEH-49-3000087
...
999
PM MINI MANUAL AND WIRING GEH-31-3000088

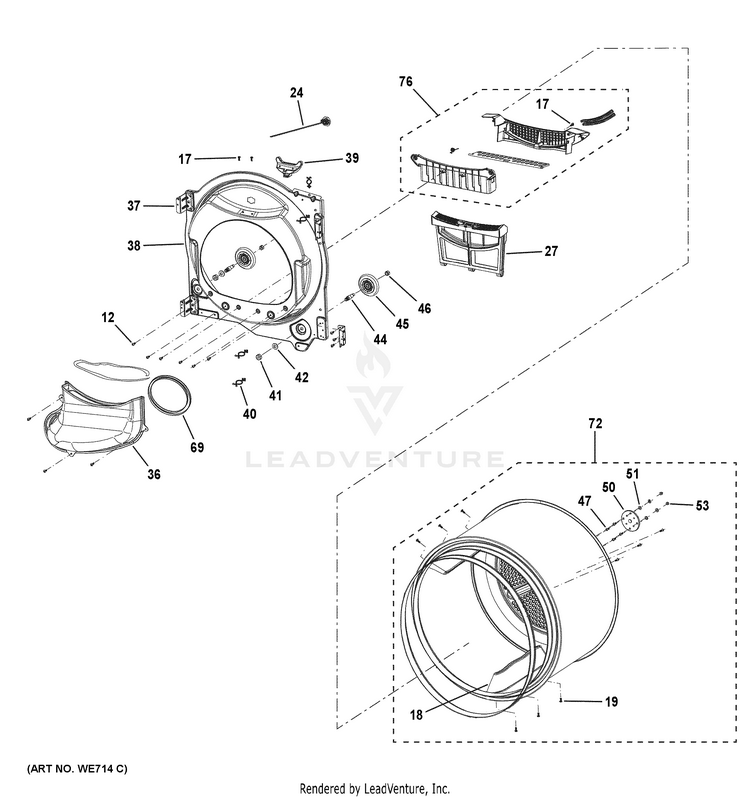

DRUM

...
...
12
FRONT PANEL SCREWS GEH-WE02X26338
...
17
SCREW GEH-WH02X26247
...
18
TUB BAFFLE GEH-WE01X26575
...
19
SCREW GEH-WE02X26576
...
24
LAMP GEH-WE11X27508
...
27
LINT FILTER GEH-WE16X28728
...
36
FRONT AIR DUCT GEH-WE13X28735
...
37
FRONT DRUM SUPPORT BRACKET GEH-WE13X28710
...
38
FRONT DRUM SUPPORT GEH-WE13X28733
...
39
DRYING RACK HANGER GEH-WE13X28737
...
40
FIXED-LINE CLIP GEH-WE02X28699
...
41
NUT M10 GEH-WE02X28700
...
42
NUT M10 GASKET GEH-WE02X28702
...
44
DRUM WHEEL SUPPORT SHAFT GEH-WE01X28721
...
45
DRUM WHEEL GEH-WE21X26838
...
46
NUT M8 GEH-WE02X28704
...
47
BOLT M6*14 GEH-WE02X28697
...
50
FLANGE PLATE GEH-WE13X28725
...
51
FLAT GASKET GEH-WE01X28719
...
53
NUT M6 GEH-WE02X28707
...
69
FRONT AIR DUCT GASKET GEH-WE05X28708
...
72
DRUM ASSEMBLY GEH-WE21X28743
...
76
DUCT TRAP HOUSING GEH-WE16X28747

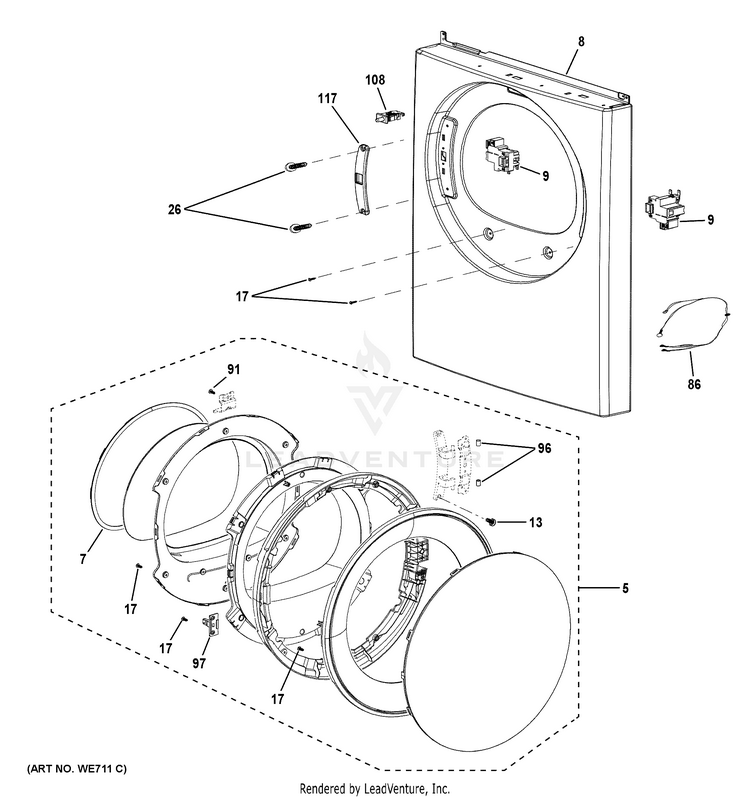

FRONT PANEL & DOOR

...
...
5
DRYER DOOR GEH-WE10X28757
...
7
DOOR GASKET GEH-WE05X28709
...
8
FRONT PANEL GEH-WE13X28736
...
9
DOOR SWITCH GEH-WE01X26341
...
13
HINGE SCREW GEH-WE02X27505
...
17
SCREW GEH-WH02X26247
...
26
DOOR HINGE SCREWS GEH-WH02X26271
...
86
HUMIDITY SENSOR AND HARNESS GEH-WE01X26415
...
91
GROUND SCREW GEH-WH02X26236
...
96
HINGE SHEATH GEH-WE10X26837
...
97
DOOR STRIKE GEH-WE01X26345
...
108
DOOR SWITCH GEH-WE01X27781
...
117
HINGE HOLE COVER GEH-WE10X28517
