GE GDWF100R30WW Dishwasher

Model: GDWF100R30WW

Save Part Not Listed?
product name

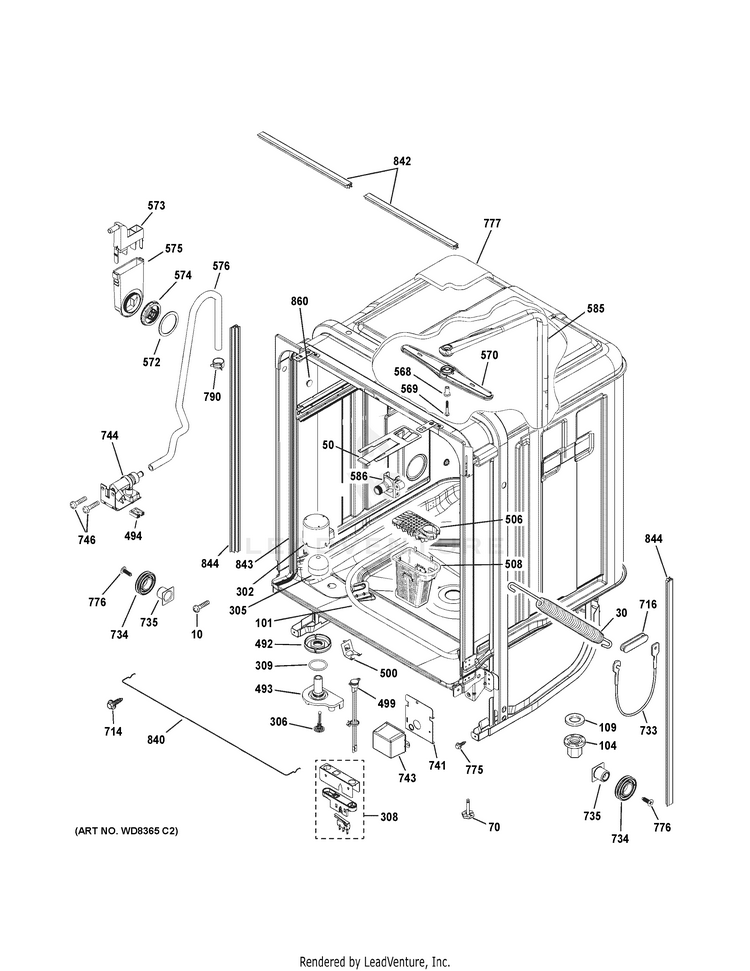

BODY PARTS

...
...
10
SCREW 10-32 GXTT FLP 595 GEH-WR01X10065
...
30
SPRING DOOR GEH-WD03X10019
...
50
KEEPER LATCH ASSEMBLY GEH-WD13X10018
...
70
SCREW LEVEL GEH-WD02X0320
...
101
ELEMENT HEATING ASM GEH-WD05X10010
...
104
NUT TOWER HEATER ASM GEH-WD01X10214
...
109
GROMMET HEATER GEH-WD01X10094
...
302
DOME FLOAT GEH-WD12X10119
...
305
FLOAT GEH-WD12X10047
...
306
STEM FLOAT GEH-WD12X10048
...
308
SWITCH FLOOD ASM GEH-WD21X10168
...
309
SEAL FLOOD SWITCH GEH-WD01X10264
...
492
LOCKNUT GEH-WD12X10135
...
493
BASE FLOOD SWITCH GEH-WD12X10183
...
494
HSNG SPECIAL-WATER VALVE GEH-WD21X10355
...
499
TCO SERVICE KIT GEH-WD01X10420
...
500
BRACKET TCO GEH-WD01X10425
...
506
COVER INLET GEH-WD12X10309
...
508
FILTER SUMP & COVER ASM GEH-WD22X10077
...
568
BEARING SPRAY ARM UP GEH-WD01X10410
...
569
SCR 8-32 B HXW 1.13 SS GEH-WD02X10109
...
570
ARM SPRAY UPPER ASM GEH-WD22X10069
...
572
GASKET WATER INLET GEH-WD08X10044
...
573
COVER WATER INLET GEH-WD12X10129
...
574
NUT WATER INLET GEH-WD01X10220
...
575
FUNNEL AND GASKET ASM GEH-WD12X10181
...
576
HOSE FILL GEH-WD24X10024
...
585
CONDUIT MAIN GEH-WD12X10113
...
586
CONE DOCKING GEH-WD12X10121
...
714
SCREW 8-18 B HXW 480 S GEH-WD02X10083
...
716
LINK HINGE ARM GEH-WD14X10009
...
733
CABLE ASM GEH-WD01X10212
...
734
PULLEY HINGE GEH-WD01X10217
...
735
CUP HINGE GEH-WD01X10218
...
741
BRACKET J BOX GEH-WD12X10124
...
743
COVER JUNCTION BOX GEH-WD12X448
...
744
VALVE WATER INLET GEH-WD15X10011
...
746
SCR 10-24X3/8 TT HEX GEH-WD02X0248
...
775
SCR 10-16X1/2 AB HEXW S GEH-WD02X5166
...
776
SCR 10-32 C HX 7/16 S GEH-WD02X10159
...
777
INSULATION TUB BLANKET GEH-WD01X10448
...
790
CLAMP HOSE GEH-WH01X2036
...
840
SPRING GASKET GEH-WD03X10020
...
842
TRIM GASKET GEH-WD08X10054
...
843
GASKET TUB GEH-WD08X10032
...
844
TRIM GASKET GEH-WD08X10055
...
860
PLUG BUTTON GEH-WD01X10223

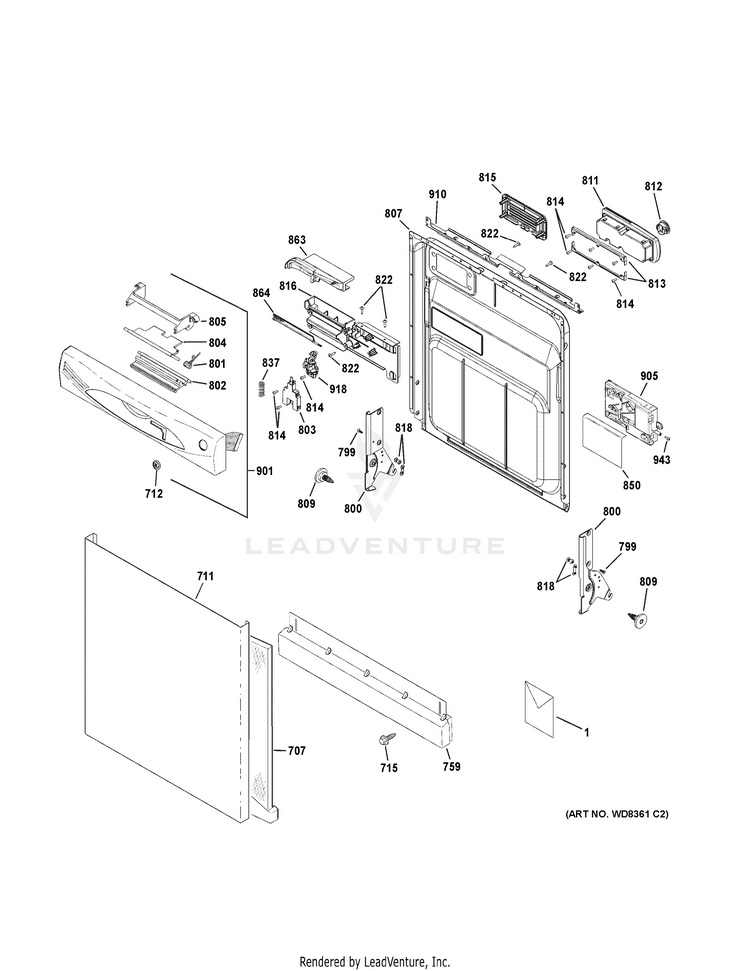

ESCUTCHEON & DOOR ASSEMBLY

...
...
1
PM MINI MANUAL GEH-31-30619-2
...
1
PM MANUAL USE & CARE GEH-49-55066-1
...
1
PM INSTRUCTION INSTALL GEH-31-30260
...
707
BLOCK FOAM DOOR GEH-WD01X10407
...
711
KIT DOOR PANEL GEH-WD31X10108
...
712
BADGE GEH-WD34X11493
...
715
SCREW 8-18 B 1HW 1/2 S N GEH-WD02X10086
...
759
TOEKICK ASM GEH-WD27X10168
...
799
SCR 10-32 GXTT FLP.595 S GEH-WD02X10149
...
800
ARM HINGE RH ASM GEH-WD14X10047
...
800
ARM HINGE LH ASM GEH-WD14X10046
...
801
SPRING RECESS DOOR GEH-WR02X10585
...
802
HANDLE LATCH WHITE GEH-WD13X10010
...
803
SWITCH INTERLOCK ASM GEH-WD21X10169
...
804
ACTUATOR HANDLE GEH-WD13X10045
...
805
RETAINER HANDLE GEH-WD13X10009
...
807
DOOR INNER ASSY PS GEH-WD31X10042
...
809
SCREW 10-32GX FLT25 615 GEH-WD02X10084
...
811
MODULE RINSE AND CAP ASM GEH-WD12X10163
...
812
CAP RINSE ASM GEH-WD12X10122
...
813
BRACKET DETERGENT DISPLA GEH-WD01X10207
...
814
SCR 8-10 PL TRP 1/2 S GEH-WD02X10104
...
815
COVER VENT GEH-WD12X10127
...
816
VENT BRACKET GEH-WD12X10348
...
818
BEARING HINGE ARM GEH-WD12X10313
...
822
SCR 8-18 AB TR 7/8S GEH-WD02X10106
...
837
SPRING PLUNGER GEH-WD03X10026
...
850
CONTROL SHIELD GEH-WD01X10423
...
863
AIR DIVERTER ASM GEH-WD12X10306
...
864
FLAPPER VENT GEH-WD12X10067
...
901
ESCUTCHEON ASM GEH-WD34X11625
...
905
PS KIT AP3 RTP GEH-WD21X10397
...
910
BRACE ESCUTCHEON W/GASKT GEH-WD34X11639
...
918
VENT DRIVER ASM GEH-WD21X10172
...
943
SCREW GEH-WZ05X0219

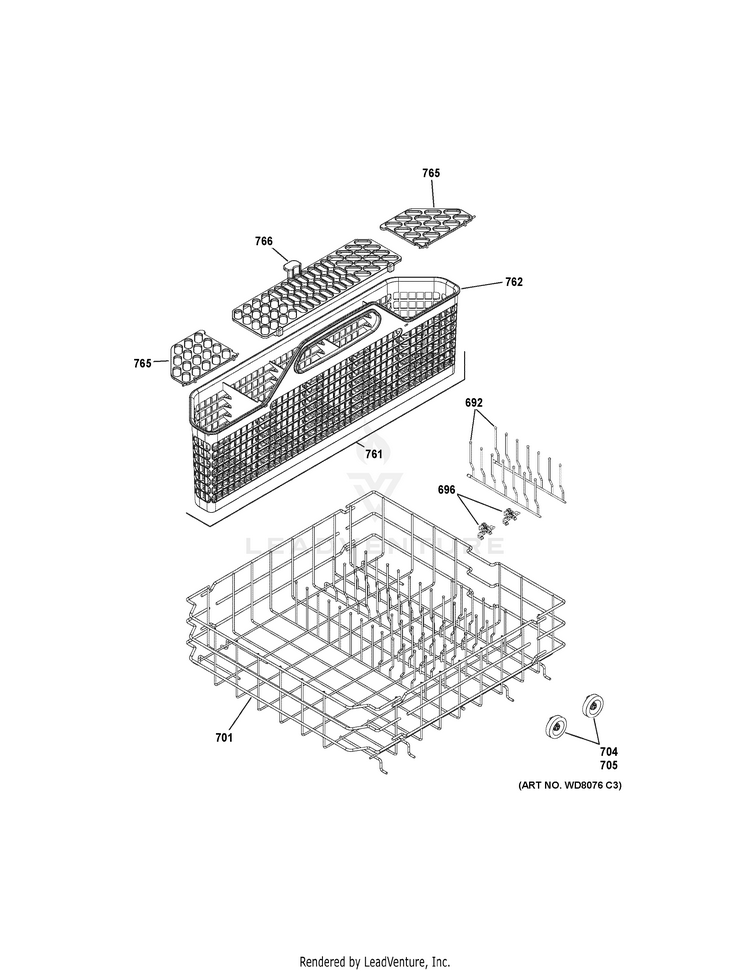

LOWER RACK ASSEMBLY

...
...
692
COMB LOWER RACK ASM GEH-WD28X10248
...
696
RETAINER COMB GEH-WD12X10118
...
701
RACK ROLLER ASM LOWER GEH-WD28X10257
...
704
STUD ROLLER - LOWER GEH-WD12X10277
...
705
ROLLER LOWER RACK GEH-WD12X10136
...
761
BASKET SILVERWARE ASM GEH-WD28X10128
...
762
BASKET SILVERWARE LONG GEH-WD28X10237
...
765
LID BASKET GEH-WD28X10236
...
766
LID BASKET GEH-WD28X10131

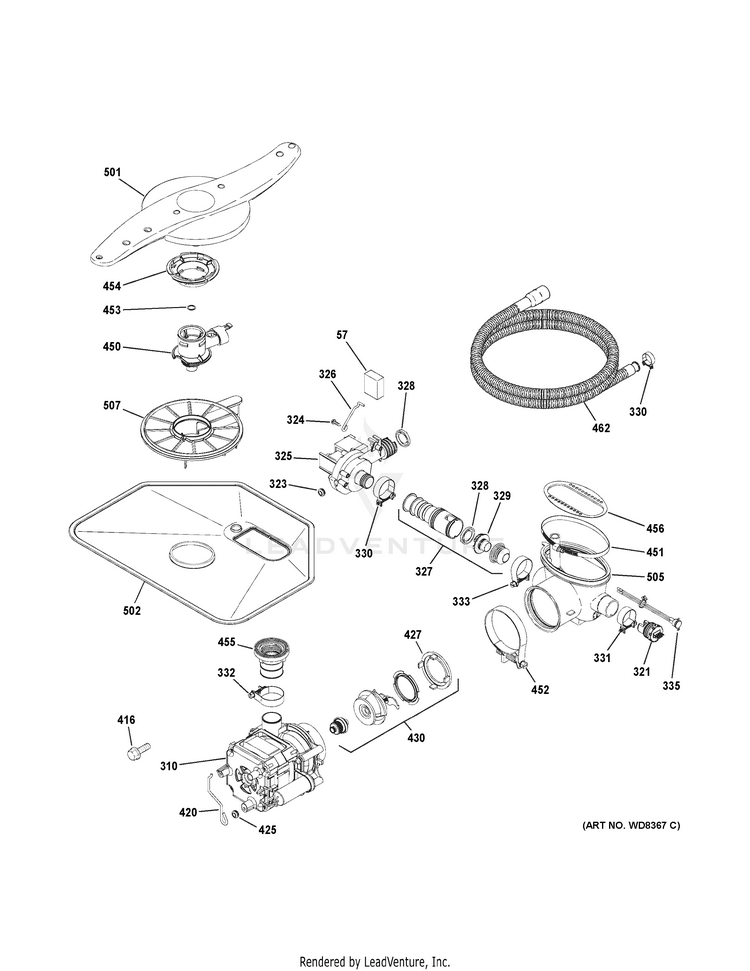

MOTOR-PUMP MECHANISM

...
...
57
BLOCK FOAM GEH-WD01X10284
...
310
MECHANISM ASM GEH-WD26X10038
...
321
SENSOR TURBIDITY GEH-WD21X10272
...
323
GROMMET GEH-WD01X10269
...
324
SCR 8-18 AB IHW 5/8 S GEH-WR01X10652
...
325
REPLACING WD26X10042 GEH-WD26X10048
...
326
HANGER DRAIN PUMP GEH-WD01X10282
...
327
ADAPTOR PUMP ASM GEH-WD12X10308
...
328
VALVE FLAPPER DUAL PUMP GEH-WD01X10406
...
329
SEAT CHECK VALVE GEH-WD01X10405
...
330
CLAMP GEH-WD01X10279
...
331
CLAMP GEH-WD01X10104
...
332
CLAMP GEH-WD01X10103
...
333
WORM GEAR CLAMP GEH-WD01X10335
...
335
TCO SERVICE KIT GEH-WD01X10420
...
416
SCR 10-32 TT HEX .575S GEH-WD02X10141
...
420
HANGER MECH ASSY GEH-WD01X10211
...
425
GROMMET GEH-WD01X10101
...
427
WEAR RING BASE GEH-WD12X0354
...
430
KIT - IMPELLER ASM GEH-WD19X10038
...
450
HUB VENTURI ASSY GEH-WD18X10009
...
451
CLAMP SUMP GEH-WD01X10210
...
452
CLAMP HOSE GEH-WD01X1392
...
453
BEARING SPRAY ARM LOW GEH-WD01X10107
...
454
NUT HUB FINE FILTER GEH-WD12X10061
...
455
CONNECTOR PUMP ASSY GEH-WD18X10010
...
456
PLATE SUMP GEH-WD01X10219
...
462
DRAIN TUBE ASM GEH-WD24X10035
...
501
ARM SPRAY LOW ASM GEH-WD22X10063
...
502
COARSE FILTER ASM GEH-WD22X10076
...
505
SUMP INLET GEH-WD18X10026
...
507
FILTER FINE ASM GEH-WD12X10109

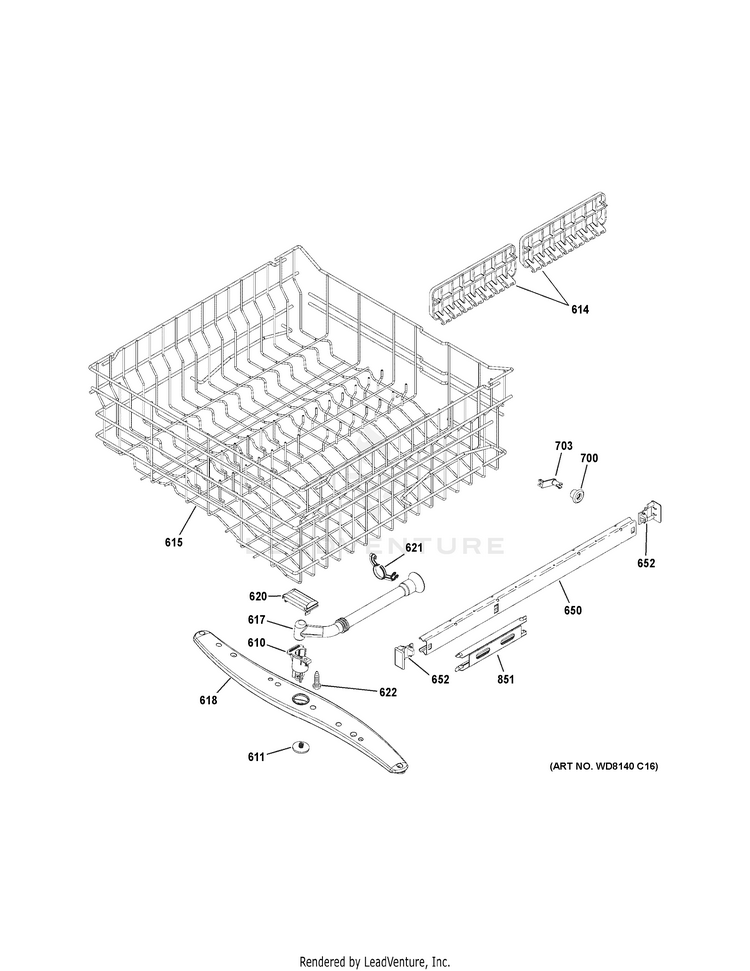

UPPER RACK ASSEMBLY

...
...
610
HUB SPRAY ARM MID GEH-WD12X10353
...
611
SCR B-16 HXW 1/2 SS GEH-WD02X10169
...
614
SHELF CUP GEH-WD28X0302
...
615
RACK UPPER ROLL ASM GEH-WD28X10275
...
617
CONDUIT SPRAY ARM MID GEH-WD12X10110
...
618
ARM SPRAY MID ASM GEH-WD22X10066
...
620
BRACKET SPRAY ARM MID GEH-WD12X10111
...
621
CONDUIT CARRIER MID GEH-WD12X10114
...
622
SCREW 8-16 HXW 1/2 SS GEH-WD02X10067
...
650
INNER RAIL UPPER RACK GEH-WD30X10021
...
652
CAP END - RACK SLIDE GEH-WD12X10184
...
700
ROLLER UPPER RACK GEH-WD12X10138
...
703
STUD ROLLER GEH-WD12X10141
...
851
CAGE ROLLER BEARING ASM GEH-WD30X10020
