GE GDP615HBM0TS Dishwasher

Model: GDP615HBM0TS

Back To Assemblies

Save Part Not Listed?
product name

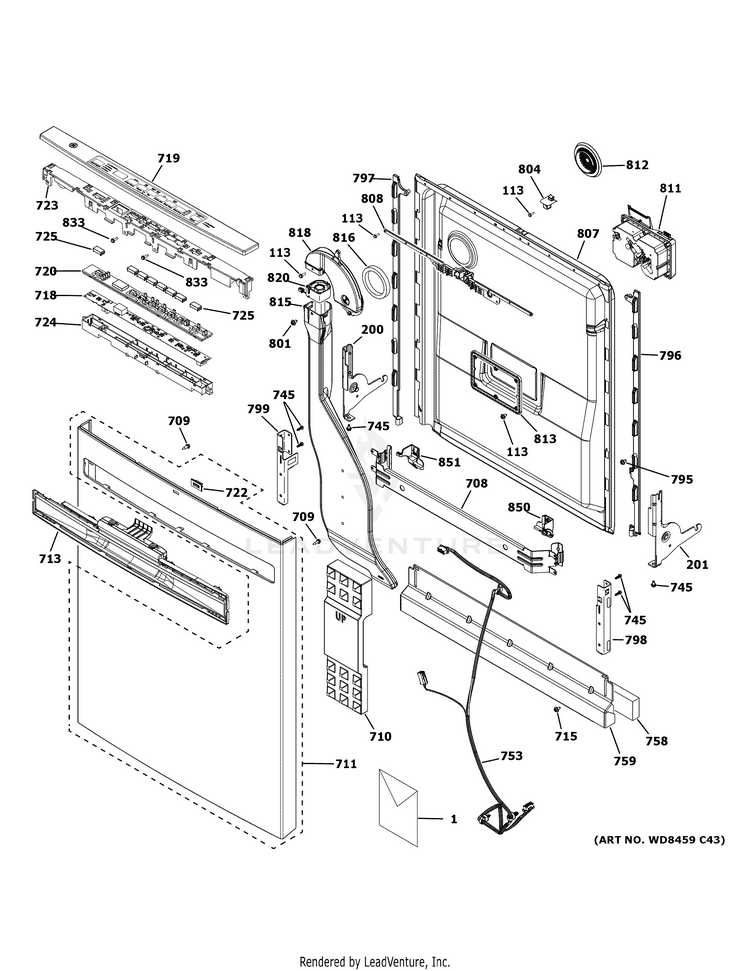

ESCUTCHEON & DOOR ASSEMBLY

...
...
1
PM INSTALL INSTRUCTIONS GEH-31-31586
...
1
PM QUICK START GUIDE GEH-49-55121
...
1
PM MINI-MANUAL GEH-31-30904
...
1
INSERT MINI MANUAL GEH-165D9739P038
...
1
PM OWNERS MANUAL GEH-49-55122
...
113
SCREW 8-16 HXW 1/2 SS GEH-WD02X10067
...
200
ARM HINGE ASM GEH-WD14X20128
...
201
ARM HINGE ASM GEH-WD14X20129
...
708
BRACE DOOR ASM GEH-WD30X10045
...
709
SCR 8-18 AB HXW 9/16 S GEH-WR01X11012
...
710
BLOCK FOAM DOOR GEH-WD01X10578
...
711
OUTER DOOR ASM, TS GEH-WD27X24505
...
713
HANDLE ASM, DS GEH-WD09X24503
...
715
SCR 10-32 GX HXW 3/8 GEH-WD02X10220
...
718
CONFIGURED UI CONTROL GEH-WD21X24825
...
719
CONSOLE CVR GRAPHICS ASM GEH-WD34X24506
...
720
SILICONE LIGHT PIPE GEH-WD12X23316
...
722
LENS AND ADHESIVE ASM GEH-WD09X20066
...
723
CONSOLE TOP CONTROL GEH-WD12X20184
...
724
HOUSING BOTTOM GEH-WD12X10470
...
725
BUTTON GEH-WD09X24425
...
745
SCR 10-32 GX IHXW 9/16 S GEH-WD01X22514
...
753
HARNESS ASM DOOR GEH-WD21X22916
...
758
INSULATION TOE KICK GEH-WD27X21334
...
759
TOE KICK PAINTED ASM GEH-WD27X10392
...
795
SCREW T15 8-16 PLASTITE GEH-WD02X22628
...
796
ATTACH STRIP RH GEH-WD01X22836
...
797
ATTACH STRIP GEH-WD01X10634
...
798
BRACKET SUPPORT HINGE GEH-WD01X22512
...
799
BRACKET SUPPORT HINGE GEH-WD01X22513
...
801
SCR 6-20 GXB IHXW 3/8 NI GEH-WB02T10324
...
804
STRIKER LATCH GEH-WD13X10071
...
807
INNER DOOR ASM GEH-WD31X24500
...
808
ATTACHMENT STRIP TOP GEH-WD13X22837
...
811
DETERGENT DISP NO SENSOR GEH-WD12X24058
...
812
COVER VENT GEH-WD24X20586
...
813
PLATE DETERGENT GEH-WD12X10462
...
815
VENT CONDUIT ASM GEH-WD12X20218
...
816
DOOR VENT SEAL GEH-WD08X10092
...
818
TRANSITION PIECE ASM GEH-WD12X23557
...
820
VENT FAN ASM GEH-WD24X20256
...
833
SCREW GEH-WD2X295
...
850
TRIM DOOR RH GEH-WD12X22540
...
851
TRIM DOOR LH GEH-WD12X22541
