GE GDF650SFJ5DS Dishwasher

Model: GDF650SFJ5DS

Save Part Not Listed?
product name

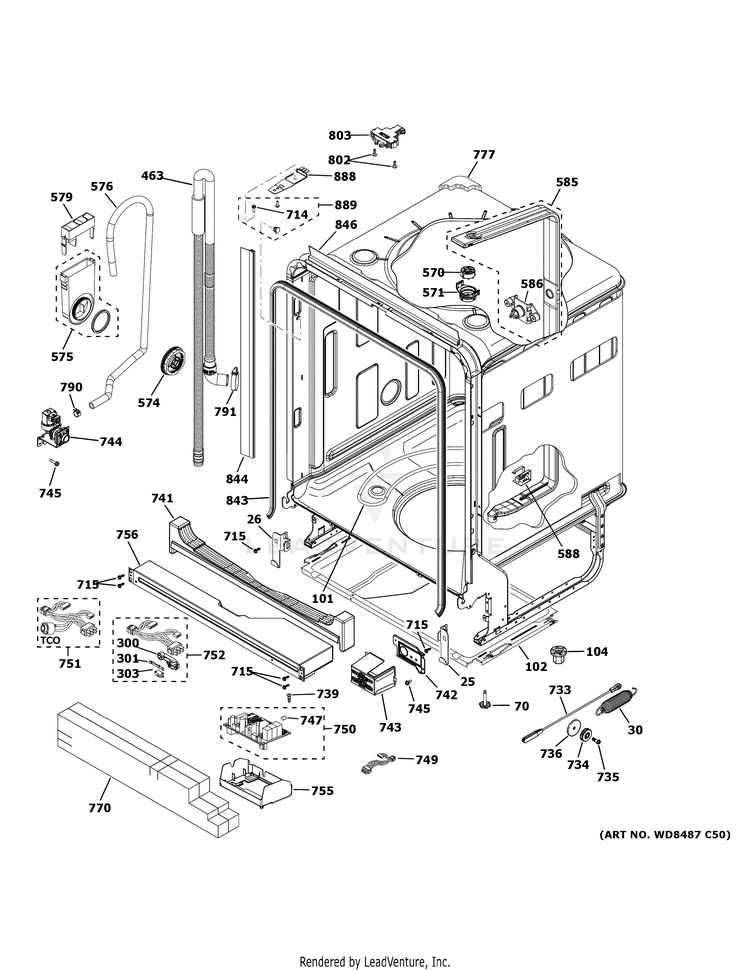

BODY PARTS

...
...
25
BRACKET CABLE RH GEH-WD01X23776
...
26
BRACKET CABLE LH GEH-WD01X23777
...
30
SPRING DOOR GEH-WD03X20446
...
70
SCREW LEVELING GEH-WD12X23057
...
101
ELEMENT HEATING ASM GEH-WD05X23763
...
102
PAN LEAK GEH-WD18X22842
...
104
NUT TOWER HEATER GEH-WD01X10070
...
300
HOUSING SWITCH FLOOD GEH-WD01X23496
...
301
LEVER SWITCH FLOOD GEH-WD16X23497
...
303
SWITCH FLOOD GEH-WD21X23498
...
463
HOSE LOOP DRAIN HIGH GEH-WD24X23016
...
570
IMPELLER GEH-WD22X20689
...
571
HUB GEH-WD22X20688
...
574
WATER INLET NUT GEH-WD01X25078
...
575
FUNNEL AND GASKET ASM GEH-WD12X25079
...
576
HOSE FILL GEH-WD24X10064
...
579
FILL FUNNEL CAP GEH-WD12X25080
...
585
CONDUIT MAIN GEH-WD12X21681
...
586
DOCKING PORT SS GEH-WD12X20118
...
588
CLIP CONDUIT GEH-WD01X23982
...
714
SCREW 8-18 B HXW 480 S GEH-WD02X10083
...
715
SCR 10-32 GX HXW 3/8 GEH-WD02X10220
...
733
CABLE ASM PULLEY GEH-WD01X22820
...
734
PULLEY HINGE GEH-WD16X21836
...
735
SCR 10-32 TT CB 1/4 ZN GEH-WD01X21837
...
736
FRICTION WASHER GEH-WD01X20593
...
739
SCREW 8-32 D HXW 3/8 S, 13.4 GEH-WD02X24216
...
741
SPACER TUB FRONT GEH-WD01X23558
...
742
BRACKET JUNCTION BOX GEH-WD12X10411
...
743
COVER JUNCTION BOX GEH-WD12X10412
...
744
VALVE WATER ASM GEH-WD15X22999
...
745
SCR 10-32 GX IHXW 9/16 S GEH-WD01X22514
...
747
CONTROL BOARD FUSE 4.1 AMP GEH-WD21X25696
...
749
HARNESS ASM JUMPER GEH-WD21X23559
...
750
CONFIGURED MACHINE CONTROL BOARD GEH-WD21X25106
...
751
HARNESS ASM AC GEH-WD21X25082
...
752
HARNESS ASM DC GEH-WD21X25083
...
755
CONTROL BOX BOTTOM GEH-WD30X24239
...
756
CONTROL BOX TOP GEH-WD27X23178
...
770
BAG INSULATION ASM GEH-WD01X23983
...
777
TUB INSULATION GEH-WD01X21314
...
790
CLAMP HOSE GEH-WD01X22786
...
791
CLAMP GEH-WD01X24246
...
802
SCR 8-18 AB TSQ 5/8 SS GEH-WR01X10380
...
803
LATCH TUB SIDE STANDARD GEH-WD21X10490
...
843
GASKET TUB SS GEH-WD08X22095
...
844
TRIM TUB BK/SS GEH-WD08X10095
...
846
TRIM TUB GEH-WD08X20719
...
888
BRACKET COUNTERTOP GEH-WD01X21740
...
889
CT SCREW ASM GEH-WD35X10383

ESCUTCHEON & DOOR ASSEMBLY

...
...
1
PM OWNERS MANUAL GEH-49-55102
...
1
PM INSTALL INSTRUCTIONS GEH-31-31560
...
1
PM MINI-MANUAL GEH-31-30898
...
113
SCREW 8-16 HXW 1/2 SS GEH-WD02X10067
...
200
ARM HINGE ASM LH GEH-WD14X23739
...
201
ARM HINGE ASM RH GEH-WD14X23738
...
710
BLOCK FOAM DOOR GEH-WD01X10585
...
711
PAINTED OUTER DOOR DS GEH-WD27X24243
...
745
SCR 10-32 GX IHXW 9/16 S GEH-WD01X22514
...
753
HARNESS ASM DOOR GEH-WD21X21664
...
758
INSULATION TOE KICK GEH-WD27X21334
...
759
TOE KICK PAINTED ASM GEH-WD27X10392
...
795
SCREW T15 8-16 PLASTITE GEH-WD02X22628
...
796
ATTACH STRIP RH GEH-WD01X22836
...
797
ATTACH STRIP GEH-WD01X10634
...
801
SCR 6-20 GXB IHXW 3/8 NI GEH-WB02T10324
...
804
STRIKER LATCH GEH-WD13X10071
...
805
ATTACHMENT STRIP TOP GEH-WD13X22837
...
807
DOOR INNER SS GEH-WD31X22821
...
808
POCKET HANDLE GEH-WD12X22787
...
811
DETERGENT DISP NO SENSOR GEH-WD12X24058
...
812
COVER VENT GEH-WD24X20586
...
813
PLATE DETERGENT GEH-WD12X10462
...
815
VENT CONDUIT ASM GEH-WD12X20218
...
816
DOOR VENT SEAL GEH-WD08X10092
...
818
TRANSITION PIECE ASM GEH-WD12X23557
...
820
VENT FAN ASM GEH-WD24X20256
...
850
TRIM DOOR RH GEH-WD12X22835
...
851
TRIM DOOR LH GEH-WD12X22834
...
901
CONTROL PANEL ASM DS GEH-WD34X24245
...
902
SILICONE LIGHT PIPE GEH-WD12X22778
...
903
CONFIGURED UI CONTROL GEH-WD21X23702
...
906
GE BADGE BLACK STAINLESS GEH-WR04X28513
...
910
BUTTON TREE GEH-WD09X24244

LOWER RACK ASSEMBLY

...
...
630
FDT COATED LOWER RACK GEH-WD28X20164
...
631
FDT COATED LOWER RACK GEH-WD28X20165
...
695
CLIP LOWER RACK GEH-WD12X20171
...
700
INDEXER GEH-WD28X20166
...
701
RACK LOWER ASM COATED GEH-WD28X22827
...
702
COVER ROLLER GEH-WD12X20161
...
703
CARRIER ROLLER GEH-WD12X20158
...
704
ROLLER LOWER RACK GEH-WD12X10435
...
706
CARRIER ROLLER GEH-WD12X20159
...
707
COVER ROLLER GEH-WD12X20160
...
726
RACK COVER HANDLE GEH-WD09X22840
...
761
SILVERWARE BASKET ASM GEH-WD28X22624
...
763
MIDDLE SILVERWARE BASKET GEH-WD28X22625
...
766
BASKET ASM SIDE GEH-WD28X20154
...
767
BASKET ASM SIDE GEH-WD28X20155

SUMP & FILTER ASSEMBLY

...
...
113
SCREW 8-16 HXW 1/2 SS GEH-WD02X10067
...
308
FLOAT FLOOD GEH-WD21X22822
...
451
USER CLEANABLE FINE FILTER GEH-WD12X23736
...
453
VENT FILTER GEH-WD24X10057
...
454
ADAPTOR FILTER GEH-WD12X10419
...
462
DRAIN TUBE ASM GEH-WD24X10062
...
501
ARM SPRAY LOWER ASM GEH-WD22X10091
...
502
FILTER COARSE SS GEH-WD22X10093
...
506
GASKET SUMP MANIFOLD GEH-WD08X21320
...
509
PLATE FLOOR MANUAL GEH-WD12X21677
...
510
STEM FLOOD GEH-WD21X22838
...
511
O RING GEH-WD01X22825
...
792
SPRING CLAMP GEH-WD01X25061

SUMP & MOTOR MECHANISM

...
...
42
SCR10 - 16 AB HXW 3/4 SS GEH-WD02X22736
...
310
PUMP WASH MAIN ASM GEH-WD26X22826
...
321
SENSOR TURBIDITY ASM GEH-WD21X22830
...
325
DRAIN PUMP ASM GEH-WD19X24394
...
330
CLAMP GEH-WD01X10571
...
332
CLAMP GEH-WD01X10573
...
333
LATCH CAM GEH-WD01X10632
...
334
LATCH CAM GEH-WD01X10575
...
335
CLAMP GEH-WD01X10572
...
420
HANGER DRAIN PUMP GEH-WD01X10579
...
425
GROMMET GEH-WD01X10101
...
426
SCR 10-18 X 5/8 GEH-WD02X22781
...
503
SCR 10-16 AB HXW .532 GEH-WB01T10103
...
504
DIVERTER PASSIVE MAIN AS GEH-WD18X21678
...
505
SUMP MANIFOLD GEH-WD18X22782
...
791
CLAMP GEH-WD01X24246

UPPER RACK ASSEMBLY

...
...
113
SCREW 8-16 HXW 1/2 SS GEH-WD02X10067
...
614
COVER BOTTLE BLASTER GEH-WD24X20263
...
615
RACK UPPER ASM COATED GEH-WD28X22843
...
616
SHELF CUP GEH-WD28X20177
...
617
HOSE BOTTLE BLASTER GEH-WD24X20262
...
618
ARM SPRAY MID ASM GEH-WD22X10089
...
632
CONDUIT MID BLASTER ASM GEH-WD21X20309
...
633
BOTTLE BLASTER ASM GEH-WD22X25086
...
634
BOTTLE WASHER CLIP GEH-WD12X22618
...
650
INNER RAIL UPR RACK ASM GEH-WD30X20110
...
680
BRACKET ASM UPPER RACK GEH-WD12X20108
...
681
BRACKET ASM UPPER RACK GEH-WD12X20109
...
682
BRACKET FIXED GEH-WD12X20112
...
683
BRACKET FIXED GEH-WD12X20113
...
726
RACK COVER HANDLE GEH-WD09X22840
