GE GDF510PSD0SS Dishwasher

Model: GDF510PSD0SS

Save Part Not Listed?
product name

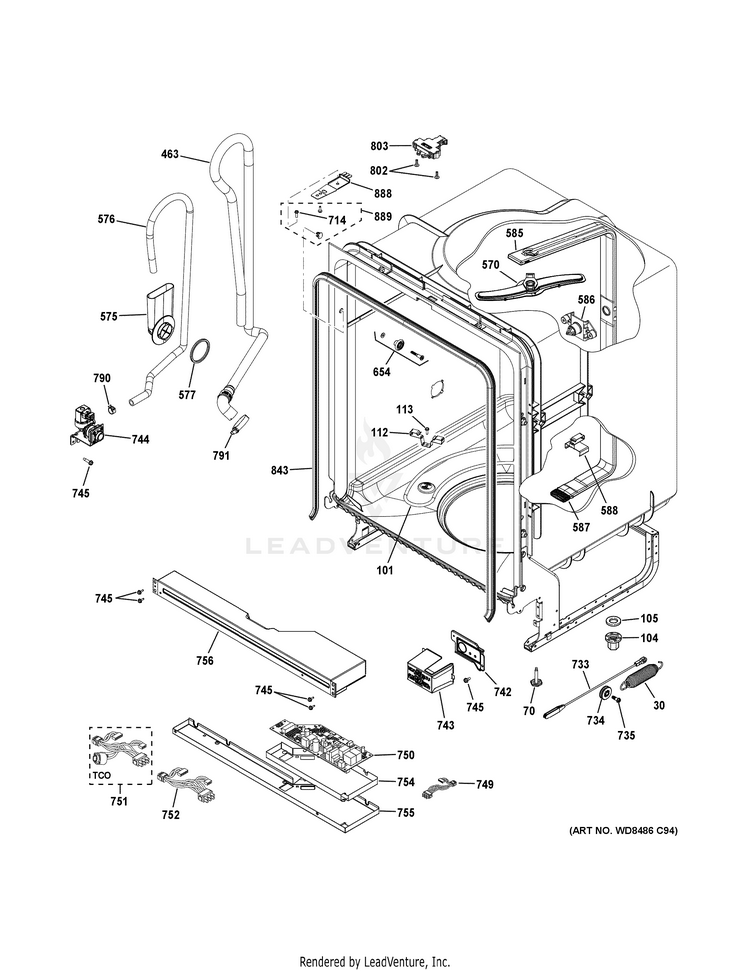

BODY PARTS

...
...
30
SPRING DOOR GEH-WD03X10036
...
70
SCREW LEVELING GEH-WD12X10417
...
101
ELEMENT HEATING ASM GEH-WD05X10015
...
104
NUT TOWER HEATER GEH-WD01X10070
...
105
HEATER WASHER GEH-WD01X1168
...
112
SUPPORT HEATER GEH-WD01X10568
...
113
SCREW 8-16 HXW 1/2 SS GEH-WD02X10067
...
463
HOSE LOOP DRAIN HIGH GEH-WD24X10067
...
570
ARM SPRAY UPPER ASM GEH-WD22X10088
...
575
FUNNEL FILL GEH-WD12X10413
...
576
HOSE FILL GEH-WD24X10056
...
577
GASKET FILL FUNNEL GEH-WD08X10087
...
585
CONDUIT MAIN ASM GEH-WD12X20117
...
586
PORT DOCKING SUPPLY GEH-WD12X10418
...
587
SEAL CONDUIT GEH-WD08X10098
...
588
SHIELD CONDUIT GEH-WD12X21675
...
654
TUB ROLLER AND STUD ASM GEH-WD12X10433
...
714
SCR 8-18 B HXW .480 S GEH-WD02X10160
...
733
CABLE ASM PULLEY GEH-WD01X10569
...
734
PULLEY HINGE GEH-WD16X10013
...
735
SCREW 8-16 HXW 1/2 SS GEH-WD02X10067
...
742
BRACKET JUNCTION BOX GEH-WD12X10411
...
743
COVER JUNCTION BOX GEH-WD12X10412
...
744
VALVE WATER ASM GEH-WD15X20119
...
745
SCR 10-32 GX IHXW 9/16 S GEH-WD01X22514
...
749
HARNESS ASM JUMPER GEH-WD21X10541
...
750
KIT SVC CONTROL MAIN GEH-WD21X10511
...
751
HARNESS ASM AC GEH-WD21X10495
...
752
HARNESS ASM DC GEH-WD21X20023
...
754
SHIELD DIELECTRIC GEH-WD01X20594
...
755
CONTROL BOX BOTTOM GEH-WD30X10043
...
756
CONTROL BOX TOP GEH-WD27X10390
...
790
CLAMP HOSE GEH-WD01X22786
...
791
CLAMP GEH-WD01X10611
...
802
SCR 8-18 AB TSQ 5/8 SS GEH-WR01X10380
...
803
LATCH TUB SIDE STANDARD GEH-WD21X10490
...
843
GASKET TUB GEH-WD08X10088
...
888
BRACKET COUNTERTOP GEH-WD01X21740
...
889
CT SCREW ASM GEH-WD35X10383

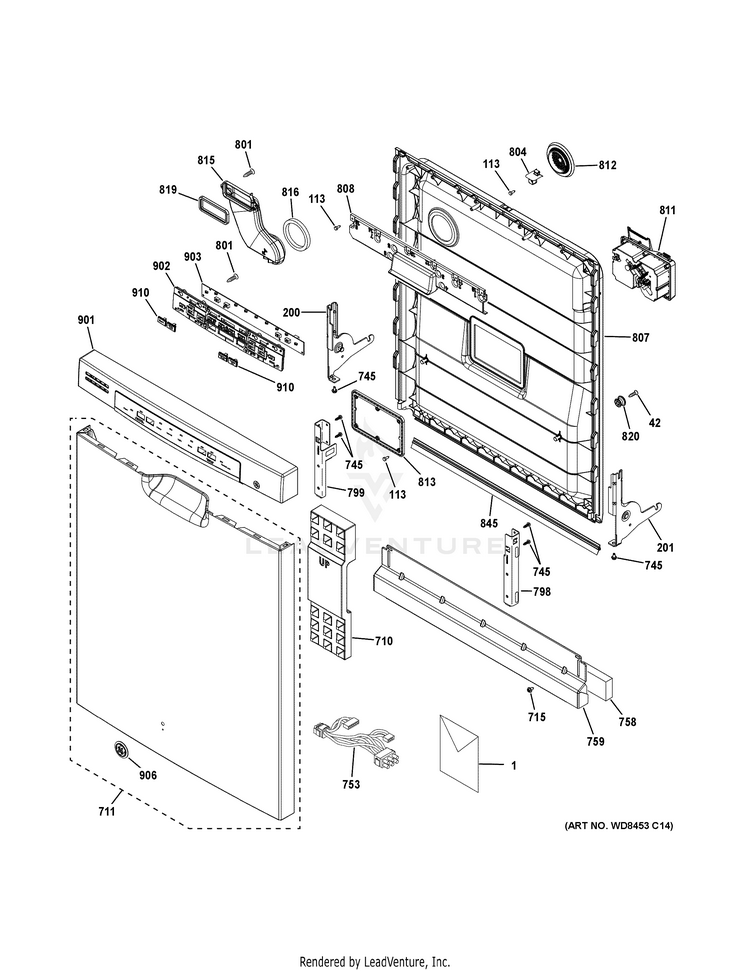

ESCUTCHEON & DOOR ASSEMBLY

...
...
1
PM MINIMANUAL GEH-31-30642-3
...
1
PM OWNERS MANUAL GEH-49-55089
...
1
INSERT MINI MANUAL GEH-165D9739P004
...
1
PM INSTALL INSTRUCTIONS GEH-31-31545
...
42
SCREW #8-3/4 L HX HD SS GEH-WD02X10110
...
113
SCREW 8-16 HXW 1/2 SS GEH-WD02X10067
...
200
ARM HINGE ASM RH GEH-WD14X10050
...
201
ARM HINGE ASM LH GEH-WD14X10051
...
710
BLOCK FOAM DOOR GEH-WD01X10578
...
711
OUTER DOOR FRONT CTRL SS GEH-WD34X11821
...
715
SCR 10-32 GX HXW 3/8 GEH-WD02X10220
...
745
SCR 10-32 GX IHXW 9/16 S GEH-WD01X22514
...
753
HARNESS ASM DOOR GEH-WD21X20715
...
758
INSULATION TOE KICK GEH-WD01X10581
...
759
TOE KICK PAINTED ASM GEH-WD27X10392
...
798
BRKT SUPPORT HINGE ASM GEH-WD01X20126
...
799
BRKT SUPPORT HINGE ASM GEH-WD01X20127
...
801
SCR 6-20 GXB IHXW 3/8 NI GEH-WB02T10324
...
804
STRIKER LATCH GEH-WD13X10071
...
807
DOOR INNER PLASTIC GEH-WD31X10139
...
808
POCKET HANDLE GEH-WD12X10422
...
811
MODULE DETERGENT GEH-WD12X21054
...
812
VENT - GREY/ HYBRID GEH-WD12X10471
...
813
PLATE DETERGENT GEH-WD12X10420
...
815
DIVERTER AIR ASM GEH-WD12X22517
...
816
DOOR VENT SEAL GEH-WD08X10092
...
819
GASKET VENT GEH-WD08X22476
...
820
MOUNTING BASKET DOOR GEH-WD01X10576
...
845
GASKET BEACH PLASTIC GEH-WD08X10090
...
901
PANEL CONTROL ASM GEH-WD34X11813
...
902
SILICONE LIGHT PIPE GEH-WD12X10441
...
903
INTERFACE USER FRONT GEH-WD21X10488
...
906
BADGE GE ASM GEH-WR04X10181
...
910
BUTTON TREE GEH-WD09X10082

LOWER RACK ASSEMBLY

...
...
701
RACK LOWER ASM COMPLETE GEH-WD28X10371
...
702
COVER ROLLER LH GEH-WD12X10439
...
703
CARRIER ROLLER LH GEH-WD12X10447
...
704
ROLLER LOWER RACK GEH-WD12X10435
...
706
CARRIER ROLLER RH GEH-WD12X10446
...
707
COVER ROLLER RH GEH-WD12X10438
...
761
BASKET SILVERWARE ASM GEH-WD28X10344
...
762
BASKET SILVERWARE GEH-WD28X10345
...
764
LID BASKET MIDDLE GEH-WD28X10343
...
765
LID BASKET SIDE GEH-WD28X10342

SUMP & FILTER ASSEMBLY

...
...
42
SCREW #8-3/4 L HX HD SS GEH-WD02X10110
...
113
SCREW 8-16 HXW 1/2 SS GEH-WD02X10067
...
308
SWITCH FLOOD ASM GEH-WD21X10519
...
451
FILTER MANUAL ASM GEH-WD12X20107
...
453
VENT FILTER GEH-WD24X10057
...
454
ADAPTOR FILTER GEH-WD12X10419
...
455
ADAPTER CONDUIT ASM GEH-WD18X10051
...
462
DRAIN TUBE ASM GEH-WD24X10062
...
501
ARM SPRAY LOWER ASM GEH-WD22X10091
...
502
FILTER COARSE SS GEH-WD22X10093
...
506
GASKET - SUMP MANIFOLD GEH-WD08X22758
...
509
PLATE FLOOR MANUAL GEH-WD12X10421
...
792
CLAMP GEH-WD01X10104

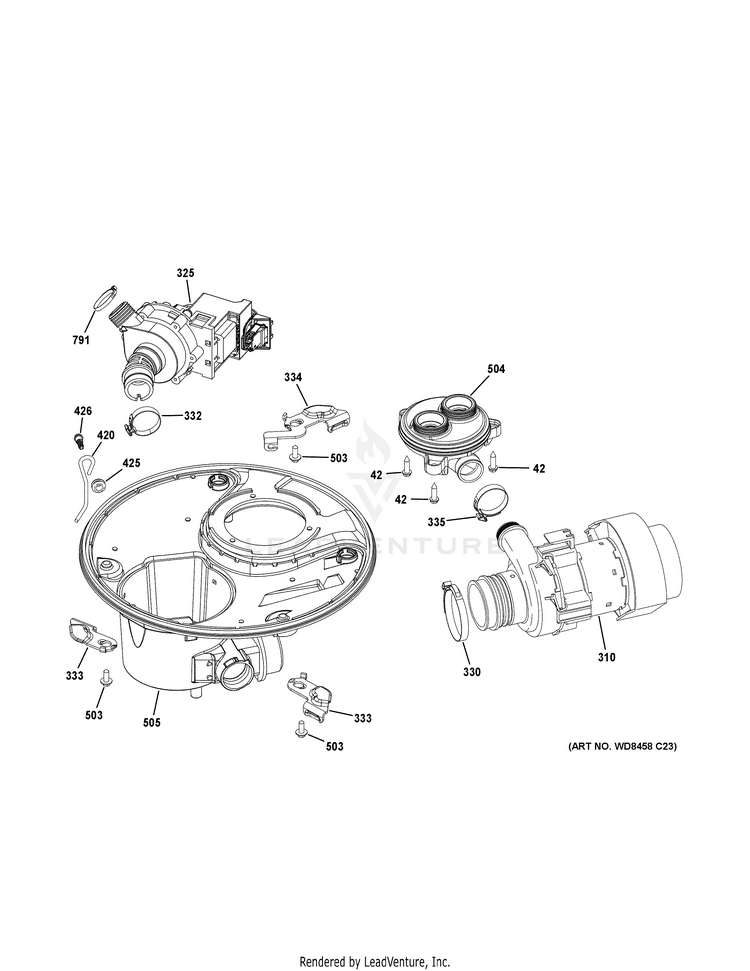

SUMP & MOTOR MECHANISM

...
...
42
SCREW #8-3/4 L HX HD SS GEH-WD02X10110
...
310
P1B WASH PUMP KIT GEH-WD49X23779
...
325
P1 DRAIN PUMP KIT GEH-WD35X20874
...
330
CLAMP GEH-WD01X10571
...
332
CLAMP GEH-WD01X10573
...
333
LATCH CAM GEH-WD01X10632
...
334
LATCH CAM GEH-WD01X10575
...
335
CLAMP GEH-WD01X10572
...
420
HANGER DRAIN PUMP GEH-WD01X10579
...
425
GROMMET GEH-WD01X10101
...
426
SCR 10-18 X 5/8 GEH-WD02X22781
...
503
SCR 10-16 AB HXW .532 GEH-WB01T10103
...
504
DIVERTER PASSIVE ASM GEH-WD18X10052
...
505
SUMP MANIFOLD GEH-WD18X10053
...
791
CLAMP GEH-WD01X10611

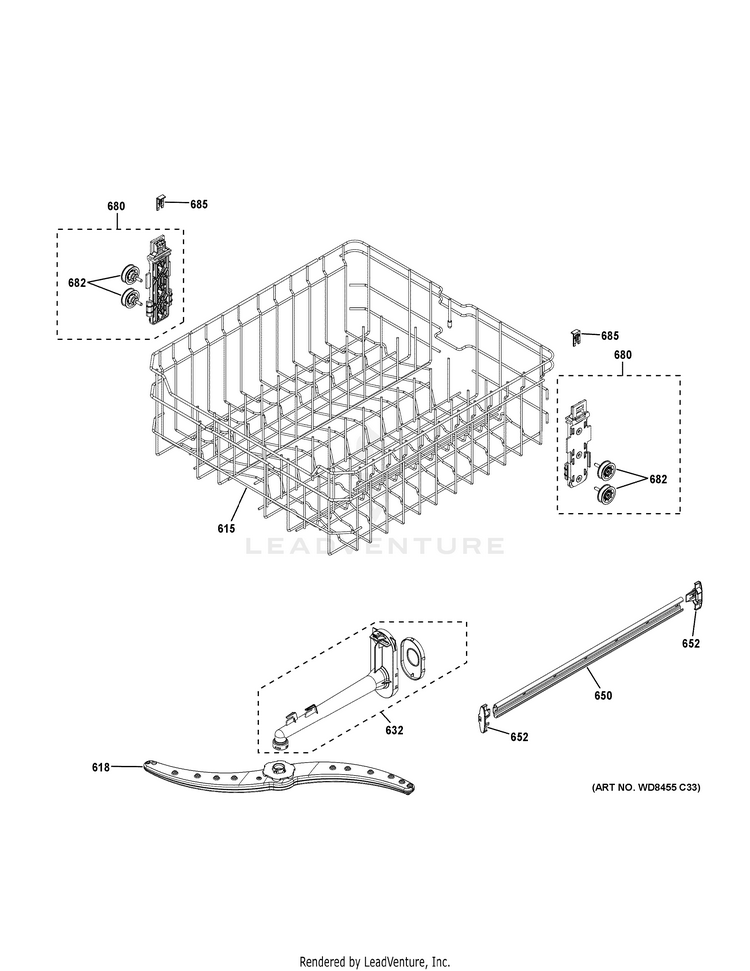

UPPER RACK ASSEMBLY

...
...
615
SERVICE KIT UPPER RACK GEH-WD28X10347
...
618
ARM SPRAY MID ASM GEH-WD22X10089
...
632
MID CONDUIT ASM GEH-WD22X10090
...
650
SLIDE RACK GEH-WD30X10042
...
652
END CAP GEH-WD12X10426
...
680
RACK BRACKET ASM GEH-WD12X10410
...
682
UPP RACK ROLLER STUD ASM GEH-WD12X10431
...
685
CLIP BRACKET GEH-WD12X10430
